ENERGY WOOD GRAPPLE 110 FOR EXCAVATORS
Light and efficient grapple for small excavators (max 2 t)
2-in-1: Cutting and loading

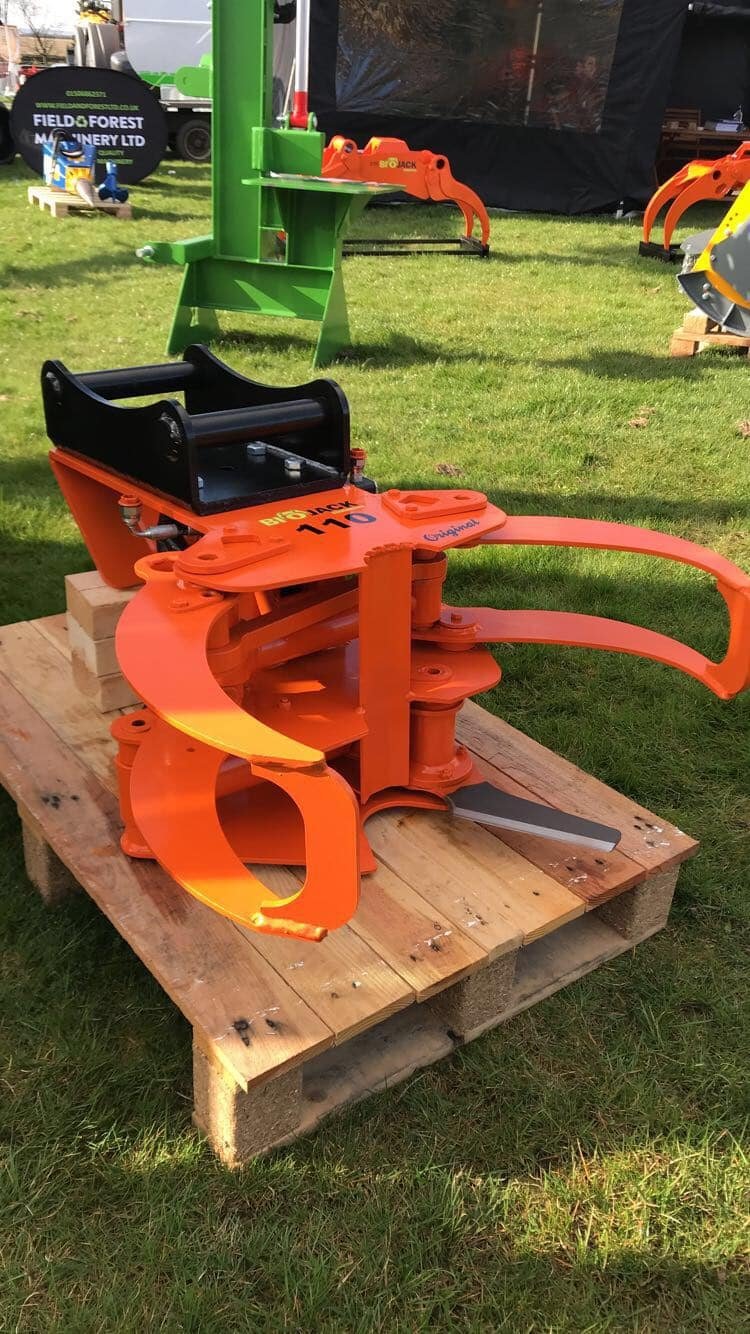

The Biojack 110 energy wood grapple has powerful cutting capacity for a device of its size. It is perfectly suited for harvesting low-grade timber and energy wood, and is a nifty tool, for instance, for clearing fields and roadsides.
Due to the moving blade, this farmers’ favourite can be used easily for both felling and loading, without any special measures. There is no need to remove the blade for loading; in the loading position it is securely stowed away inside the frame. Installation is easy and swift; no additional hydraulics is required, other than a pressure and a return hose. The technical features of this Biojack grapple ensure that stumps are cut low and that the cutting result is smooth.
- 2-in-1: cutting and loading
- for harvesting low-grade timber and clearing of fields and roadsides
- impressive cutting capacity for a device of its size
- moving blade
- no additional hydraulics is required, other than a pressure and a return hose
- cutting at the ground level > low stump
- flexible work cycle
- available with the following excavator couplings: S40, S45, S50, S60, S70, S80 and NTP10
- base machine: small excavators
Technical data
Weight (without a coupling) – n. 80 kg
Trunk cutting diameter max. (Nordic timber species) – 0 – 120 mm
Grapple opening – 580 mm
Oil flow – 10 – 20 l/min
Operating pressure range (total pressure – back pressure) – 180 bar
Back pressure, max. – 20 – 30 bar
Total height in the felling position – 330 mm
