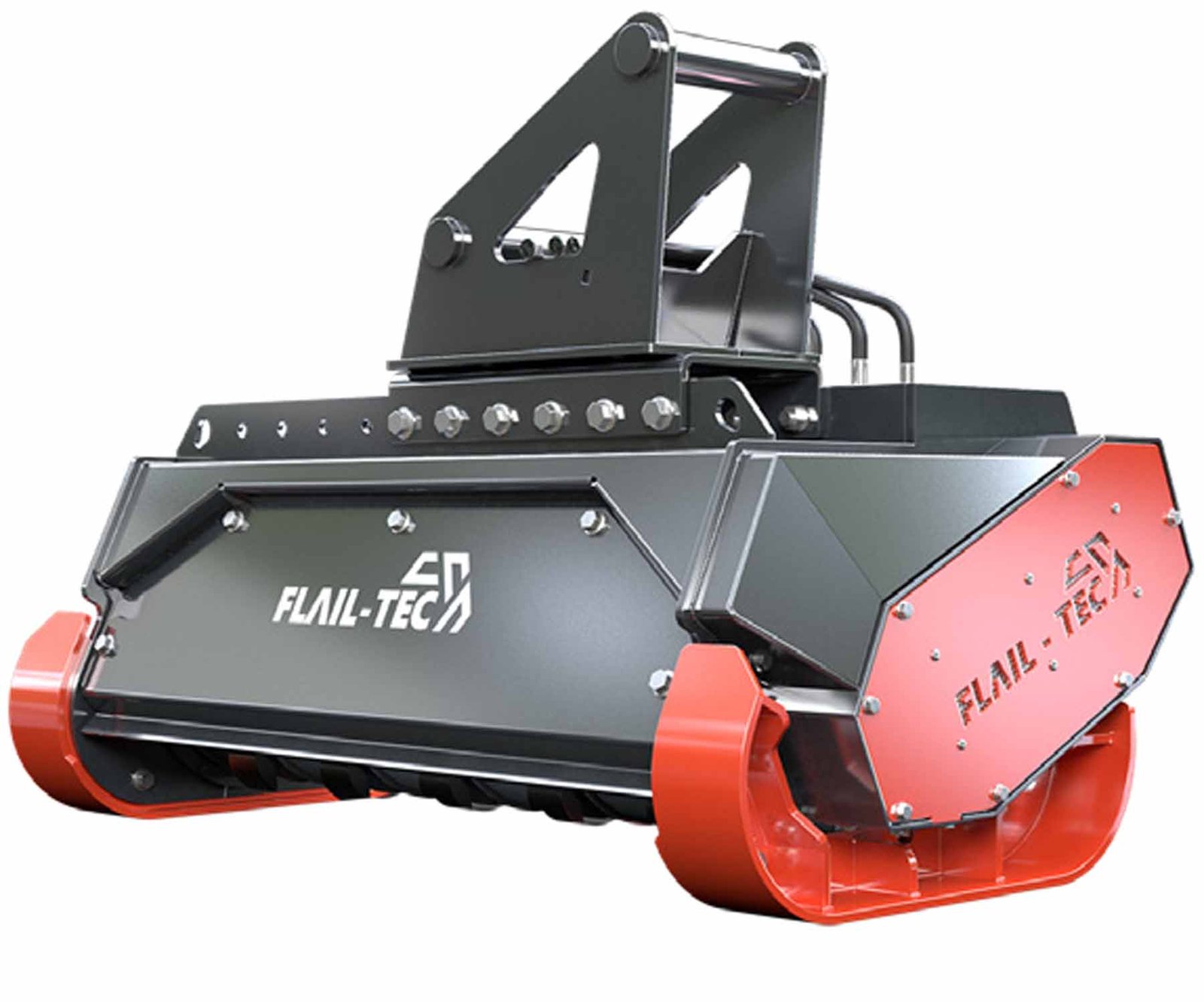

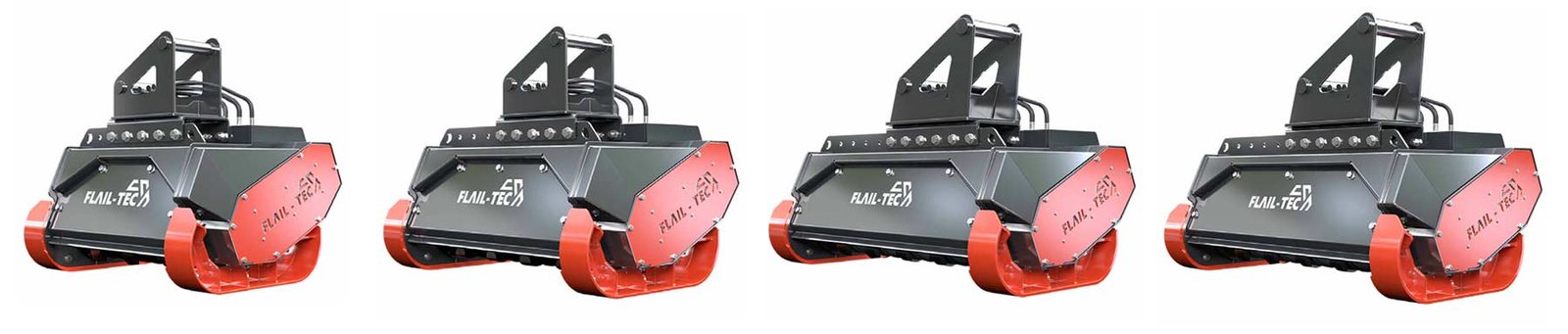

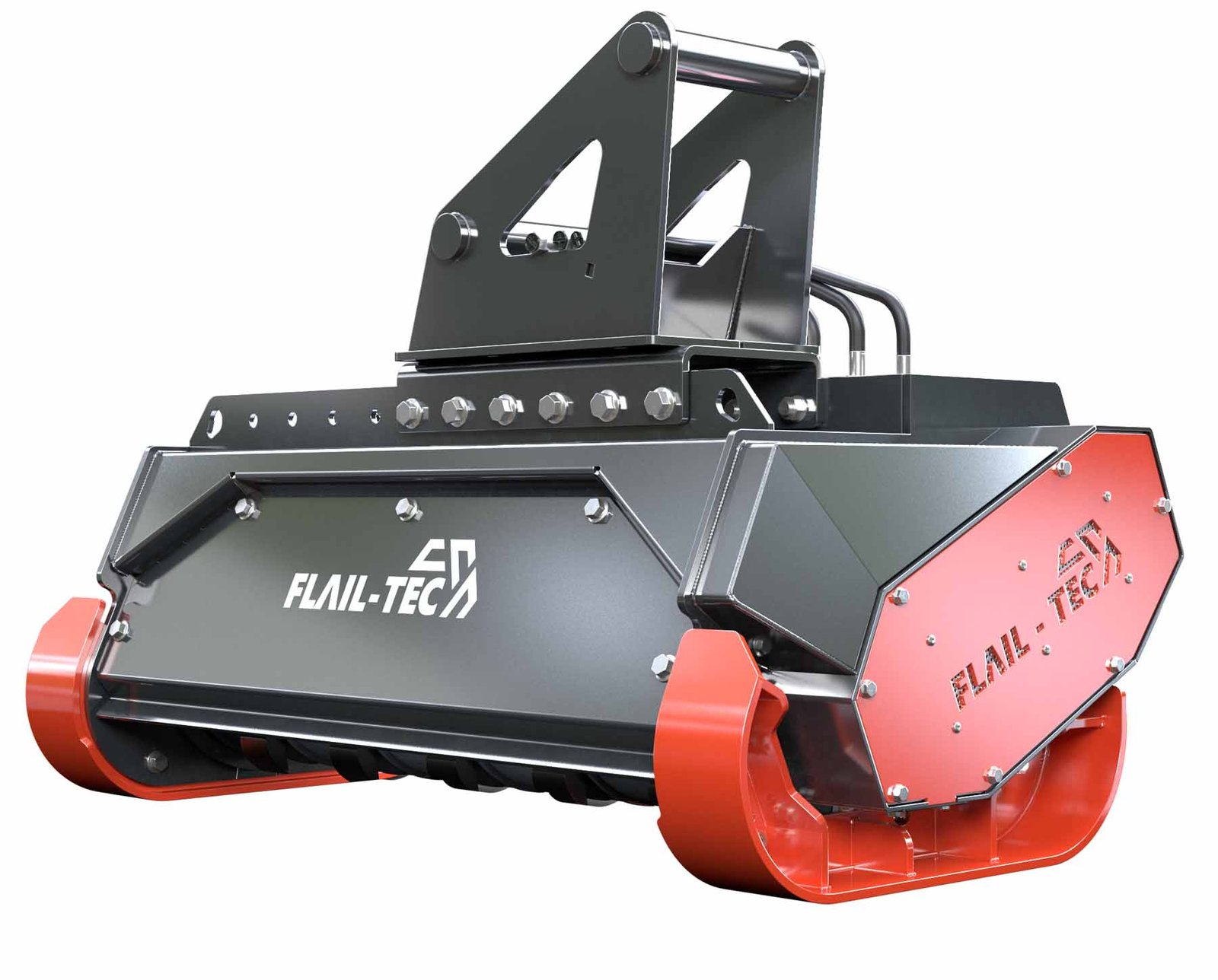

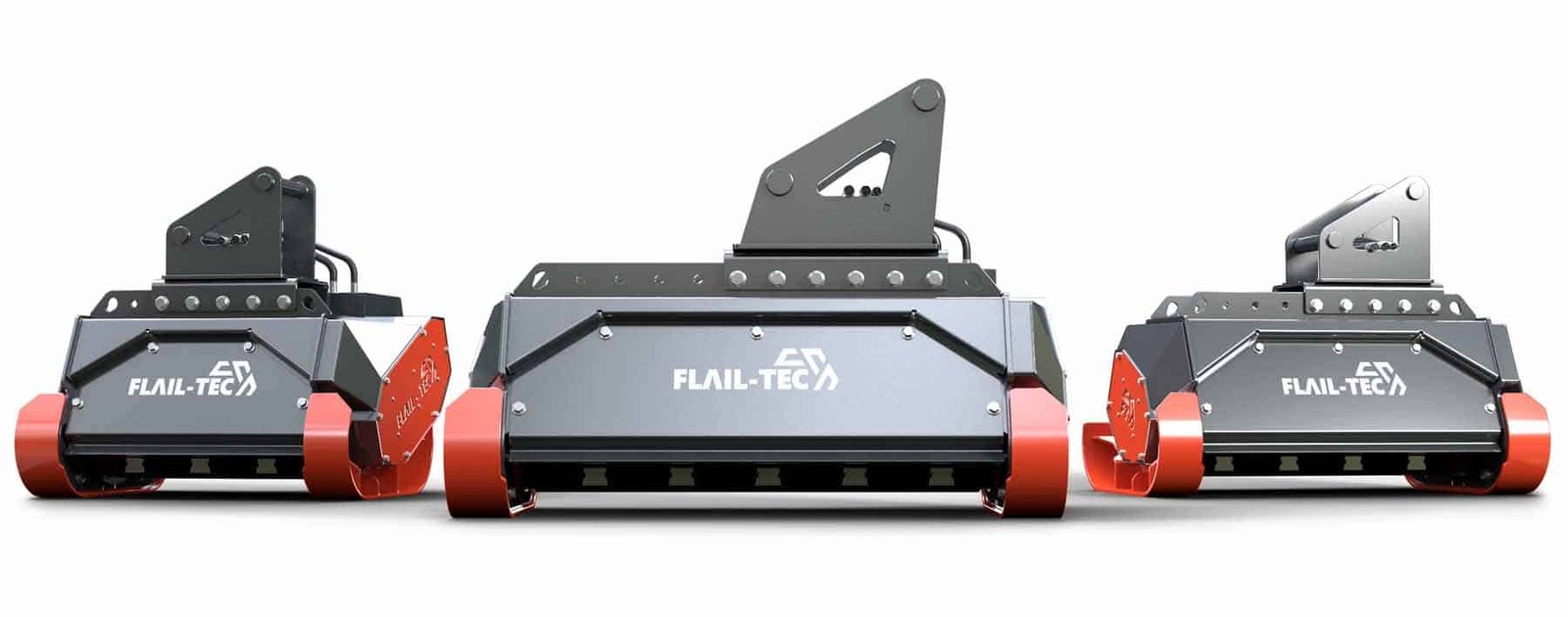

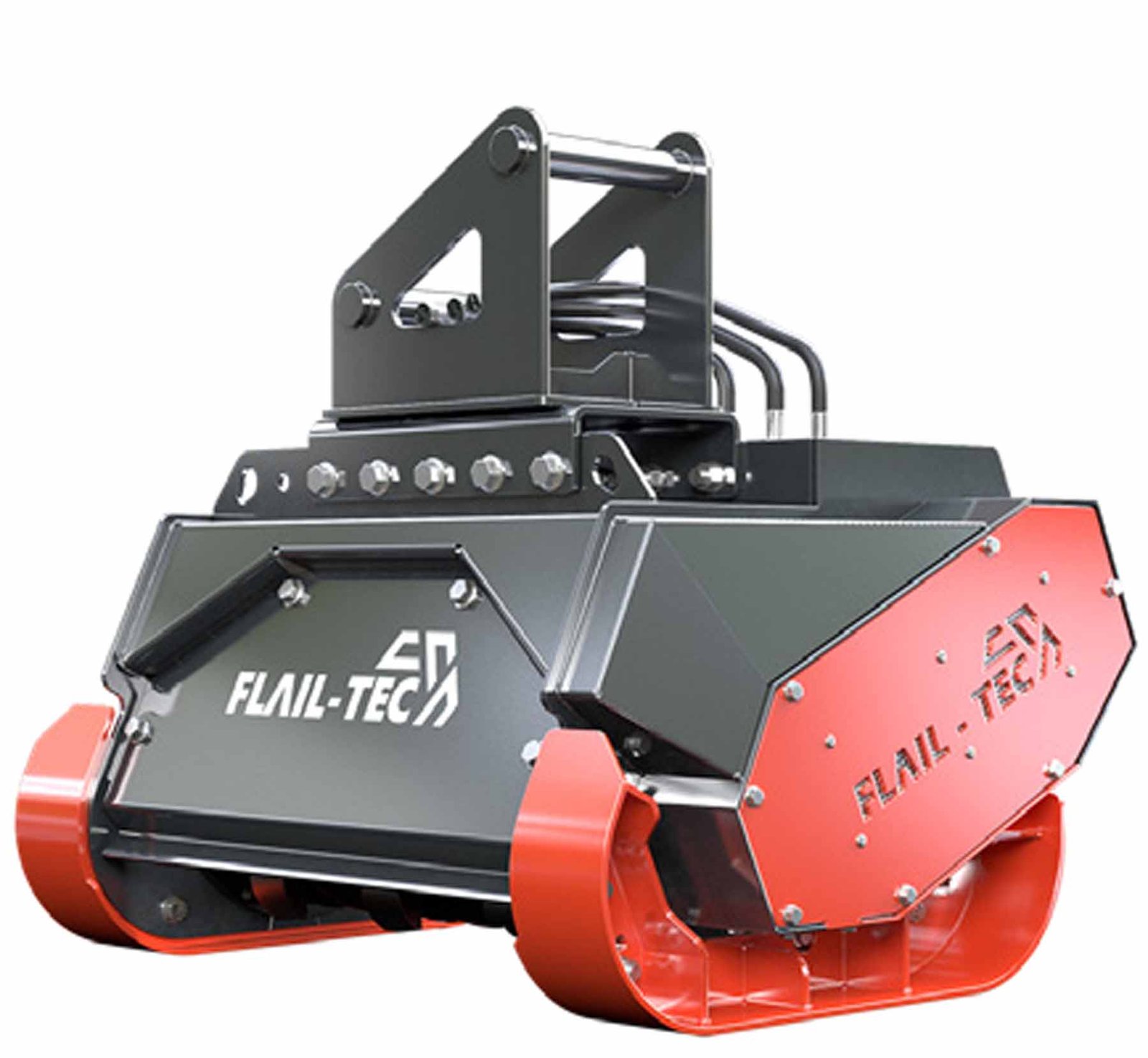

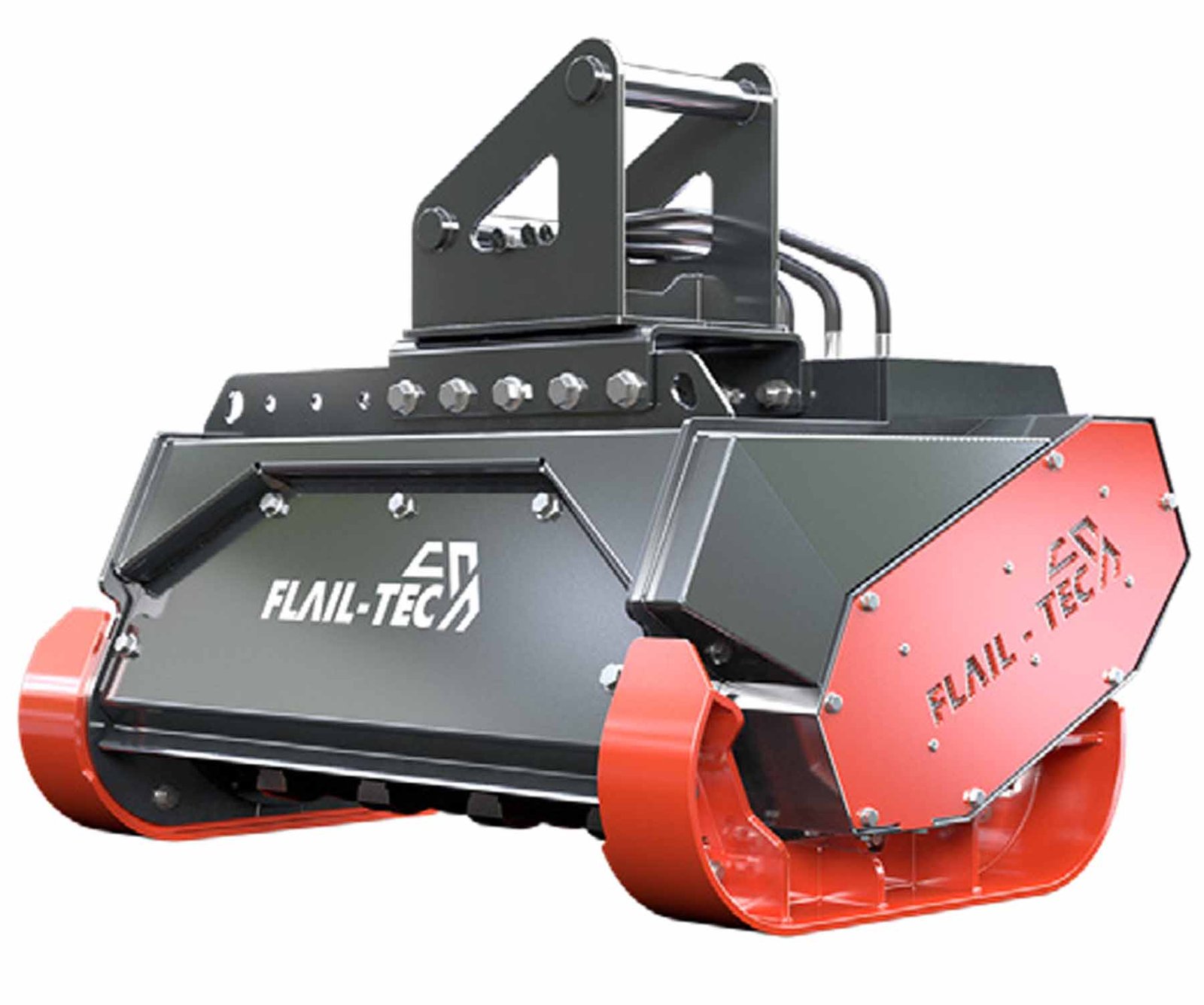

Flail-Tec E3 Range
Flail-Tec is a dynamic and innovative company specialising in manufacturing heads for excavators, tractors, skid steers, and tracked vehicles tailored for the forestry and agricultural sectors. With our continuously growing product line and unwavering dedication to quality, productivity, and durability, our goal is to deliver world-class industry solutions to our customers.
Flail-Tec E3-100
E3 Range Key Features:
- 25cc to 64cc hydraulic piston motor suitable for auxiliary flows of 50l/min to 170/min and up to 350 bar pressure.
- Anticavitation protection valve
- Belt drive
Flail-Tec E3-120
E3 Range Key Features:
- 25cc to 64cc hydraulic piston motor suitable for auxiliary flows of 50l/min to 170/min and up to 350 bar pressure.
- Anticavitation protection valve
- Belt drive
Flail-Tec E3-140
E3 Range Key Features:
- 25cc to 64cc hydraulic piston motor suitable for auxiliary flows of 50l/min to 170/min and up to 350 bar pressure.
- Anticavitation protection valve
- Belt drive
Flail-Tec E3-80
E3 Range Key Features:
- 25cc to 64cc hydraulic piston motor suitable for auxiliary flows of 50l/min to 170/min and up to 350 bar pressure.
- Anticavitation protection valve
- Belt drive
Easily
removal
side door
Extremely
robust double
skinned design
Customised hitch bracket
Conveniently positioned grease nipple locations
25cc to 64cc Hydraulic Piston motor with anticavitation valve
Motor enclosure with easy access hatch
Our fixed tooth range comes with our new PowerPulse technology which automatically increases motor displacement in heavy load applications.
Easy access to change worn flails
Short Facts Download
Find all the information on this product at a glance in this pdf
FLAIL-TEc E3 RANGE features:
- 25cc to 64cc hydraulic piston motor suitable for auxiliary flows of 50l/min to 170/min and up to 350 bar pressure.
- Anticavitation protection valve
- Belt drive transmission system
- Motor enclosure with easy access hatch
- Projectile protection chains
- Sealed body projects from dirt and dust buildup
- Heavy duty SKF bearings
- Conveniently positioned grease nipple locations
- Heavy duty sliding skids with two height options
| E3-80 | E3-100 | E3-120 | E3-140 | |
|---|---|---|---|---|
| Excavator weight (t) | 6-10 | 8-13 | 12-20 | 14-20 |
| Flow rate (L/min) | 50-170 | 50-170 | 90-170 | 90-170 |
| Pressure (bar) | 180-350 | 180-350 | 180-350 | 180-350 |
| Working Width (mm) | 760 | 1000 | 1200 | 1400 |
| Weight (kg)* | 443 | 554 | 697 | 826 |
| Rotor Cutting Diameter (mm) | 450 | 450 | 450 | 450 |
| Number of Carbide Teeth | 24 | 30 | 36 | 42 |
| Number of Planer Teeth | 10 | 13 | 16 | 19 |
| Number of Hammer Flails | 12 | 16 | 20 | 24 |
| Datasheet Download | PDF Download | PDF Download | PDF Download | PDF Download |
