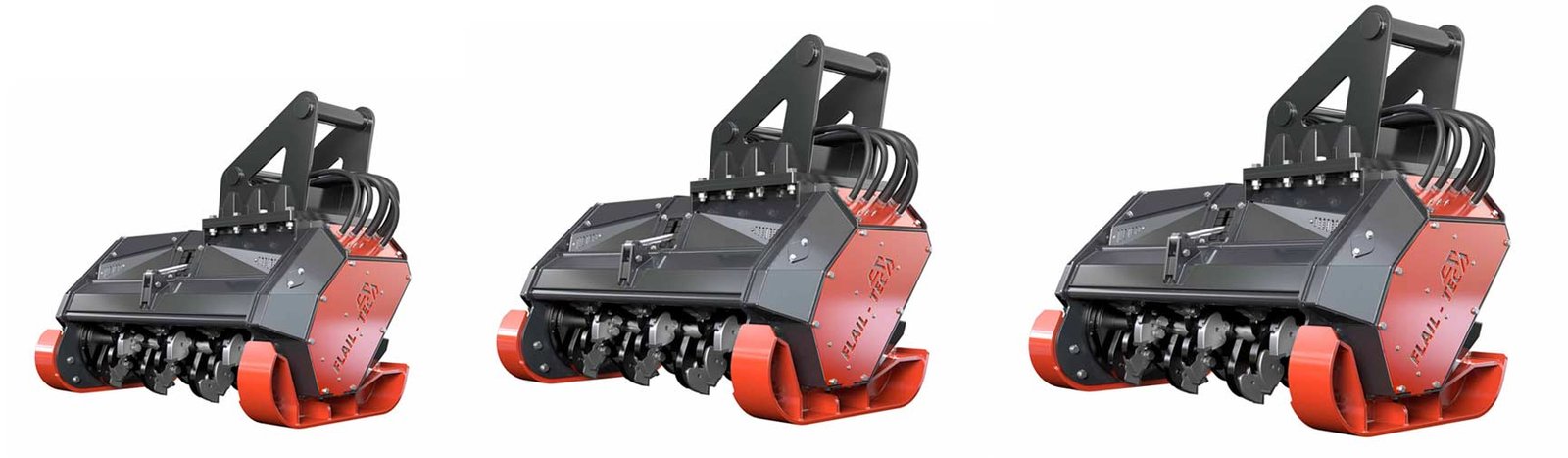

Flail-Tec E4 Range
Flail-Tec is a dynamic and innovative company specialising in manufacturing heads for excavators, tractors, skid steers, and tracked vehicles tailored for the forestry and agricultural sectors. With our continuously growing product line and unwavering dedication to quality, productivity, and durability, our goal is to deliver world-class industry solutions to our customers.

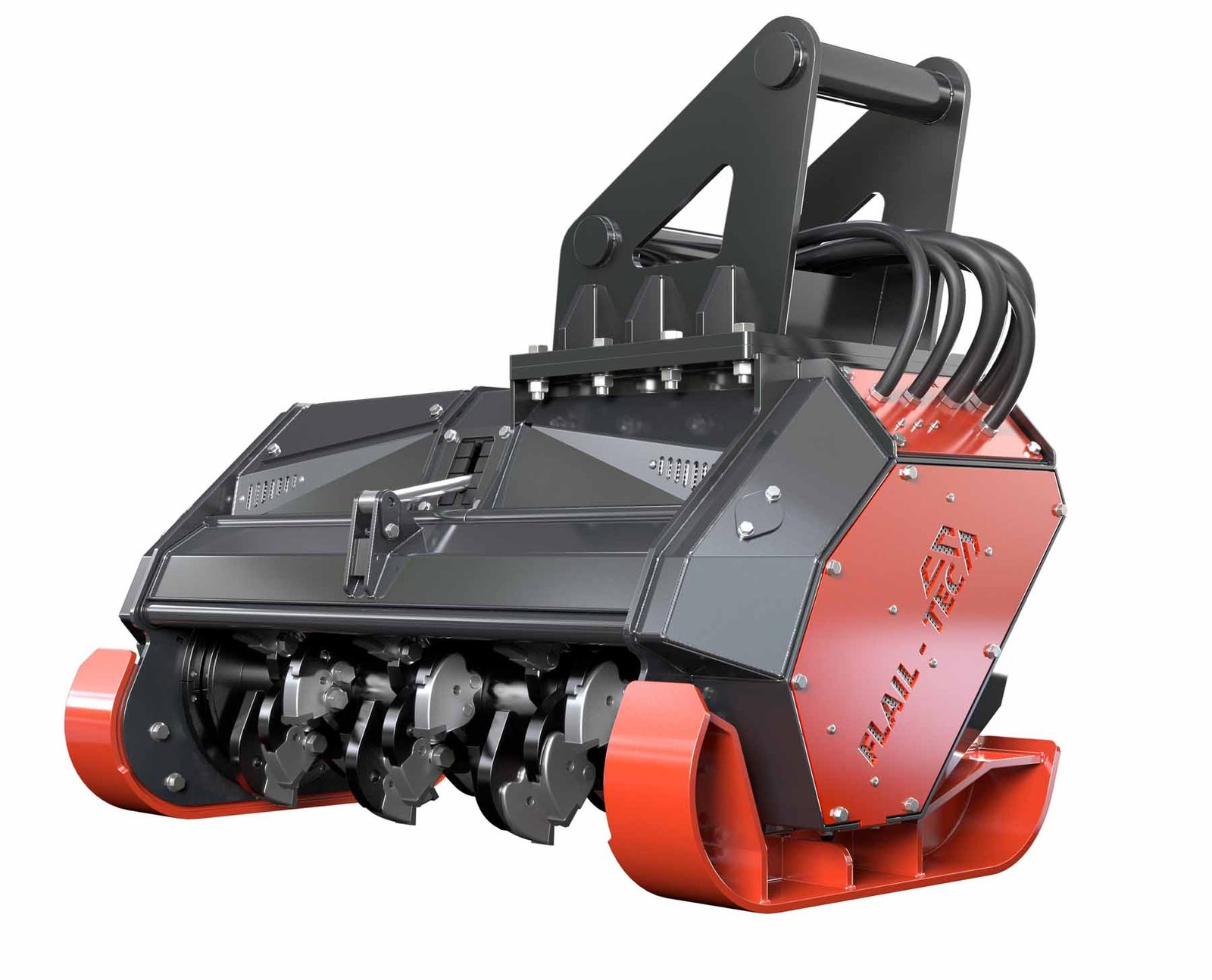

Flail-Tec E4-100
E4 Range Key Features:
- PowerPulse variable torque technology as standard 60/80cc hydraulic piston motor with anti-cavitation valve and PRV. Suitable for auxiliary flows of 100l/min to 200l/min and up

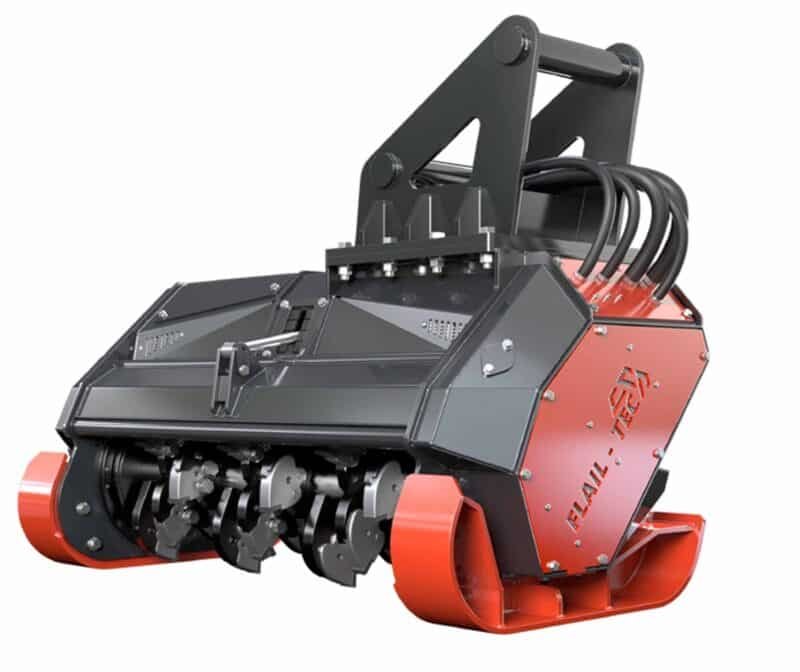

Flail-Tec E4-120
E4 Range Key Features:
- PowerPulse variable torque technology as standard 60/80cc hydraulic piston motor with anti-cavitation valve and PRV. Suitable for auxiliary flows of 100l/min to 200l/min and up
Flail-Tec E4-140
E4 Range Key Features:
- PowerPulse variable torque technology as standard 60/80cc hydraulic piston motor with anti-cavitation valve and PRV. Suitable for auxiliary flows of 100l/min to 200l/min and up
Extremely robust full length double skinned design
PowerPulse technology included as standard which automatically increases motor torque in heavy load applications
Customised hitch bracket
Conveniently positioned grease nipple and hydraulic line connection location
Heavy duty skids
Easy access to change worn flails/teeth
Replaceable inner Hardox liners with counter cutters
Hardox lined hydraulic door
Short Facts Download
Find all the information on this product at a glance in this pdf
FLAIL-TEc E4 RANGE features:
- PowerPulse variable torque technology as standard 60/80cc hydraulic piston motor with anticavitation
valve and PRV. Suitable for auxiliary flows of 100l/min to 200l/min and up to 350 bar pressure - Hydraulically adjustable Hardox lined door
- Replaceable inner Hardox liners with counter cutters
- Extremely robust full length double skinned design
- Fully enclosed motor with multiple hatches for easy access
- Customised hitch bracket
- Conveniently positioned grease nipple locations
- Heavy duty skids with two height options
- Heavy duty SKF bearings
- Sealed body projects from dirt and dust buildup
- Projectile protection double layered chains
- Belt driven transmission system
| E4-100 | E4-120 | E4-140 | |
|---|---|---|---|
| Excavator weight (t) | 13-20 | 14-20 | 16-20 |
| Flow rate (L/min) | 100-170 | 120-200 | 120-200 |
| Pressure (bar) | 180-350 | 180-350 | 180-350 |
| Working Width (mm) | 1000 | 1200 | 1400 |
| Weight (kg)* | 1045 | 1155 | 1275 |
| Rotor Cutting Diameter (mm) | 450 | 450 | 450 |
| Number of Carbide Teeth | 30 | 36 | 42 |
| Number of Planer Teeth | 12 | 16 | 19 |
| Number of Hammer Flails | 16 | 20 | 24 |
| Datasheet Download | PDF Download | PDF Download | PDF Download |
