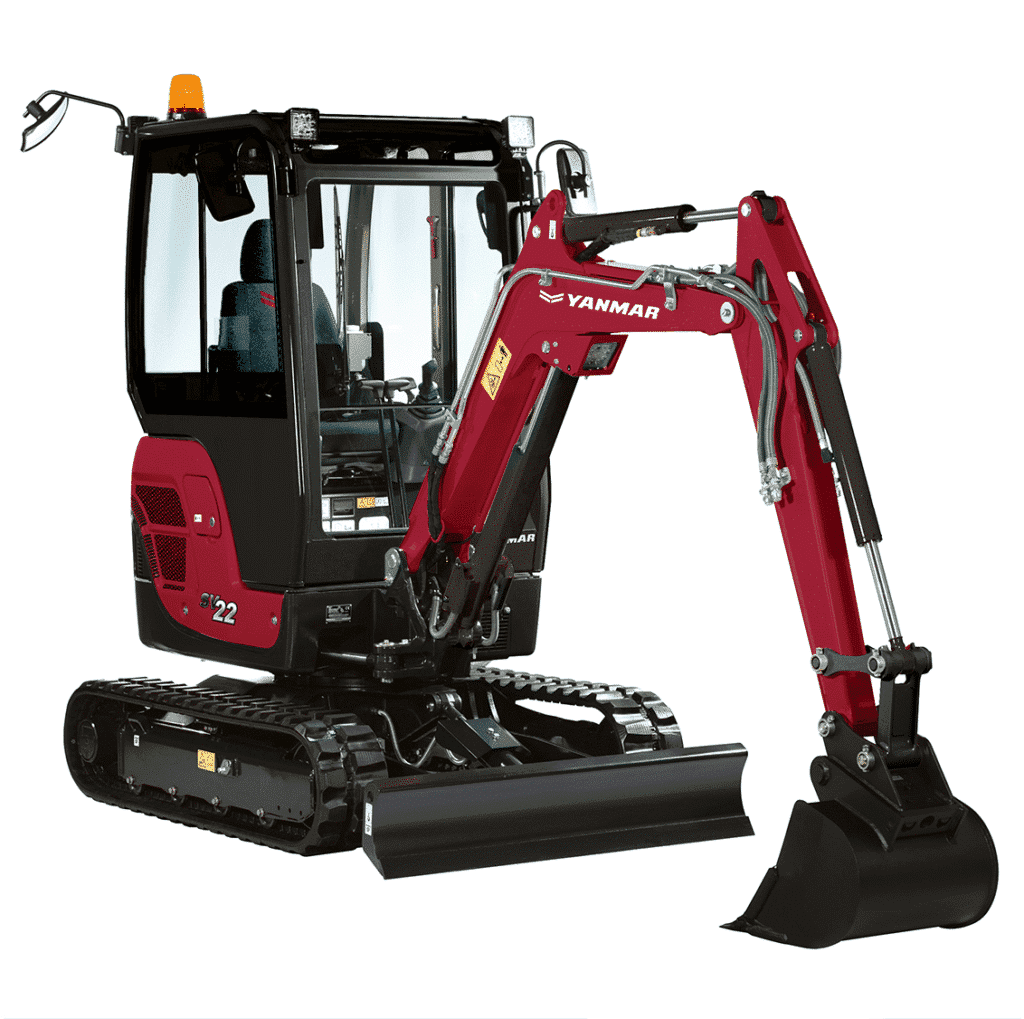

SV22

Well-suited to working in urban areas where space is at a premium, the SV22’s compactness and lightness also makes it easy to transport. Other big pluses include its advanced hydraulics and superb weight distribution, which gives it excellent stability and lifting capabilities, as well as extreme precision when operating. Operators also benefit from many features designed to deliver both comfort and safety. From the robust undercarriage to the abrasion-resistant hoses, the SV22 is additionally characterised by its impressive durability.

Enquire about this product

Name(Required)
SpecificationsSV22
WeightTransport weight2045 kg (canopy) / 2185 kg (cabin)
Operating Weight2120 kg (canopy) / 2260 kg (cabin)
EngineType3TNV76-SBVA2
FuelDiesel
Net Power13,4 kW / 18,2 HP / 2200 rpm
Gross Power13,8 kW / 18,75 HP / 2200 rpm
Displacement1.116 l
Max Torque69 N.m. / 1600 rpm
Starter1,4 kW
Battery12 V – 45 Ah
Alternator12 V – 40 A
Hydraulic SystemMaximum Pressure206 bars
Working Pump1 piston pump with variable flow
Max Flow50 l/min
Hydraulic Tank20 l
PerformanceTravel speed2,4 / 4,1 km/h
Rotation Speed9,5 rpm
Digging Force (arm)11,8 kN
Digging Force (bucket)18,6 kN
Traction Force20,4 kN
Noise level (2000/14/CE & 2005/88/CE)92 dB(A) / 80 dB(A)
Fuel Tank29 l
