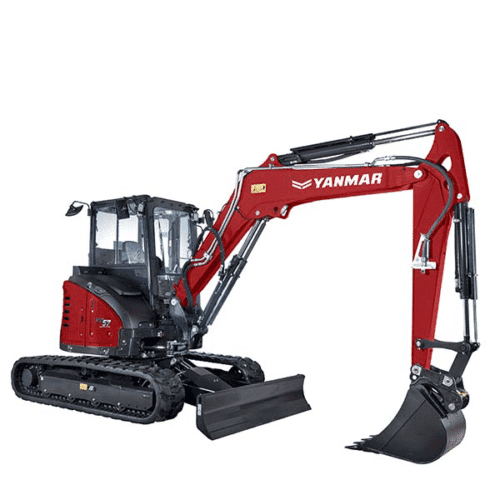

ViO57-6B

The advanced engine of the ViO57-6B meets all EU emission requirements, with electronic controls offering real precision power as well as first-rate fuel economy. A ViPPS hydraulic system co-ordinates performance, while automatic two-speed drive motors add further automatic precision and increase ease of operation. This zero tail machine also features an improved undercarriage, resulting in exceptional stability and durability, together with greater safety and operator comfort. Simple to maintain, optional SmartAssist Remote makes this machine straightforward to manage as well.

Enquire about this product

Name(Required)
SpecificationsViO57-6B
WeightTransport weight5410 kg
Operating Weight5485 kg
EngineType4TNV86CT-PBV (Stage V engine with DPF)
FuelDiesel
Net Power33,5 kW (at 2200 rpm)
Gross Power34,5 kW (at 2200 rpm)
Displacement2.091 l
Max Torque162,4 – 176,6 N.m
Starter12 V – 2,3 kW
Battery12 V – 100 Ah
Alternator12 V – 55 A
Hydraulic SystemMaximum Pressure245 bars
Working Pump2 double piston pump with variable flow / 1 gear pump / 1 gear pump for pilot line
Max Flow2 x 45,8 l/min / 37 l/min / 10,8 l/min
Hydraulic Tank38 l
PerformanceTravel speed2,2 – 4,4 km/h
Rotation Speed10 rpm
Digging Force (arm)24,4 / 22,2 kN (with long arm)
Digging Force (bucket)41,9 kN
Traction Force55,8 kN
Noise level (2000/14/CE & 2005/88/CE)79 dB(A) / 94 dB(A)
Fuel Tank66 l
