Plug & Play installation: GMT grapple saws can be mounted on any crane vehicle without technical modifications
Compatible with all 173 mm rotator types.
Hydraulic lines are well protected.
Saw oil tank capacity enough for a full working day.
Tilt cylinder when saw function is enabled allowing you to control tipping of tree trunks after cutting.
All components made of high quality Weldox steel
Patented manifold enables plug-and-play installation without any changes to your crane.
Easy accessable manual operated ball valve to block saw function allows you to use the machine as a normal grapple.
Chain tensioner based on many years of field experience.
Special designed saw bar prevents losing your chain.
Extreme hold: specially developed teeth for a firm and secure grip of the timber.
Safety first: grapple holds tree trunk at maximum pressure before cutting starts.
Remove a tree in small pieces and clear tree parts immediately. With just one machine and one operator. Directly from the tree to a container or chipper, without falling or touching the ground at all. No ground crew is needed. A huge time and manpower saver.
When felling trees mechanically, all employees remain on the ground, on the high-seat or in the crane cabin. They operate the crane, keep an eye on the surroundings or stand by the chipper. No physical climbing efforts need to be made and there’s no need for an aerial work platform either. The grapple saw, together with the crane to which it is attached, takes over all the tasks that would normally be carried out by climbing workers. That means maxiumum safety for the crew.
Very easy to operate: within a day, you will have mastered the handling of the grapple saw. Operation is done with the standard controls of your machine. If you can handle your crane, you can handle a GMT grapple saw.
The plug & play operation is one of our patented technologies. Our grapple saws can be connected 1:1 to all existing connections/hoses of a crane. Combine this with the quick coupler (C10) and extension arm and your crane vehicle will soon be able to maintain and remove trees.

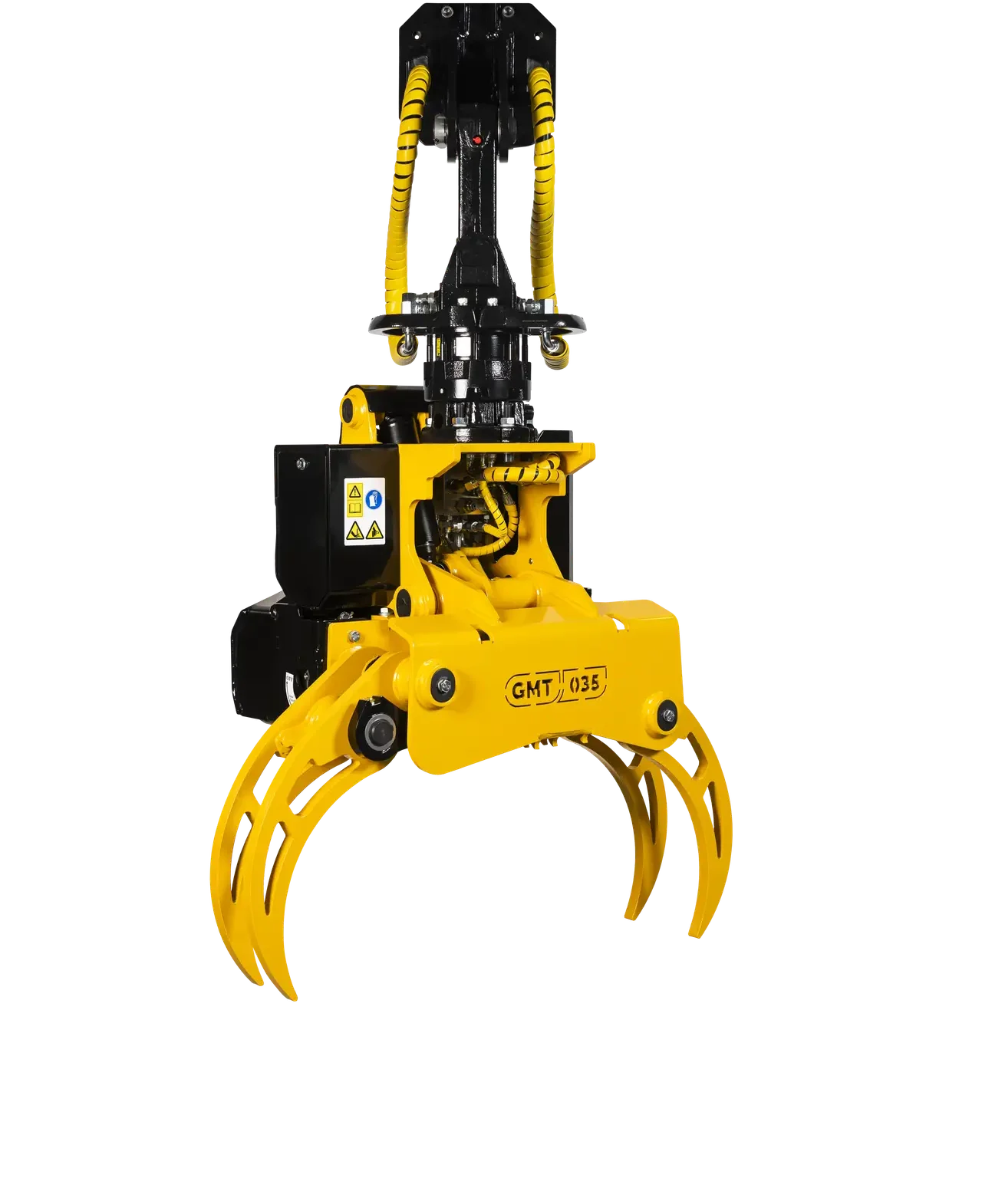

GMT 035 | GMT 035+ | GMT 035 TTC | |
---|---|---|---|
![]() | ![]() | ![]() | |
Short description | Compact grapple saw in standard version | Compact grapple saw with tilt-blocking | Compact grapple saw with Total Tree Control brake system |
Extra info | With great manoeuvrability in tight spaces thanks to its size | With great manoeuvrability in tight spaces thanks to its size | With great manoeuvrability in tight spaces thanks to its size |
Max Opening Width | Ø 85 cm | 33” | Ø 85 cm | 33” | Ø 85 cm | 33” |
Sawing blade length | Ø 52 cm | 20” | Ø 52 cm | 20” | Ø 52 cm | 20” |
Max. saw Ø single cut | Ø 40 cm | 16” | Ø 40 cm | 16” | Ø 40 cm | 16” |
Max. saw Ø double cut | Ø 60 cm | 24” | Ø 60 cm | 24” | Ø 60 cm | 24” |
Minimum saw Ø | Ø 5 cm | 2” | Ø 5 cm | 2” | Ø 5 cm | 2” |
Grapple saw weight | 275 kg | 605 lbs | 295 kg | 650 lbs | 410 kg | 904 lbs |
Maximum load | 1500 kg | 3300 lbs | 1500 kg | 3300 lbs | 1500 kg | 3300 lbs |
Recommended oil supply | 35-65 litre/minute | 9.3 – 17.2 gal/min | 35-65 litre/minute | 9.3 – 17.2 gal/min | 35-65 litre/minute | 9.3 – 17.2 gal/min |
Minimum working pressure | 185 bar | 2683 psi | 185 bar | 2683 psi | 185 bar | 2683 psi |
Maximum operational pressure | 250 bar | 3626 psi | 250 bar | 3626 psi | 250 bar | 3626 psi |
GMT 050 | GMT 050+ | GMT 050 TTC | |
---|---|---|---|
![]() | ![]() | ![]() | |
Short description | The standard grapple saw for large cuts | The grapple saw for large cuts – with tilt-blocking | The grapple saw for large cuts – with Total Tree Control brake system |
Extra info | Perfect for larger craned vehicles | Perfect for larger craned vehicles | Perfect for larger craned vehicles |
Max Opening Width | Ø 85 cm | 33” | Ø 85 cm | 33” | Ø 85 cm | 33” |
Sawing blade length | Ø 70 cm | 25” | Ø 70 cm | 25” | Ø 70 cm | 25” |
Max. saw Ø single cut | Ø 55 cm | 22” | Ø 55 cm | 22” | Ø 55 cm | 22” |
Max. saw Ø double cut | Ø 80 cm | 32” | Ø 80 cm | 32” | Ø 80 cm | 32” |
Minimum saw Ø | Ø 8 cm | 3” | Ø 8 cm | 3” | Ø 8 cm | 3” |
Grapple saw weight | 420 kg | 925 lbs | 440 kg | 970 lbs | 555 kg | 1225 lbs |
Maximum load | 2500 kg | 5500 lbs | 2500 kg | 5500 lbs | 2500 kg | 5500 lbs |
TTC weight | N/A | N/A | 1500 kg | 3300 lbs |
Maximum TTC load | N/A | N/A | 5000 Nm |
Recommended oil supply | 45-65 litre/minute | 11.9 – 17.2 gal/min | 35-65 litre/minute | 9.3 – 17.2 gal/min | 35-65 litre/minute | 9.3 – 17.2 gal/min |
Minimum working pressure | 185 bar | 2683 psi | 185 bar | 2683 psi | 185 bar | 2683 psi |
Maximum operational pressure | 250 bar | 3626 psi | 250 bar | 3626 psi | 250 bar | 3626 psi |
Fits any craned vehicle
With a GMT Extension Arm, you easily install a GMT grapple saw on a knuckle boom crane, telehandler, forestry crane or excavator.
View The GMT Extension ArmsEasy & Quick
The GMT C10 quick coupler allows you to quickly and easily switch between the grapple saw and other equipment on your crane.
