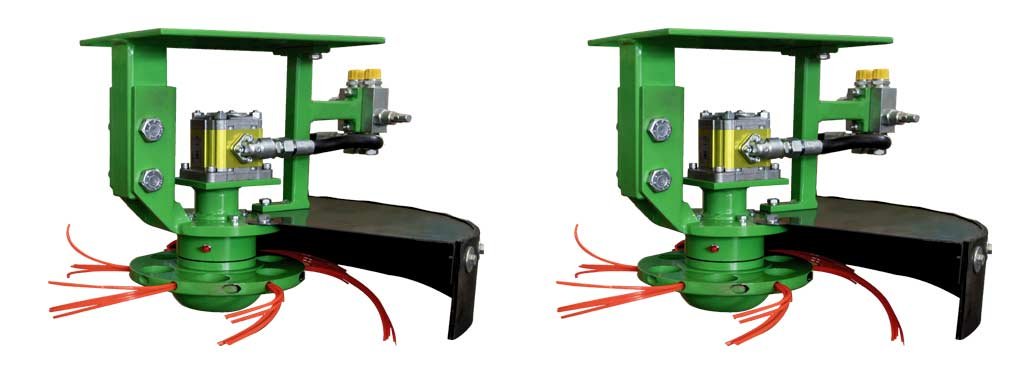

OMEF Hydraulic Mower

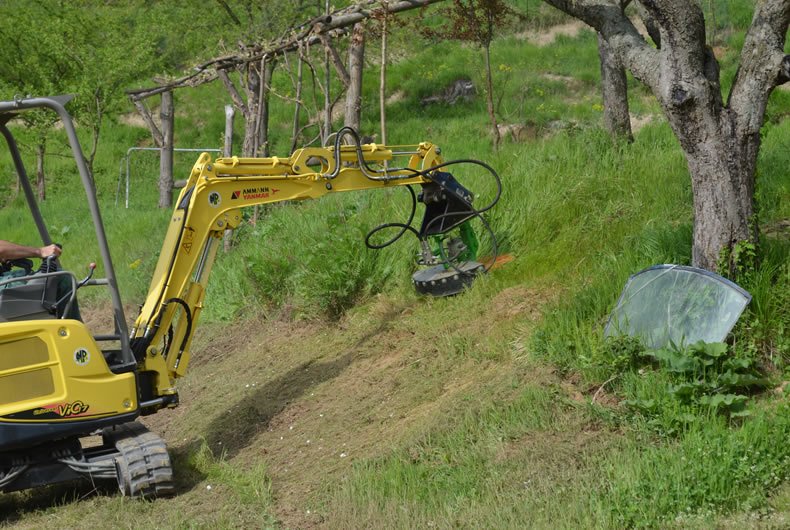

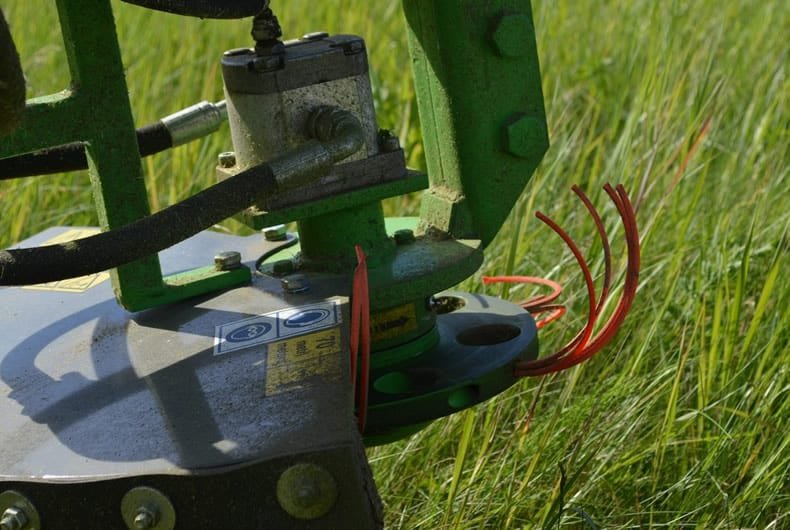

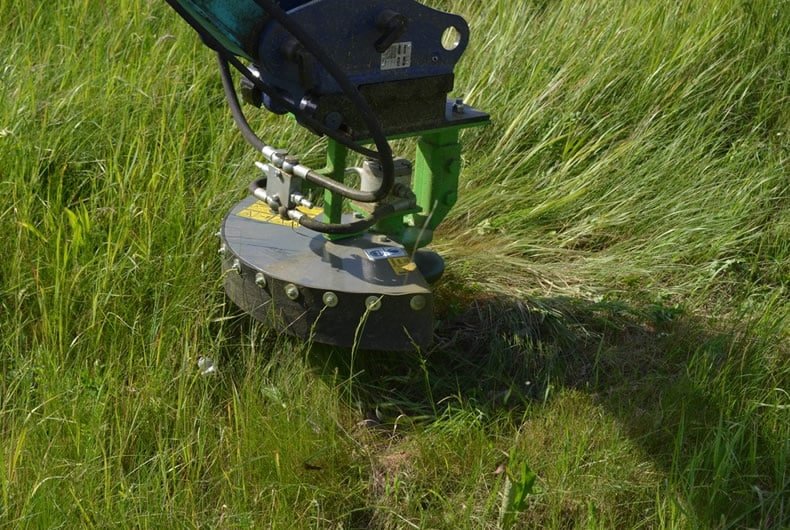

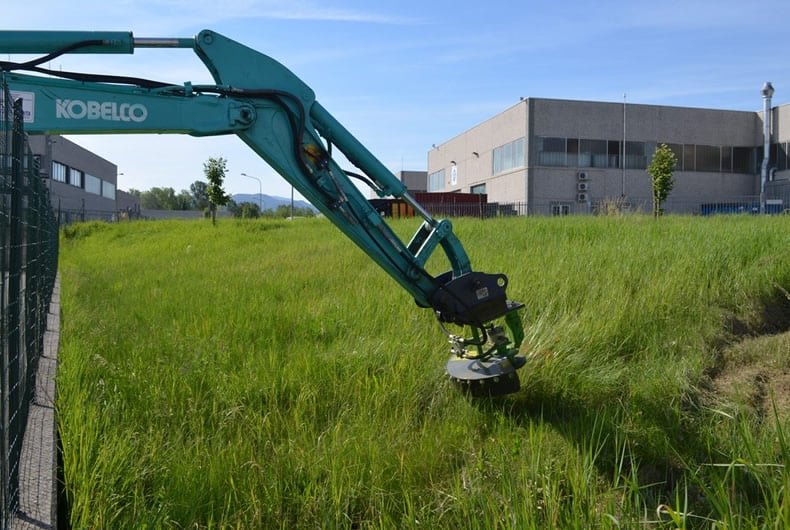

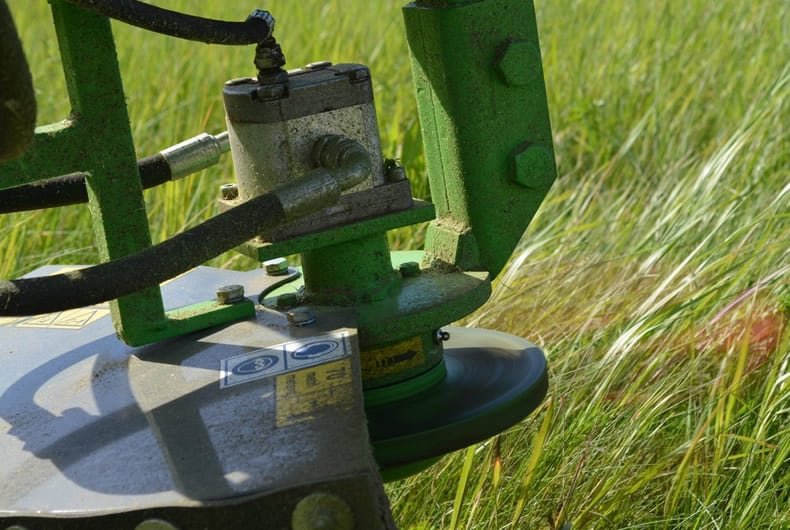

It is an attachment for excavator from 1 up to 3 tons. The equipment has a compact design which makes it ideal to clear up any weeds, assuring an accurate cleaning even in limited areas. Its very quick and precise work is guaranteed by a cutting system based on 24 nylon wires, Ø 4 mm, (which can be increased up to 42) fixed to a rotary head. It is equipped with a gears hydraulic motor which rotates at 4.500 RPM/min (indispensable RPM number for a correct work phase).
| MOW1 | MOW2 | |
|---|---|---|
| Excavator class weight | 1 – 2,5 tons | 2 – 3 tons |
| Attachment weight | 47 Kg | 50 Kg |
| Working area | 480 mm | 620 mm |
| Oil pressure | 180 – 240 bar (min-max) | 180 – 240 bar (min-max) |
| Hydraulic Flow | 20 – 35 l/min (min-max) | 35 – 45 l/min (min-max) |
| Standard motor | Bi-directional gears | Bi-directional gears |
| Motor upon request | Bi-directional draining motor | Bi-directional draining motor |
| Nylon wires | 24 | 24 |
| Width | 490 mm | 630 mm |
| Height | 500 mm | 660 mm |
| Datasheet Download | PDF Download | PDF Download |
