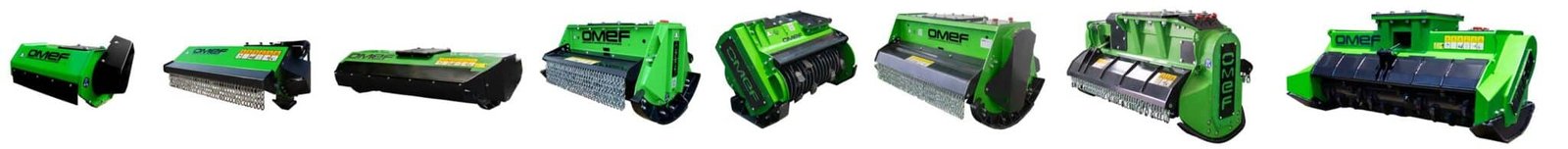

OMEF Mulcher
OMEF mulchers are designed for excavators from 1ton up to 25ton plus. Choosing from a swinging hammer or fixed tooth head, there is a broad range of options available to cater to a wide range of carriers and applications. Their compact structure allows them to maintain proximity with the ground and ensures an efficient and clean operation.
| TE1 | TE3 | TE7 | TE9 | TE9DF2 | TE13 | TE15 | TE20 | |
|---|---|---|---|---|---|---|---|---|
| Excavator class weight | 1.2 - 2.5 tons | 1.5 – 5 tons | 5 - 8 tons | 3 - 12 tons | 5 - 12 tons | 8 - 16 tons | 12 - 25 tons | 16 - 30 tons |
| Attachment weight | 70 Kg | 130 Kg | 250 Kg | 180 - 400 Kg | 345 - 470 Kg | 650 - 745 Kg | 920 - 1020 Kg | 1050 - 1320 Kg |
| Cut Length | 600 mm | 700 mm | 1250 mm | 700 - 900 mm | 700 - 1100 mm | 1300 mm | 1300 - 1600 mm | 1300 - 1800 mm |
| Oil pressure | 170 - 220 bar (min-max) | 180 – 240 bar (min-max) | 200 - 220 bar (min-max) | 170 - 220 bar (min-max) | 200 - 220 bar (min-max) | 200 - 220 bar (min-max) | 200 - 250 bar (min-max) | 200 - 350 bar (min-max) |
| Hydraulic Flow | 20 – 30 l/min (min-max) | 35 – 45 l/min (min-max) | 60 – 80 l/min (min-max) | 30 – 100 l/min (min-max) | 40 – 100 l/min (min-max) | 80 – 100 l/min (min-max) | 90 – 190 l/min (min-max) | 100 – 180 l/min (min-max) |
| Datasheet Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download |
