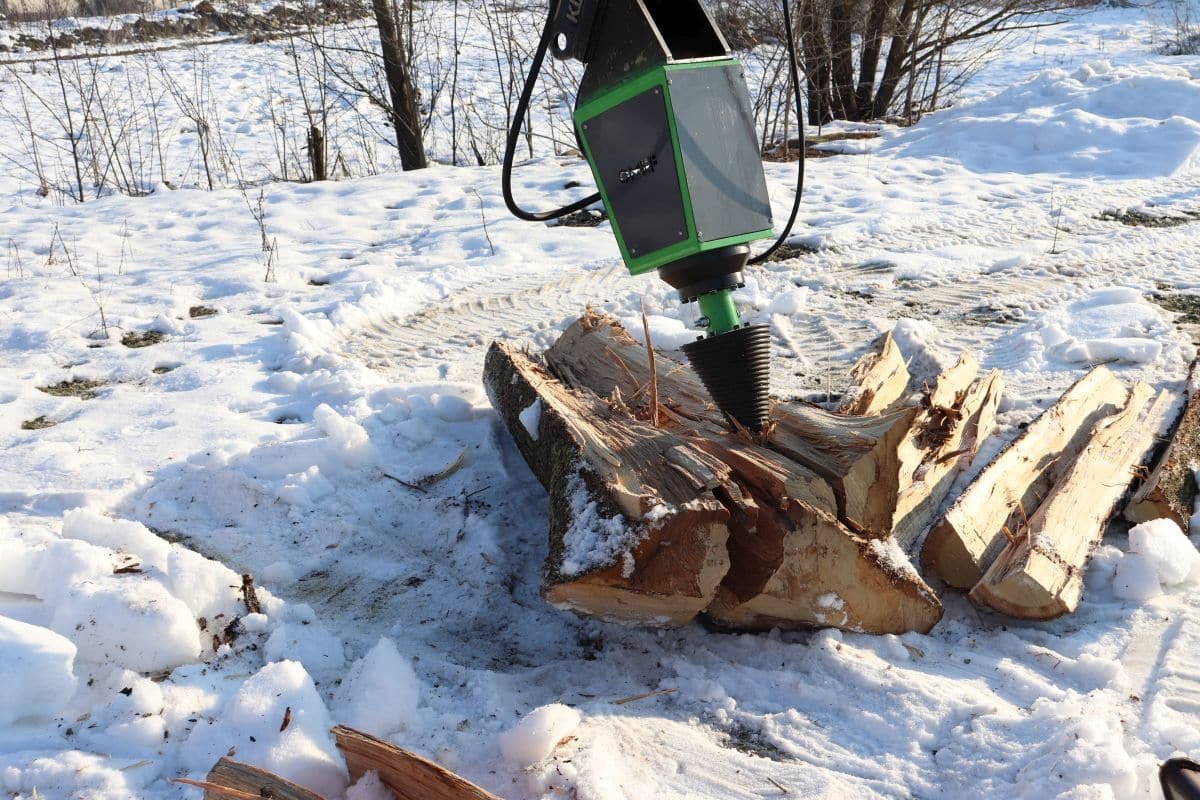

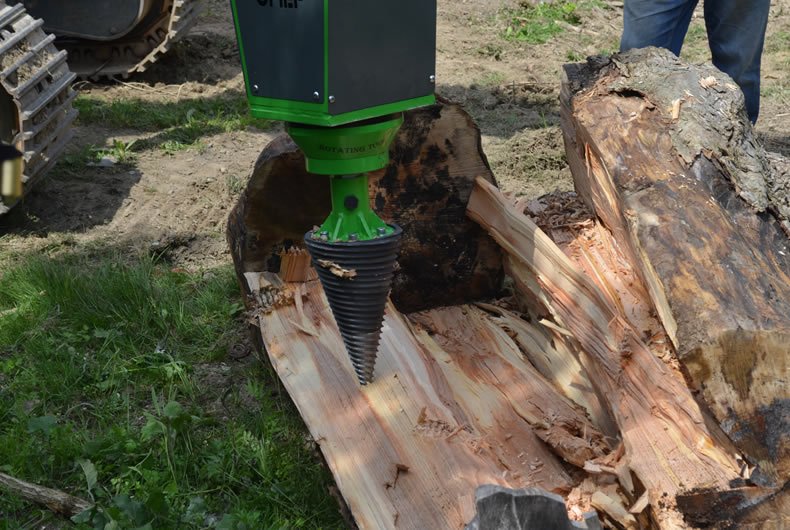

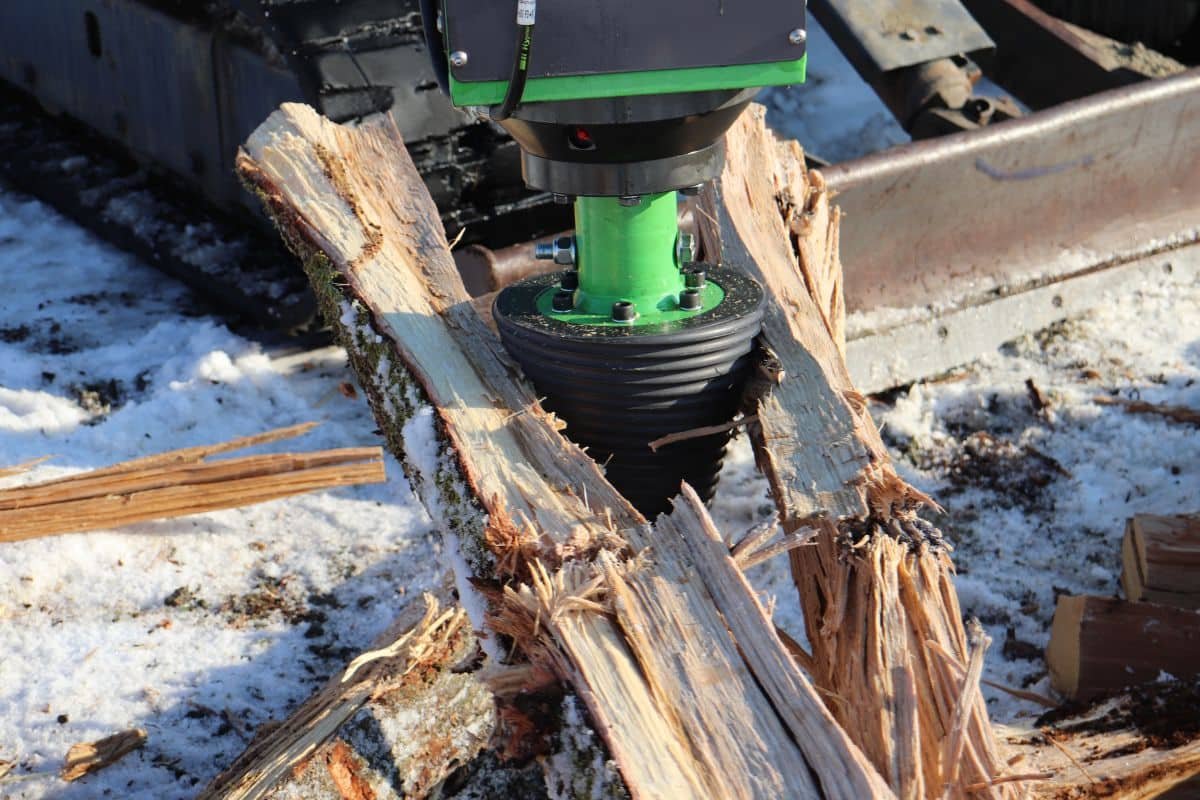

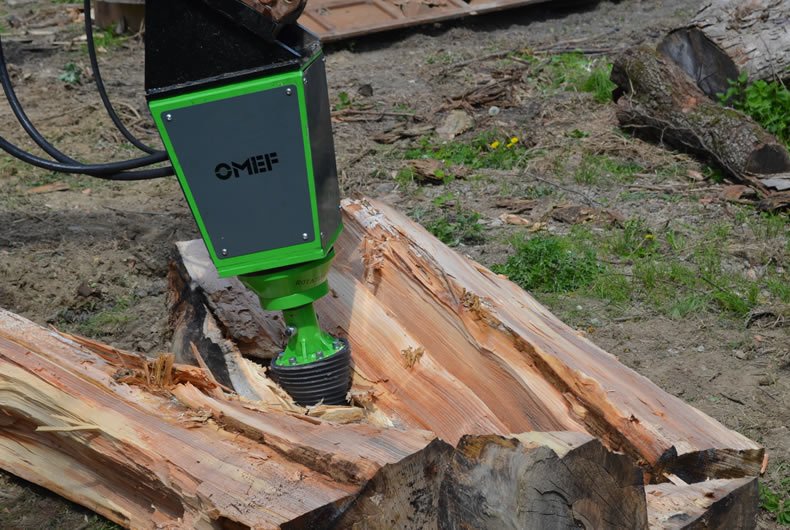

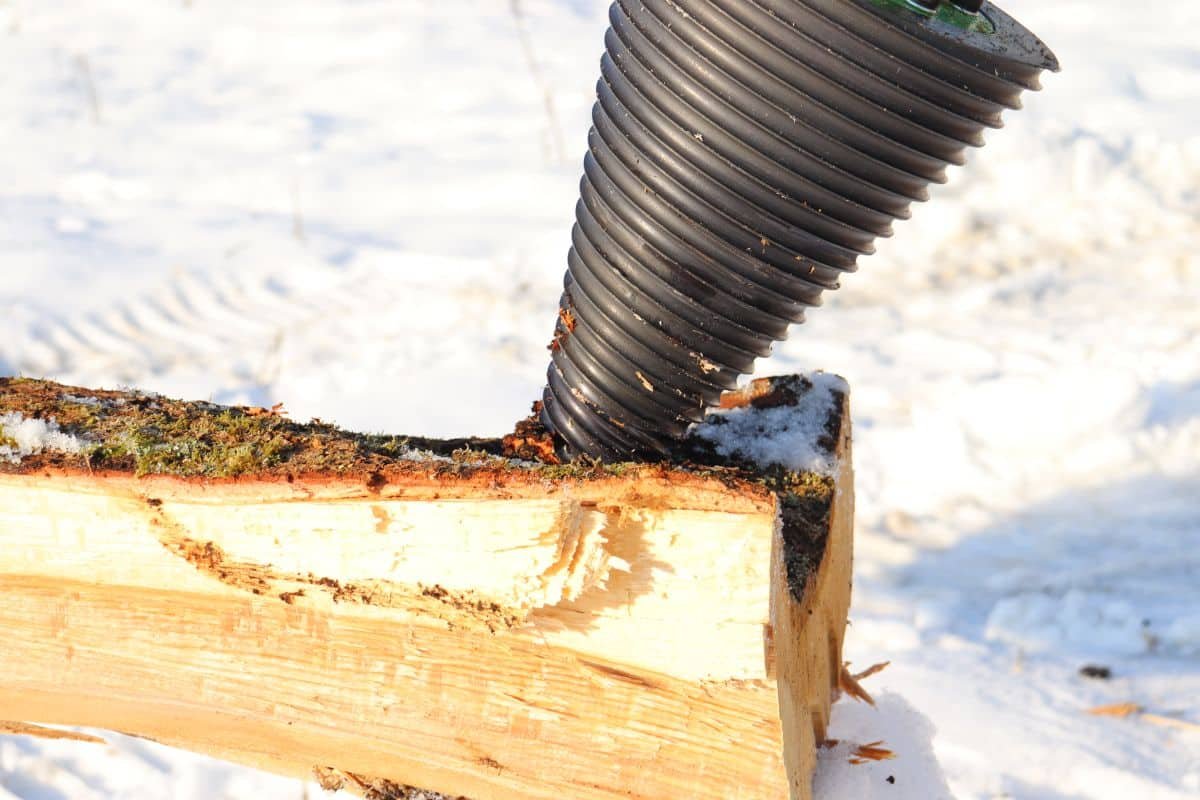

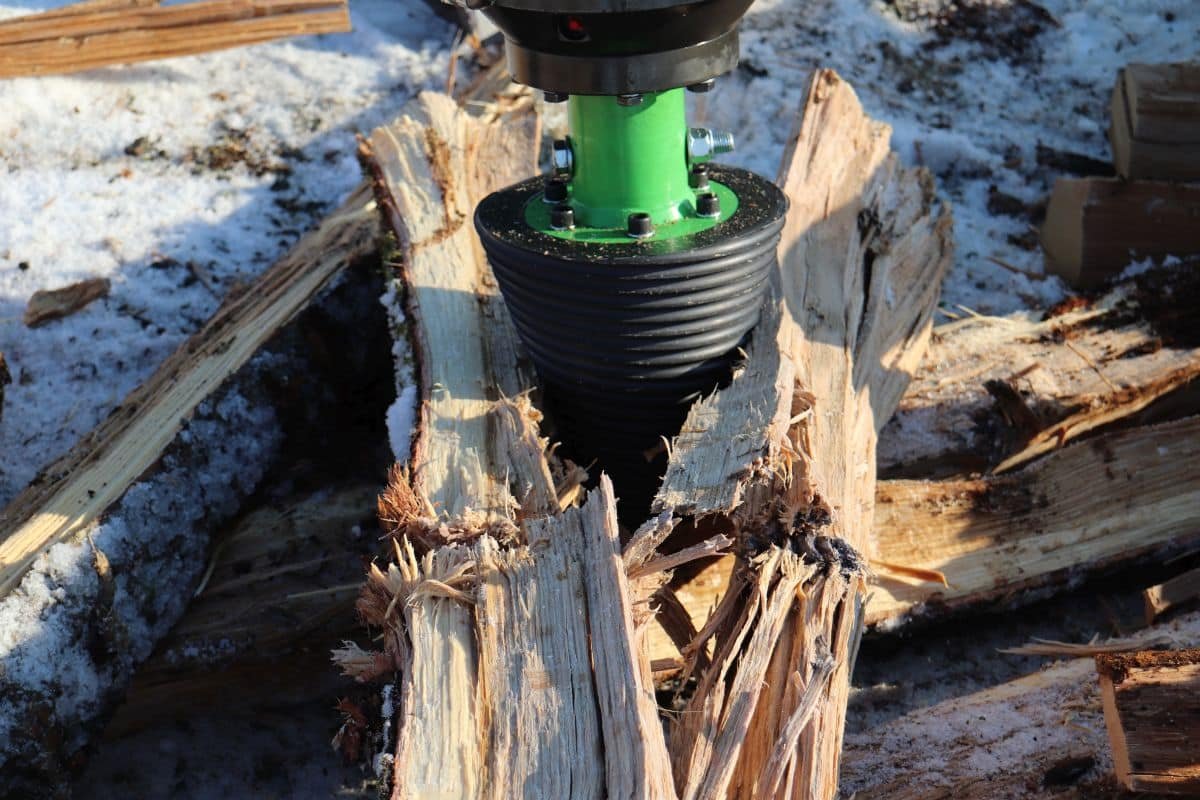

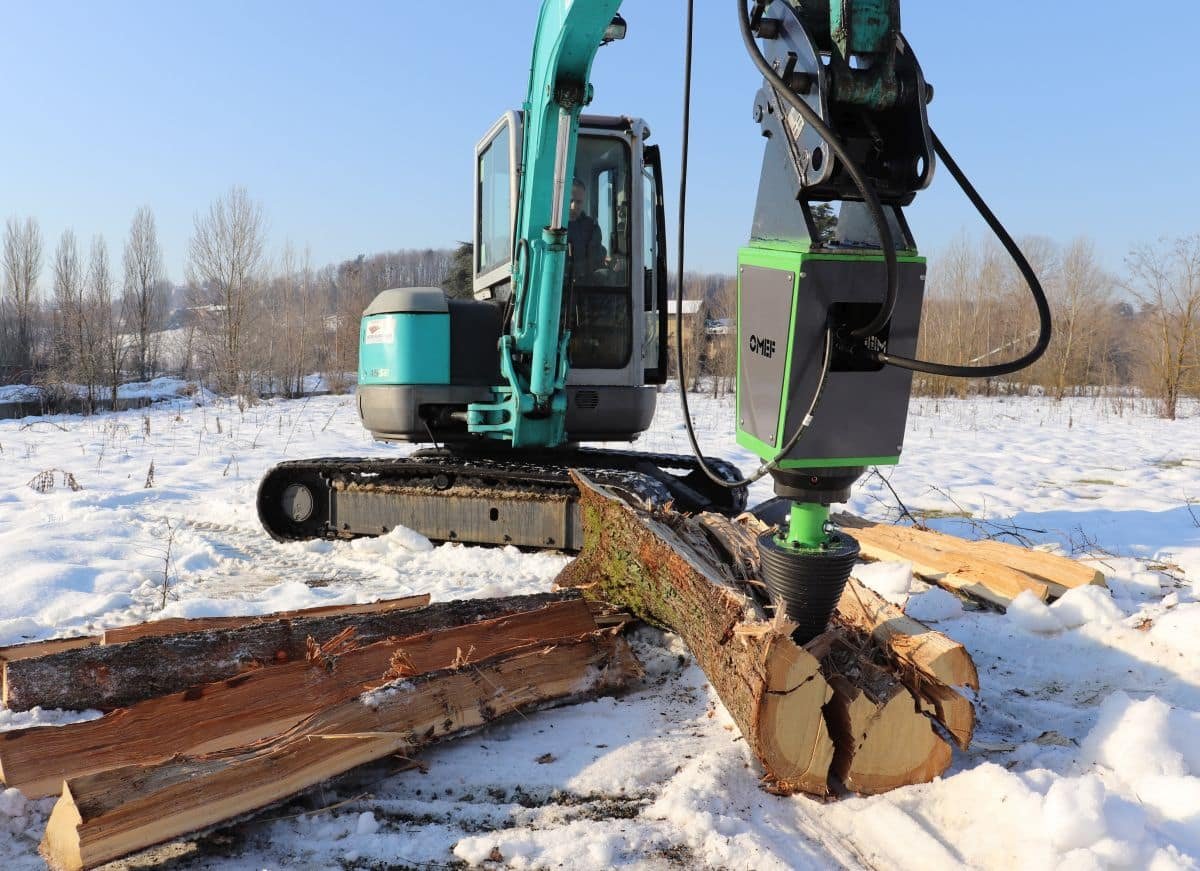

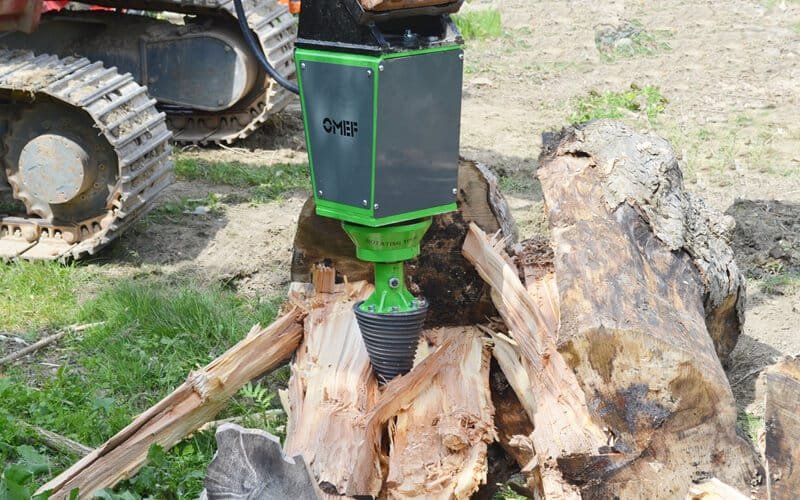

OMEF Wood Splitter
The machine can be fitted with 4 End Conical Drill – Stump Planer – Auger Drill, according to the final use.
The machine’s compact dimensions enable to manoeuvre with absolute precision and rapidity.
| SPV1 PLUS | SPV2 PLUS (210) | SPV2 PLUS (510) | SPV2 PLUS (810) | SPV3 PLUS | |
|---|---|---|---|---|---|
| Excavator class weight | 1,5 - 3 tons | 3,5 – 5 tons | 5,5 – 8 tons | 8 – 14 tons | 14-25 tons |
| Attachment weight | 100 Kg | 220 lbs | 150 kg | 330 lbs | 285 kg | 630 lbs | 497 kg | 1100 lbs | 770 kg | 1700 lbs |
| Max cut diameter | 50 cm - 20" | 400 mm | 16” | 600 mm | 23” | 150cm | 59” | 200 mm | 79” |
| Oil pressure | 150 – 180 bar | | 2175 - 2610 psi | 180 – 220 bar | 2610 – 3190 psi (min-max) | 180 – 250 bar | 2610 – 3627 psi (min-max) | 180 – 250 bar | 2610 – 3625 psi (min-max) | 200 – 250 bar | 2900 – 3625 psi(min-max) |
| Torque | 1520 Nm | 1120 lbf | 2480 Nm | 1830 lbf | 2480 Nm | 1830 lbf | 11560 Nm | 8530 lbf | 20000 Nm | 14750 lbf |
| Hydraulic Flow | 30 – 60 l/min | 8 - 15 gpm | 40 – 60 l/min | 10 – 15 gpm | 60 – 75 l/min | 15 – 20 gpm | 100 – 200 l/min | 26 – 53 gpm | 150 – 200 l/min | 40 – 53 gpm |
| Datasheet Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download |
