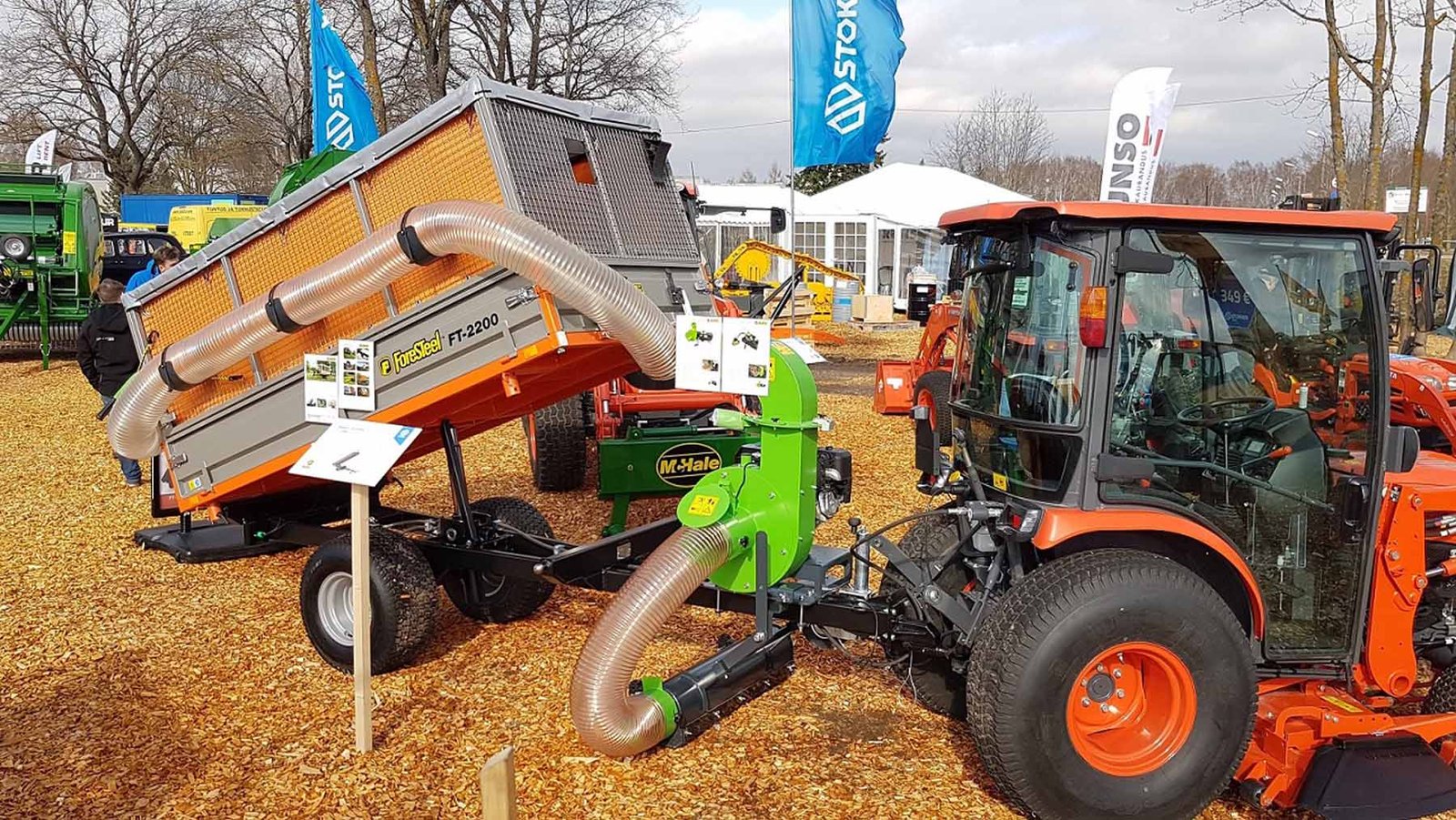

Foresteel Leaf Trailer FT-2200 T3
Light, the compact and versatile vacuum trailer for quick and easy leaf cleanup. Suitable for tractors and compact loaders or other municipal machines.
- Trailers that are fully outfitted and ready to work.
- There will be less labor and hassle. Less manpower is required.
- Models that are appropriate for your compact machinery.
- Adaptable to your requirements.
- Solutions that are dependable and proven.
- Leaf vacuums with a lot of suction and trailers that are well-designed.
- Compact in size and weight, perfect balance for delicate turf areas and machinery like tractors, loaders and municipal machinery.
Technical data
| Trailer size | FT-2200 T3 Leaf Trailer |
|---|---|
| Volume | 3.35 m3 |
| Loading capacity | 2200 kg |
| Weight | 685 kg |
| Inside dimensions | L 2275 mm x W 1400 mm x H 1050 mm |
| Dimensions | L 3770 mm x W 1700 mm x H 1840 mm (with hose holders) |
| Track width | 1445 mm |
| Tipping | 3-way, Hydraulic, Tipping angle 55 ° rear; 55 ° sides |
| Wheels | Extra wide turf tires, 26” x 12” x 12” |
| Coupling | D50 mm ball coupling, height adjustable |
| Vacuum unit construction | Geometrically optimized design; Hardox impeller and housing with increased wear resistance |
| Vacuum unit engine | MIDvac – Briggs & Stratton XR 2100 420cc 13 hp with manual start or electric start (optional) Maintenance: See operator’s manual! Full oil change after first 5 hours and later annually or every 100 hours of use (10W30). – PROvac – Honda GX 630 688cc 20.8 hp with electric start Maintenance: See operator’s manual! Full oil change after first 20 hours and later every 6 months or every 100 hours of use (10W30). – Hour meter installed on every Foresteel unit for service inverval and work time checking. |
| Warranty | 1 year for parts and labor 2 years for Briggs & Stratton engines (https://www.briggsandstratton.com/eu/en_gb/support/warranty.html) 3 years for Honda engines (https://www.honda-engines-eu.com/en/support/warranty) |
| Fuel | unleaded gasoline, BIOFUEL NOT SUITABLE |
| Fuel tank capacity | Briggs & Stratton XR 2100 – 6.6 L Honda GX 630 – 12 L |
| Fuel consumption at max rated power | Briggs & Stratton XR 2100 – 3.58 L/h Equals ~1.8 hours of constant work @100% load – Honda GX 630 – 6 L/h Equals ~2 hours of constant work @100% load – Actual average engine load at leaf suction work ~60% |
| Vacuum power / Air flow | 180 m3/min |
| Vacuum unit assembly-unassembly | 4 bolts, ~20 minutes |
| Vacuum hose kit | Diameter 200mm, length 5m, with lightweight handheld suction nozzle and quick-connect adapters |
| Shredding effect | Included shredder blades demolish and cut leaves upto x10 times smaller, increasing work capacity and minimizing trips to dump site. |
| Personnel required | 1 person |
| Suitable for vacuuming | leaves, debris, wood chips, acorns, grass, trash, small branches, pine needles, and other light materials |
| 2-in-1 Design | Leaf Vacuum and leaf extensions are easily un-mountable for converting the leaf trailer to conventional tipping trailer off-season. |
| Suitable for use | All year long thanks to 2-in-1 design concept. |
| Delivery information | Delivered to door with tail lift truck. Packaged on pallet, with drawbar, wheels and vacuum unassembled for transport. No unloading equipment needed by customer for receipt. (Unless requested for delivery fully assembled) |
