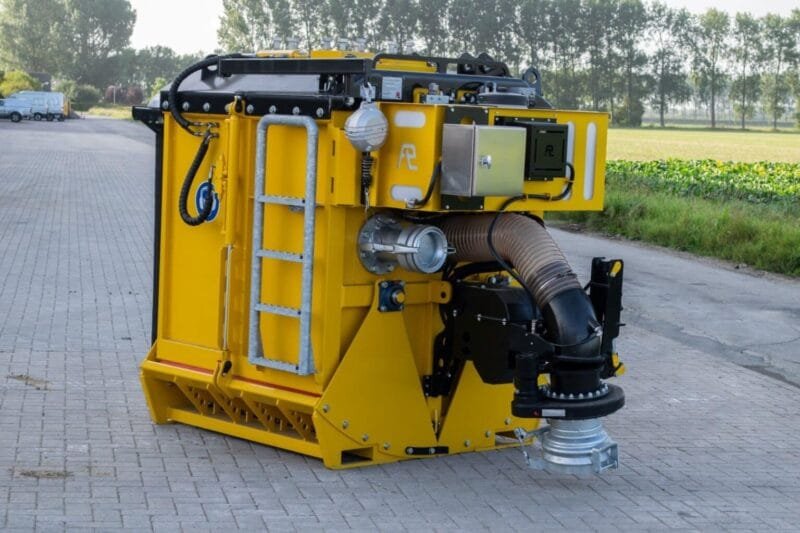

How the ballast vacuum cleaner works

A movable suction hose – both hammering and rotating – carries the material with the air flow to the reservoir. Once in the reservoir, the material falls to the bottom by gravity. The airflow continues through the sieve. The sieve is located at the top of the reservoir. The air flow continues through the impeller and the impeller housing, where it continues its way out. The outlet has a coarse filter. Around it is a fine filter.

Spray installation for dry materials
For dry materials, a sprinkler system has been constructed. The water is added to the suction nozzle in the form of fine drops. Thus, it is well mixed in the air flow. By spraying the ballast with water, a considerable dust reduction is achieved. The air flow is pulled through a centrifugal fan. The centrifugal fan is driven by a hydraulic motor.
