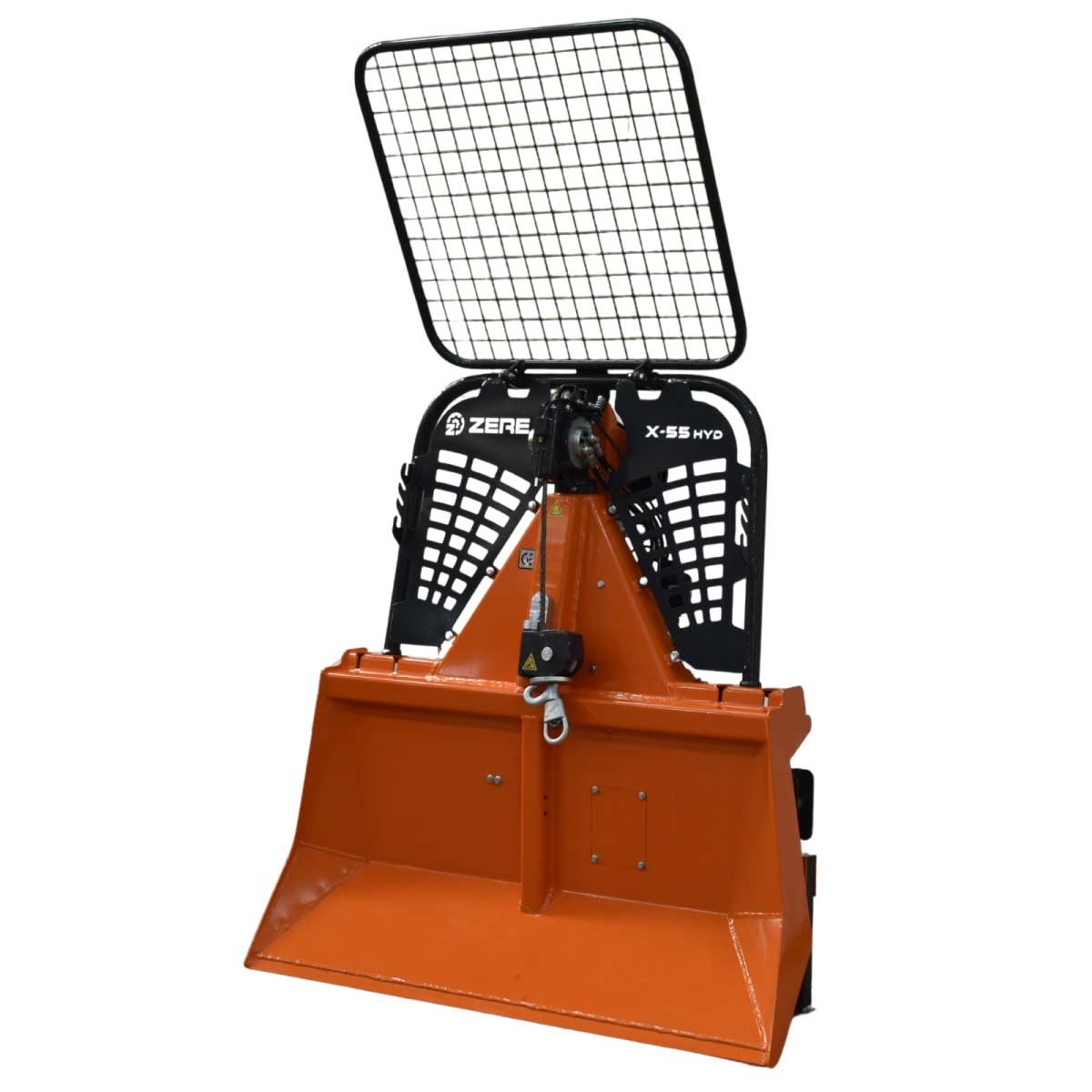

Compact Power

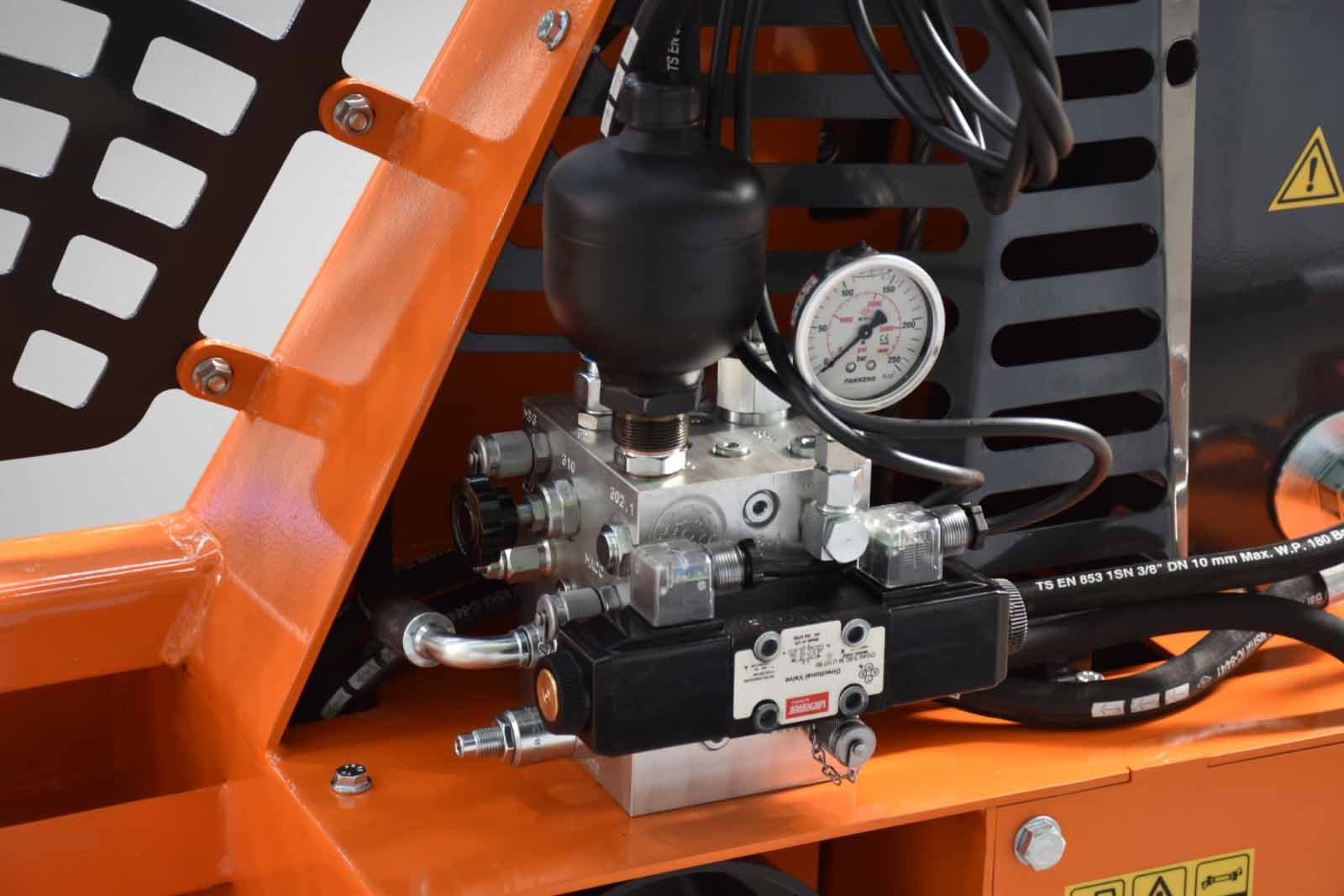

The ZERE HYD series, controlled by an electro-hydraulic system, combines high pulling capacity with a compact body. Thanks to its optimized hydraulic block, it delivers higher pulling efficiency with lower energy.
Operator-Friendly

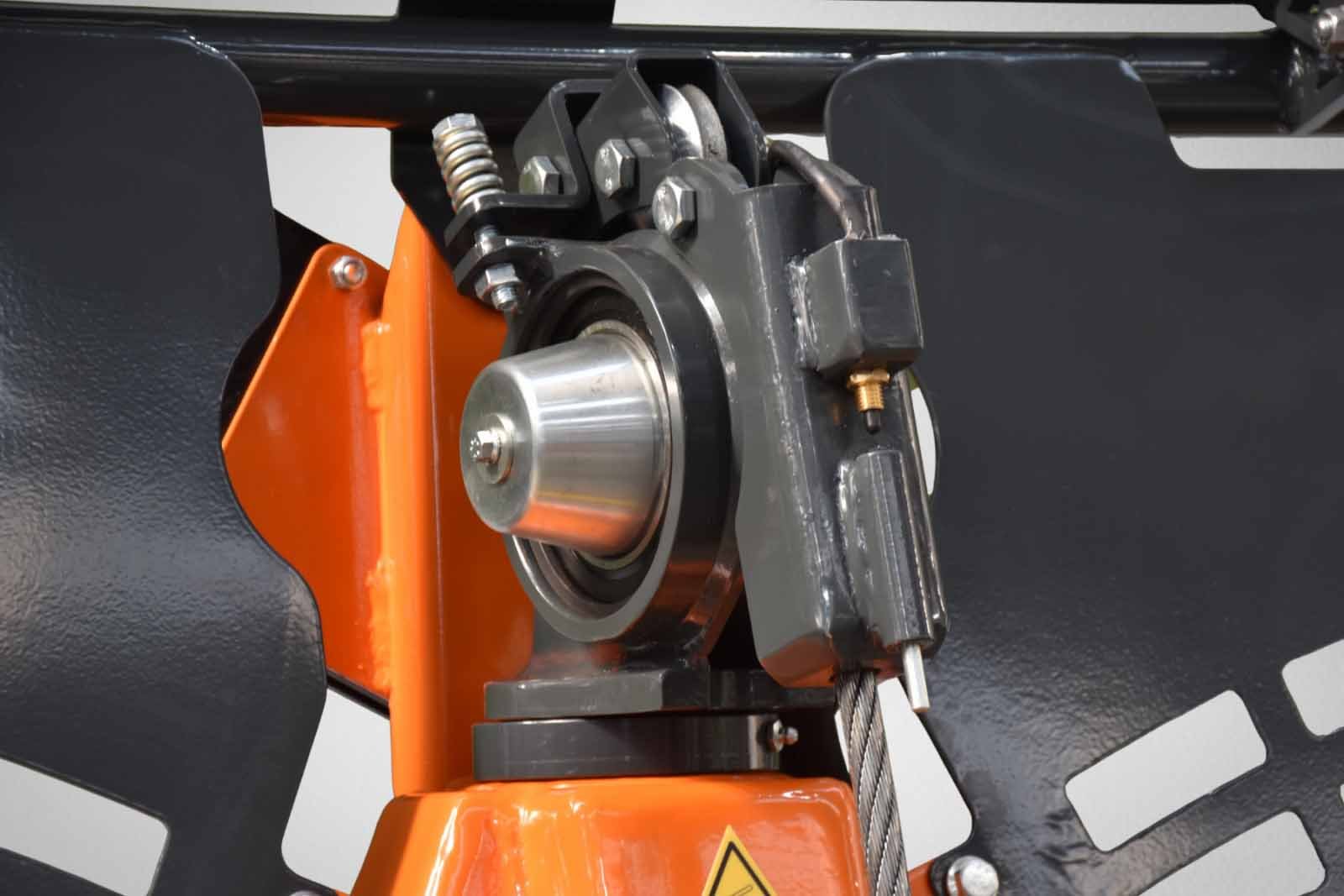

Radio remote control and an ergonomic control layout give the operator precise maneuverability. With a rope pay-out system, automatic stop, and controlled braking, it ensures safe, comfortable operation.
Durable Design
High-alloy steel construction and a Hardox bottom blade provide maximum durability in tough conditions. Every ZERE-engineered detail is built for long service life and uninterrupted performance.
Technical Specifications
Pulling Capacity
5.5 ton
Brake Capacity
6.9 ton
Average Winch Speed
0.6 m/s
Standard Rope Length
70 m / Ø 11 mm
Max. Rope Length
110 m / Ø 10 mm — 90 m / Ø 11 mm
Recommended Tractor Power
45–55 kW / 60–75 HP
Control
Mechanical
Number of Clutch Plates
3
Width
1520 mm
Depth
530 mm
Height (without guard)
1510 mm

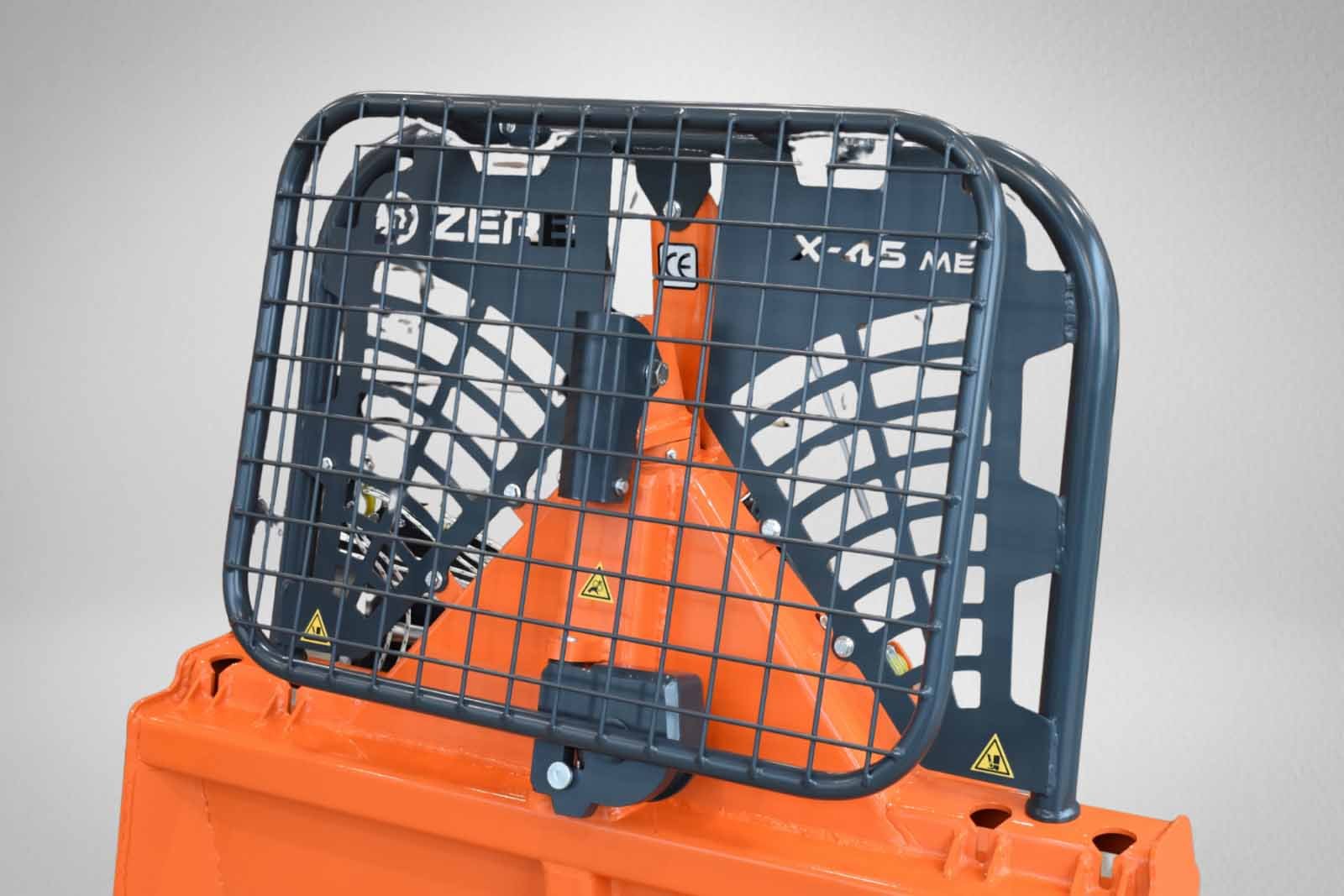

Height (with guard)
2300 mm
Weight (without rope)
365 kg
Hitch Category
I, II

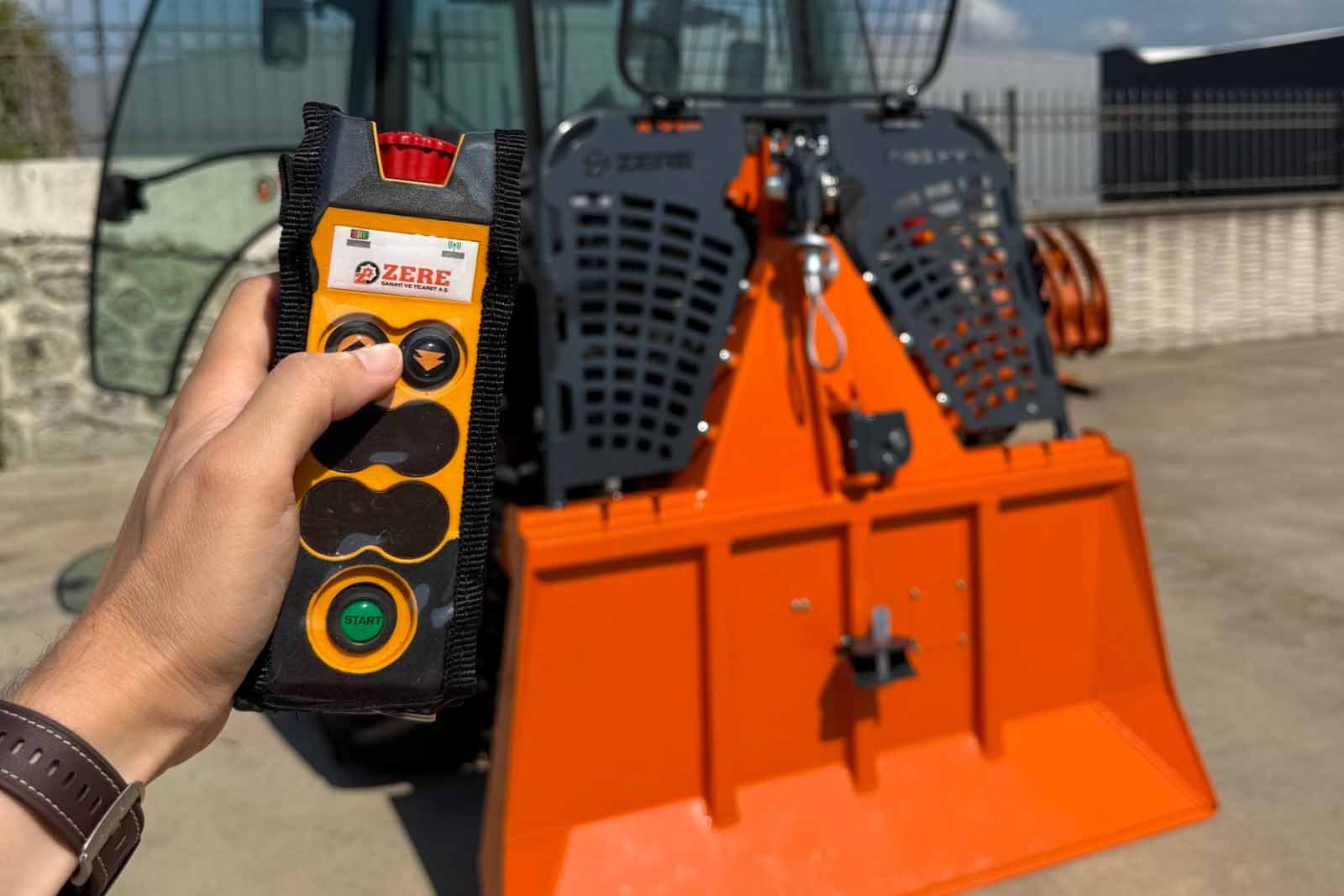

Radio Remote Control
–

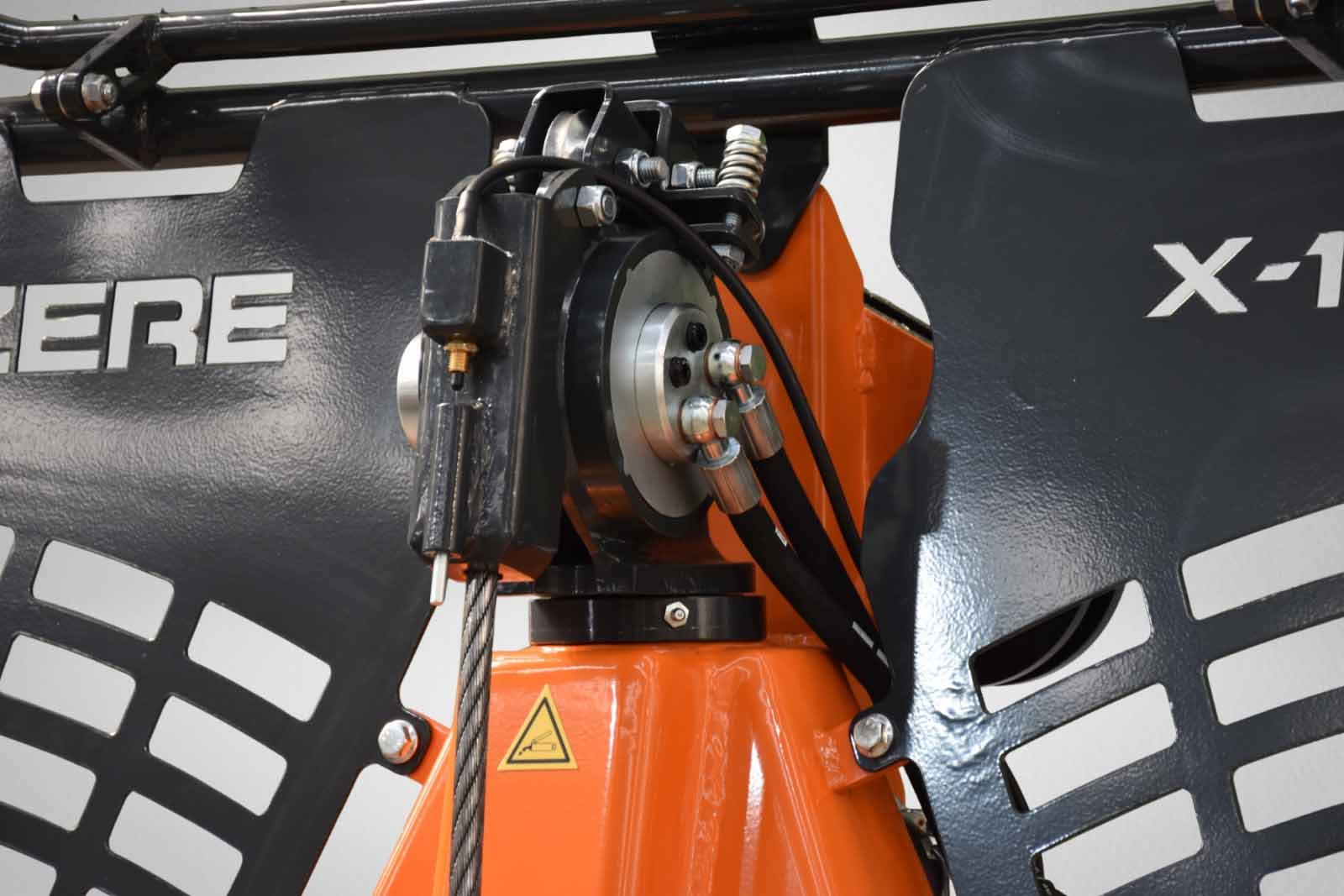

Rope Unwinding System
–
Continuous Rope Unwinding Valve
–

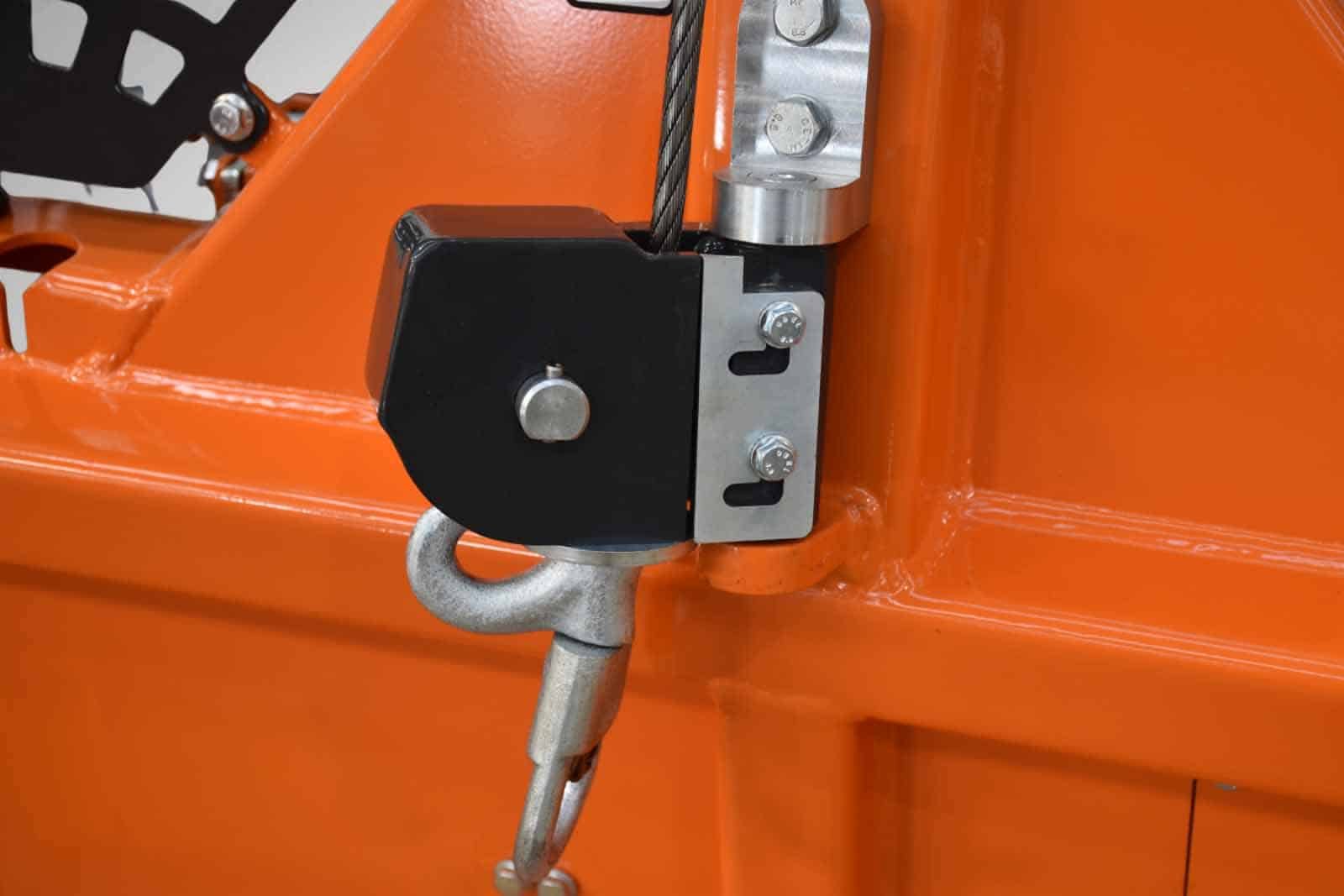

Lower Sheave
Standard

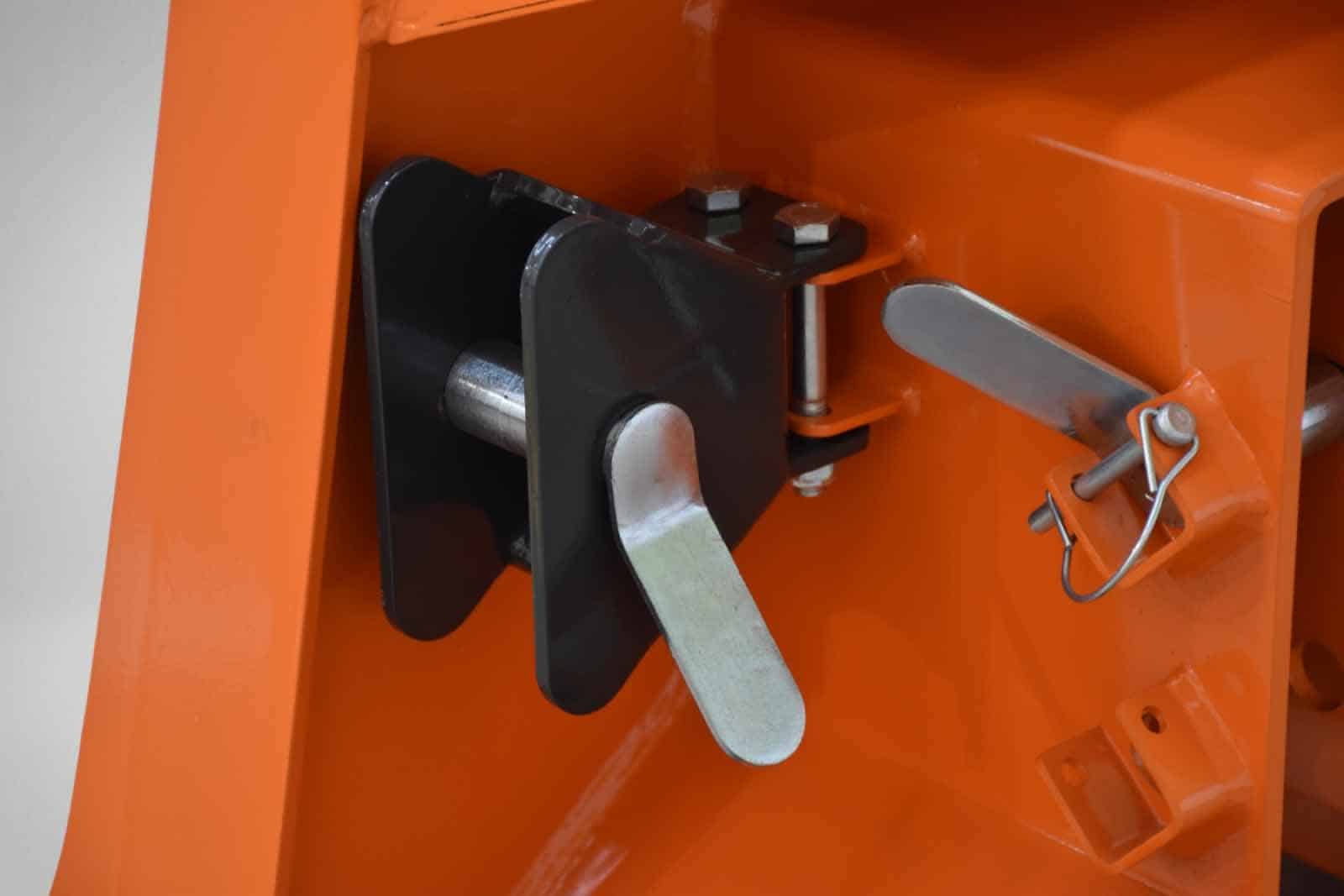

Trailer Hitch
Standard

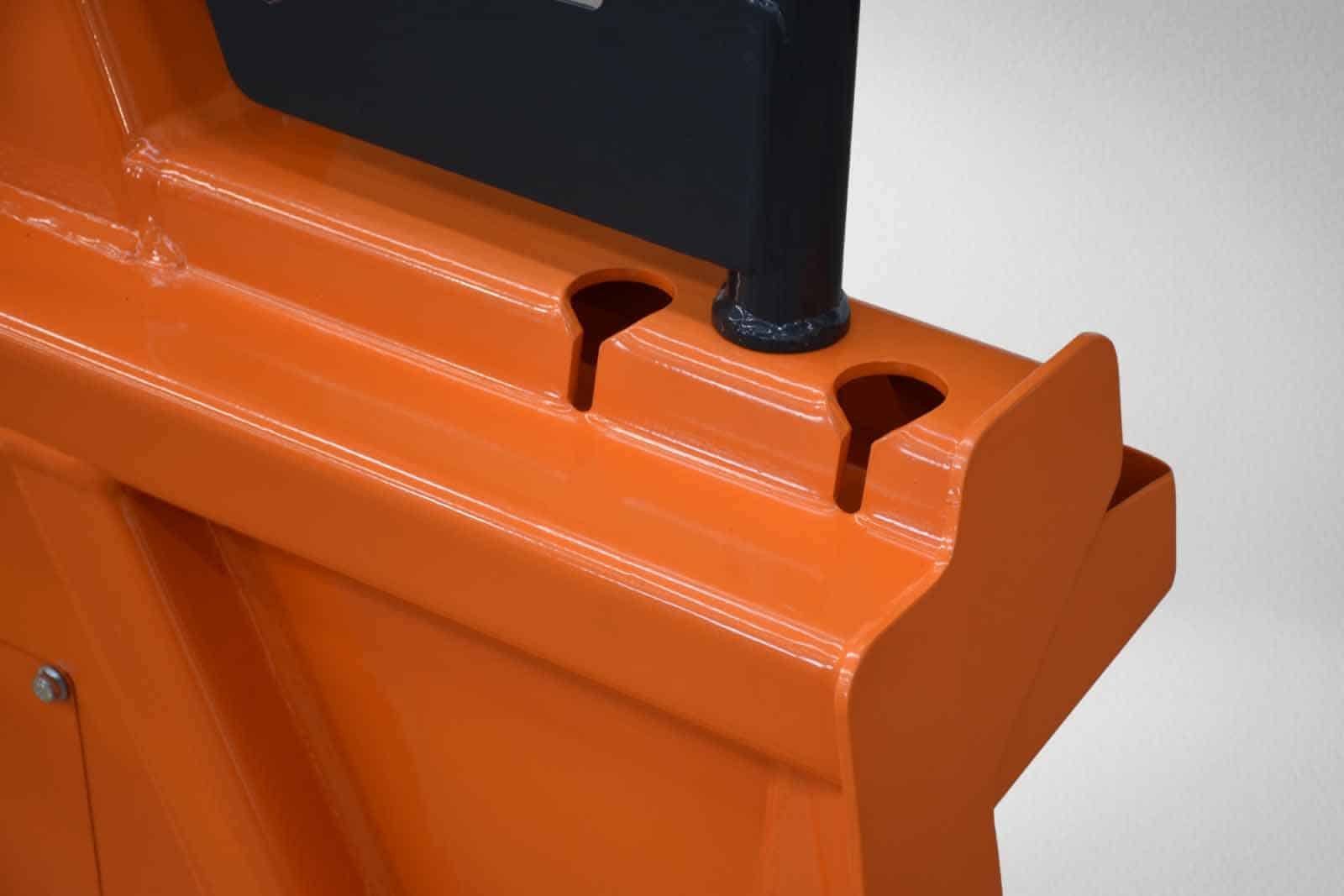

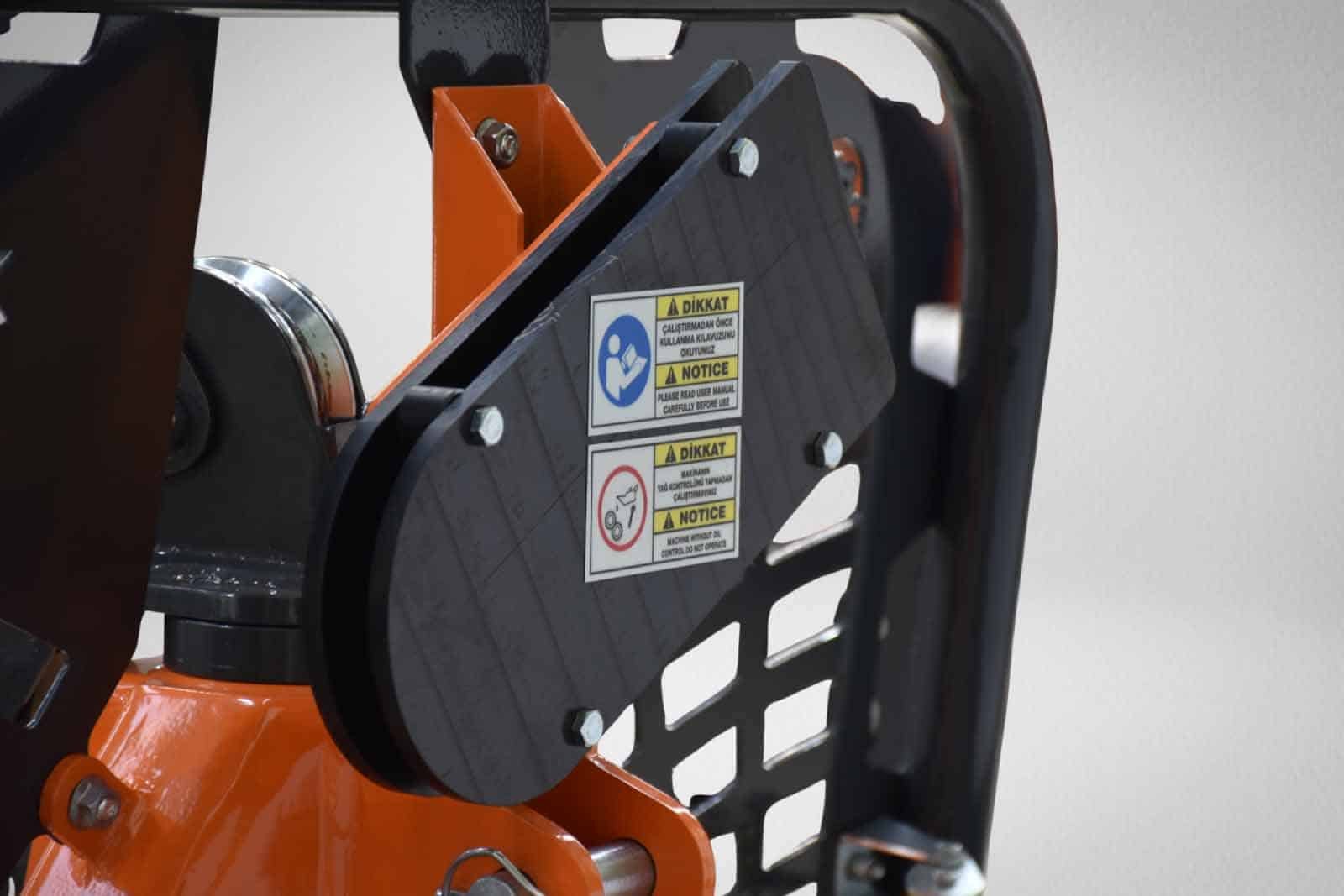

Chainsaw Holder
Standard
