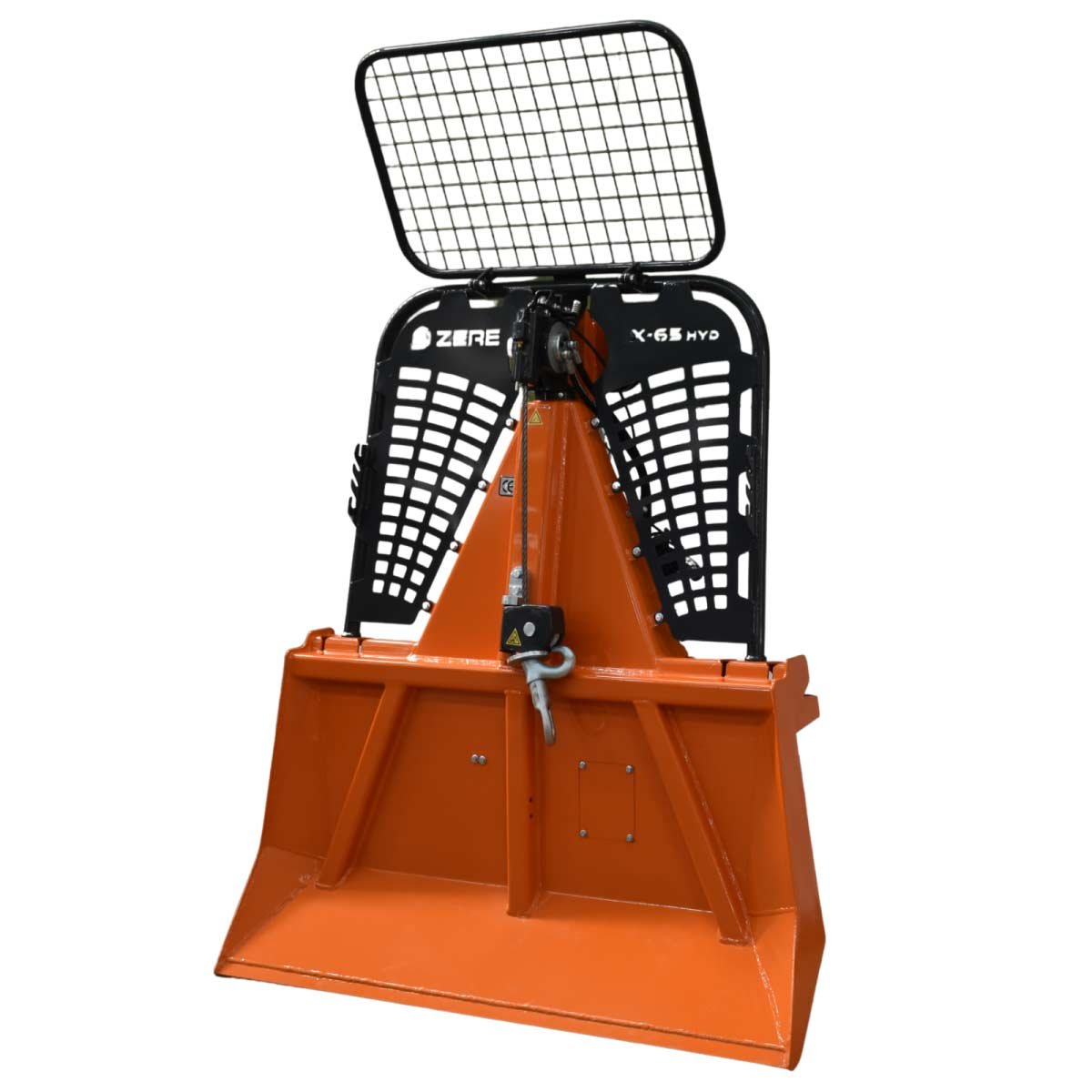

X-65 HYD
Compact Power
The ZERE HYD series with electro-hydraulic control combines high pulling capacity with a compact body. Thanks to its optimized hydraulic block, it delivers higher pulling efficiency with lower energy.
Operator-Friendly
Radio remote control and an ergonomic control layout give the operator precise maneuverability. With the rope unwinding system, automatic stop, and controlled braking, it ensures safe and comfortable use.
Durable Design
High-alloy steel construction and a Hardox bottom blade maximize durability in harsh conditions. Every detail engineered by ZERE is built for long service life and uninterrupted performance.
Enquire about this product
Technical Specifications
Pulling Capacity
6.5 ton
Brake Capacity
8.1 ton
Average Winch Speed
0.6 m/s
Standard Rope Length
80 m / Ø 12 mm
Max. Rope Length
120 m / Ø 11 mm — 100 m / Ø 12 mm
Recommended Tractor Power
55–65 kW / 75–90 HP
Control
Electro-Hydraulic
Number of Clutch Plates
4
Width
1640 mm
* 1840 mm
Depth
650 mm
Height (without guard)
1750 mm
Height (with guard)
2300 mm
Weight (without rope)
450 kg
* 490 kg
Hitch Category
II, III
Radio Remote Control
Standard
Rope Unwinding System
Standard
Continuous Rope Unwinding Valve
Standard
Anti-Tip System
Optional
Automatic Stop (Limit Switch)
Standard
Lower Sheave
Standard
Trailer Hitch
Standard
Chainsaw Holder
Standard
