Westtech Mulcher

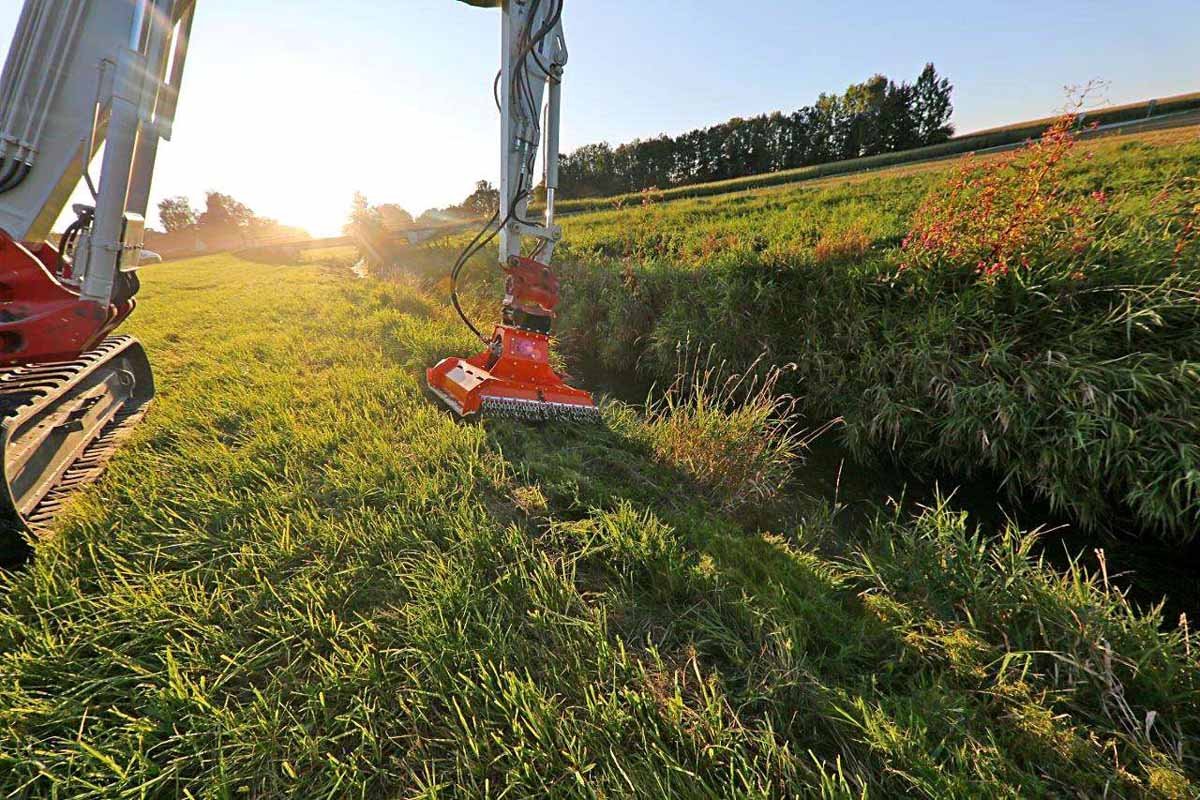

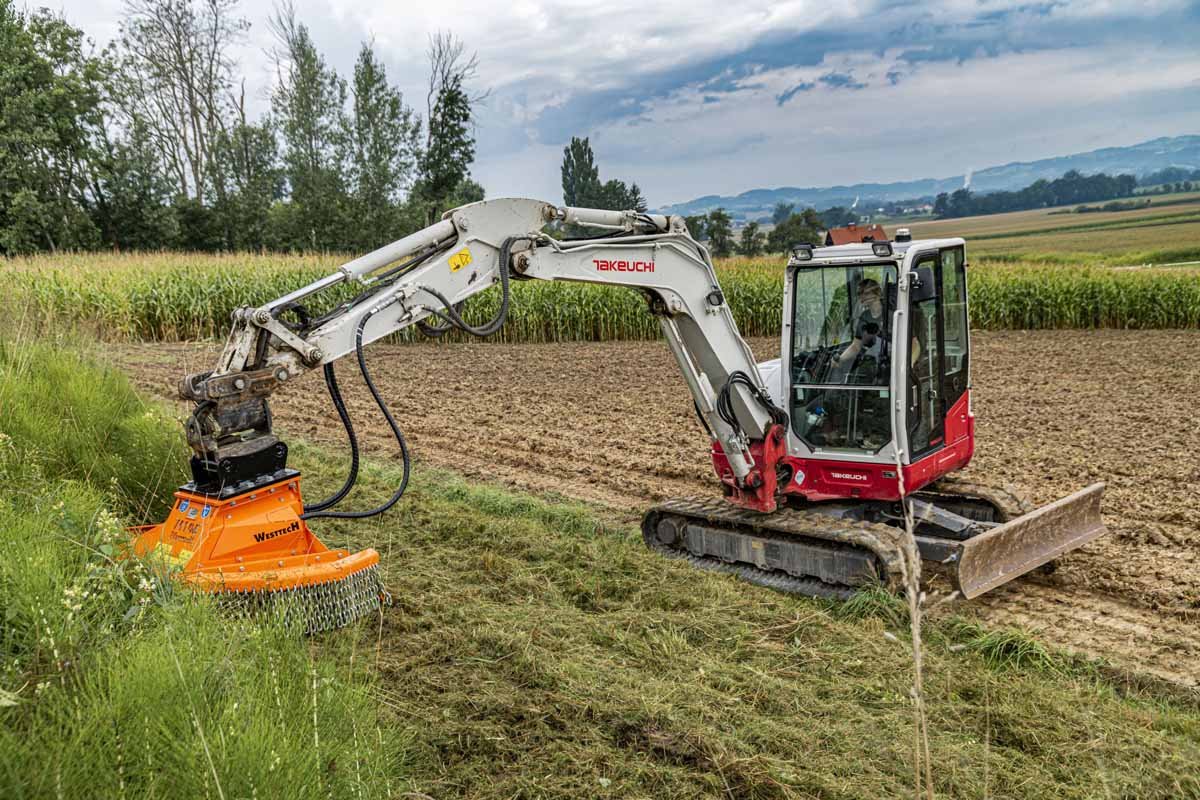

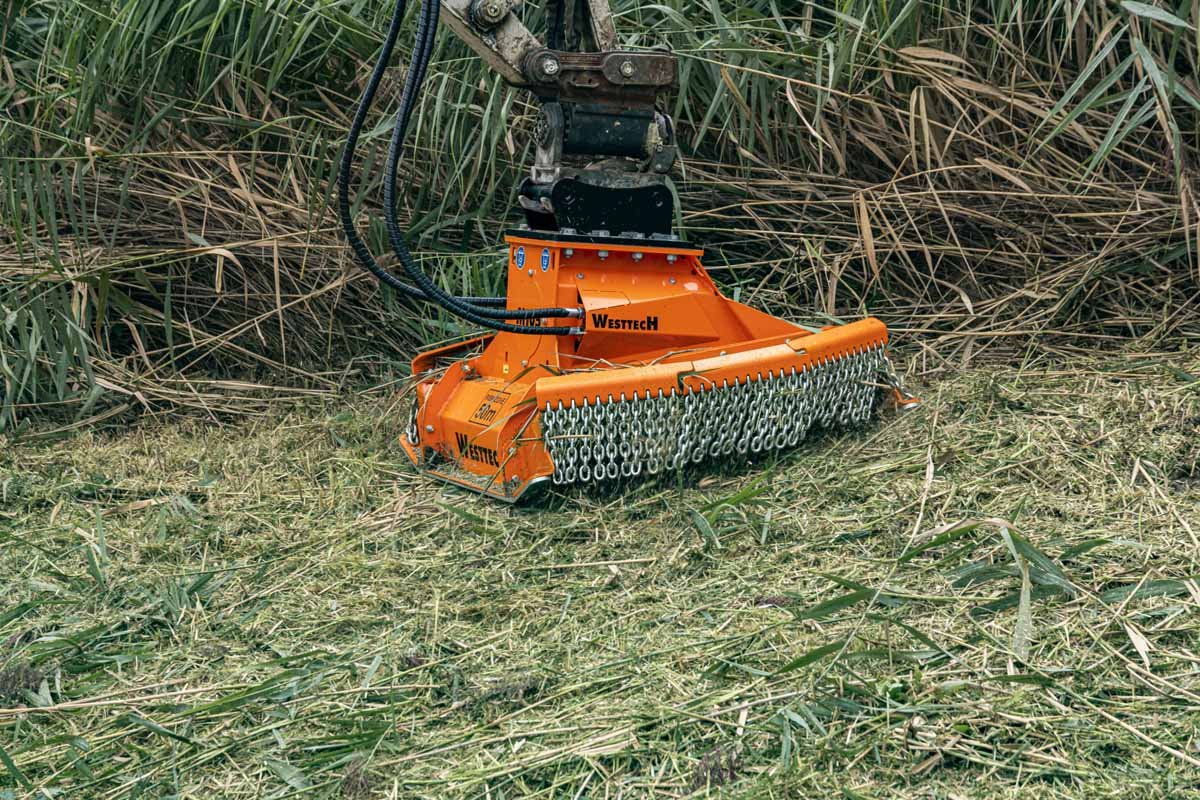

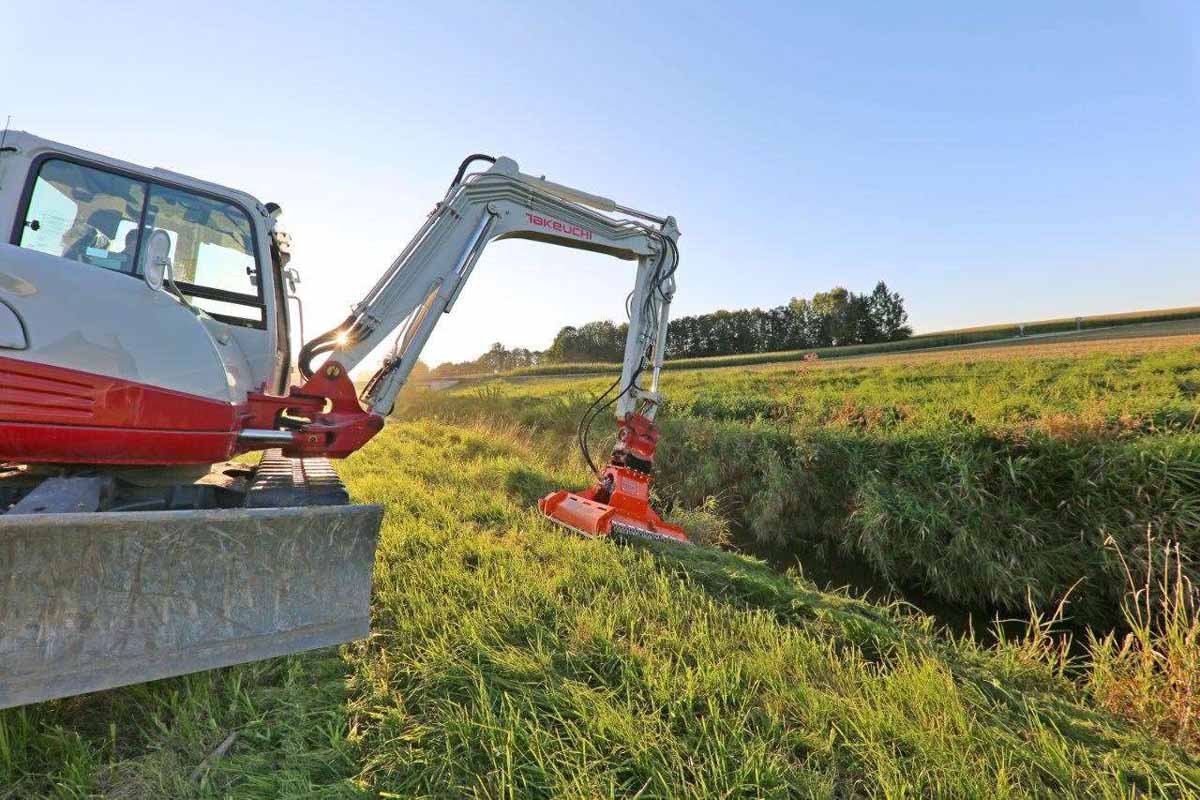

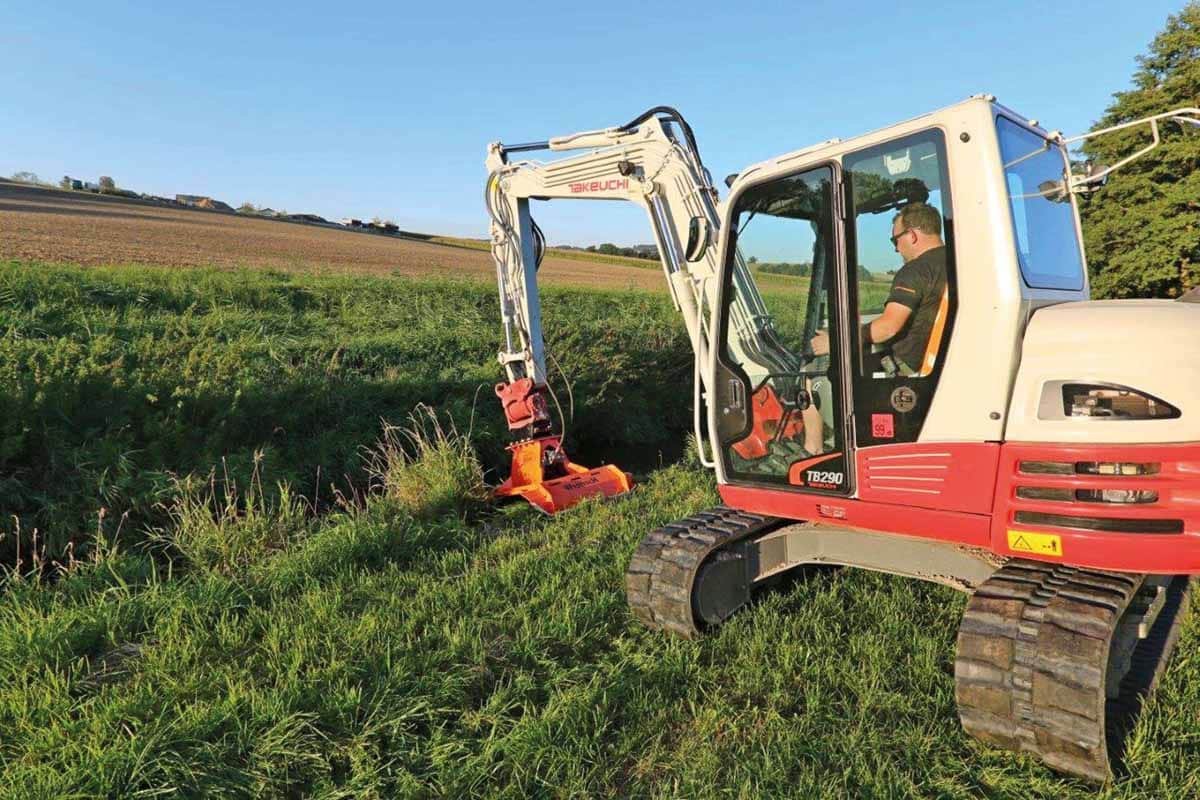

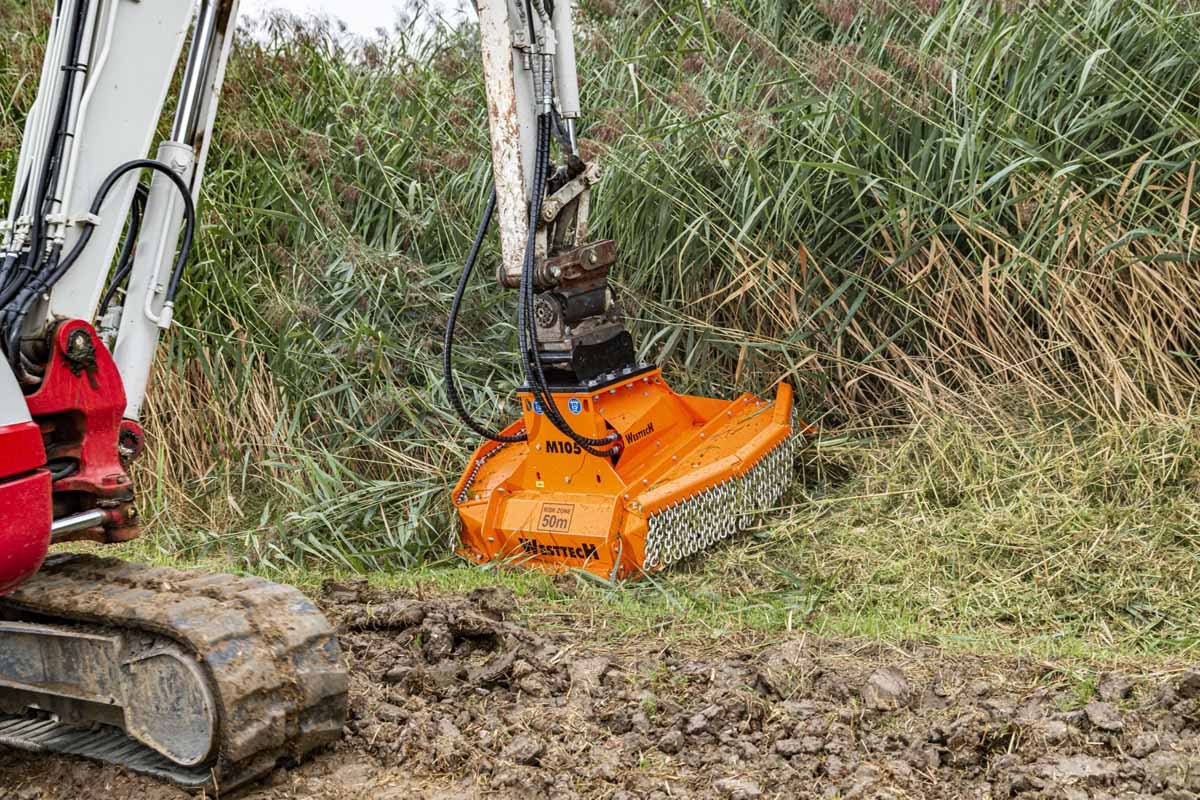

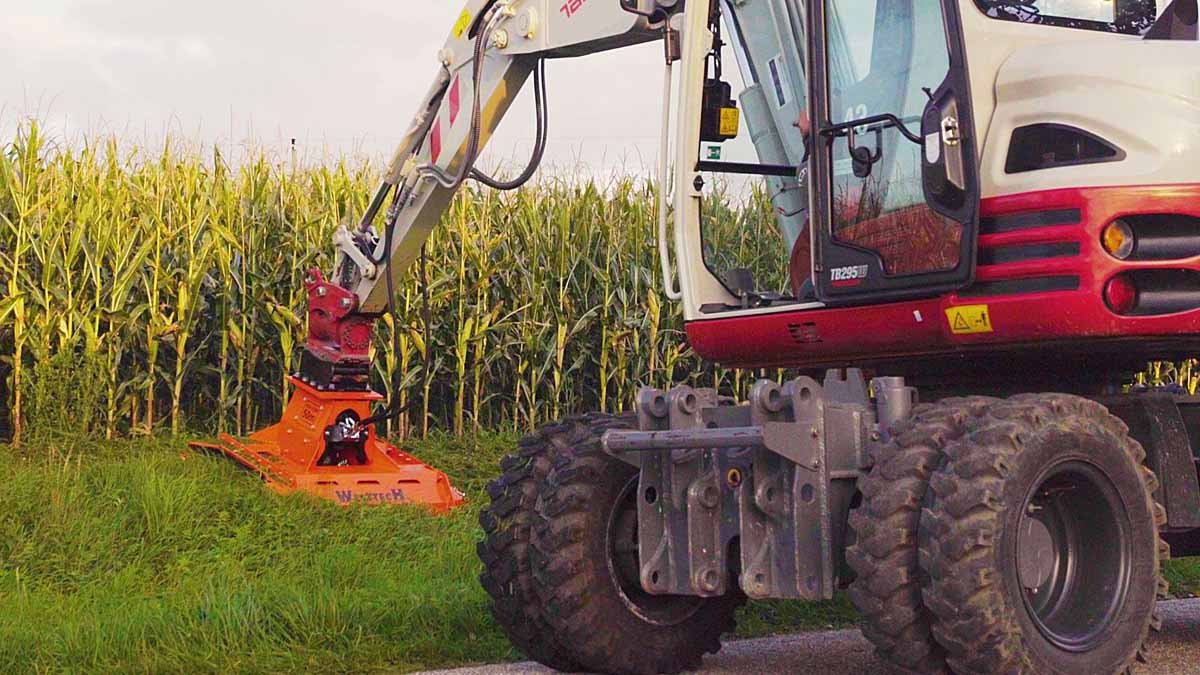

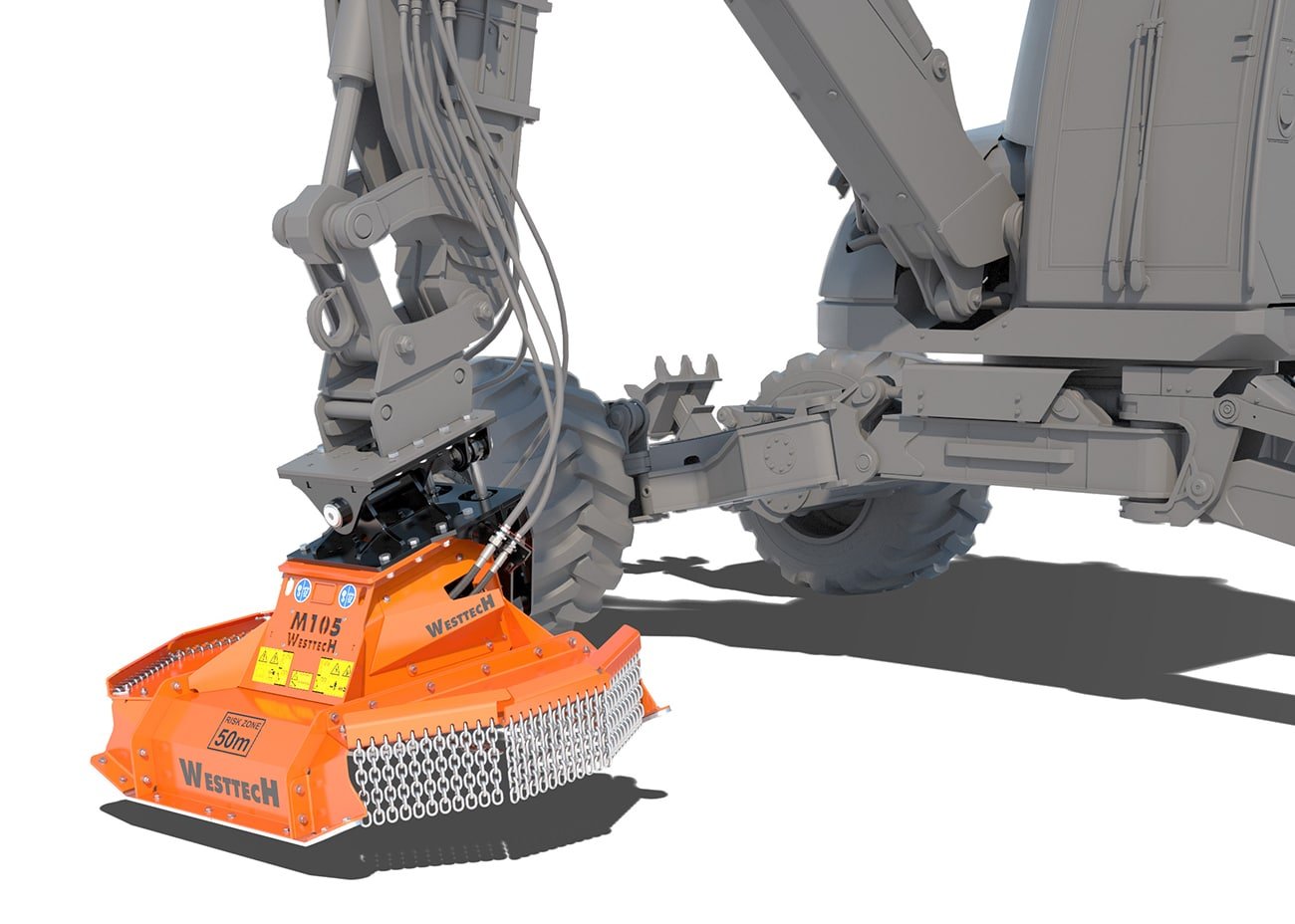

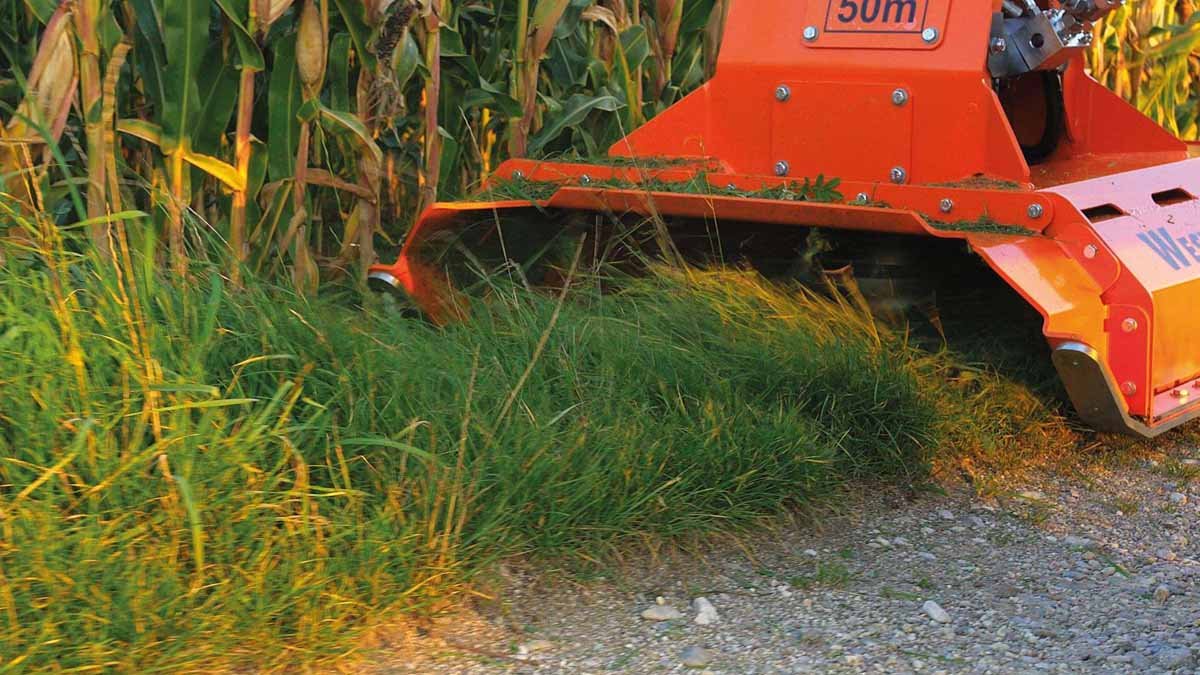

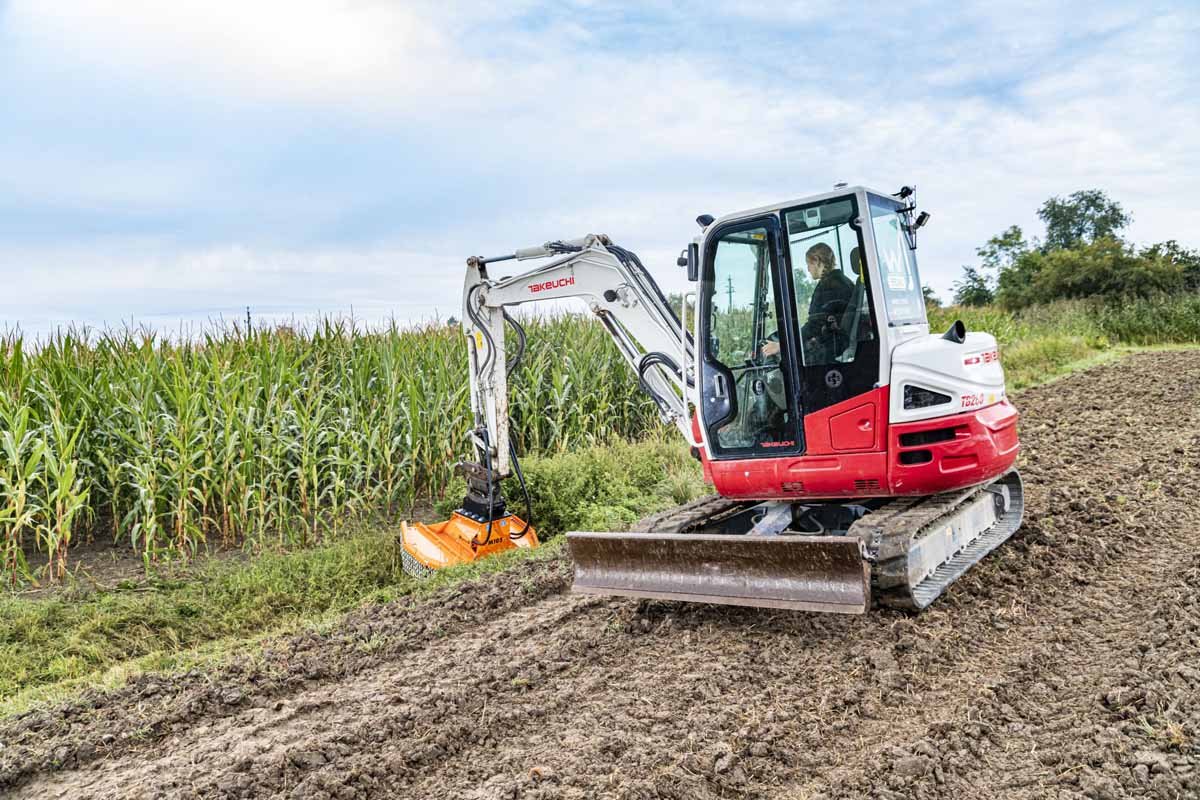

Excavator mounted mulcher designed for professional maintenance of overgrown areas. With a working width of 1050mm & weighing 315kg, it is suitable for machines from 6ton to 14ton.
Generously sized bearing
Exchangeable attrition skids
Ideal working width for road and embankment maintenance.
Mulching in both directions.
Cylinder swivel unit available for mulching hillsides.
Desensitised against foreign objects.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas
- Maintenance of overgrown green areas, if mowing or grazing is unfeasible

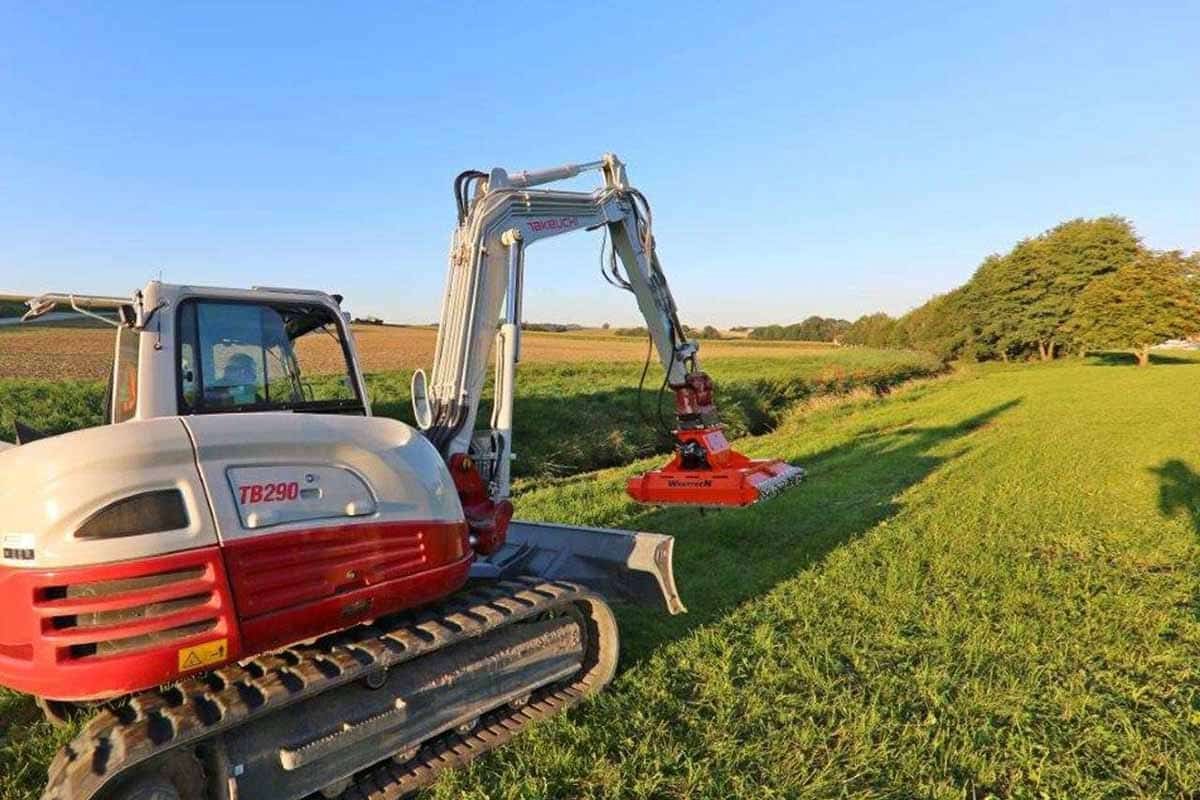

- Maintenance of roadsides and hillsides
- Maintenance of banks and wooded terrain
- Developed for sandy and erosion-prone soils, as the root material remains in the soil.
Key Facts
- Ideal cutting width for road and embankment maintenance.
- Robust workmanship, low-wear mulching system.
- Attachment to conventional excavators from 7 to 14 tonnes.
- 2 different mulch systems.
- For keeping forest roads clear.
- Axial piston rotating motor with optimum efficiency in two different sizes possible.
- Protected hydraulic connections.
- Optional cylinder slewing gear available for mulching in slopes and hillsides.
- Ideal add-on for forest soil care.
- Mulching in both directions spares empty run.
- KTL-primed (cathodic dip-coating) and powder coating.
- Made of high-strength Hardox ® steel.
- Optional: Mic 4.0-capable.

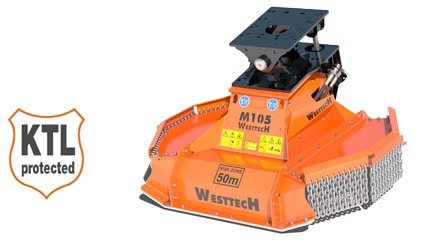

| M 105 | |
|---|---|
| Cutting width (mm) | 1050 |
| Weight (Base – Full equipment) (kg) | 315–490 |
| Recommended pump flow capacity (l/min.) | 60–75 |
| Recommended operating pressure (bar) | 280 |
| Service weight of carrier vehicle (t) | 7–14 |
| Optional: Cylinder swivel mechanism | ■ |
| Optional: Knife mulch unit | ■ |
■ available | – not available
Technical modifications and figures are not binding. Subject to changes for reasons of further development.
