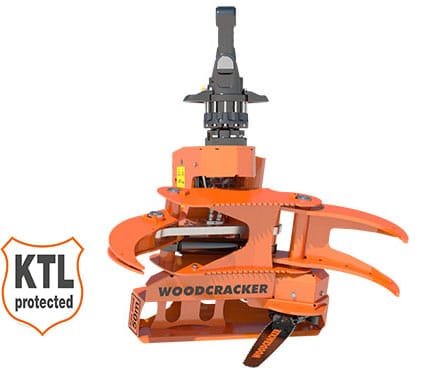

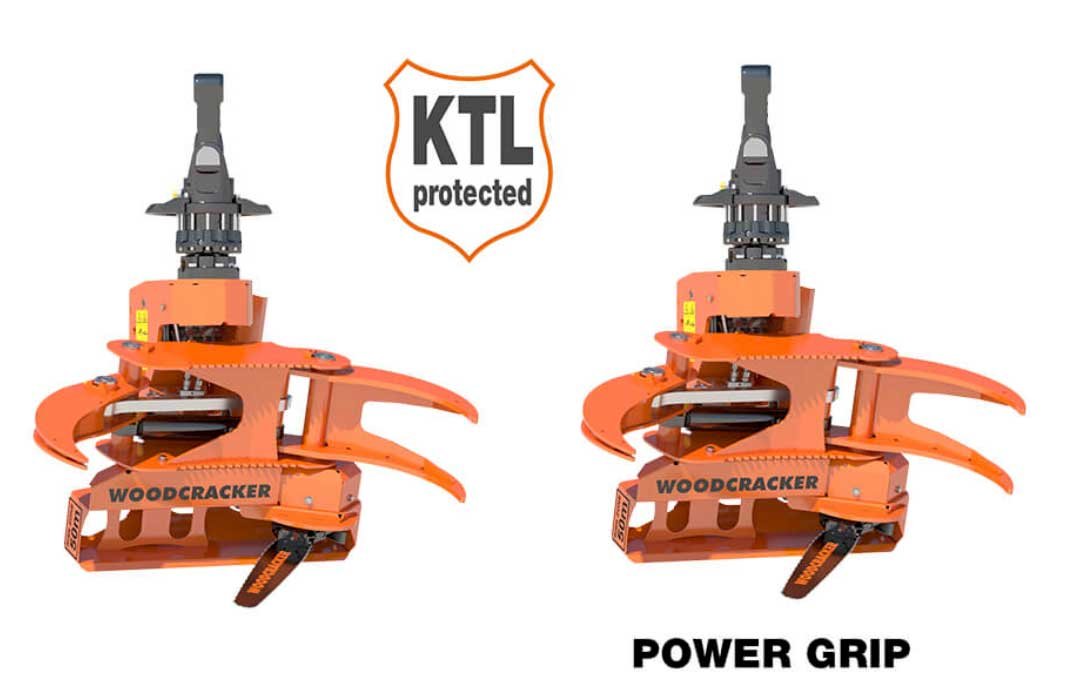

Woodcracker CS crane
The CS Crane is designed for gimbal-mounting onto cranes and telescopic extension jibs. Despite their large cutting capacity, it has a low net weight. It can be used as a standard grapple due to manually lockable tilt function & saw.

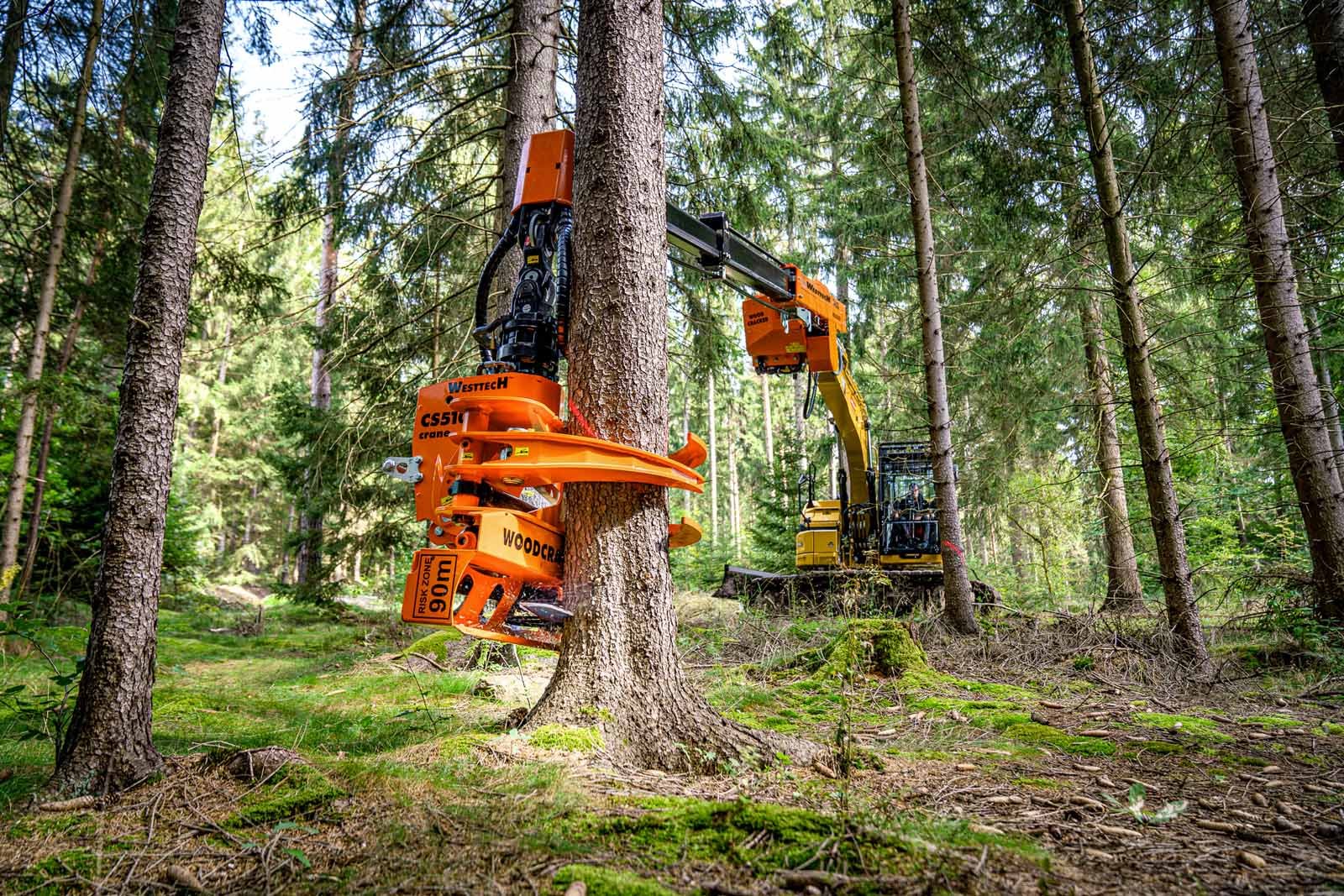

Westtech Woodcracker CS510 Crane
Key Facts
- Designed for gimbal-mounting on a crane, excavator or
telescope stage Woodcracker ® T. - No self-initiated tilting.
- Manually lockable tilt function and saw, for usage as gripper.
| Cutting Diameter: | |
| Carrier Weight: |
Westtech Woodcracker CS620 Crane
Key Facts
- Designed for gimbal-mounting on a crane, excavator or
telescope stage Woodcracker ® T. - No self-initiated tilting.
- Manually lockable tilt function and saw, for usage as gripper.
| Cutting Diameter: | |
| Carrier Weight: |
Only two double-acting hydraulic connections needed
Suitable plug-in unit
Versatile mounting options for various carrier vehicles
Dual swing damper
large cutting diameter despite low deadweight
Sophisticated hydraulic control enables to withdraw parts of the tree vertically from its setting
Thanks to the automatic chain tensioner, the chain has always the right tension.
Regardless of whether the machine has just started or has been operating for several hours. This means that the working process is not interrupted by a chain coming off.
Powerful 3-finger gripper
Safe holding of the tree during cutting through regripping by the gripper.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

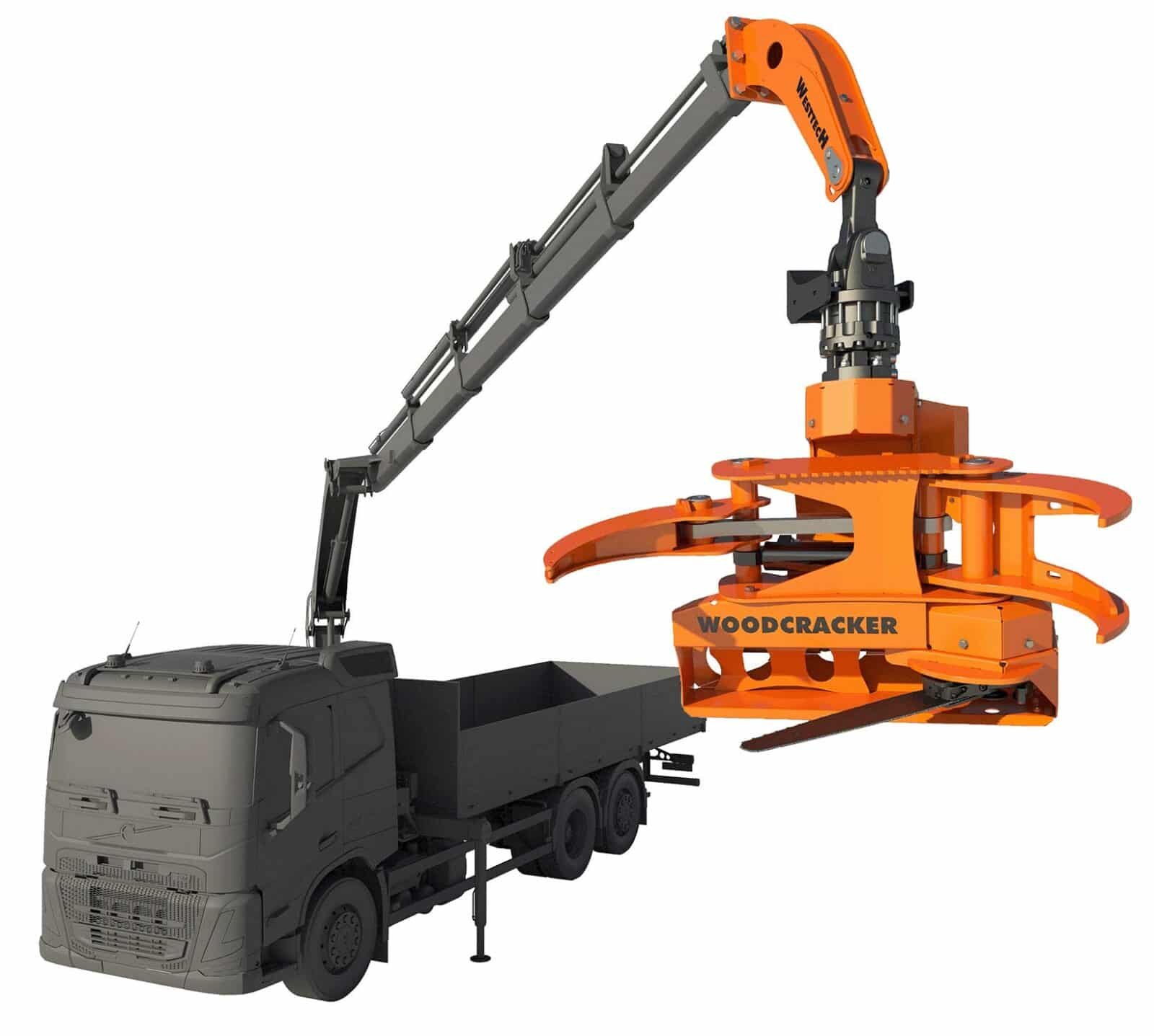

- Suitable for every standard crane, e.g. wood/recycling or loading cranes and for excavators, timber trailers, trucks or telehandlers.
- Extra long reach due to low deadweight
- Tree maintenance actions in urban areas

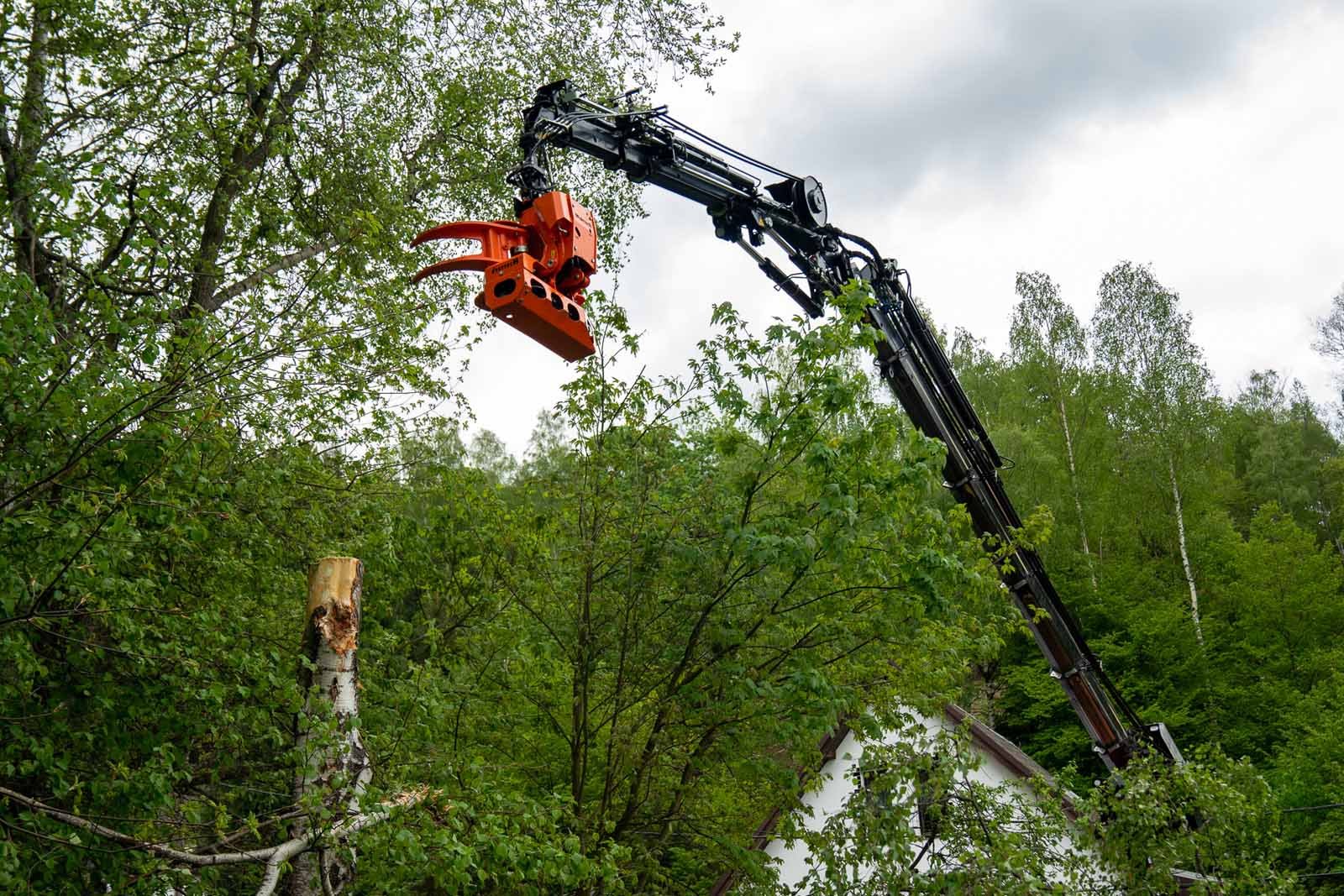

- On a crane for special tree removal and traffic safety work
- Can also be used as a wood gripper thanks to the lockable tilt function
- Different mounting options possible.
- Tree maintenance actions in urban areas.
Key Facts
- Designed for gimbal-mounting on a crane, excavator or telescope stage Woodcracker ® T.
- No self-initiated tilting.
- Manually lockable tilt function and saw, for usage as gripper.
- Manutilt – is the carrier vehicle equipped with more than one hydraulic circuits, the tilt function can be controlled independently from the gripper.
- Large cutting diameter despite low deadweight.
- User-friendly operation.
- Powerful 3-finger gripper.
- Hydraulic hoses are well protected.
- The machine fits on any forestry crane instead of the existing gripper.
- KTL-primed (cathodic dip painting) and powder top coat
- Low-service and low-wear due to special cutting system.
- Made of high-strength Hardox ® steel.
| CS510 crane | CS620 crane | |
|---|---|---|
| Cutting diameter (mm) | 540 | 620 |
| Gripper opening stroke (mm) | 1270 | 1270 |
| Deadweight (basic – fully equipped) (kg) | 370 - 500 | 410 - 520 |
| Recommended litre capacity (l/min.) | 50 - 90 | 50 - 90 |
| Recommended operating pressure (bar) | 200 - 280 | 200 - 280 |
| Chain lubrication | oil | oil |
| Optional: Rotator including swing damper | ■ | ■ |
| Optional: Rotator including dual swing damper | ■ | ■ |
| Optional: Quick coupler QC10 | ■ | ■ |
| Optional: Autotilt (only one double-acting hydraulic connection needed) | ■ | ■ |
■ available | – not available
* Depending on the operating mode or Woodcracker equipment line.
Technical data and illustrations are non-binding. Changes for reasons of on-going development reserved.
