Woodcracker CS Smart

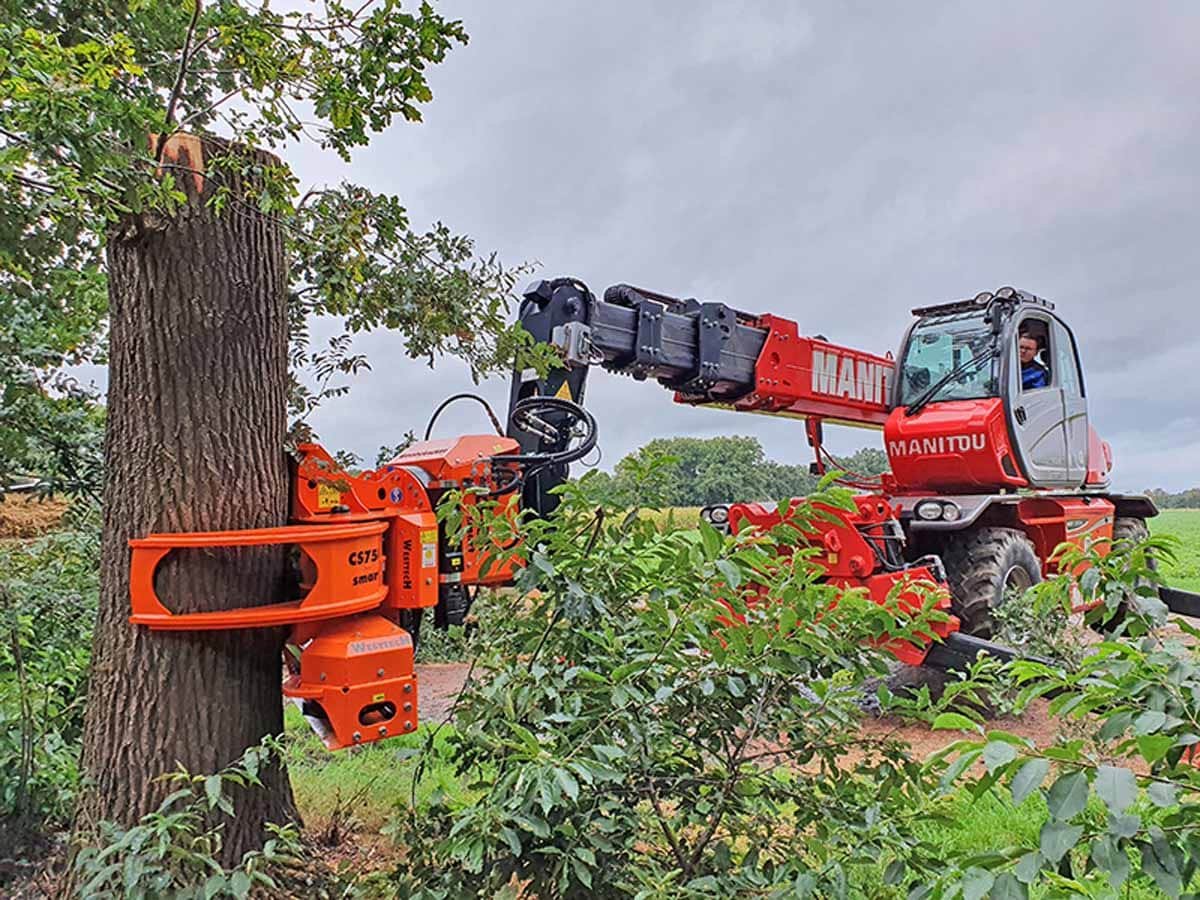

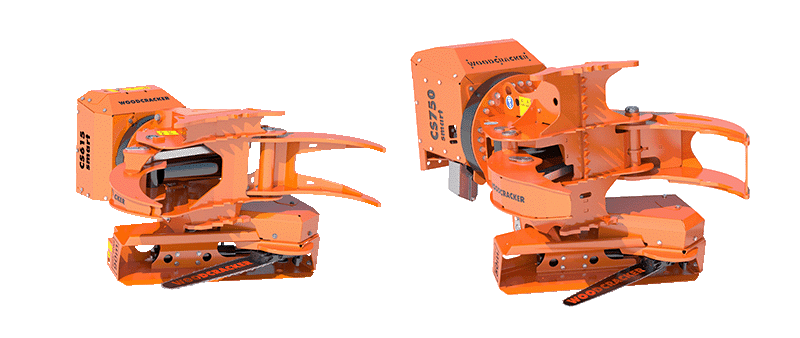

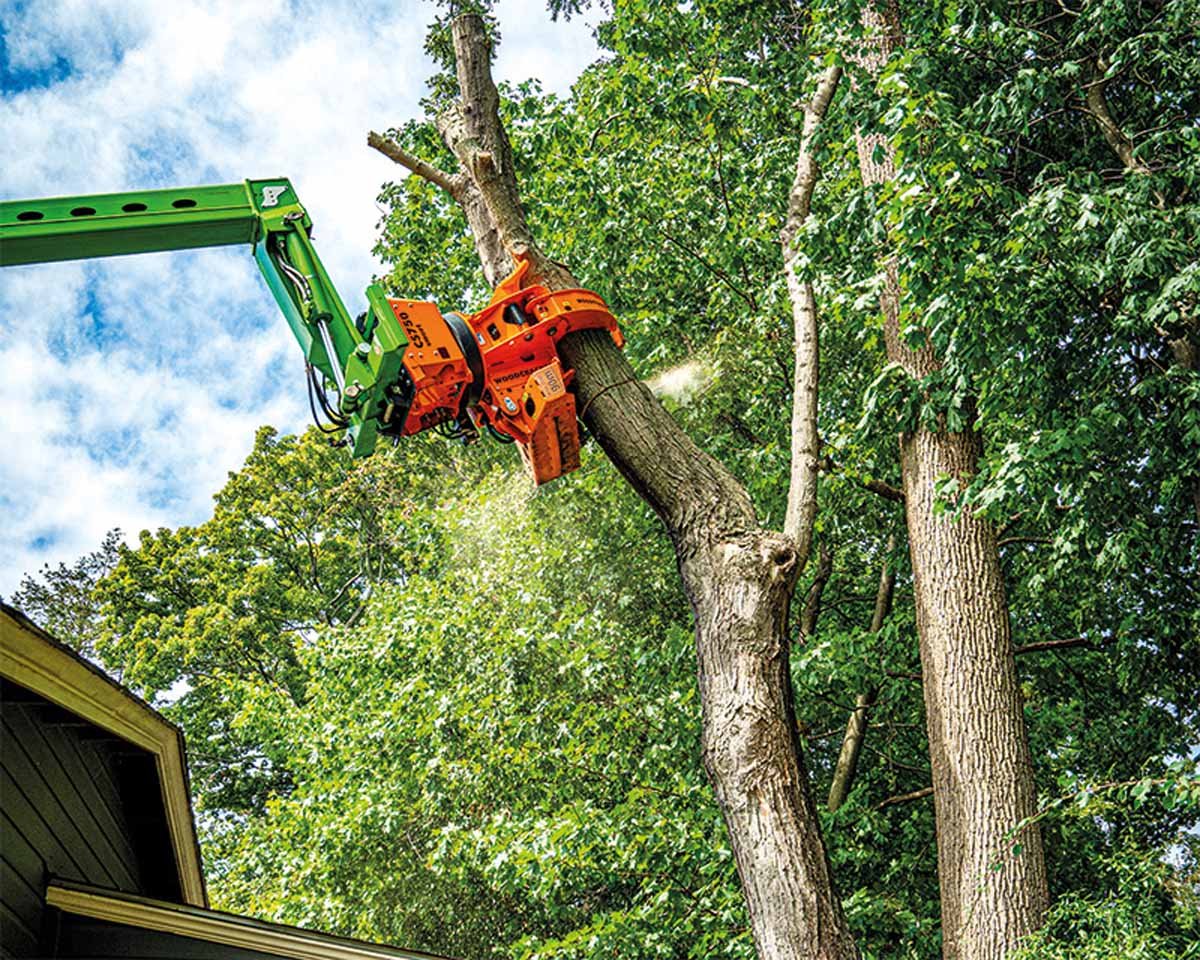

The CS Smart grapple saw is an extra light-weight attachment for rotating telehandlers. With two models in the range, they achieve a cutting capacity of up to 750mm and are complete with heavy duty worm-drive rotators. Saw box has a swinging chassis with active suspension for user-friendly operation.
Sophisticated hydraulic control
Automatic chain tensioner – the chain has always the right tension.
Regardless of whether the machine has just started or has been operating for several hours. This means that the working process is not interrupted by a chain coming off.
The chain is grease lubricated. Compared to an oil lubrication, there is no oil fogging and therefore no contamination of the driver cabin windscreen. Grease lubrication is long-lasting and economical.
powerful gripper for safe grip of the harvested material
Powerful Tiltator: endlessly rotatable (360°)
The saw box has a swinging chassis with active suspension.
Spring-mounted saw box prevents the saw blade bending due to force acting on it.
Short Facts Download
Find all the information on this product at a glance in this pdf

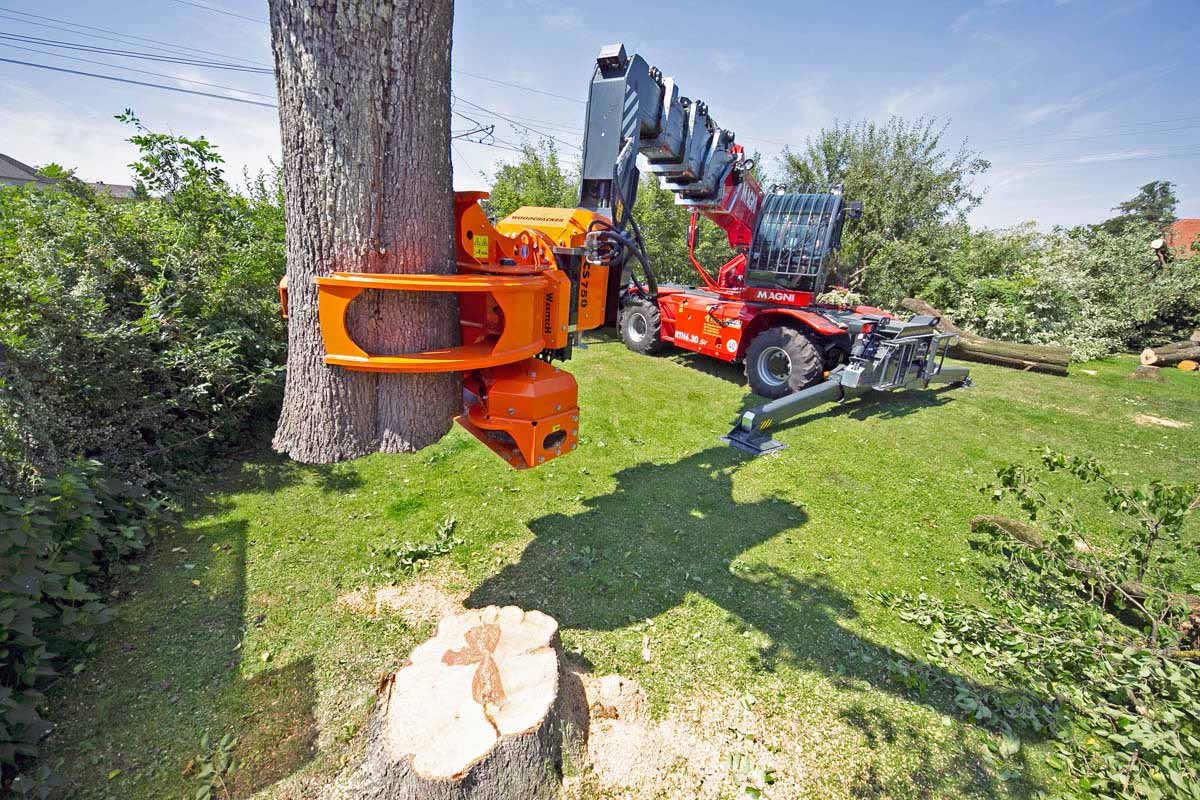

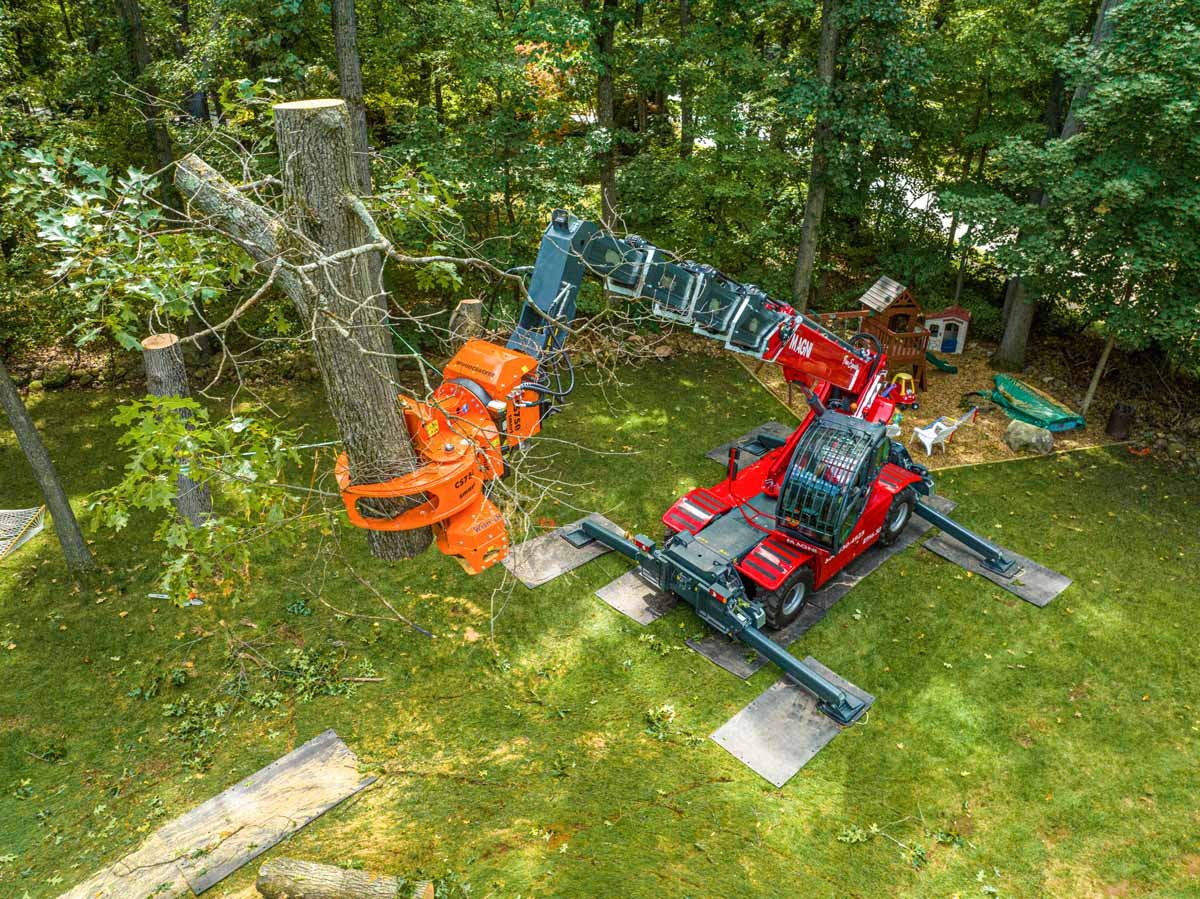

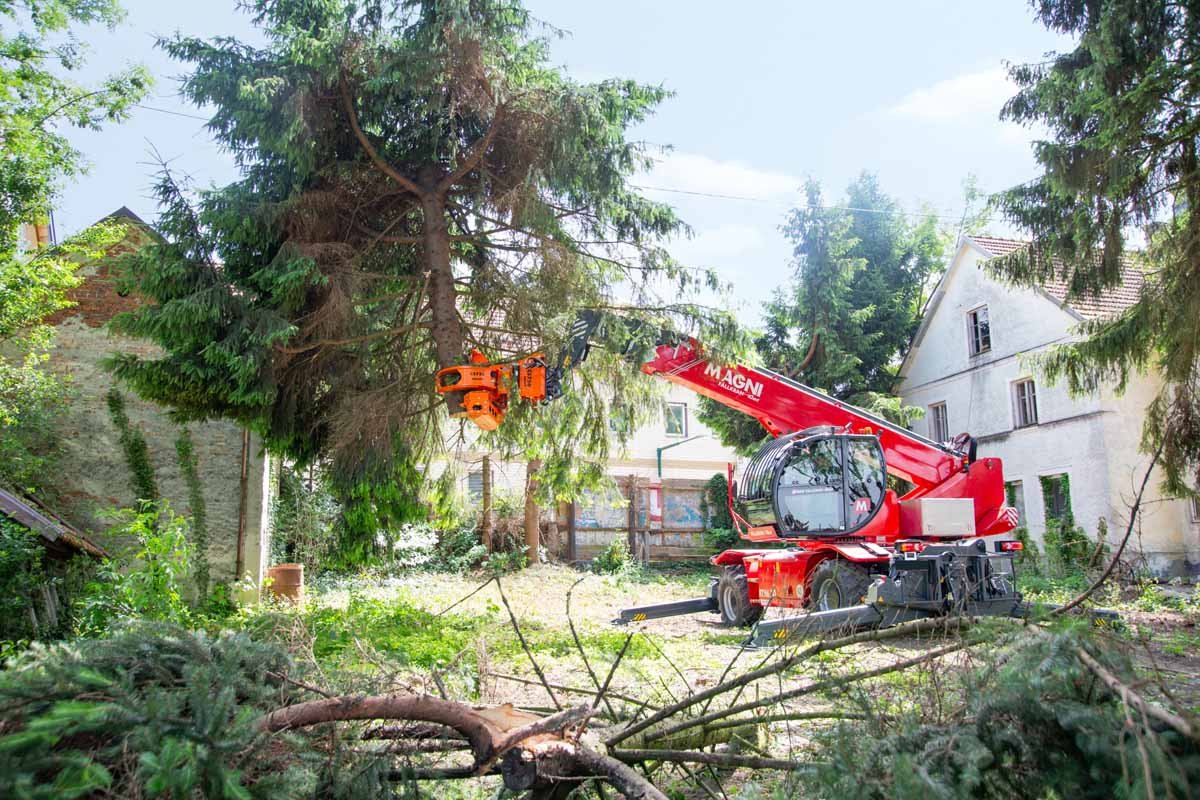

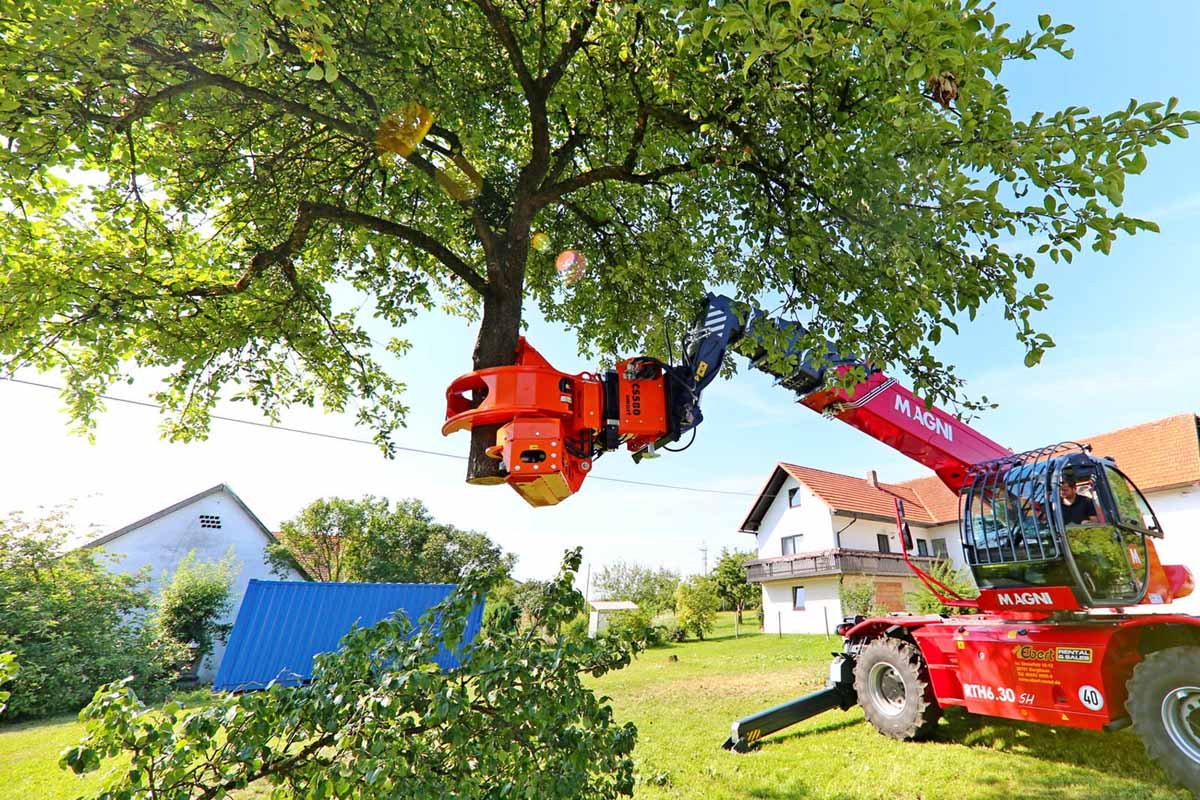

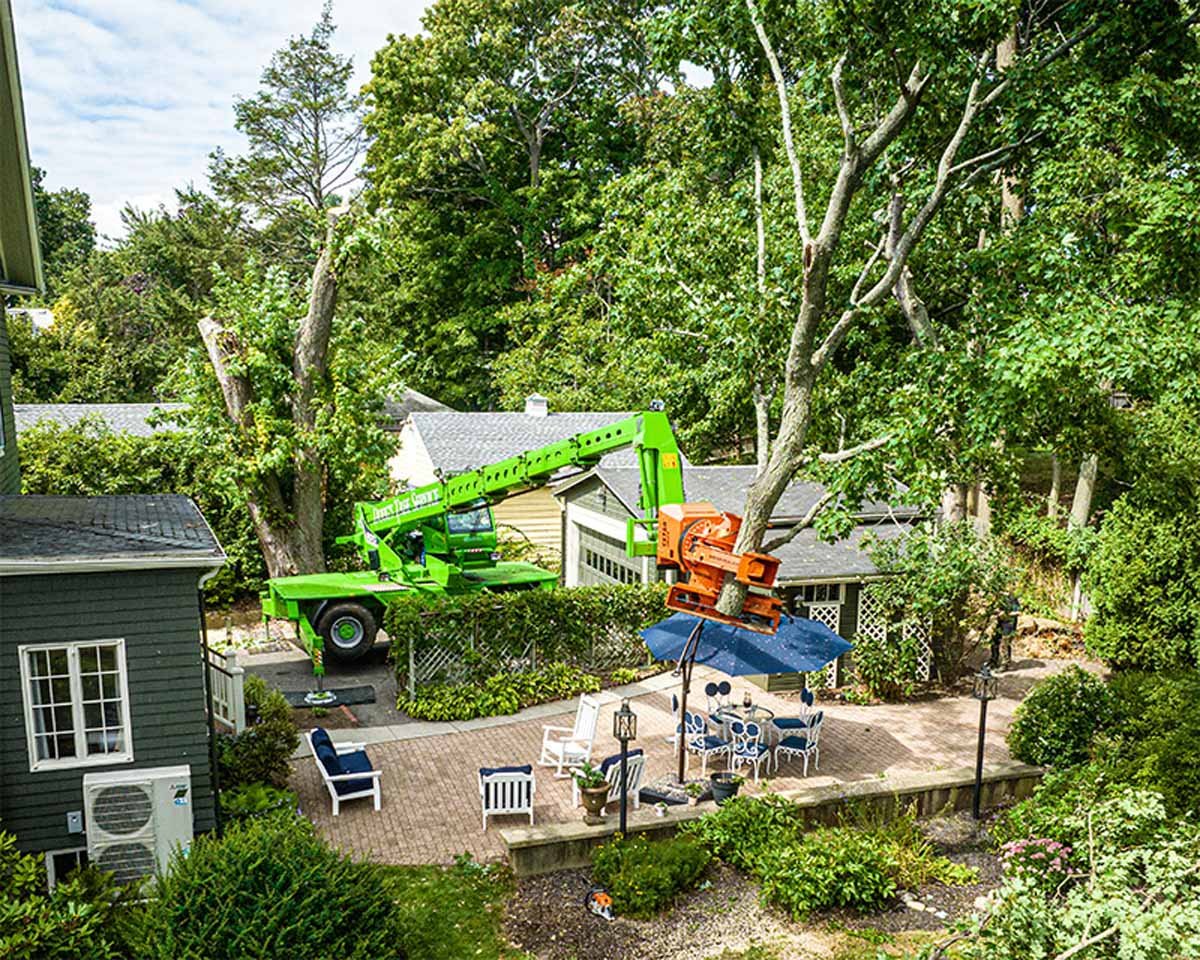

Application Areas
- Safe removal of trees in several parts.
- Problematic tree fellings in urban and residential areas.
- Maintenance work along traffic roads and routes.
- Felling of dangerous trees.
- Tree felling in confined or hard-to-reach areas.
- Precise tree felling and tree care near infrastructure networks.
Key Facts
- Particularly developed for tree fellings due to safety reasons.

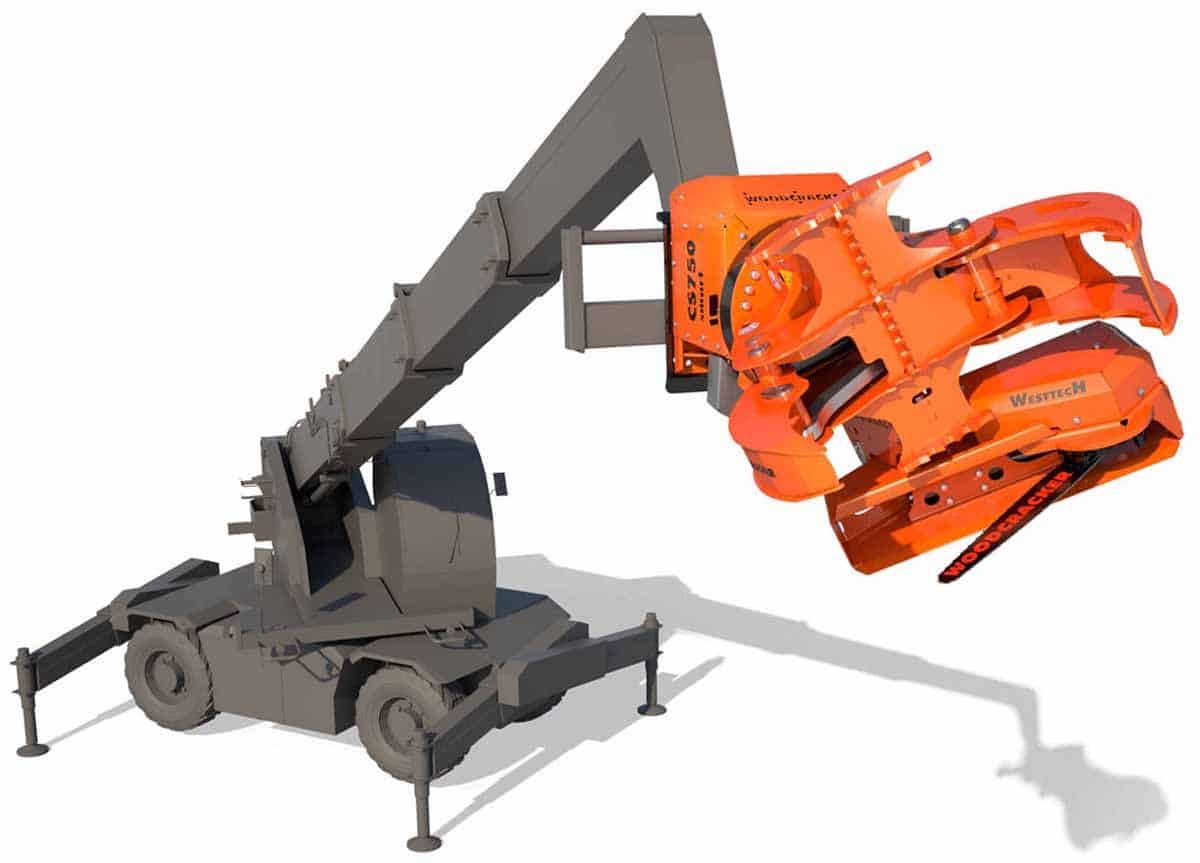

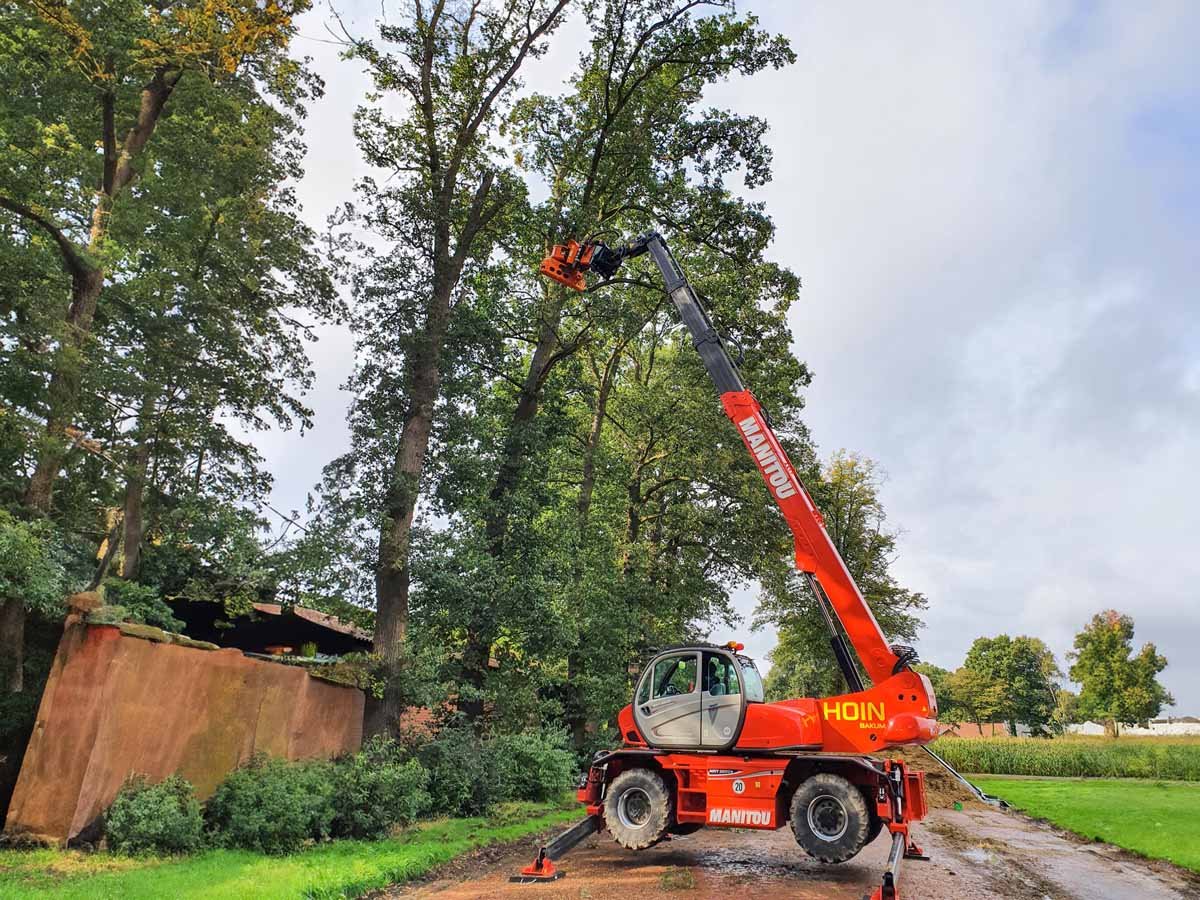

- Designed to be attached to telescopic handlers.
- Various mounting options adapted to the carrier vehicle. Optional: mounting frames and adapter plates for common carrier vehicles.
- Designed to be attached to telescopic handlers.
- Plug-and-play connection.
- Only one double-acting hydraulic valve needed.
- Low net weight.
- Due to Tiltator endlessly rotatable
- Robust technology, low-wear and low-service.
- KTL-primed (cathodic dip-coating) and powder coating.
- Made of high-strength Hardox® steel.
| CS615 Smart | CS750 Smart | |
|---|---|---|
| Cutting diametre (mm) | 610 | 750 |
| Gripper opening (mm) | 1270 | 1280 |
| Tiltator | endlessly rotatable | endlessly rotatable |
| Weight (kg) | 670 | 900 |
| Recommended pump flow capacity (l/min.) * | 50-90 | 65-110 |
| Recommended operating pressure (bar) | 200 – 280 | 230-280 |
| Service weight of carrier vehicle ** (t) | 10-20 | 15-25 |
| Saw unit | suspended | actively suspended |
| Chain lubrication of saw | grease | grease |
| Optional: Automatic lubrication system for Tiltator | ■ | ■ |
