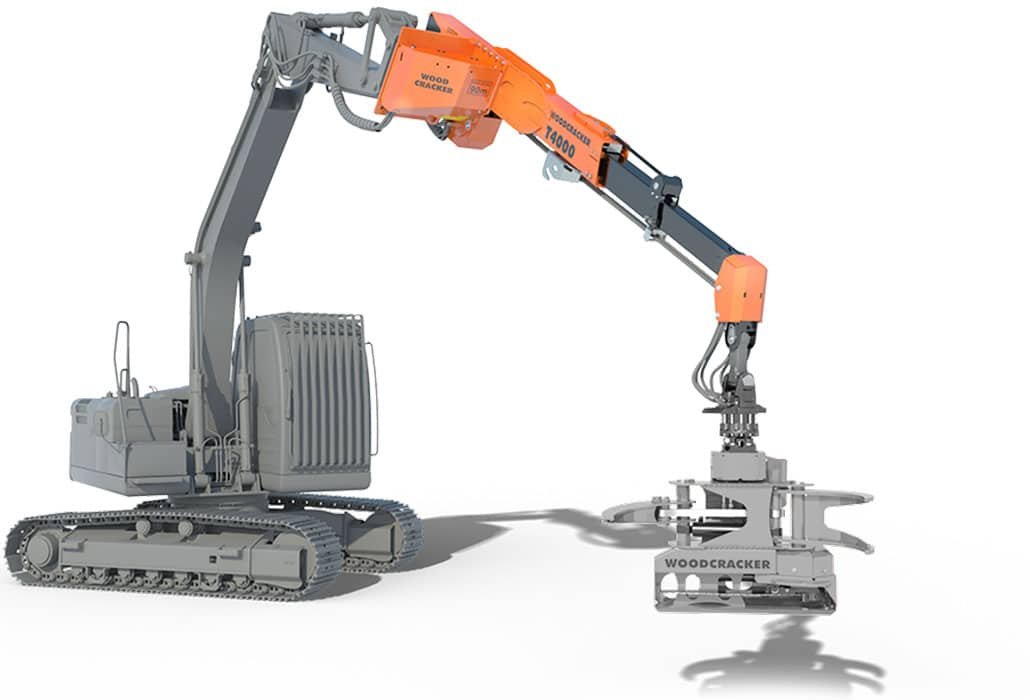

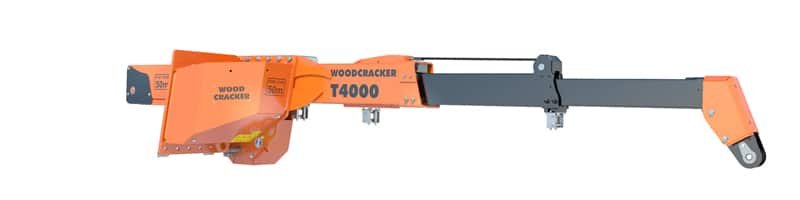

Woodcracker T

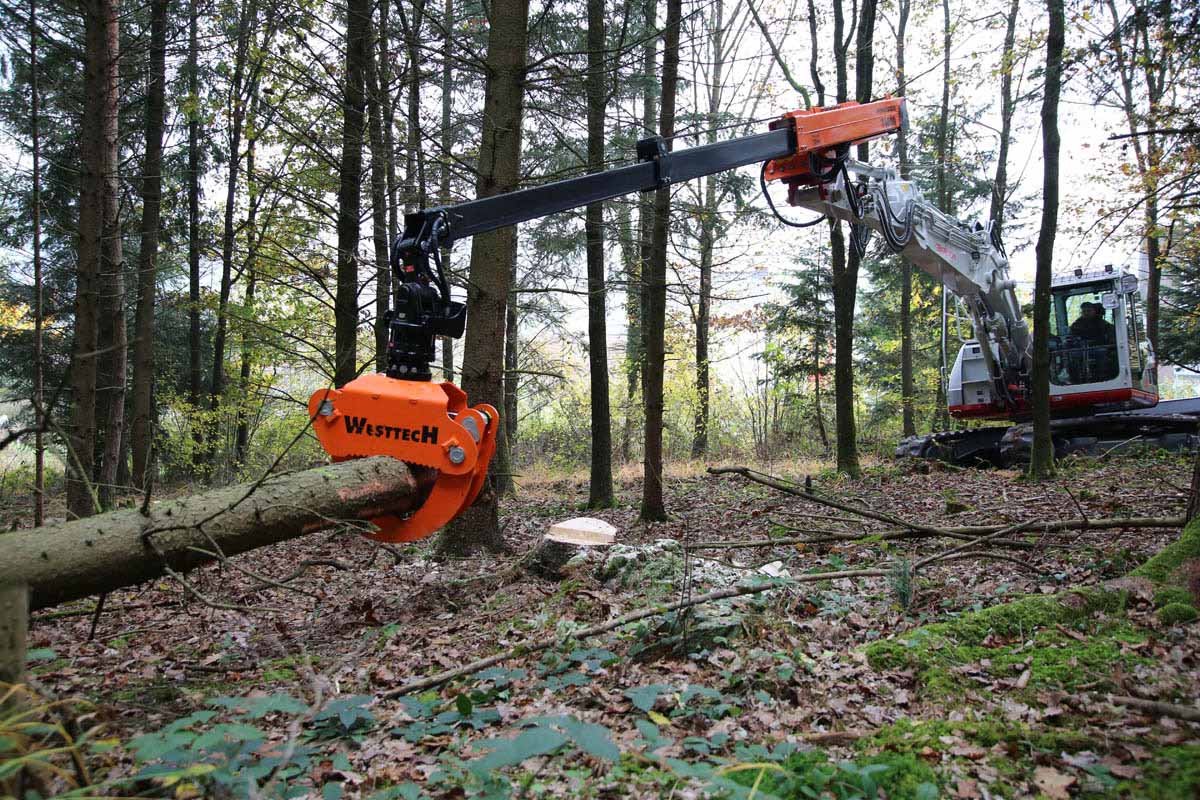

The telescopic extension boom for excavators without any conversation work. It provides an increased working reach of over 6m.
Various mounting options
Electrical switching for additional functions at the top
6 connections possible at the telescopic top
Compact and stable construction
Telescope with two booms.
Hydraulic hoses are on the inside and well protected against external influences.
Massive extension of the work range without conversion work on the excavator.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

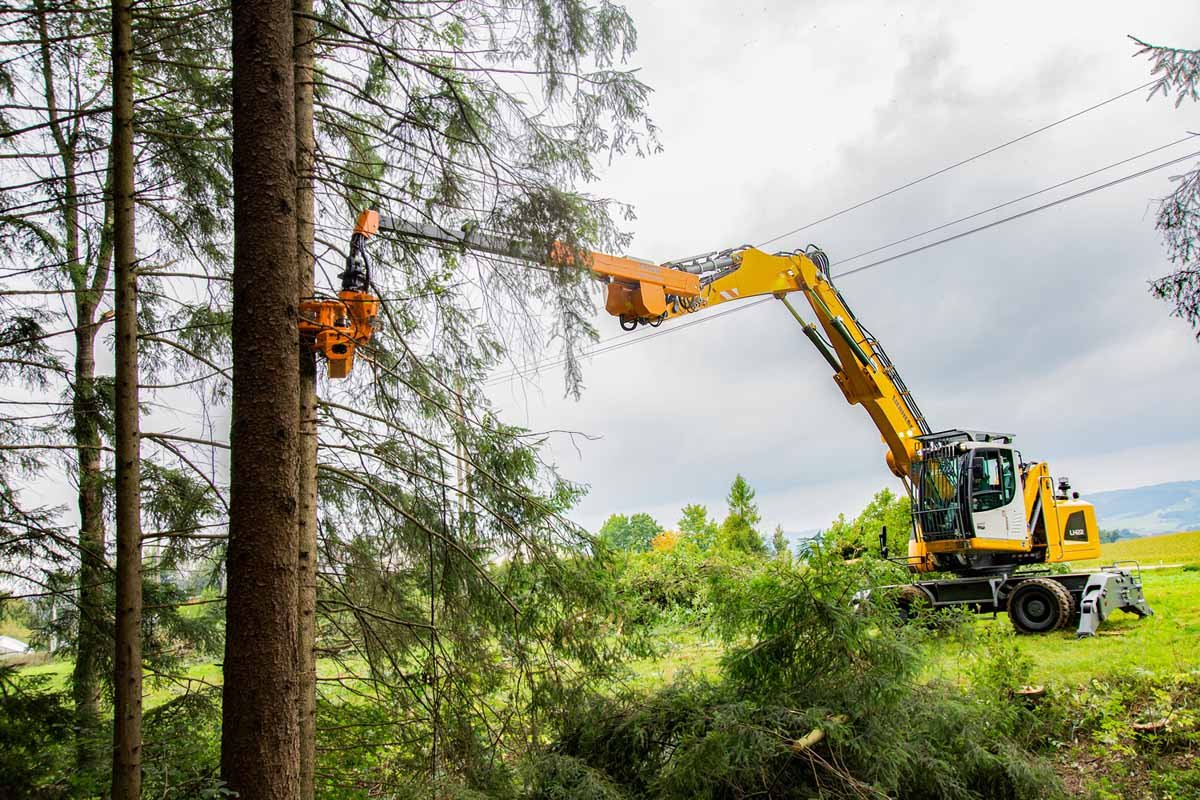

- Can be attached to any standard excavator to increase the reach without any conversion work on the carrier vehicle.
Key Facts

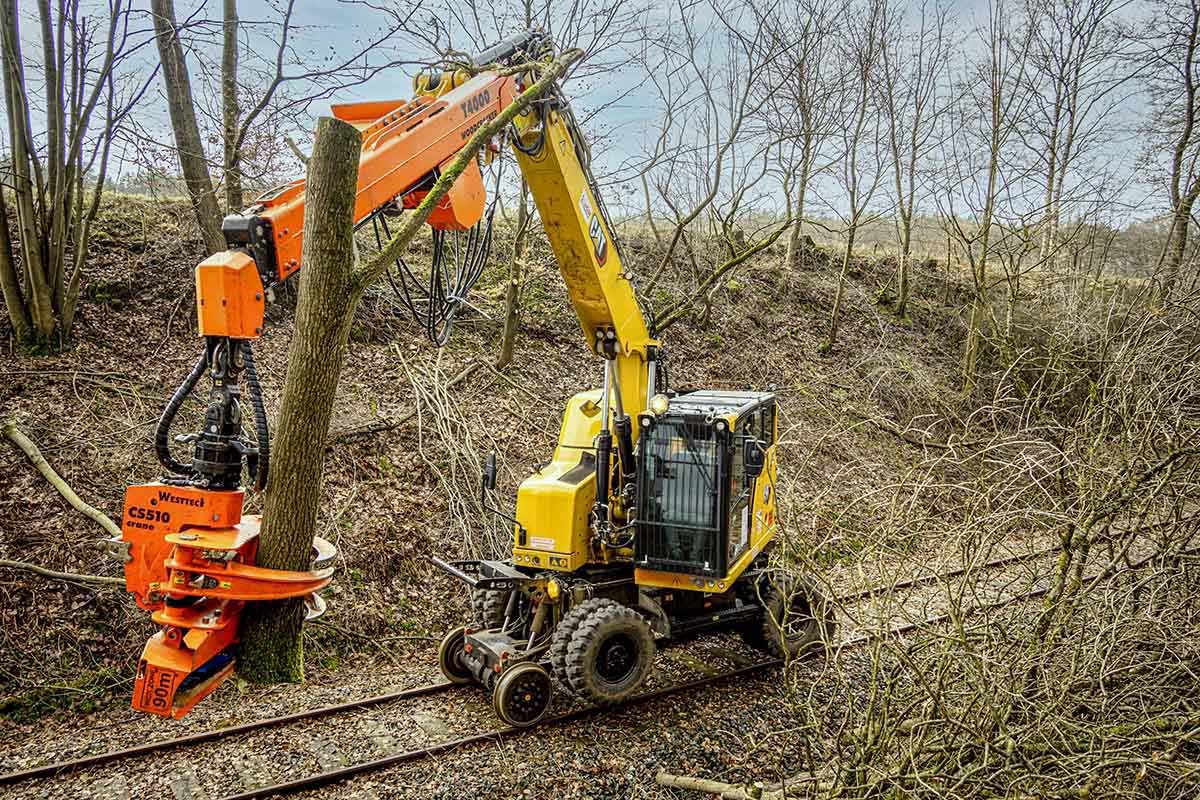

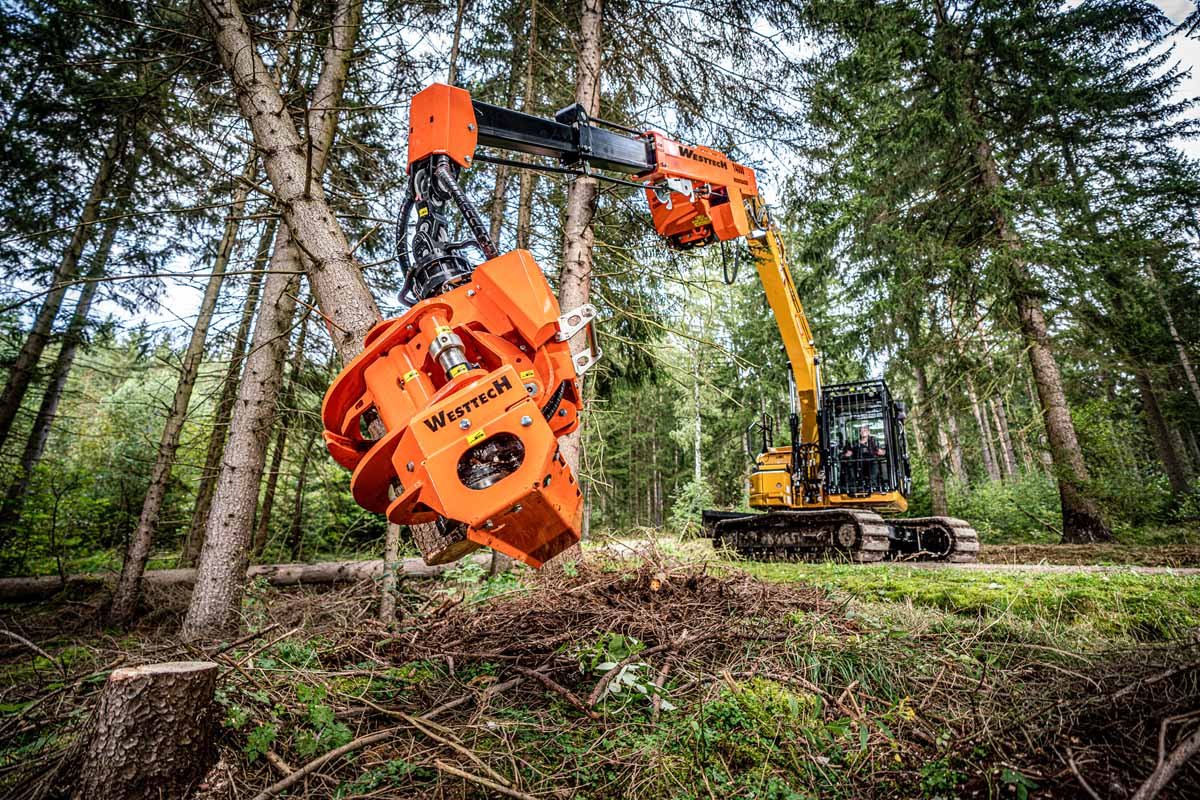

- Perfect suited for Woodcracker ® CS crane and Woodgripper.

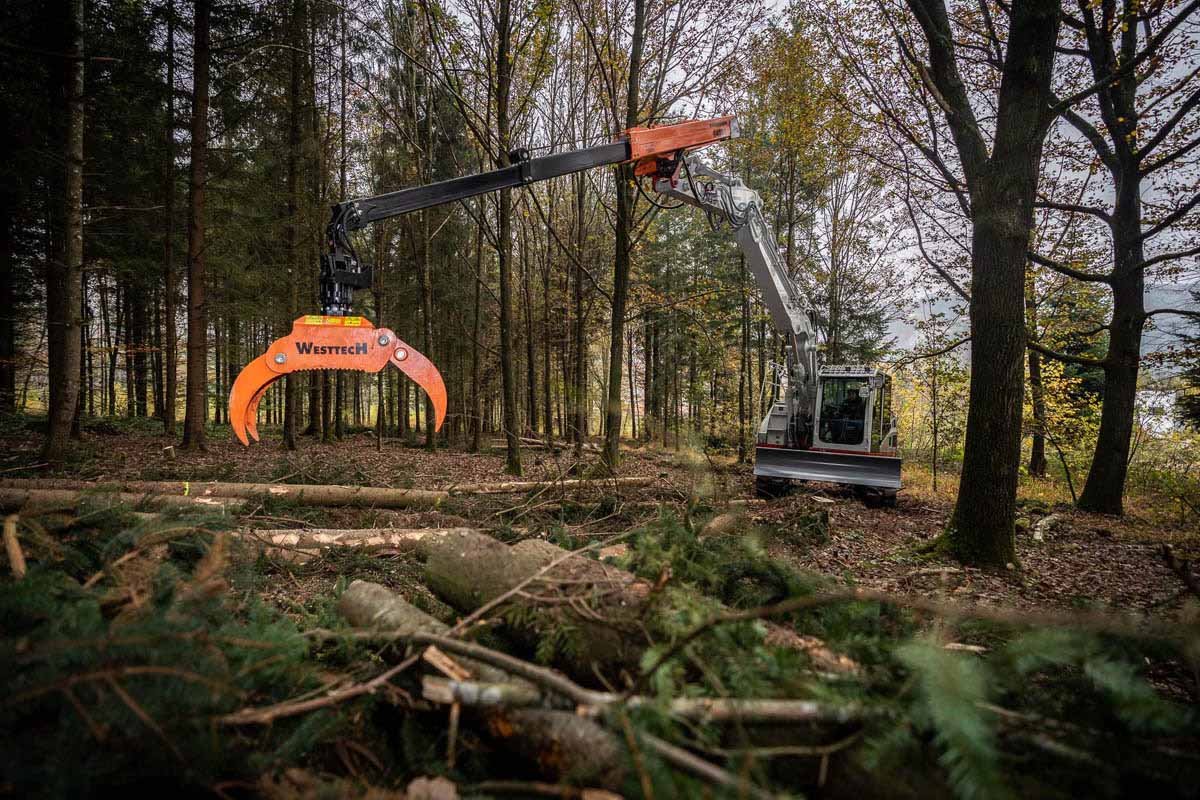

- Various individual attachments possible (eg. wood tongs, grapple saws, clamshell bucket, …).
- Can be attached to standard excavator quick-coupling systems.
- 4, optional 6 hydraulic connections at the top.
- KTL-primed (cathodic dip-coating) and powder coating
- No special excavator specification needed – for every excavator from 14 – 22 t.
| T 4000 | |
|---|---|
| Work range (mm) | up to 6350 |
| Telescope stroke (mm) | 4000 |
| Telescope version | double |
| Telescope hose guide | inside |
| Weight (Base – Full equipment) (kg) | 680-730 |
| Stroke torque ex excavator kinematics (kNm) * | 92 |
| Admitted ultimate load (retracted/extended) (kg) | 2500/1500 |
| Maximum compression force (kg) | 100 |
| Recommended litre capacity to telescope extension (l/min.) | 50-110 |
| 30-40 | |
| Recommended operating pressure for telescope extension (bar) | 250 |
| Service weight of carrier vehicle (t) | 14-22 |
| Optional: Hose reel | ■ |
| Optional: Rotator including dual swing damper | ■ |
| Optional: Quick coupler QC10 | ■ |
| Optional: Woodgripper 1270 | ■ |
| Optional: Woodcracker ® CS510 crane | ■ |
■ available | – not available
* Gross figures without attachment. Depending on carrier vehicle weight.
Technical data and illustrations are non-binding. Changes for reasons of on-going development reserved.
