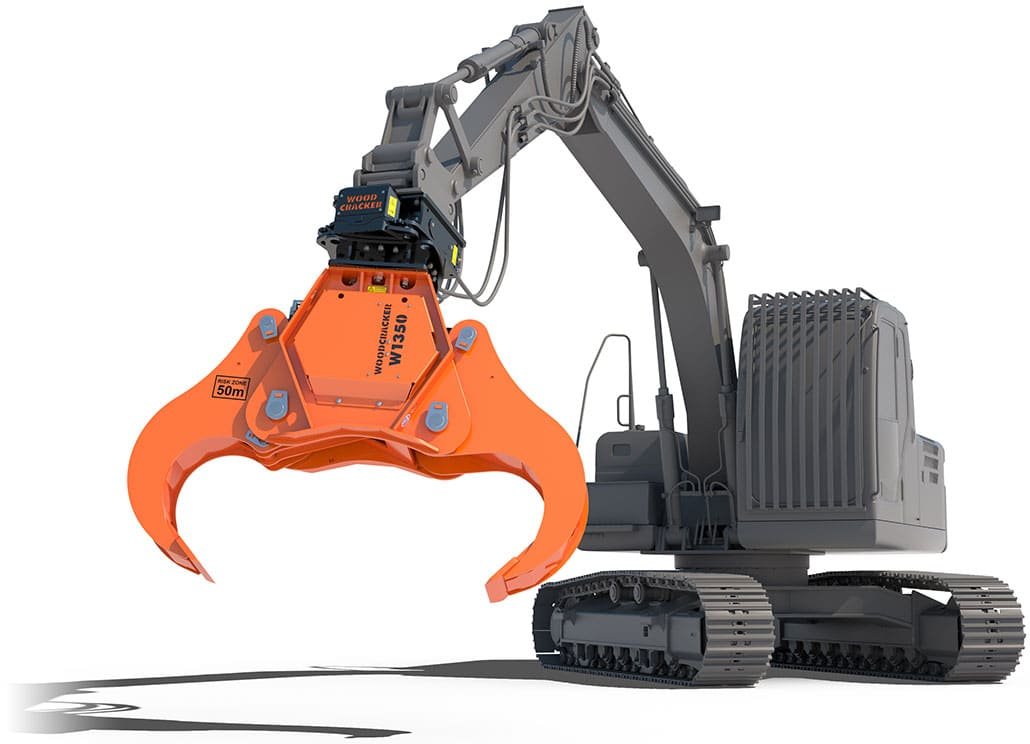

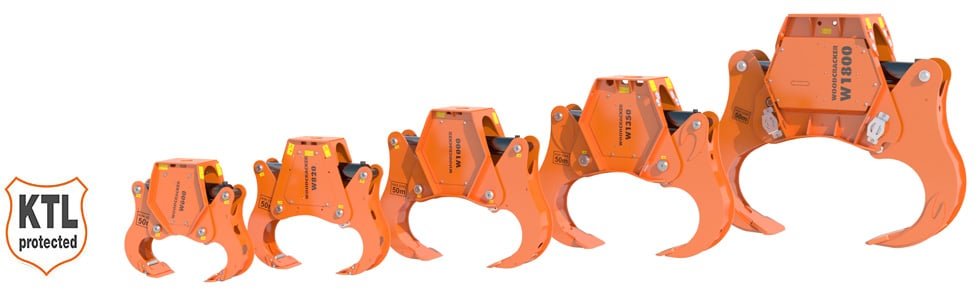

Woodcracker W
The W splitting tongs are designed for splitting oversized timber into manageable sizes. With fixed and rotating setups available, they have a variety of mounting options from excavators to telehandlers.
Endless rotating rotator
optional: 2 drive motors
for W1350 & W1800
Autospeed allows for a higher splitting capacity.
W600 – W1000
Roller system reduces the friction resistance and thereby minimizes the force exerted (W600 – W1000).
The opening stroke only determines the largest end piece and is not decisive for the maximum diameter that can be split.
Easy supply of the pre-split material to chippers.
High-strength blade
made from Hardox ® steel
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

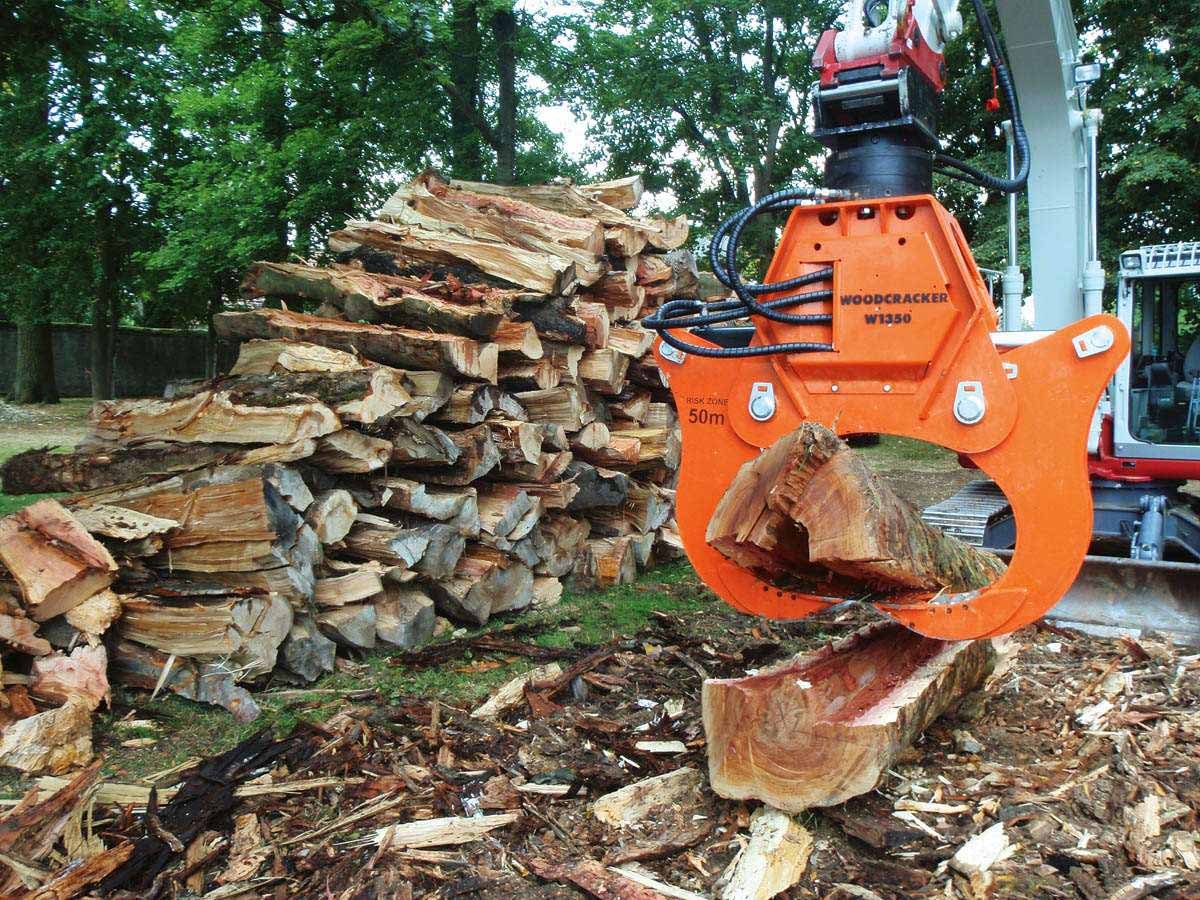

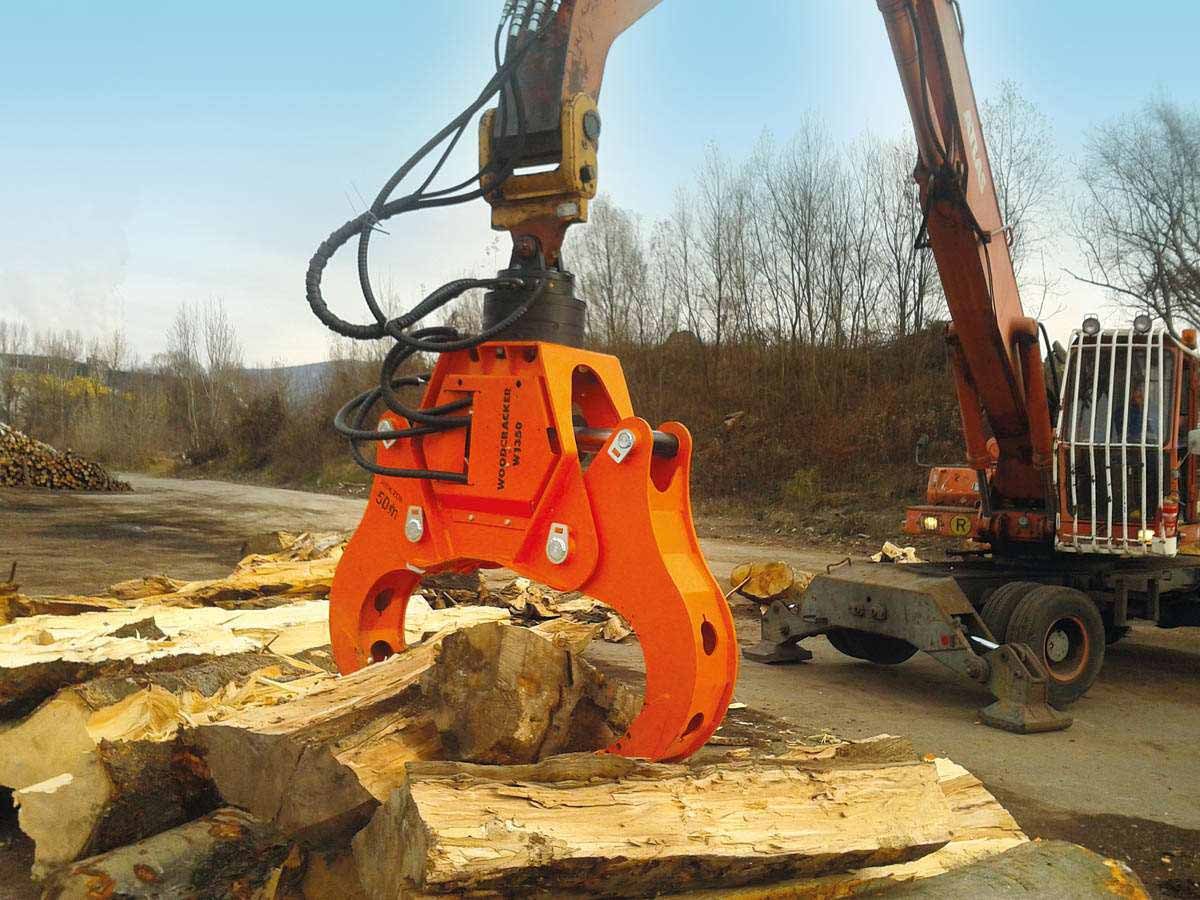

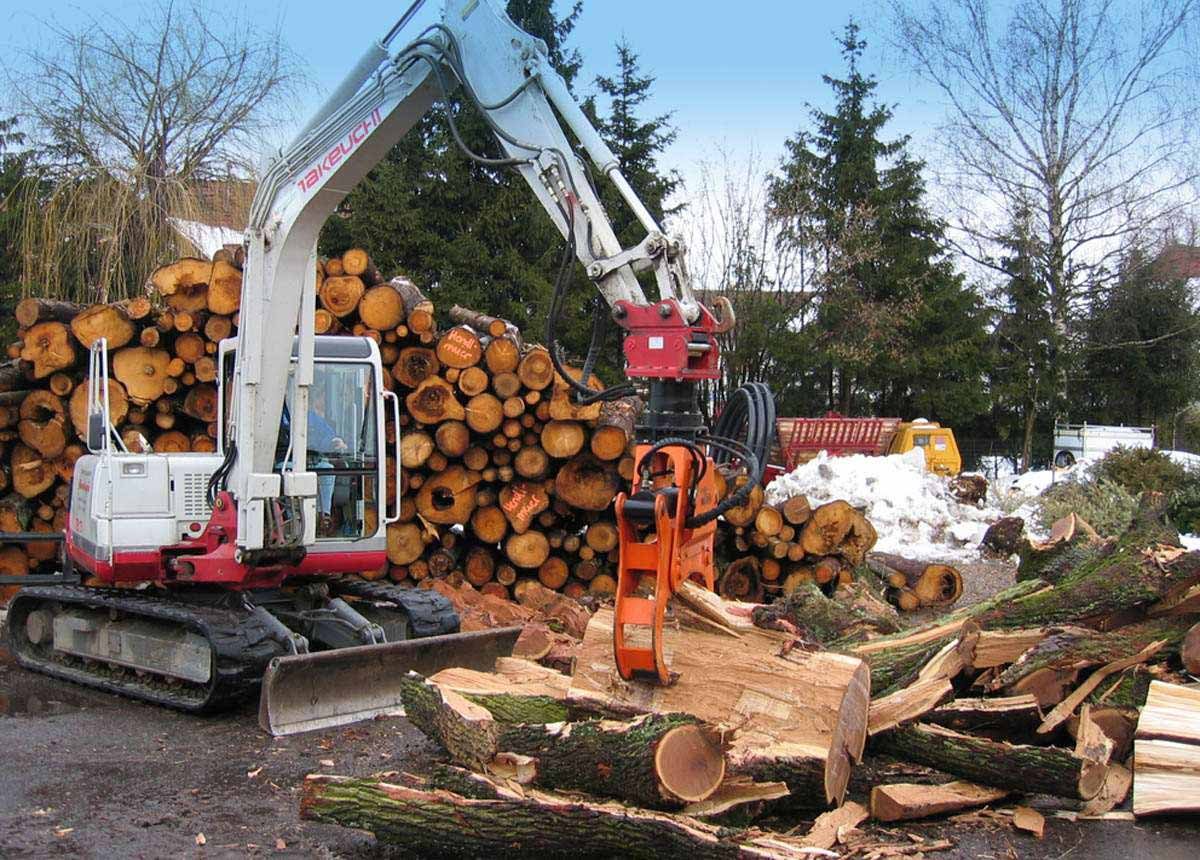

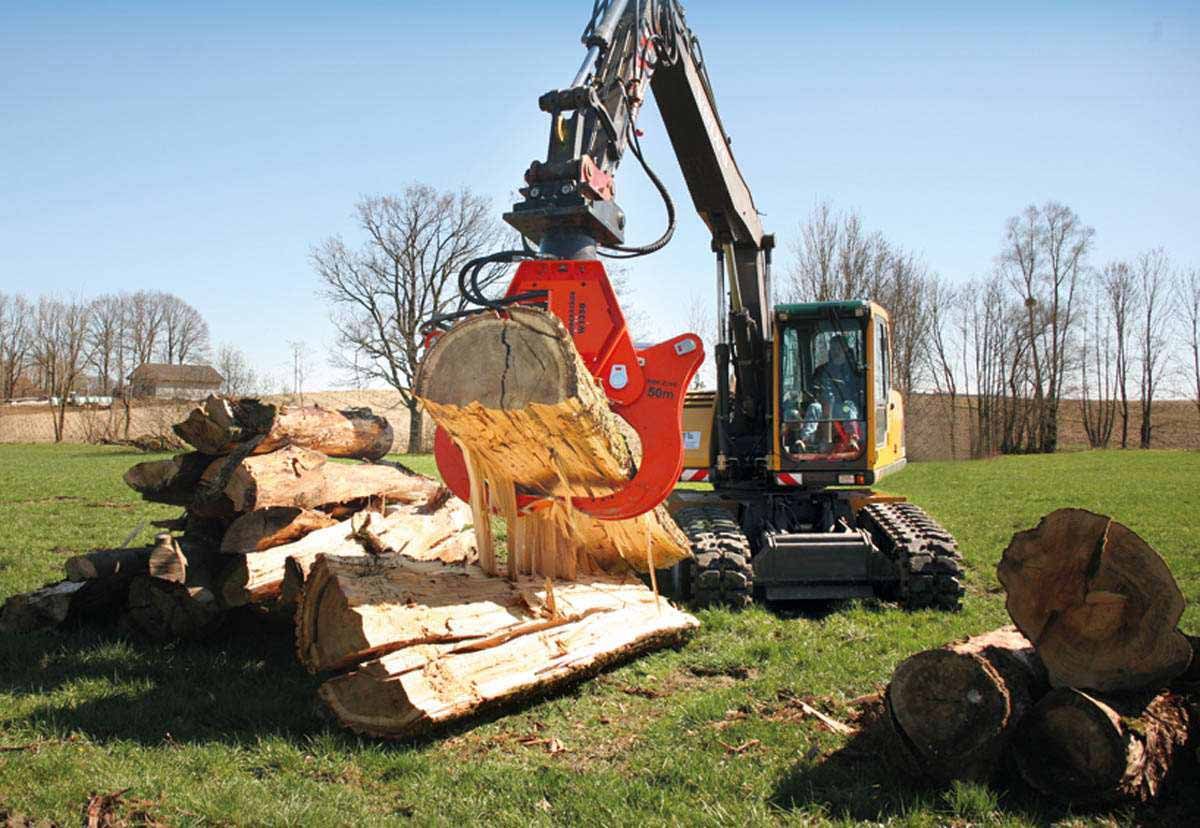

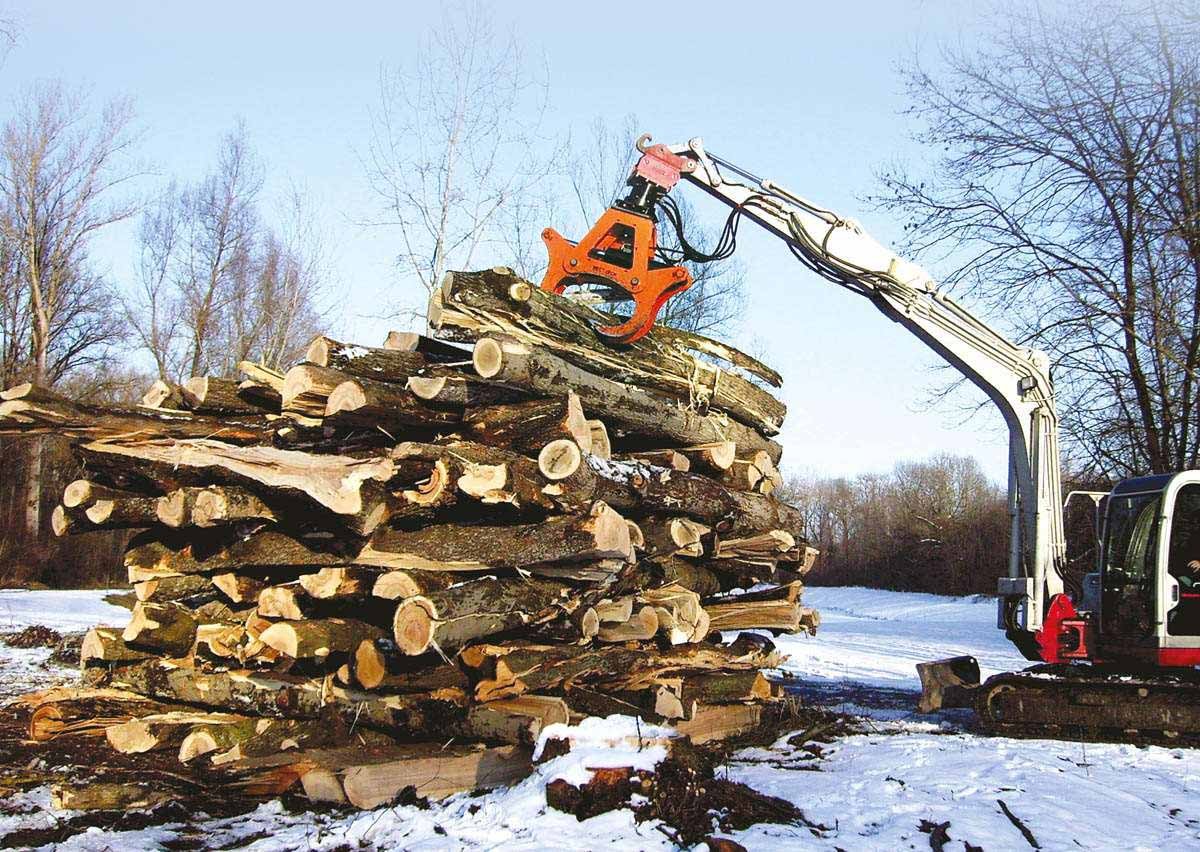

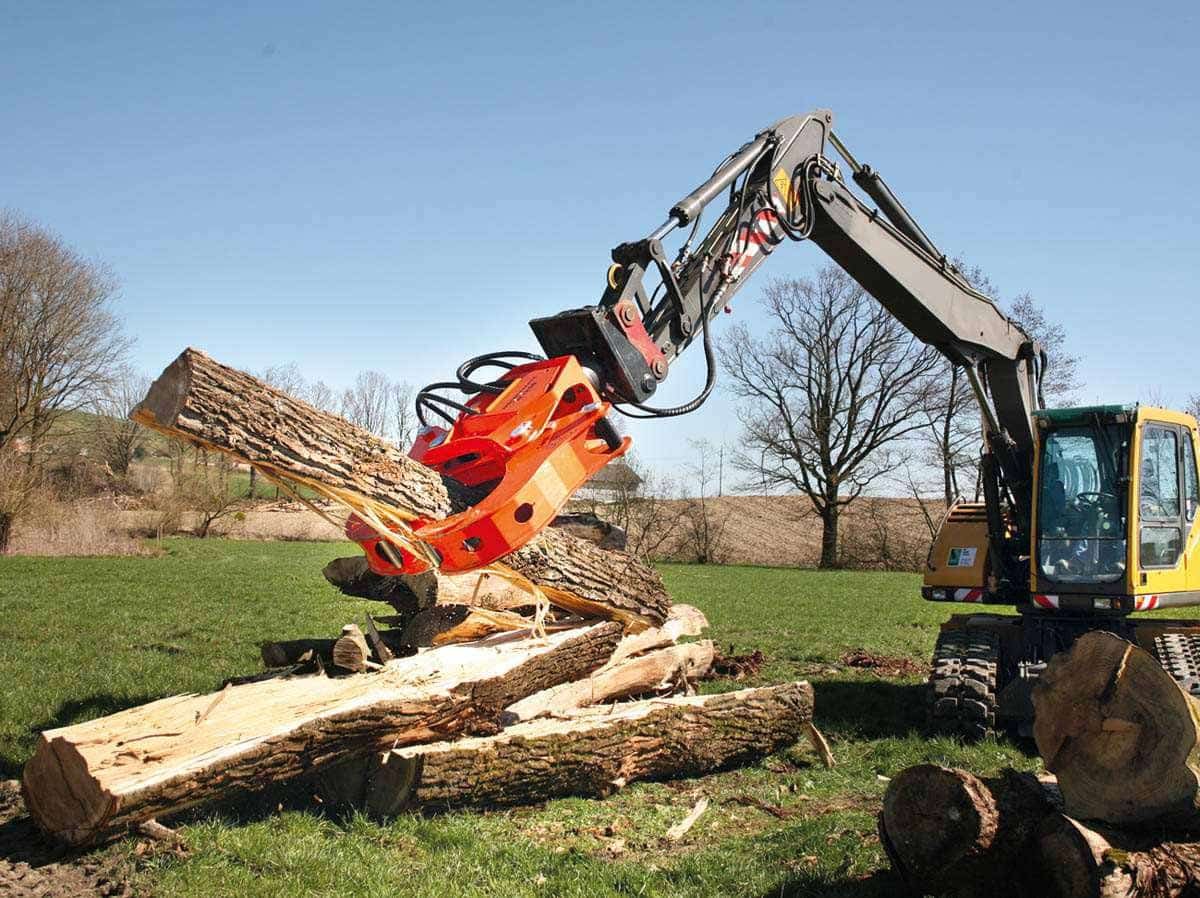

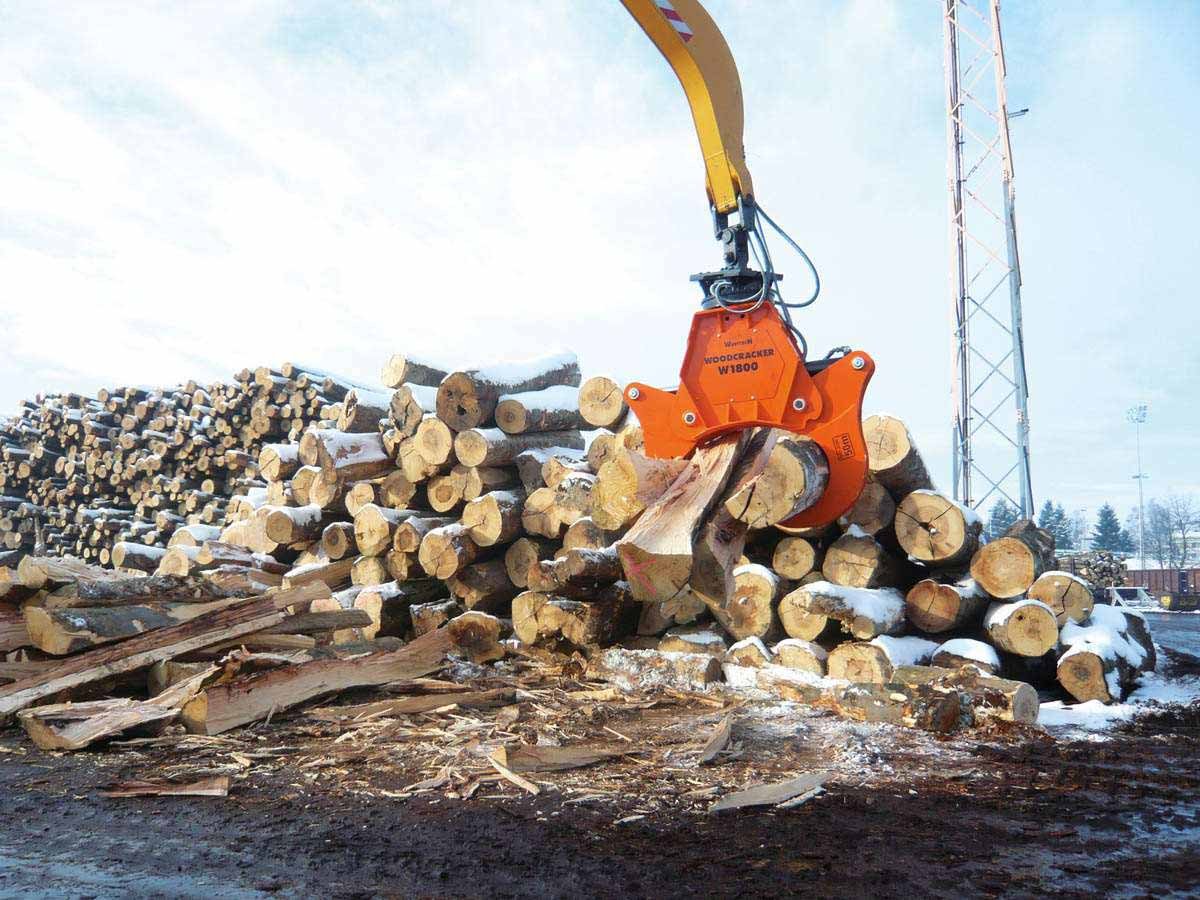

- Splitting thick wood trunks with minimal effort
- Splitting tongs can be used as a gripper

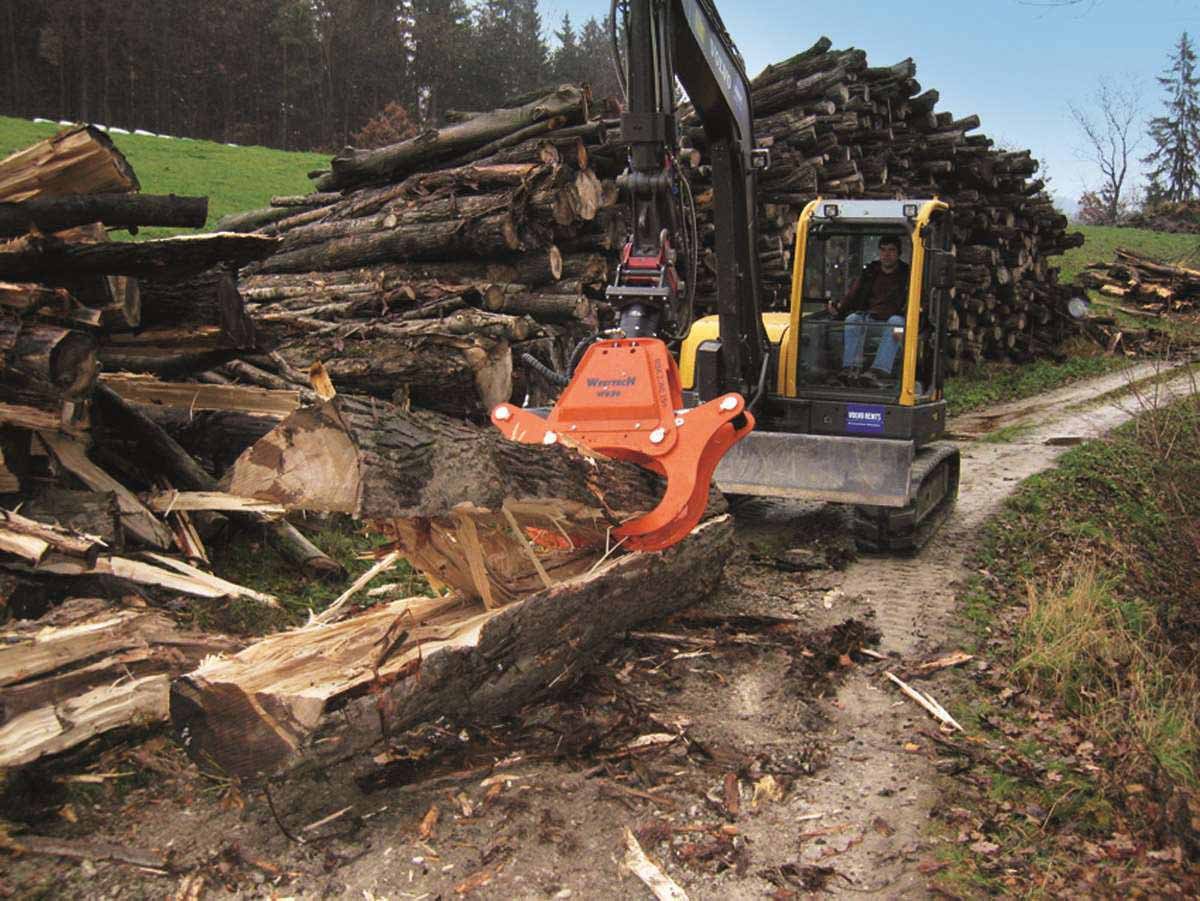

- Can be used in all harvesting and processing methods of strong wood.
- Pre-splitting wood allows a natural drying process and as a result an increase in biomass quality and energy yield.
- Pre-splitting wood for further processing of split logs or chipped wood material.
- Easy supply of the pre-split material to chippers.
Key Facts
- Available in different sizes for the appropriate carrier vehicle.
- Proper and simple connection.
- Plug-and-play connection.
- Robust and proven technology, low-wear and low-service.
- KTL-grounded (cathodic dip-coating) and powder coating
- Made of high-strength Hardox® steel.
| W 600 | W 820 | W 1000 | W 1350 | W 1800 | |
|---|---|---|---|---|---|
| Tongs opening (mm) | 620 | 820 | 1040 | 1370 | 1830 |
| Splitting force (depending on operating pressure)(t) | 26 | 26 | 26 | 34 | 47 *** |
| Weight (kg) | 310 | 370 | 580 | 990 | 1990 |
| Recommended pump flow capacity (l/min.) * | 25-60 | 25-60 | 40-80 | 80-150 | 100-190 |
| Recommended operating pressure (bar) | 190-250 | 190-250 | 190-250 | 220–270 | 240-300 |
| Service weight carrier vehicle ** (t) | 3,5-8 | 5-12 | 10-18 | 15-25 | 25-35 |
| Roller system | ■ | ■ | - | - | - |
| Optional: Autospeed | ■ | ■ | ■ | - | - |
| Optional: Rotator | ■ | ■ | ■ | ■ | ■ |
