OMEF Pruners

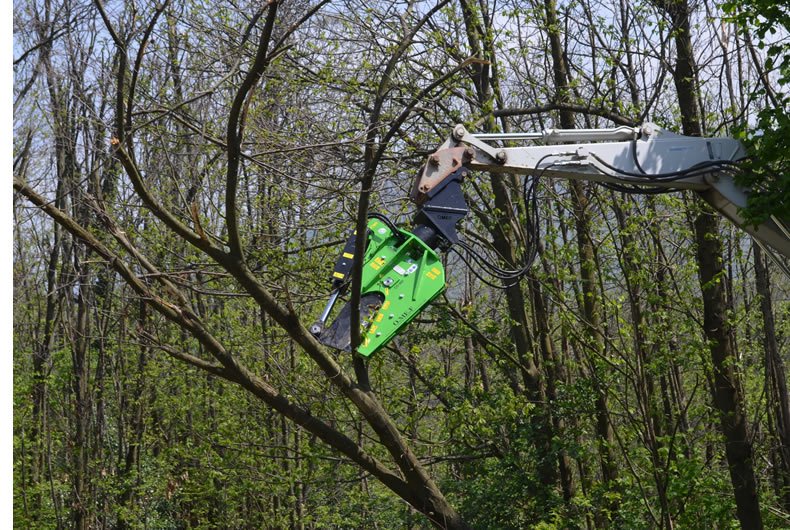

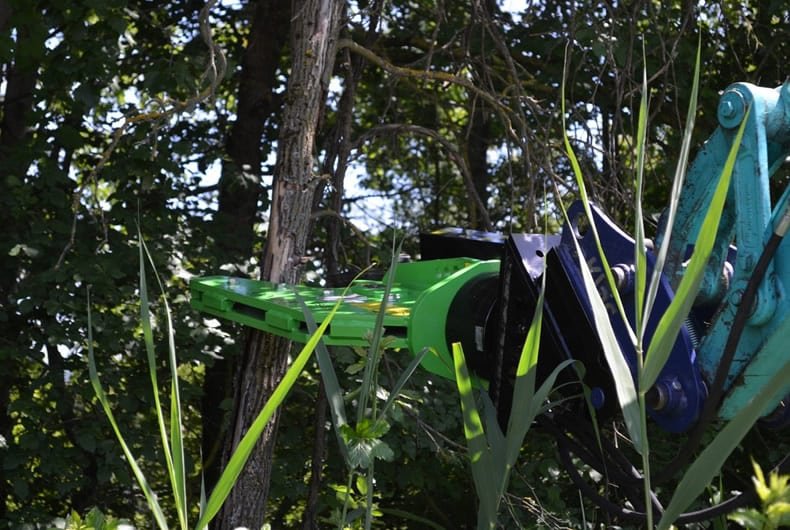

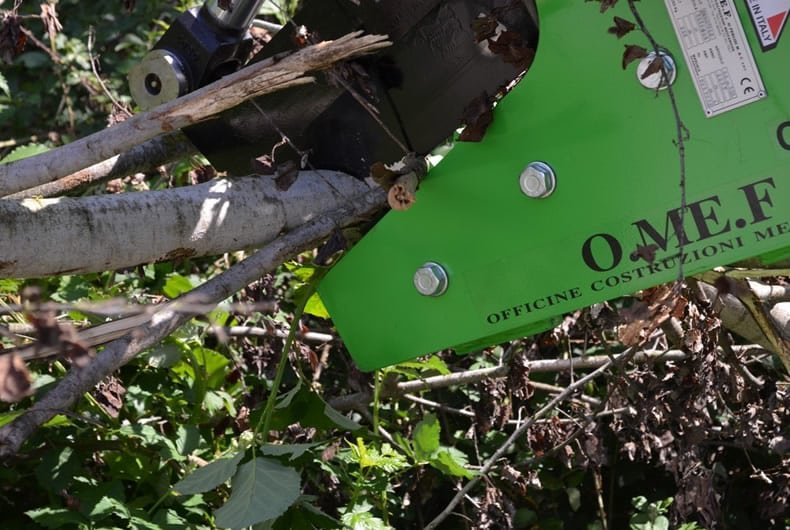

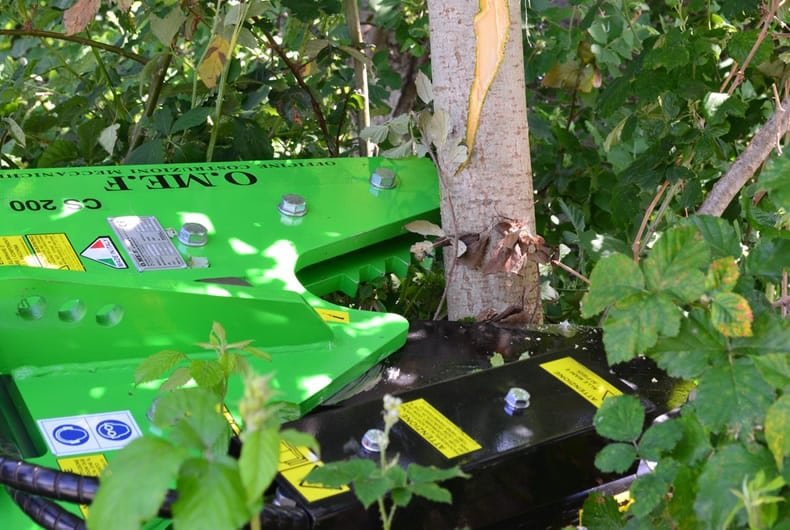

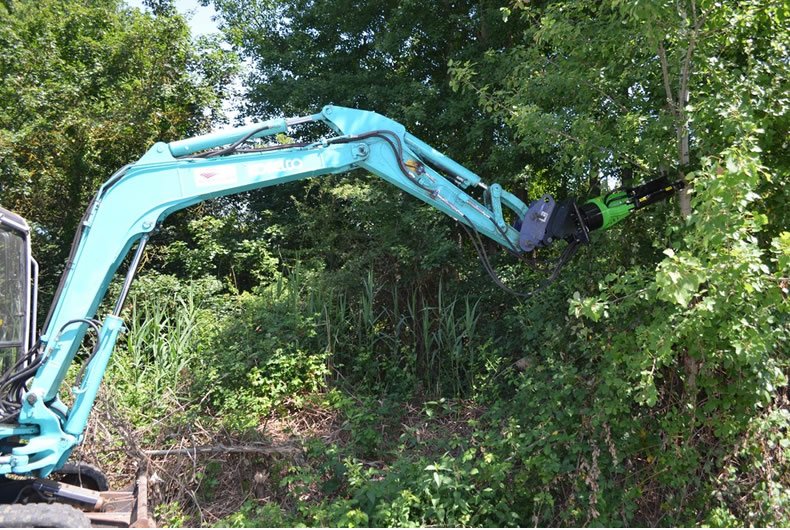

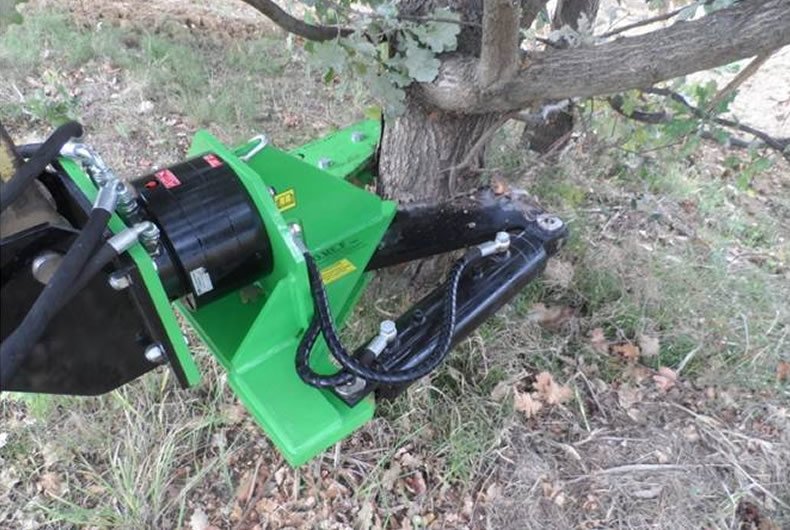

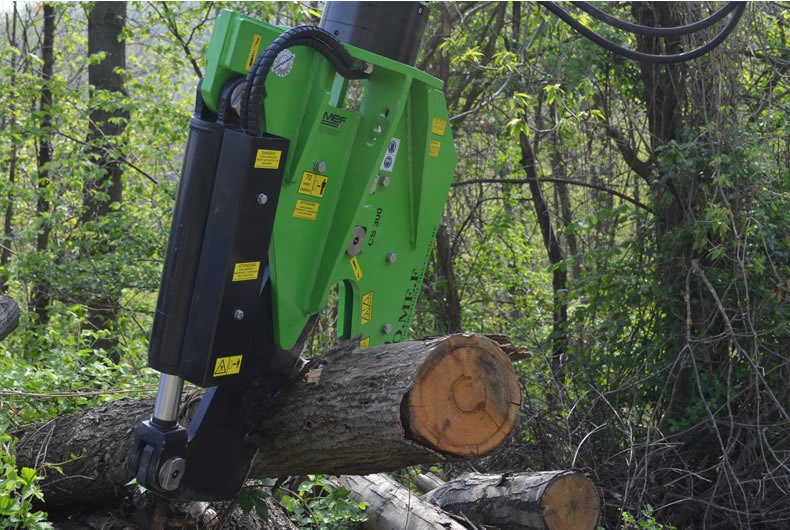

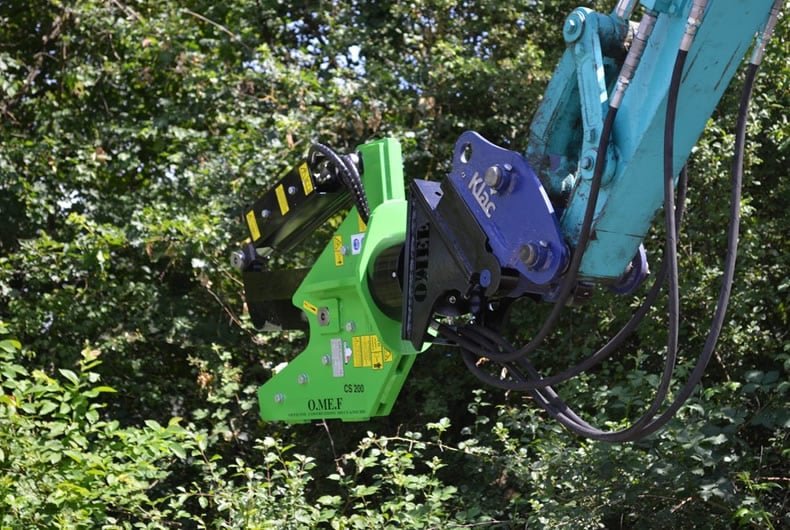

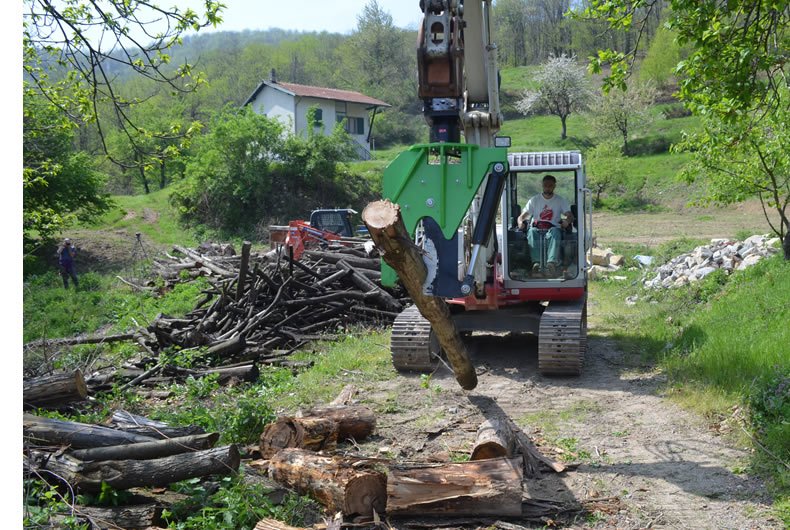

An attachment for excavator from 1,6 up to 24 tons. Ideal for pruning and chopping small and wide trees. Its blade made in special XAR500 anti-ware steel guarantees the best cutting performance. The hight-force generated by the hydraulic cylinder and its 360° rotation system, ensure the maximum flexibility and grip during working operations. The standard version, available in 4 sizes, has been implemented by the new series “H“, designed for particularly tenacious and fibrous woods.

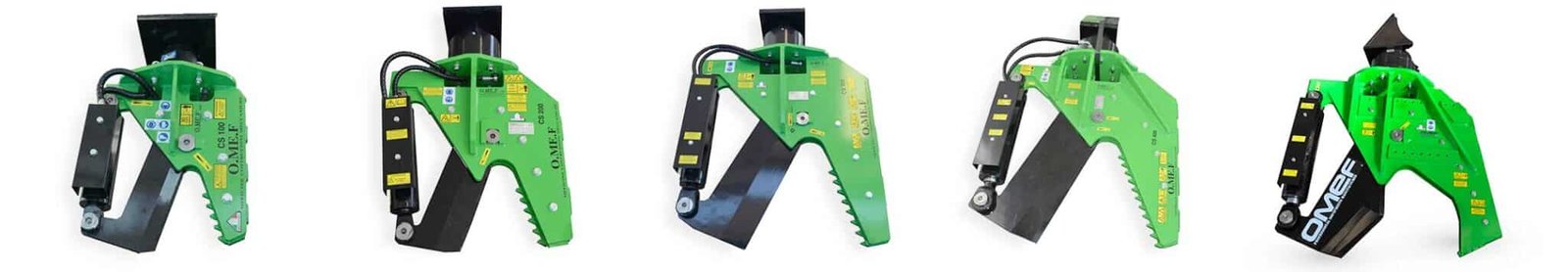

| CS100 | CS200 | CS300 | CS400 | CS400H | |
|---|---|---|---|---|---|
| Excavator class weight | 1,6 - 3,5 tons | 3,5 - 6 tons | 6 - 10 tons | 10 - 24 tons | 10 - 24 tons |
| Attachment weight | 120 Kg | 210 Kg | 340 Kg | 550 Kg | 570 Kg |
| Dry cut diameter | 80 mm | 180 mm | 300 mm | 390 mm | 390 mm |
| Green cut diameter | 110 mm | 210 mm | 320 mm | 410 mm | 420 mm |
| Oil pressure | 180 – 250 bar (min-max) | 180 – 250 bar (min-max) | 180 – 250 bar (min-max) | 200 – 300 bar (min-max) | 200 – 300 bar (min-max) |
| Hydraulic Flow | 20 – 45 l/min (min-max) | 20 – 60 l/min (min-max) | 20 – 60 l/min (min-max) | 30 – 80 l/min (min-max) | 30 – 80 l/min (min-max) |
| Spin | 360° | 360° | 360° | 360° | 360° |
| Datasheet Download | PDF Download | PDF Download | PDF Download | PDF Download | PDF Download |
