FM Series
This mower is designed for a range of mowing tasks, from thick dense rushes to fine topping of parkland. With their unrivalled power and robust build, couples with a fine attention to detail, these mowers can tackle anything thrown at them.
The robust steel flail rotor ensures smooth operation, and the Honda engine, with an electric start, ensures plenty of cutting power whilst still being easy to start and use.
The adjustable flotation tires can run alongside the mower, or behind it, for easy towing as well as being able to cut close to fences and hedges. The simple height adjustment makes it easy to use and with the automatic belt tensioning, it is also very low maintenance.
Key Features:
- Choice of 21hp Honda GX630 or 25hp Honda iGX800 engines
- Large diameter tyres for smooth travel
- Heavy duty construction
- Automatic belt tensioning system for low maintenance
- Unique double helix flail rotor, precision balanced for smooth operation

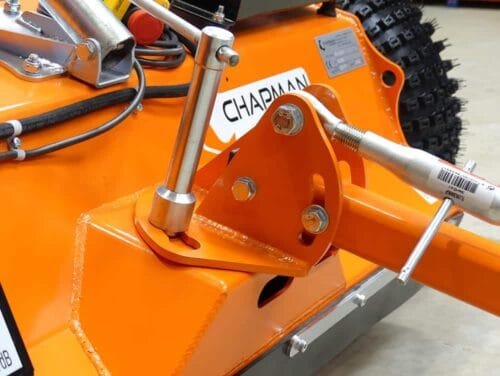

- Drawbar can be offset left or right
- Easy cutting height adjustment
- Choice of ‘Y’ Profile Flails or Forged Hammer Flails
Optional Extras:
- Front Breaker Bar – Ensures tall materials feed evenly into the rotor for consistent cutting
- Chop Control Cutter Bar – Adjustable cutting bar within the deck to increase mulching and cutting speed
- Twin Axle – Twin wheels on bogie axles for smooth towing over the roughest terrain
| FM STD | FM PRO | |
| Engine | Honda GX630 | Honda iGX800 |
| Power | 21hp | 25hp |
| Fuel Injected | No | Yes |
| Flail Type | ‘Y’ Flail | Hammer Flails |
| Weight | 325kg (FM120) / 345kg (FM150) | |
| Cutting Height (mm) | 25 – 185 | |
| Rotor RPM | 2400 | |
| Tyre Size | 22” x 11” x 8” | |
| Fuel Tank Capacity | 10L | |
