Short description

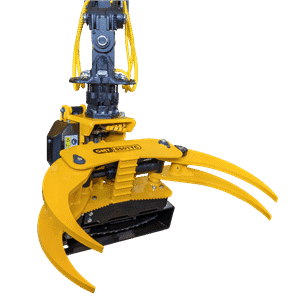

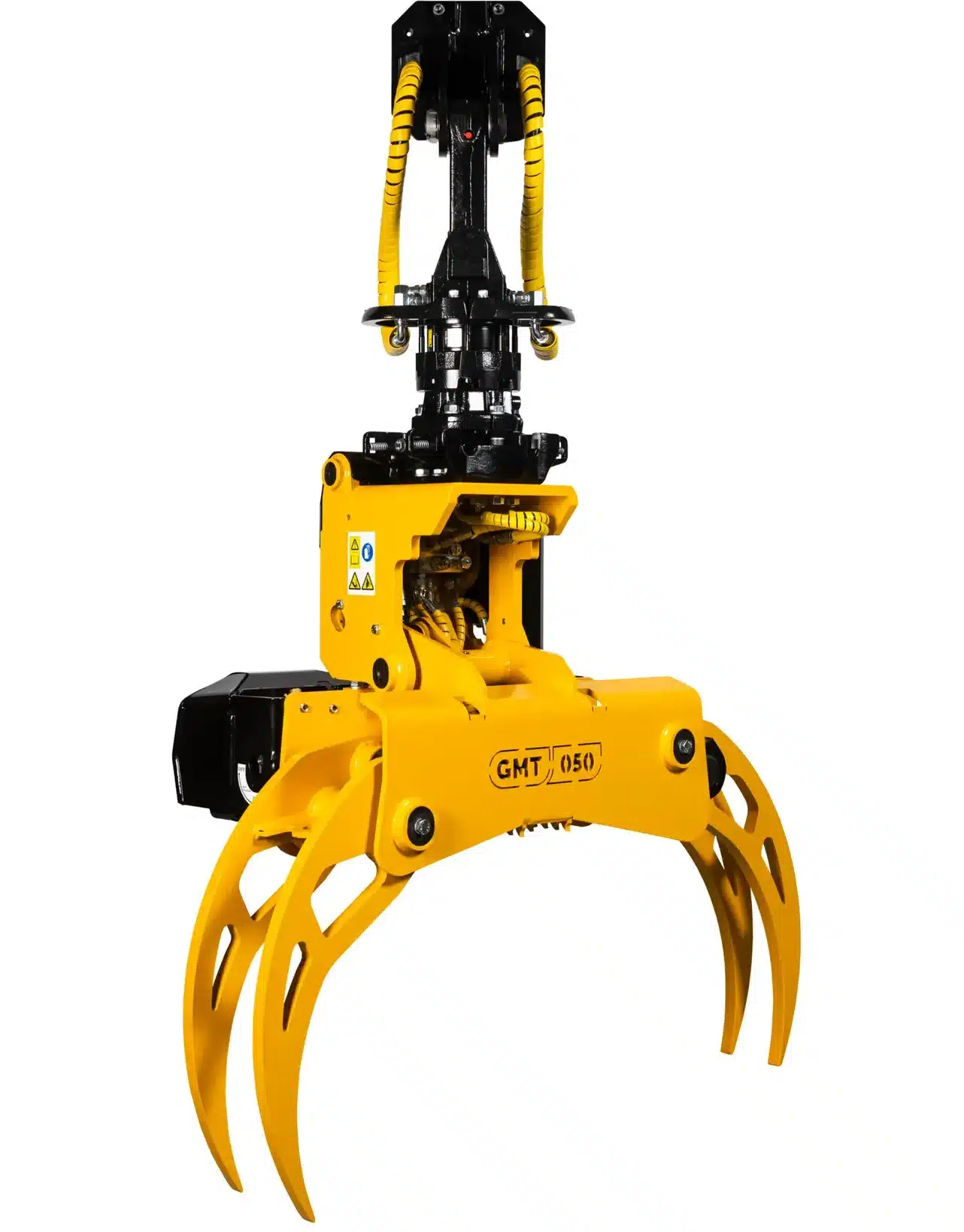

The standard grapple saw for large cuts

Extra information
Perfect for larger craned vehicles

Dimensions

Max. opening width – 122 cm | 48”

Sawing blade length – 70 cm | 25”

Max. saw Ø single cut – Ø 55 cm | 22”

Max. saw Ø double cut – Ø 80 cm | 32”

Minimum saw Ø – Ø 8 cm | 3”

Weights

Grapple saw weight – 420 kg | 925 lbs

Maximum load – 2500 kg | 5500 lbs

TTC weight – N/A

Maximum TTC load – N/A

Hydraulics

Recommended oil supply – 45-65 litre/minute | 11.9 – 17.2 gal/min

Minimum working pressure – 185 bar | 2683 psi

Maximum operational pressure – 250 bar | 3626 psi
