The GN series forestry timber grapple is for the most demanding of operations and can be either rigid mounted for excavator fitment or swing mounted.
The innovative three-leg design means that the GN can be used for both ‘pinching’ a single log, rock, or piece of rail and also for bundling full loads.

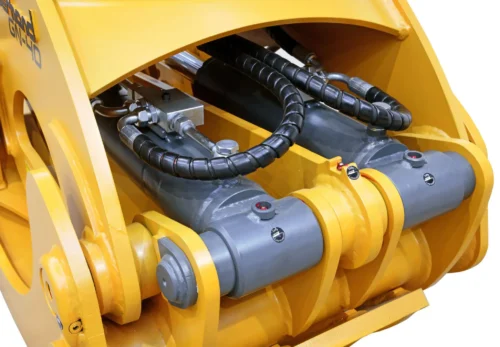

Strong boxed in leg designs allow the grapple to withstand the rigours of rigid mounted applications and double hydraulic cylinders give the GN plenty of power to grip all types of loads.
Dimensions | GN40 | |
Capacity | 0.4m2 | |
Weight (Excluding Rotator) | 730kg | |

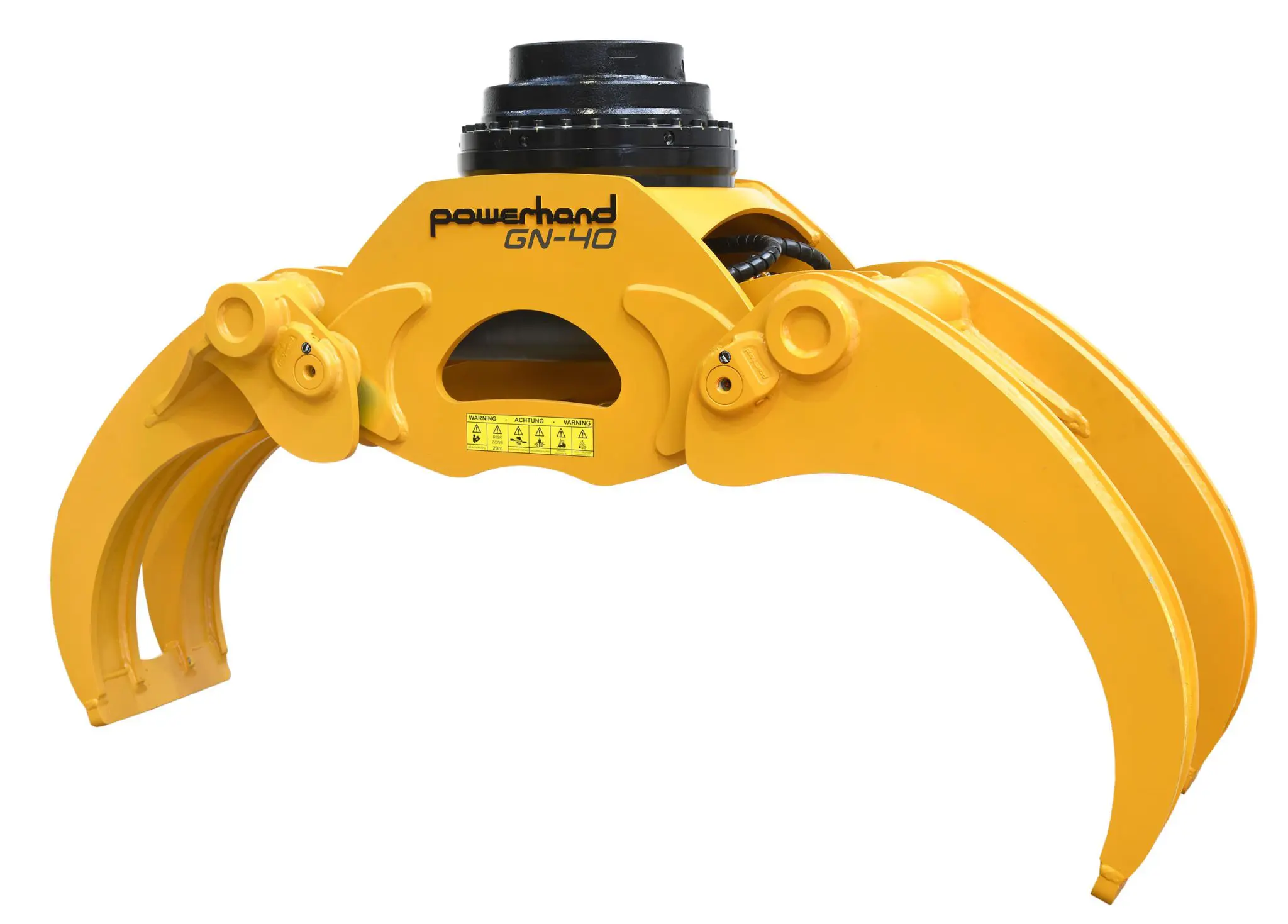

Jaw Opening | A | 1980mm |
Overall Open Width | B | 2115mm |
Open Height | C | 1000mm |

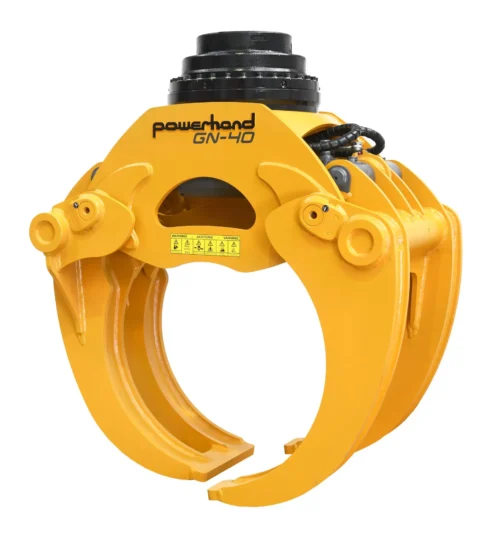

Legs Tip to Tip Height | D | 1124mm |
Min Gripping Diameter | E | Ø130mm |
Overall Grapple Width | 768mm | |
Width at Tips | 724mm | |
Excavator Size | 14 to 25 Tonnes |
