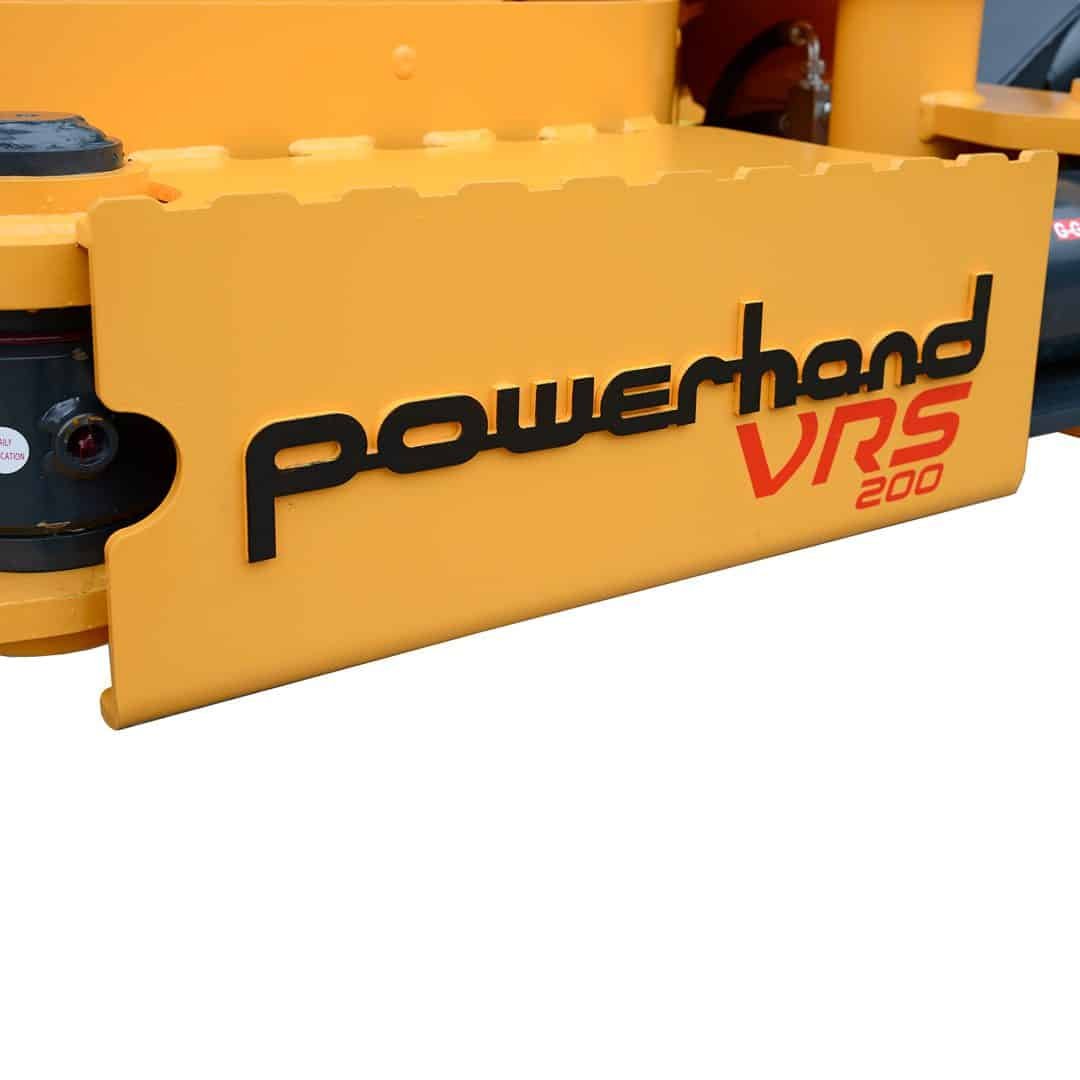

VRS200 Vehicle Dismantler

Extract maximum value from ELVs with Powerhand VRS200.

Combining the VRS200 Dexterity Grapple with integrated Shear and the VRS200 Clamp with Clamp legs that not only open/close to process engines and gearboxes but also raise/lower to firmly grip vehicle bodies during processing, Powerhand VRS200 is the ultimate combination of power and dexterity. Suitable for fitting to most machines in the range of 20 to 25 tonnes.

Increased profitability is gained through quick and efficient removal of higher-grade materials such as engine/transmission assemblies and axle/suspension components from lower grade vehicle body materials.

Like a vulture would dissect its prey, the VRS200 Clamp legs pin down the vehicle to allow the VRS200 Dexterity Grapple to systematically remove the valuable materials away from the lower value vehicle body shell. The knife blades on the Clamp legs of the VRS 200 allow engine and transmission assemblies to be split from the engine block.

The slender, plier-like Dexterity Grapple features an unbroken line of sight from the operator to the vehicle, allowing valuable materials such as the copper wiring loom to be extracted from even the tightest of areas. High power hydraulic cylinders and high torque rotation unit give the VRS200 the power to effortlessly dissect the vehicle.

Manual methods of removing high value materials from end-of-life cars and vehicles can be labour intensive and costly, in many cases making the process economically unviable and although a four-tine scrap grab will allow extraction of the engine, much of the added value materials are left behind, resulting in the end-of-life vehicle dismantler missing out on great potential profit. Powerhand VRS allows maximum value to be extracted from ELVs.

We understand that in a demanding, fast paced industry, productivity is paramount. That is why the VRS200 is built to work, all day, every day. Manufactured 100% from high strength Swedish alloy steels so that you can maximise your profits without the worry of downtime.

Powerhand VRS200
Suitable for fitting to most machines in the range of 20-25 tonnes
VRS200 System Dexterity Grapple
Grapple requires two hydraulic services: Open/Close 300Bar, 80-120 l/min. Rotate 250Bar, 40 l/min.
Weight (Excluding mounting adaptor and rotator)1306kg
Overall HeightA2597mm
Attachment HeightB2180mm
Maximum Grapple Jaw OpeningC1035mm
Maximum Shear Jaw OpeningD407mm

VRS200 System Clamp Legs
Clamp Legs requires two hydraulic services: Open/Close 300Bar, 80-120 l/min. Raise/Lower 300Bar, 80-120 l/min.
Weight (excluding mounting adaptor)2800kg
Closed Width at TipsA858mm
Minimum Overall WidthB2400mm
Open Width at TipsC3213mm
Maximum Overall WidthD3664mm
Typical Mounting Height (Dependant on the machine mounting bracket)E530mm-750mm
Overall Length (Excluding mounting adaptor)F3893mm
Raised HeightG1500mm
