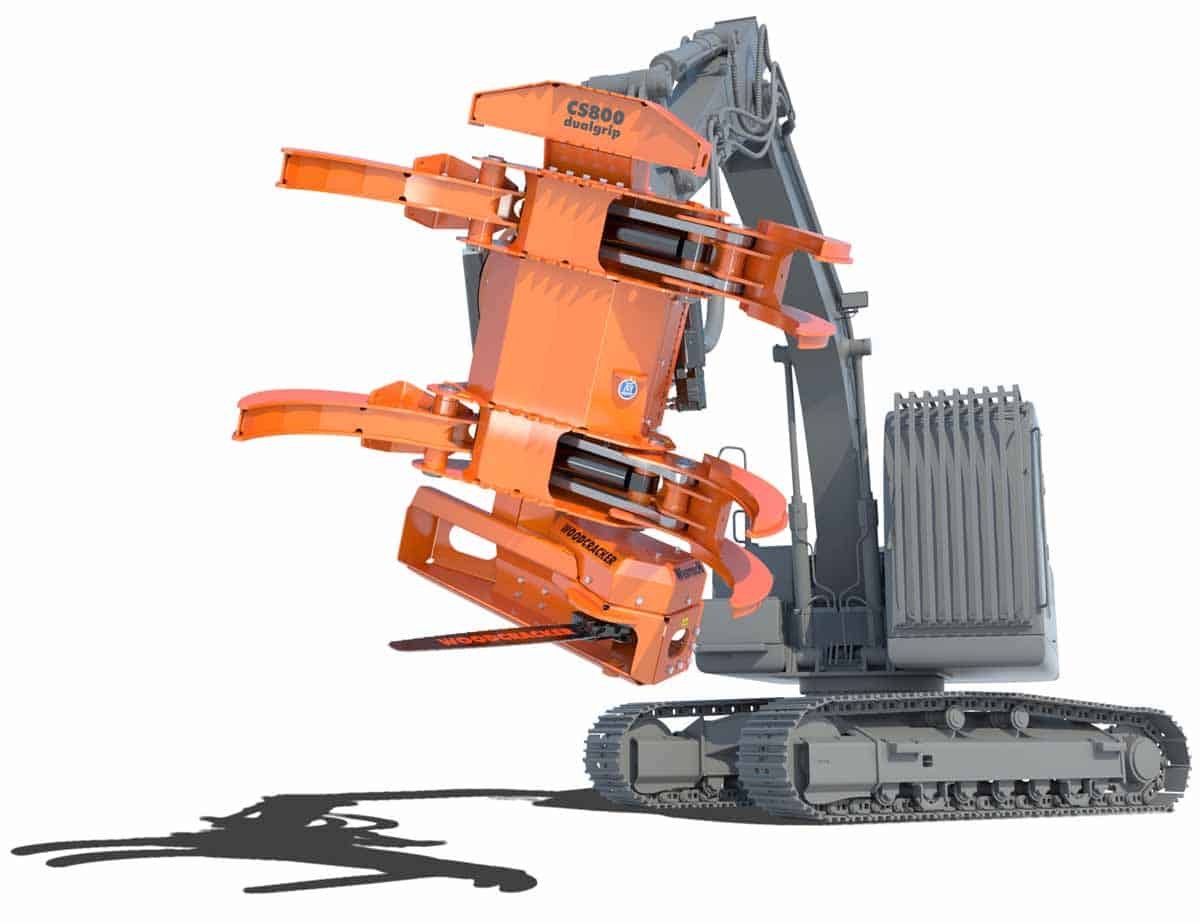

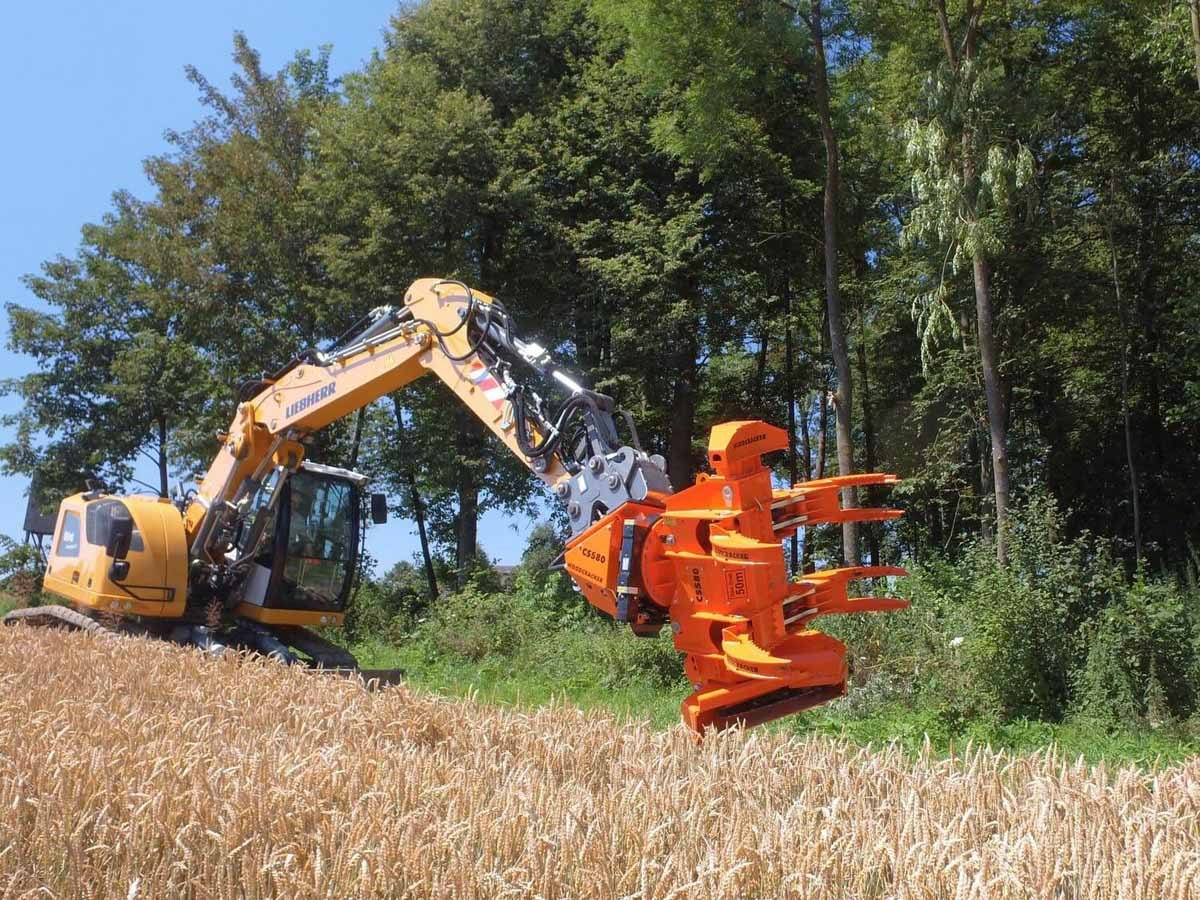

Woodcracker CS dualGrip

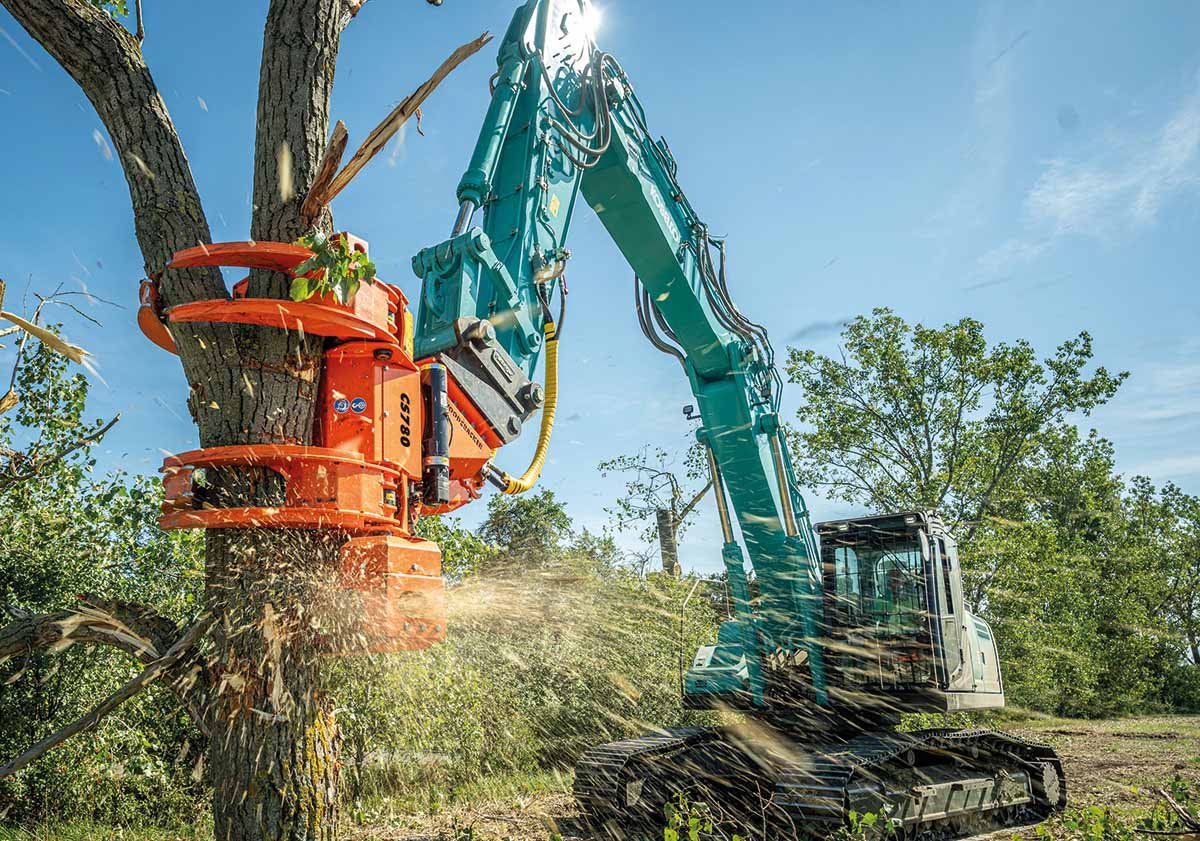

The CS DualGrip uses two sets of independent grapple arms for safe tree felling. Cutting up to 750mm in diameter, the DualGrip is for mounting on excavators of 14ton to 28ton. Saw box has a swinging chassis with active suspension for user-friendly operation.
Saw unit in .404″ or optionally in ¾”
The machine needs only 5 hydraulic connections, inclusive all options.
Strong Tiltator
machine is endlessly rotatable
optional: Power-Tiltator with twice as much torque
The saw box has a swinging chassis with active suspension.
Spring-mounted saw box prevents the saw blade from bending due to force acting on it.
The automatic chain tensioner keeps the chain under right tension
Regardless of whether the machine has just started or has been operating for several hours. This means that the working process is not interrupted by a chain coming off.

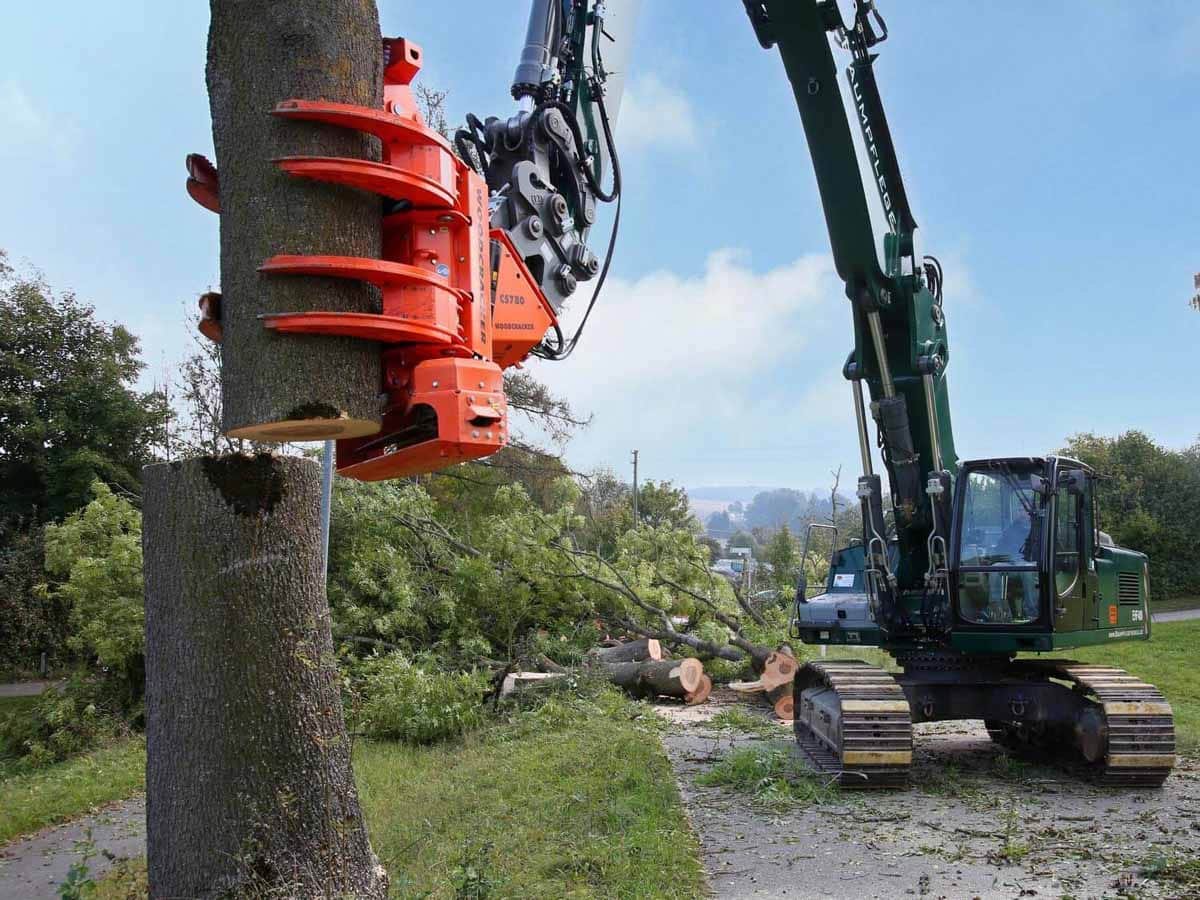

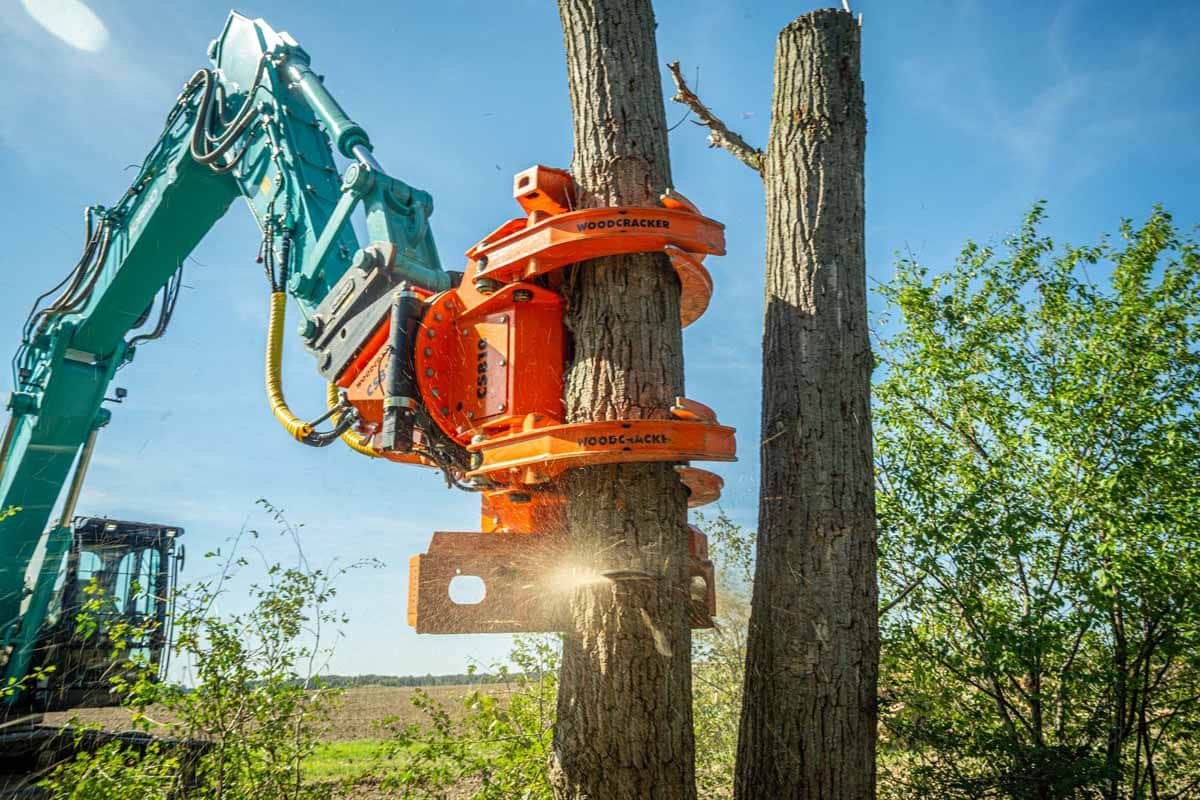

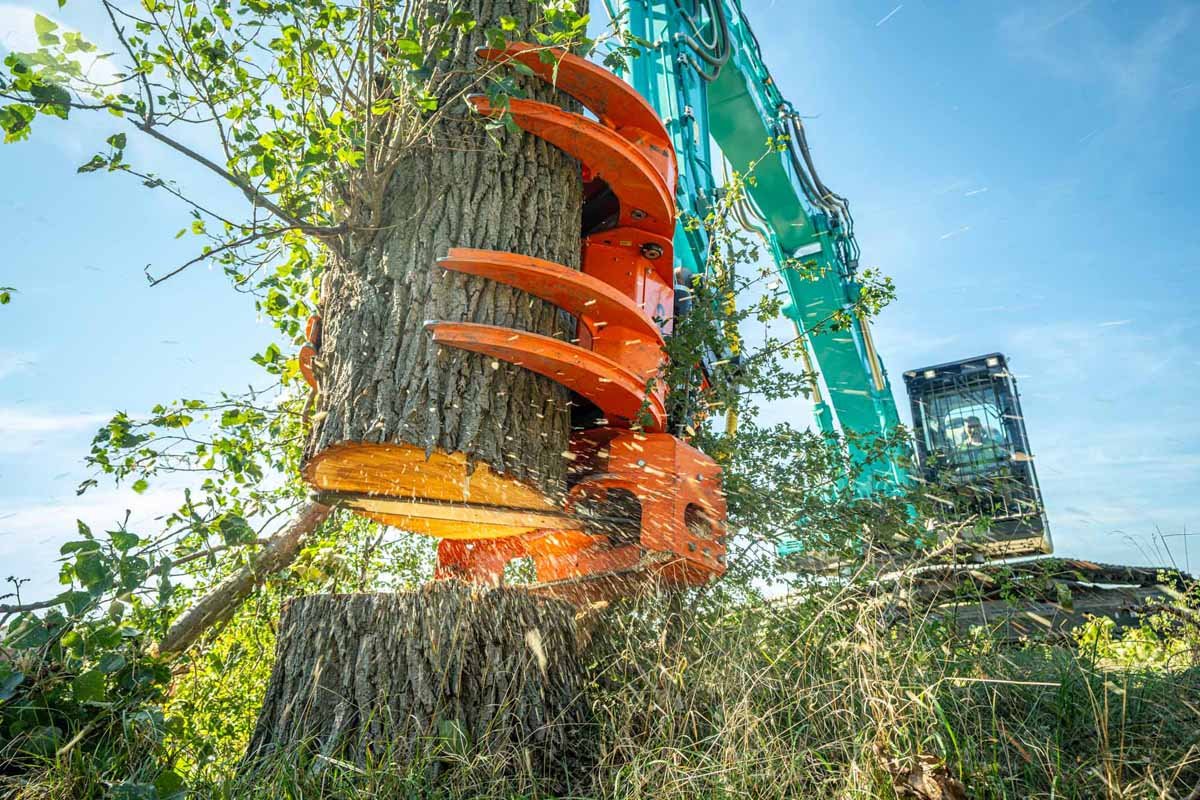

Two strong, independently controllable gripper adapt to the shape of the tree. Spikes on the gripper hold the tree firmly.
Strong Tiltator
machine is endlessly rotatable
optional: Power-Tiltator with twice as much torque
Short Facts Download
Find all the information on this product at a glance in this pdf

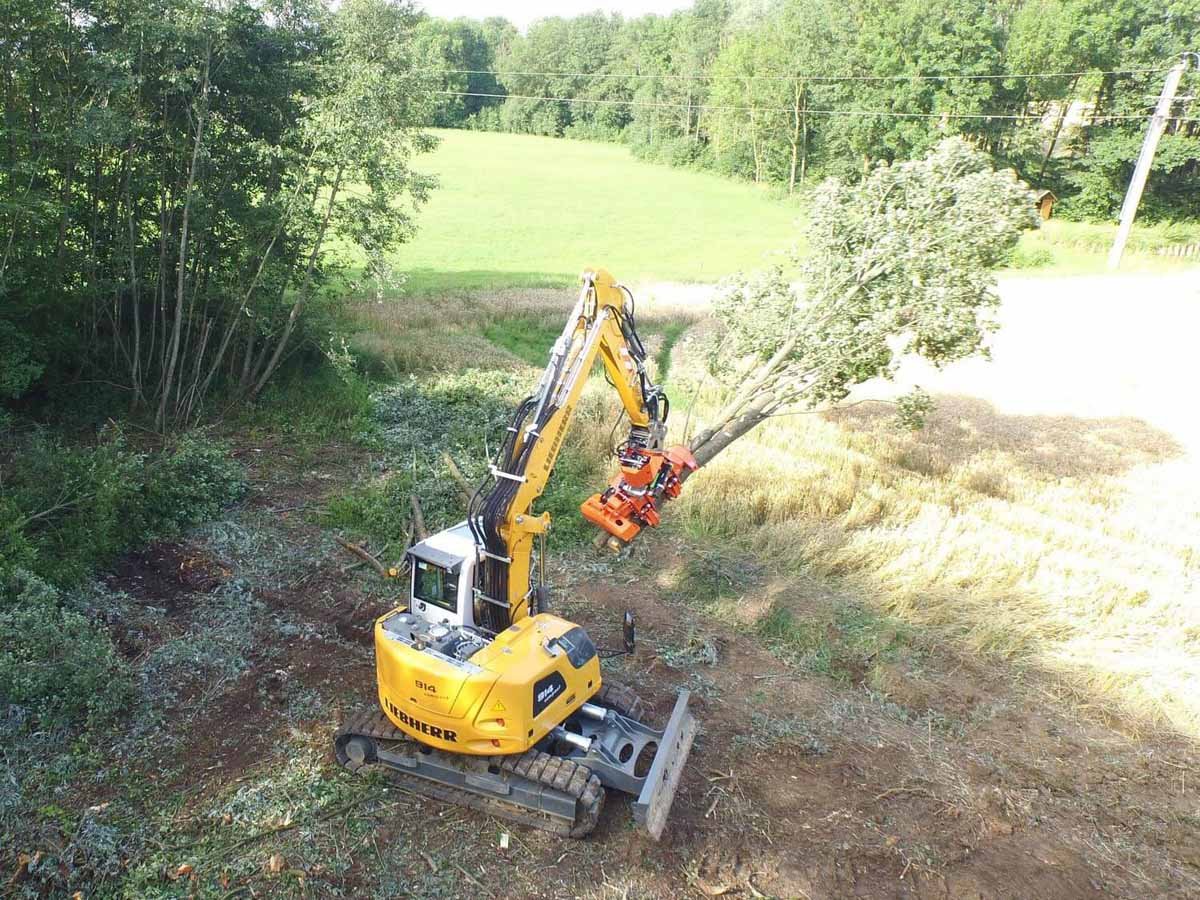

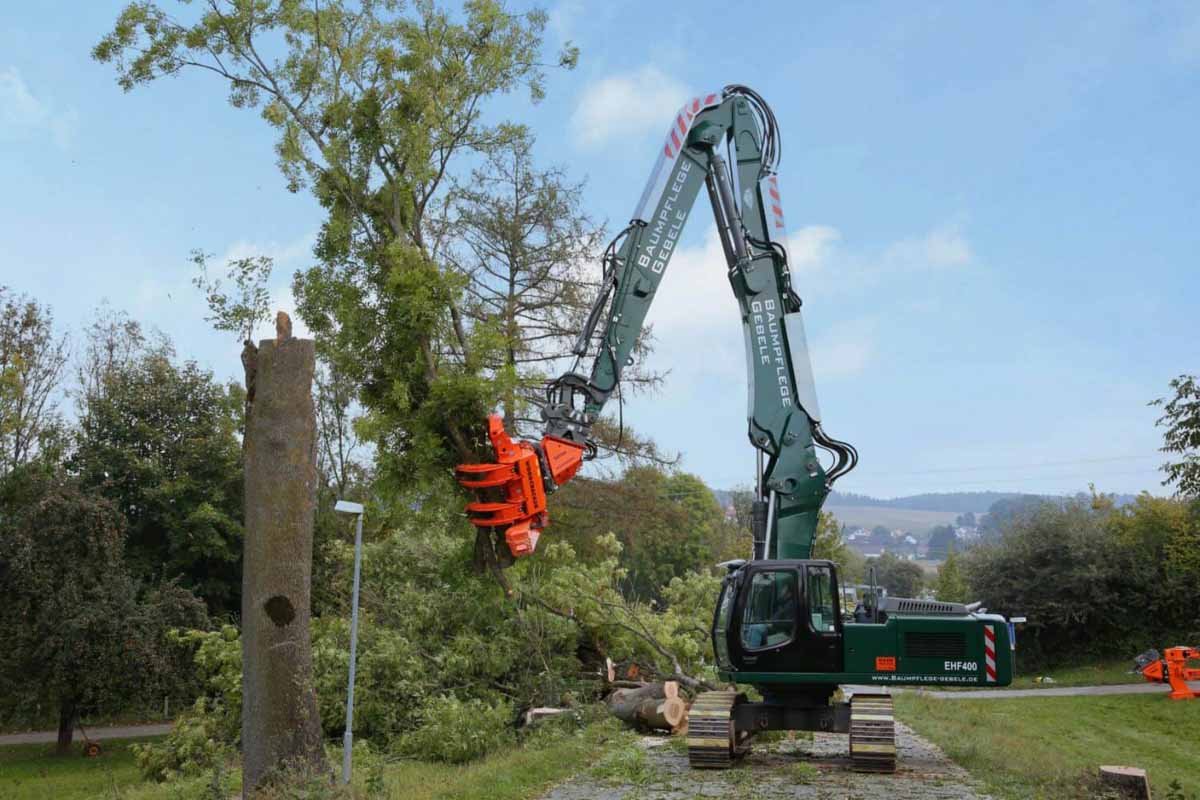

Application Areas
- Safe removal of trees in several parts.
- Harvest of tree trunks.
- In rough terrain, hill areas and swamplands.
- Maintenance work along traffic roads and routes.
- Tree felling due to safety reasons
- Quick refurbishing of the already logged tree lying on the ground.
- Harvest of very strong wood
- Maintenance of the structure gauge.
Key Facts
- Suitable for every standard excavator

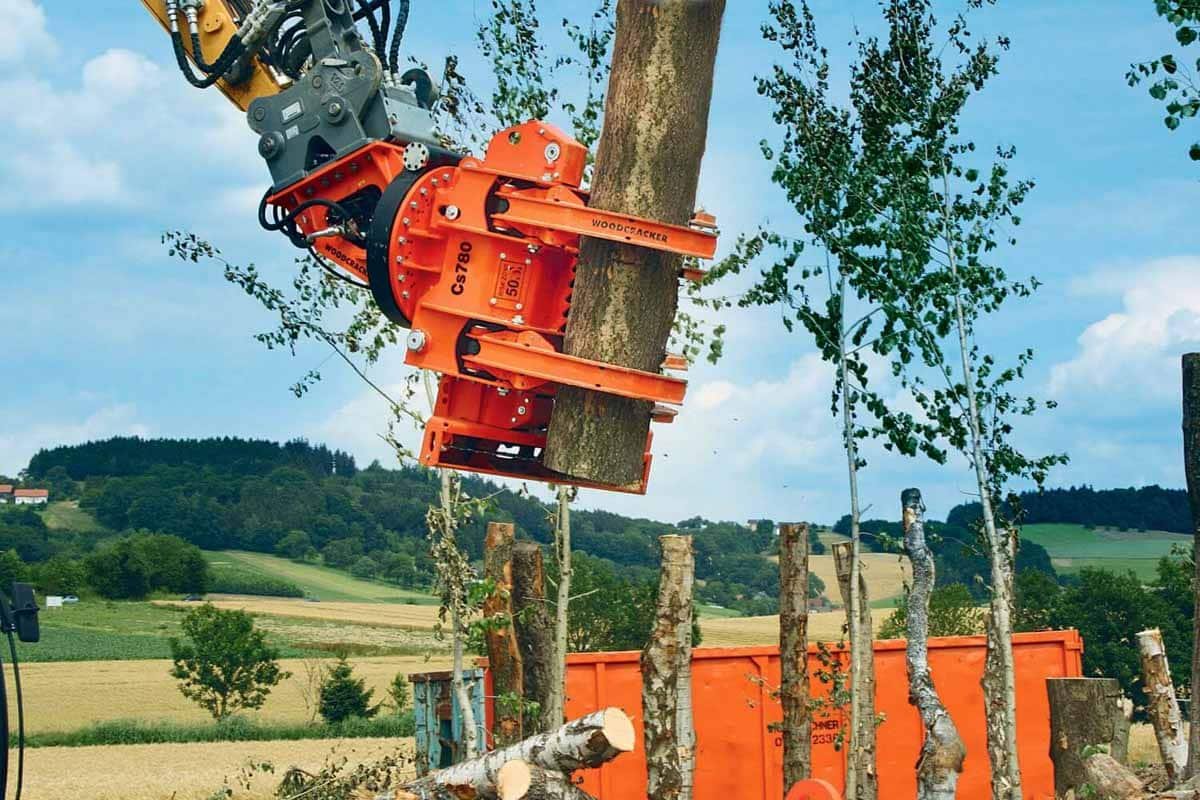

- The rigid mounting of the Woodcracker CS to the excavator makes it possible to withdraw parts of the tree vertically from its setting. In this way, trees or objects nearby are not damaged – perfect for fellings due to safety reasons.
- Grease lubrication does not cause oil fogging and lubricates the chain in any position.
- Removable guide bracket.
- Ideal transport position for a safe transport.
- Robust and long-lasting, low-wear and low-service.
- Made of high-strength Hardox® steel.
- KTL-grounded (cathodic dip-coating) and powder coating
- Automatic lubrication system for tiltator
- Low operating weight
- dualGrip = two independent grippers

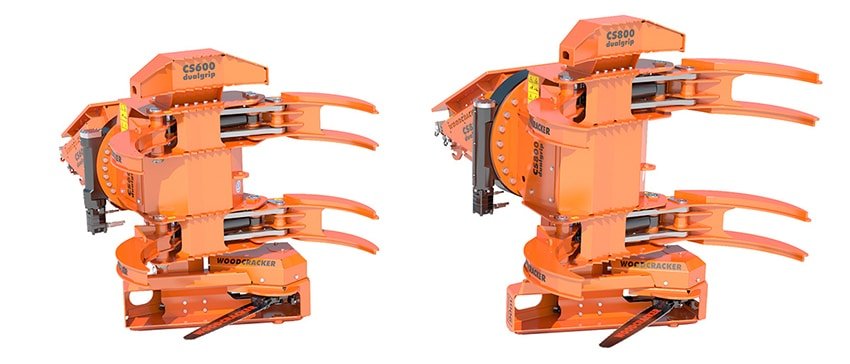

| CS 600 dualGrip | CS 800 dualGrip | |
|---|---|---|
| Cutting diametre (mm) | 580 | 750 |
| Gripper opening (mm) | 1430 | 1600 |
| Tiltator | endless rotatable | endless rotatable |
| Weight (base – fully equipped)* (kg) | 1240-1280 | 1620-1670 |
| Recommended pump flow capacity (l/min.) * | 120-170 | 120-170 |
| Recommended pump flow for optional functions (l/min.) * | 45-60 | 50 – 70 |
| Recommended operating pressure (bar) | 280 | 280 |
| Service weight of carrier vehicle ** (t) | 14 – 22 | 20 – 28 |
| Saw unit | actively suspended | actively suspended |
| Chain lubrication of saw | grease | grease |
| Optional: Power Tiltator | ■ | ■ |
| Optional: Automatic lubrication system for Tiltator | ■ | ■ |
