Woodcracker CS flexHead

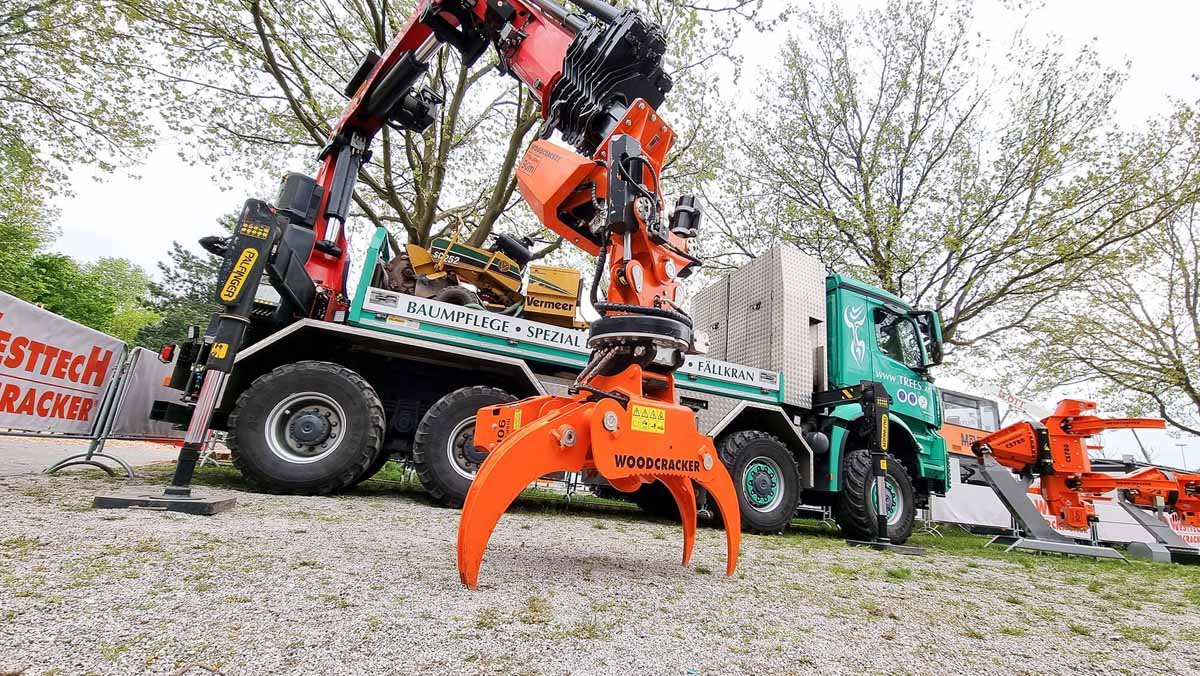

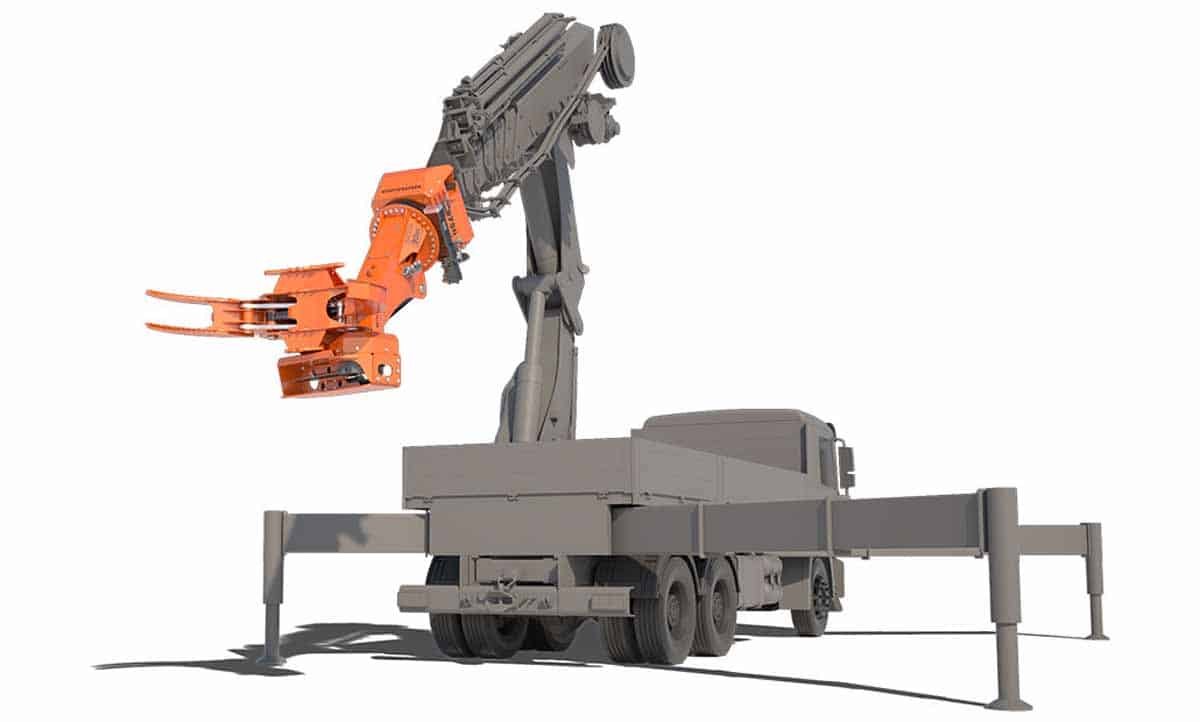

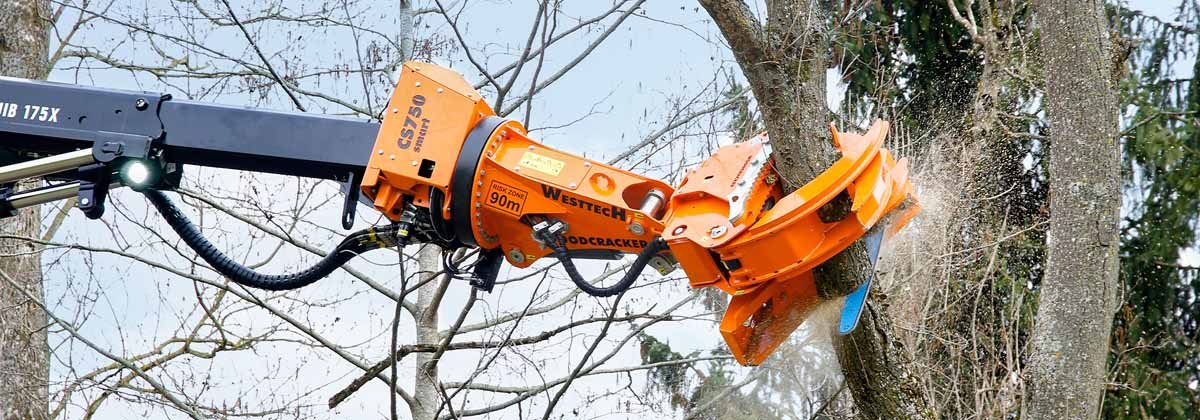

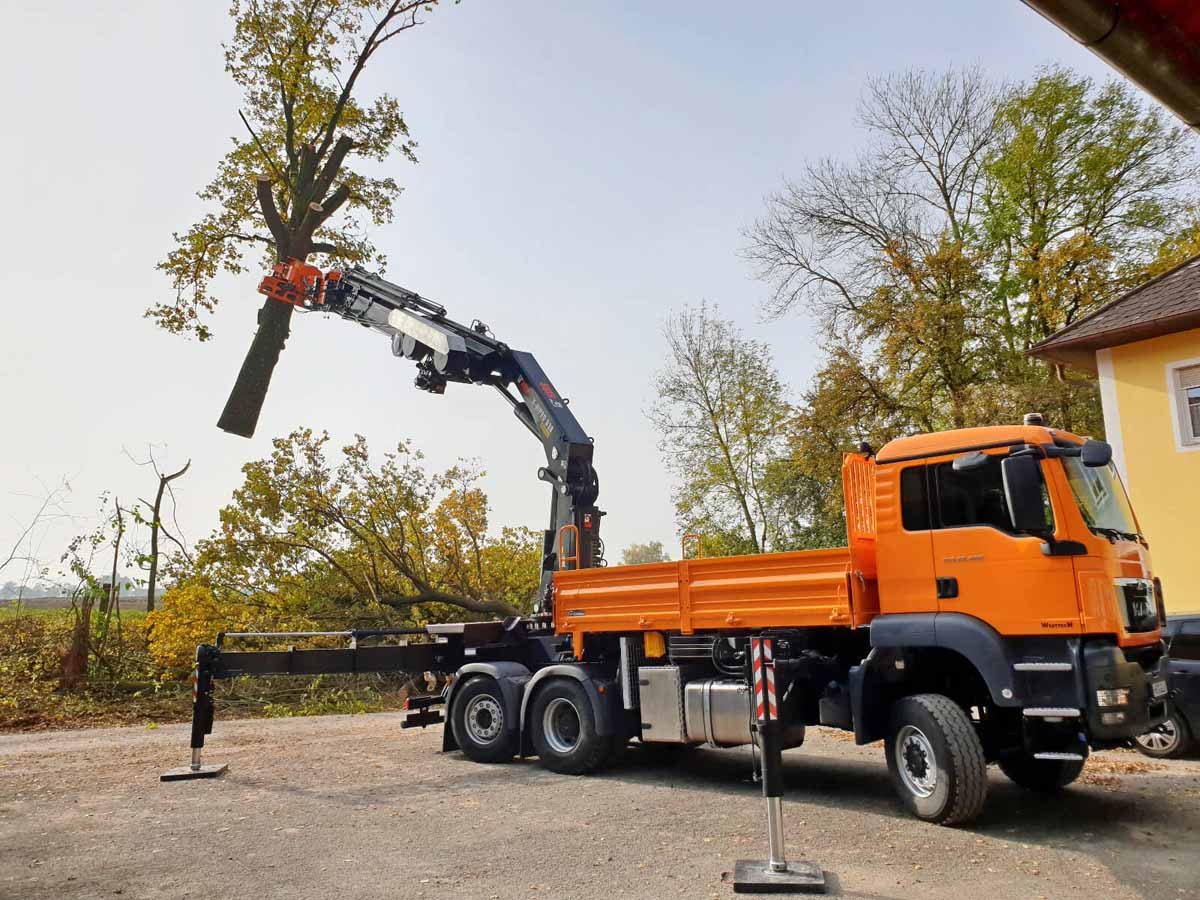

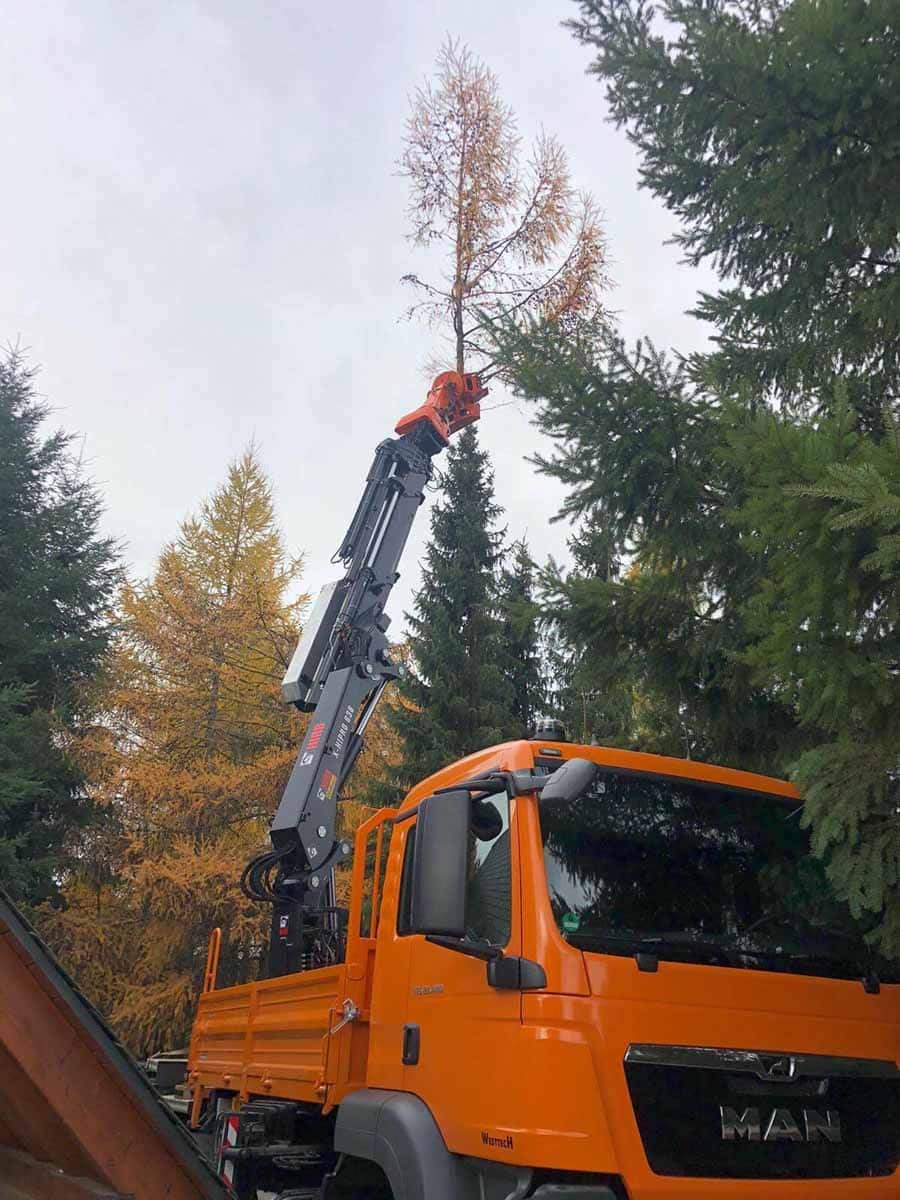

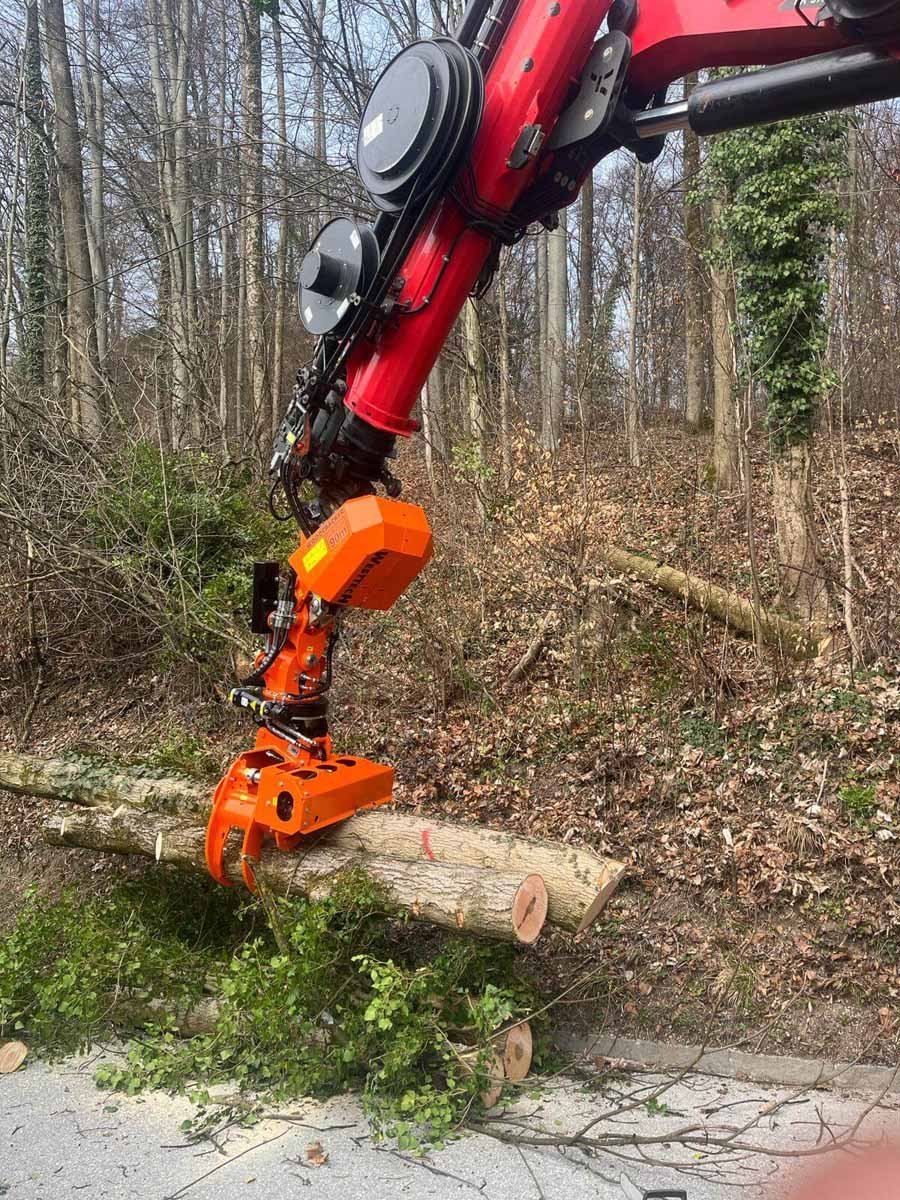

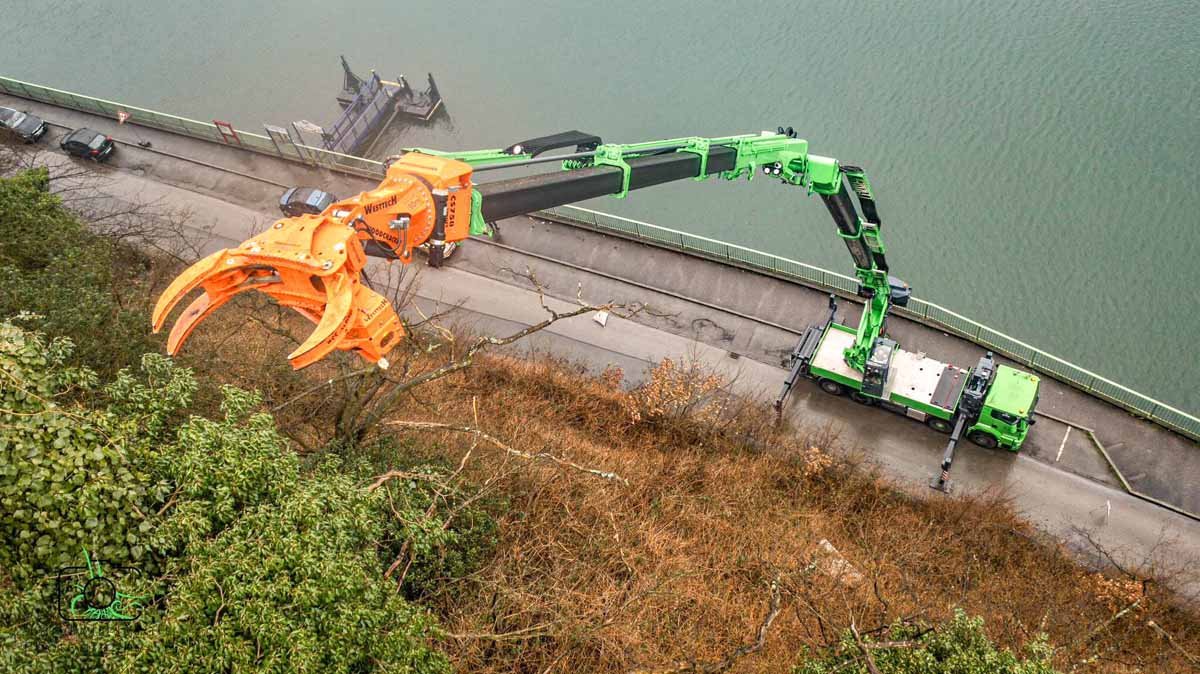

The CS flexHead is an innovative attachment designed for truck crane mounting. With various mounting options available, it offers increased mobility and flexible control of the grapple saw attachment.
Strong Tiltator
machine is endlessly rotatable
optional: Power-Tiltator with twice as much torque

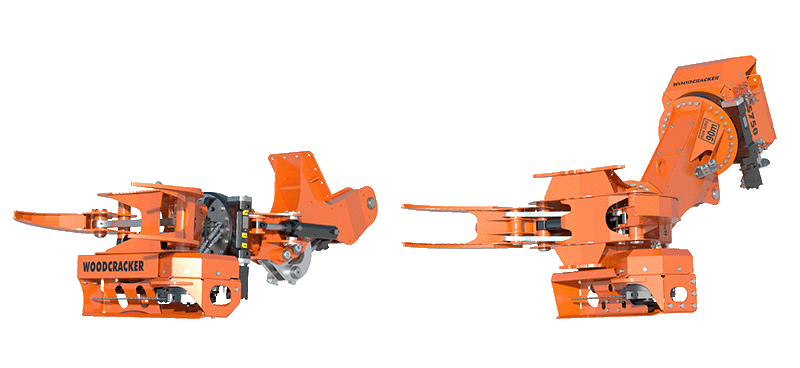

Various mounting options
flexHead2: rotational and vertical axis
flexHead3: rotational, vertical and horizontal axis
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

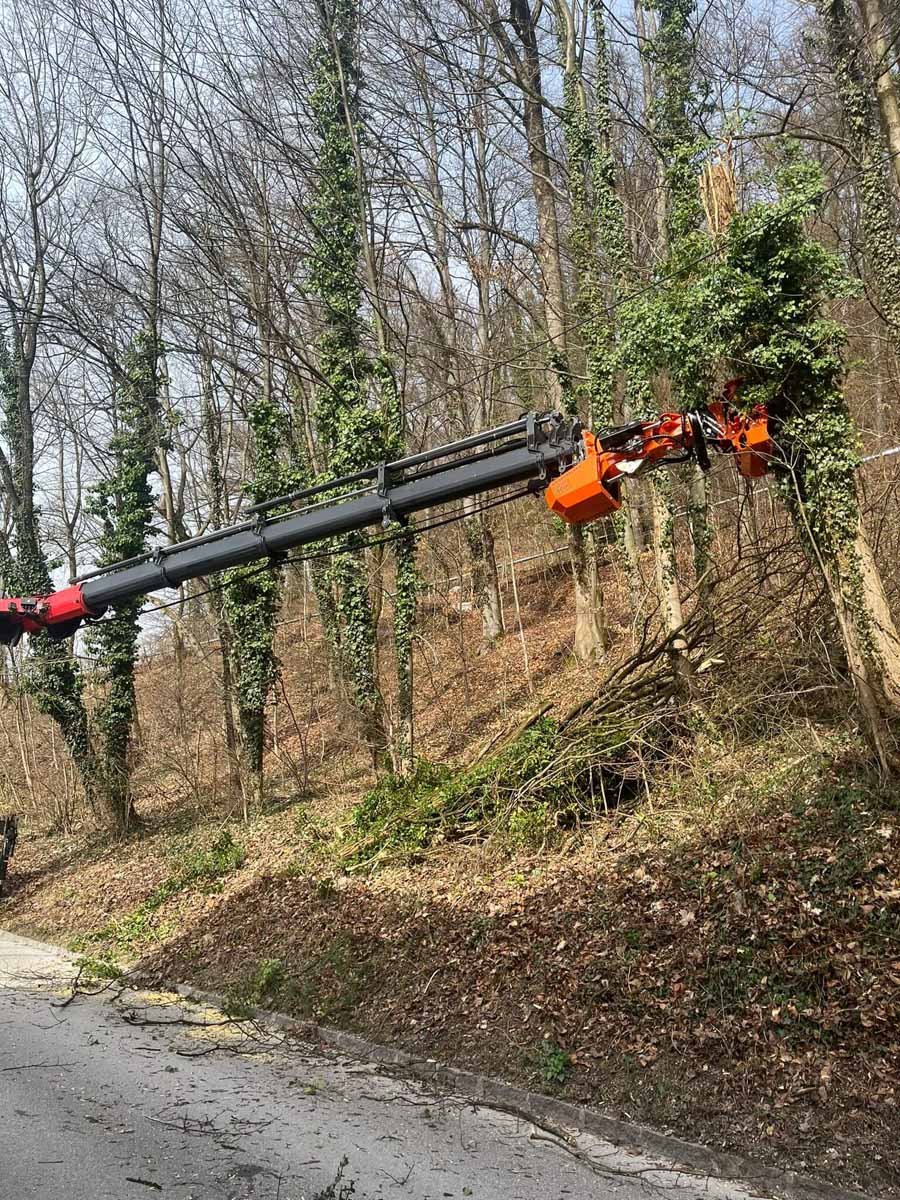

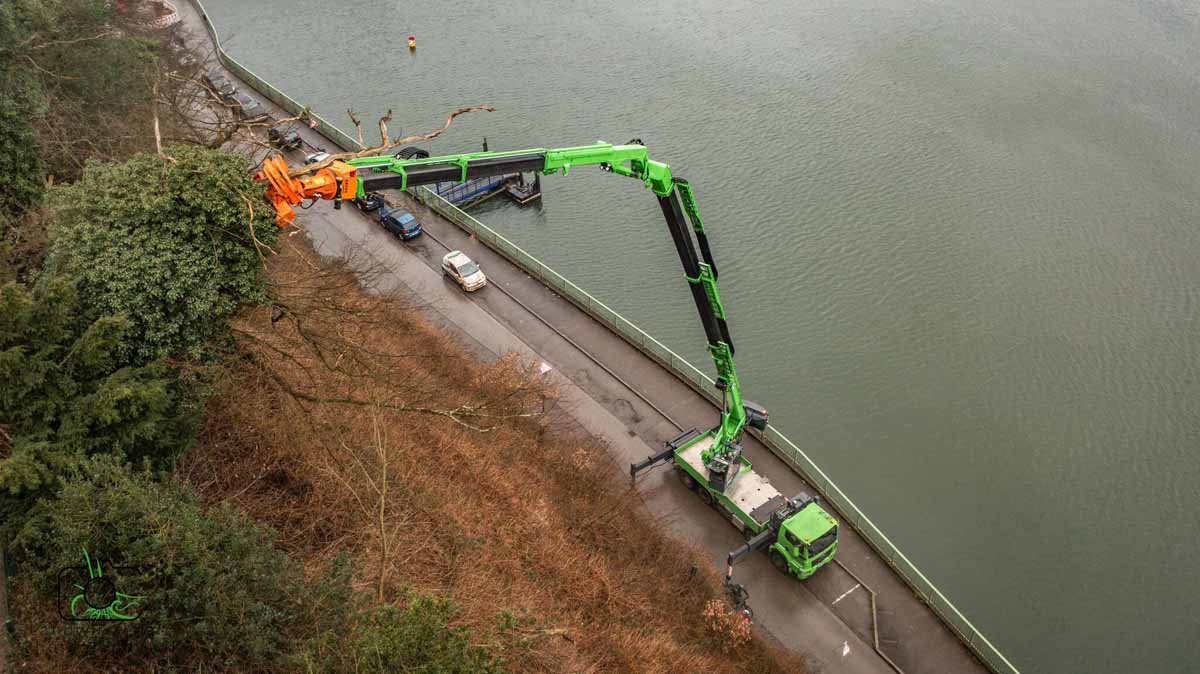

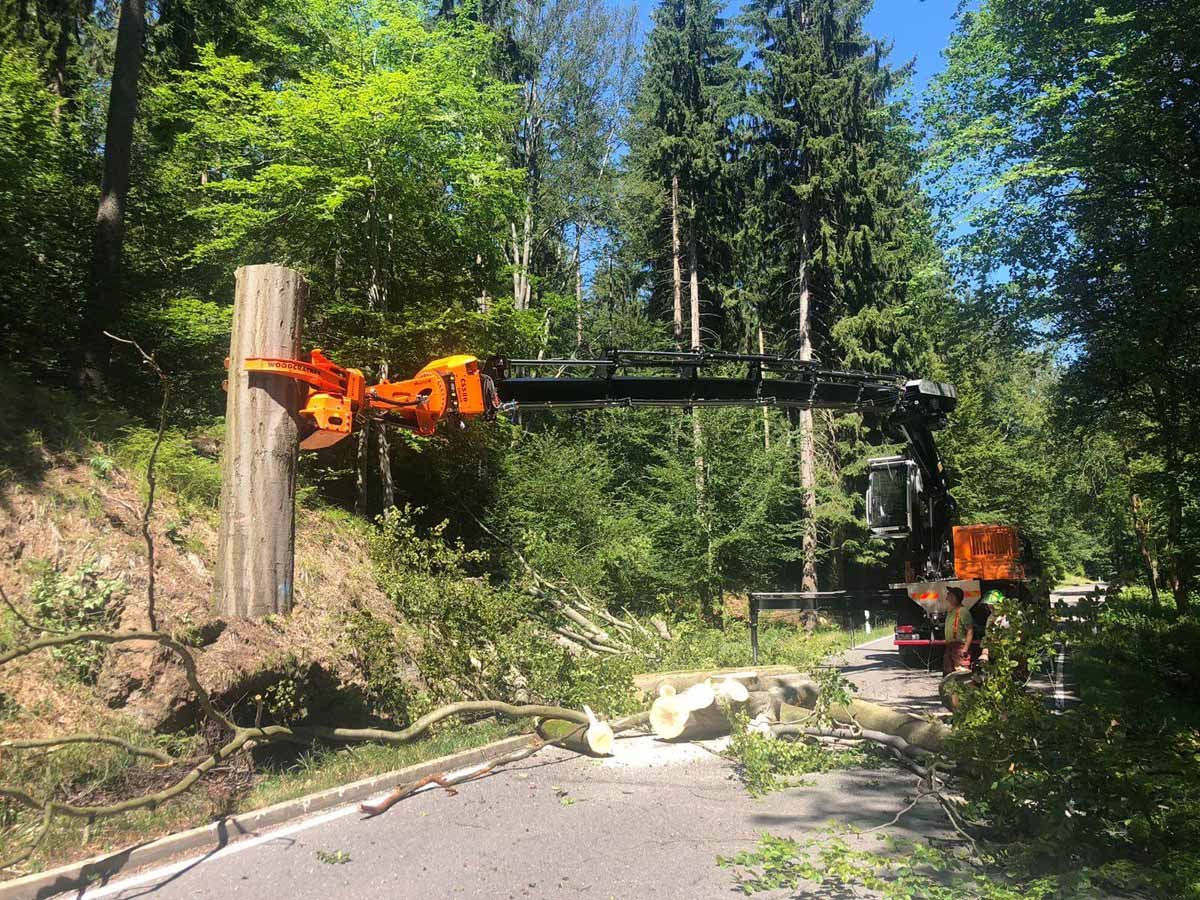

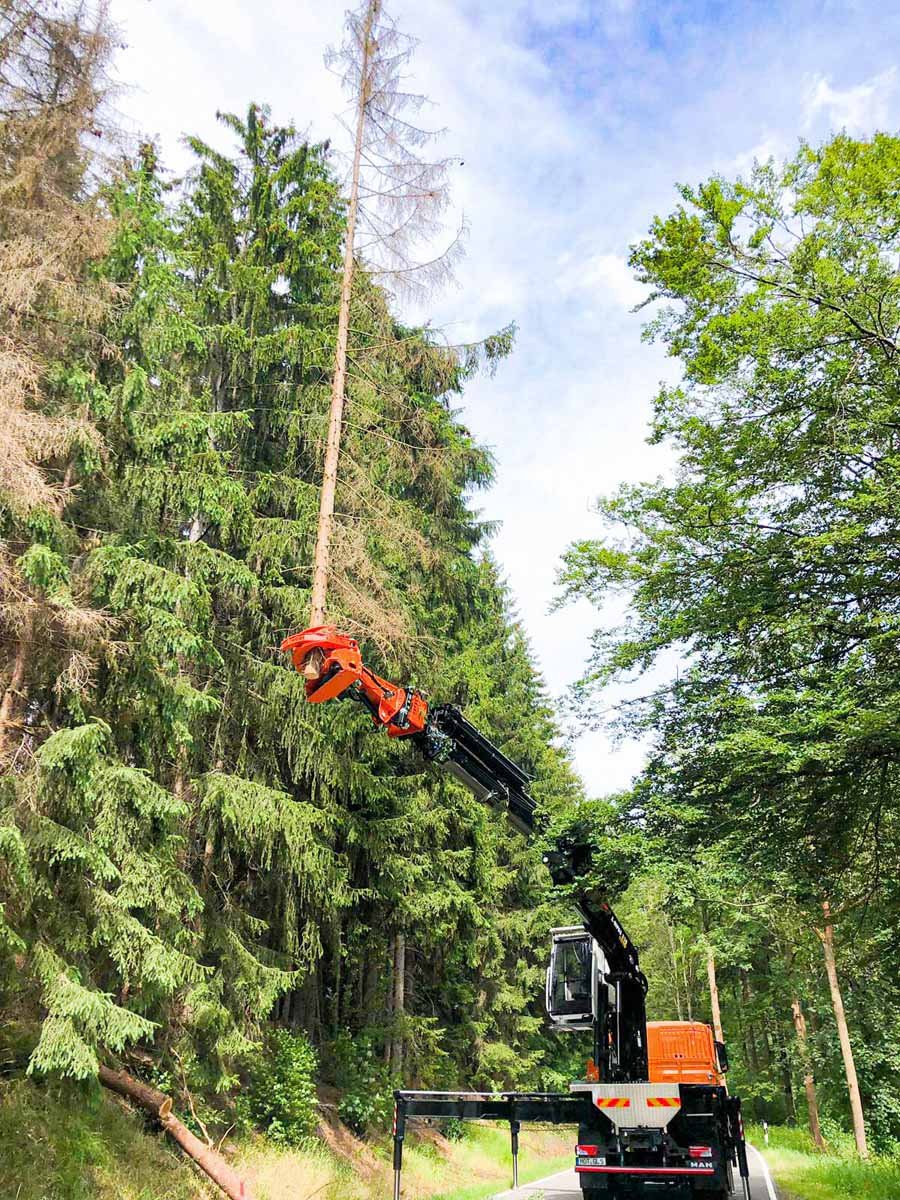

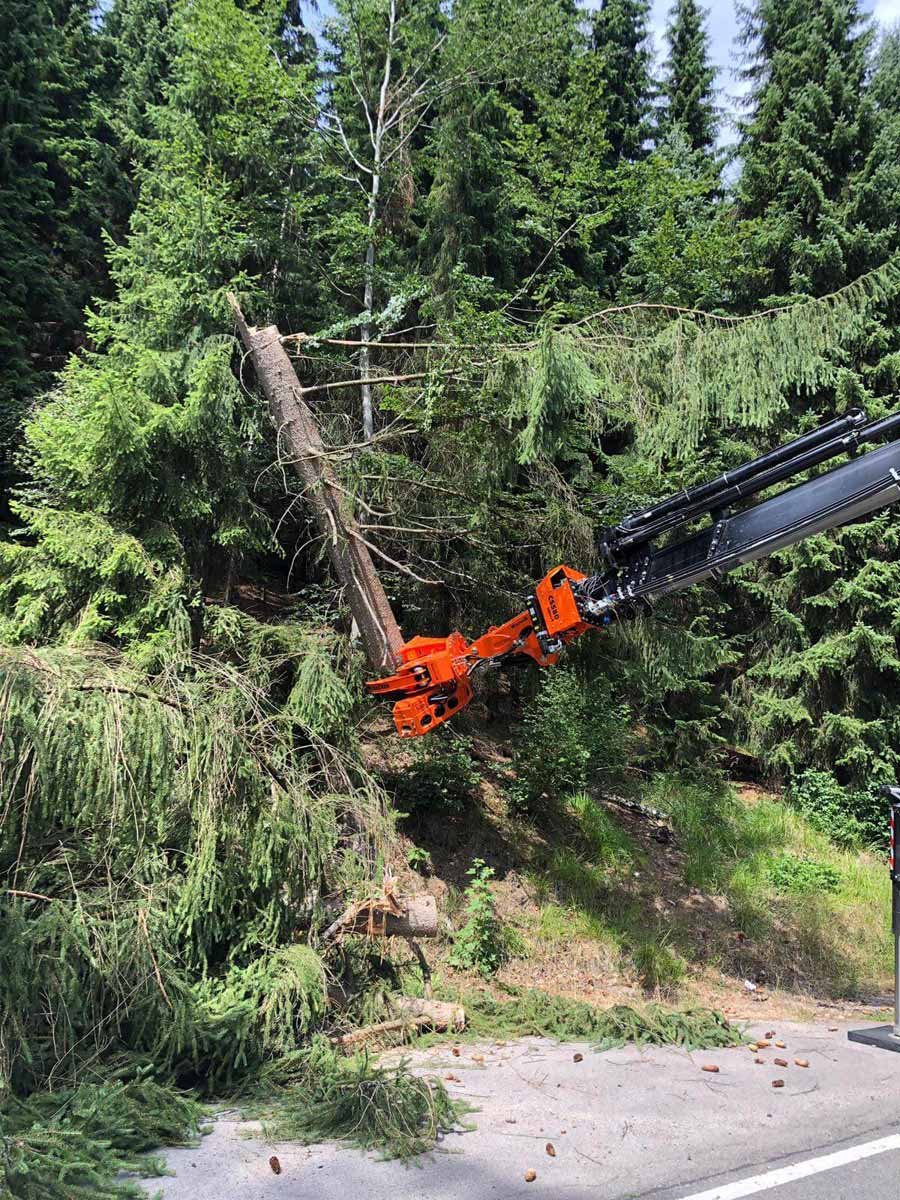

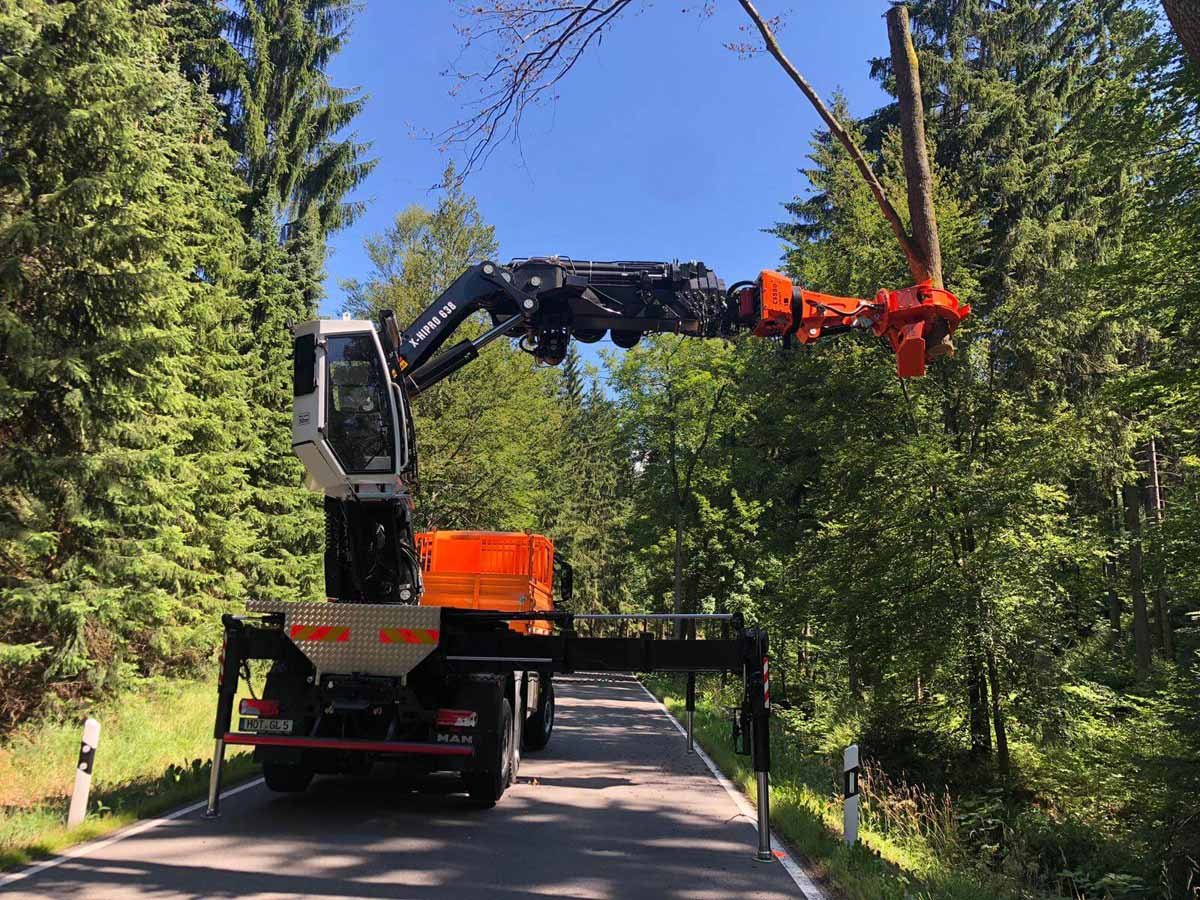

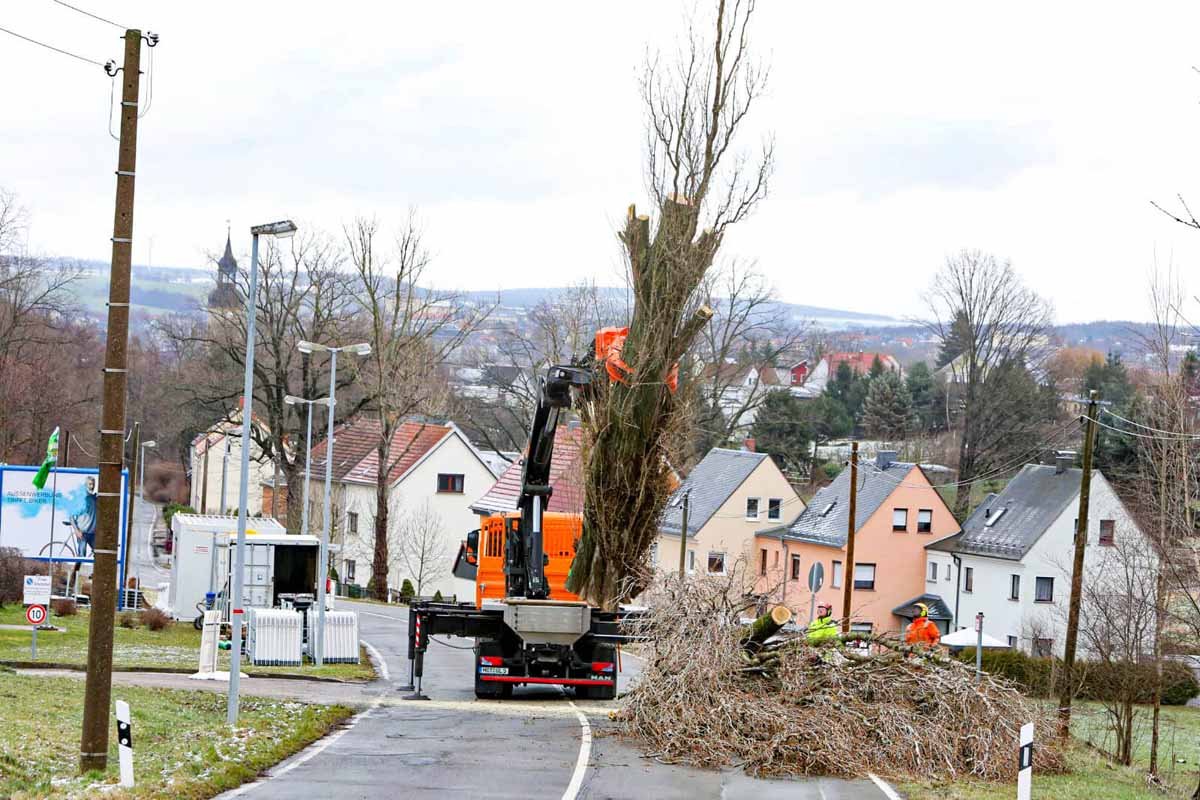

- Safe removal of trees in several parts, vertically

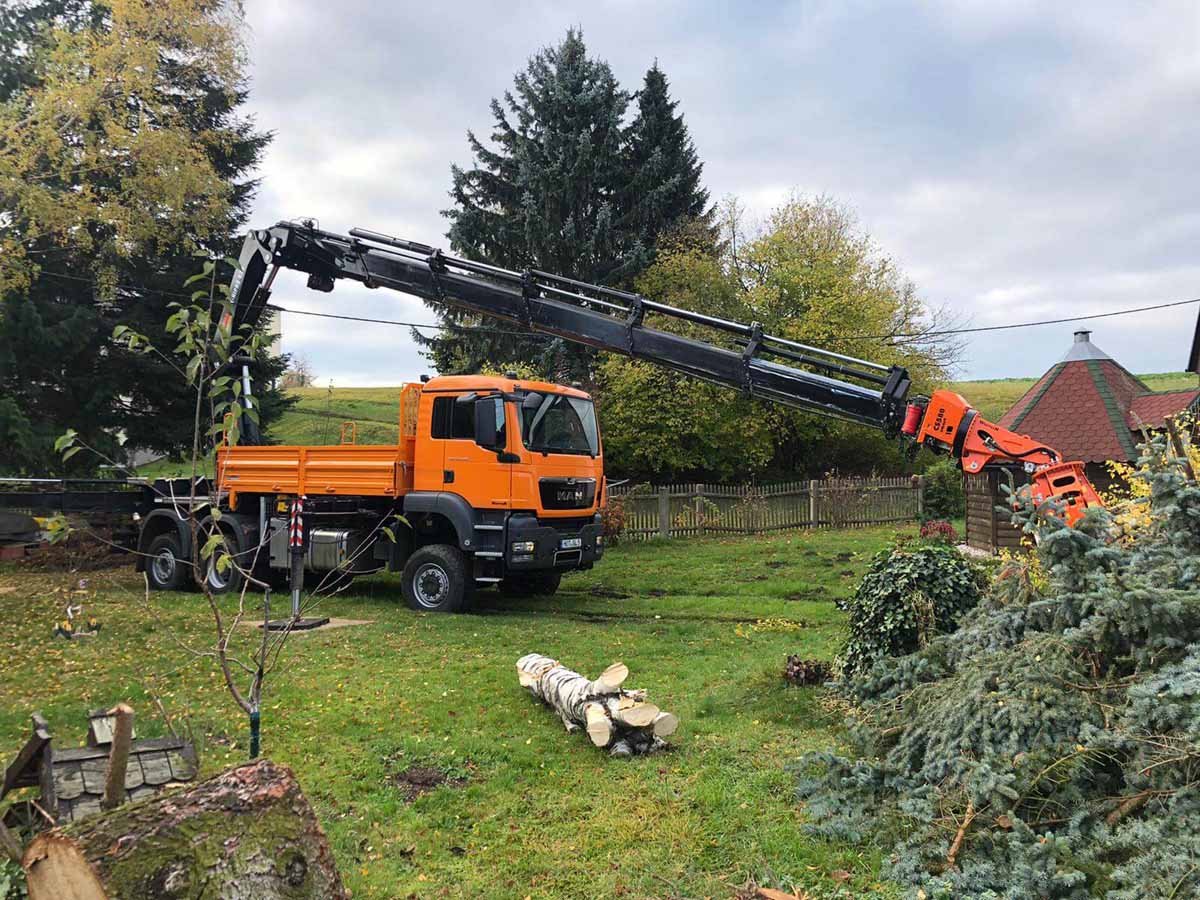

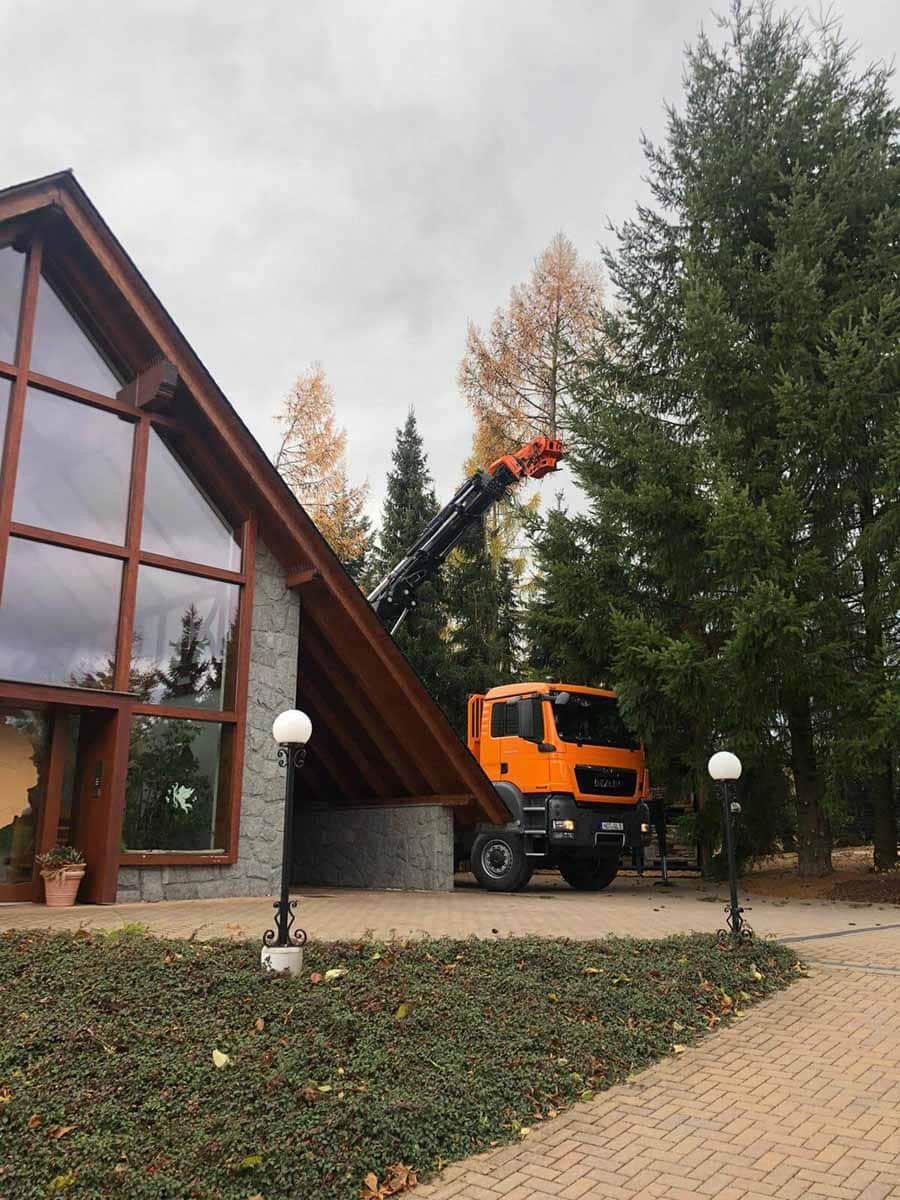

- Problematic tree felling in urban and residential areas

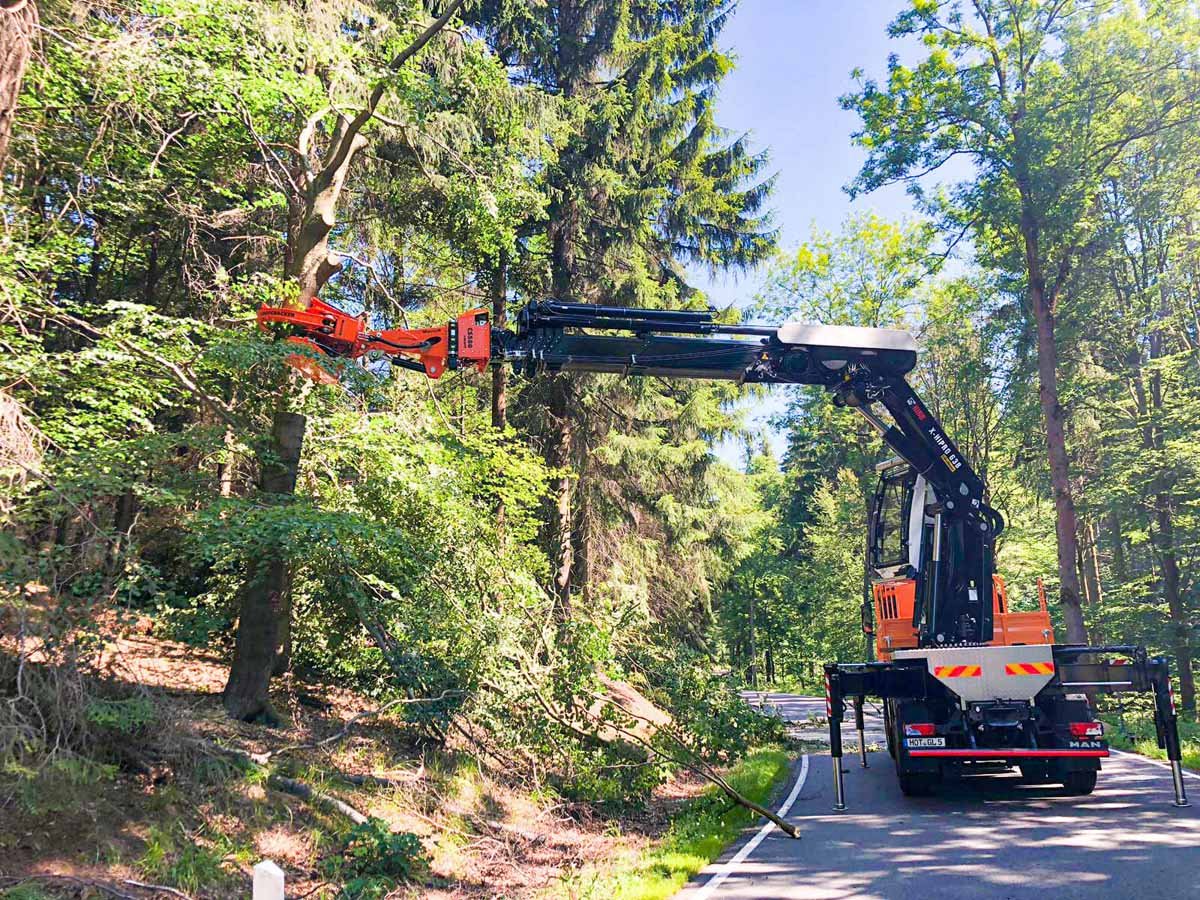

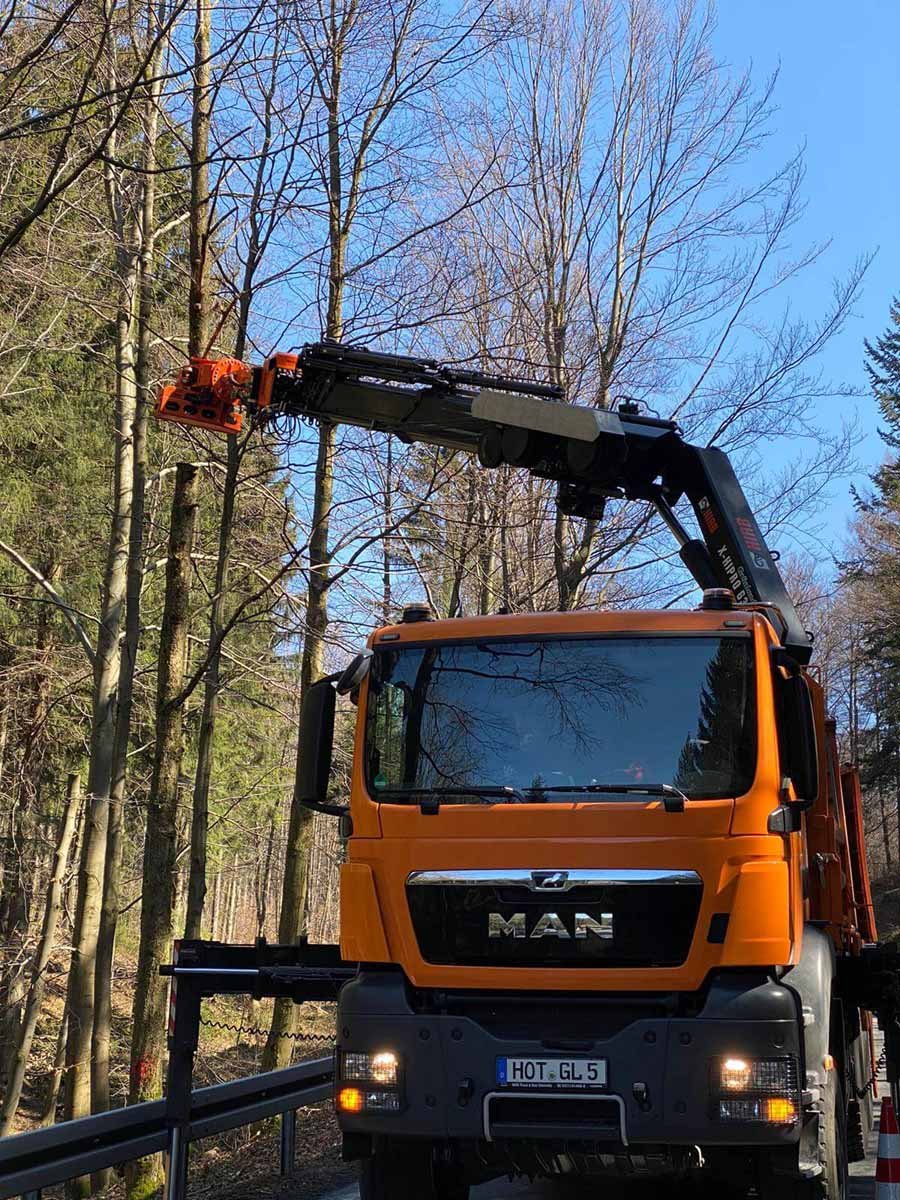

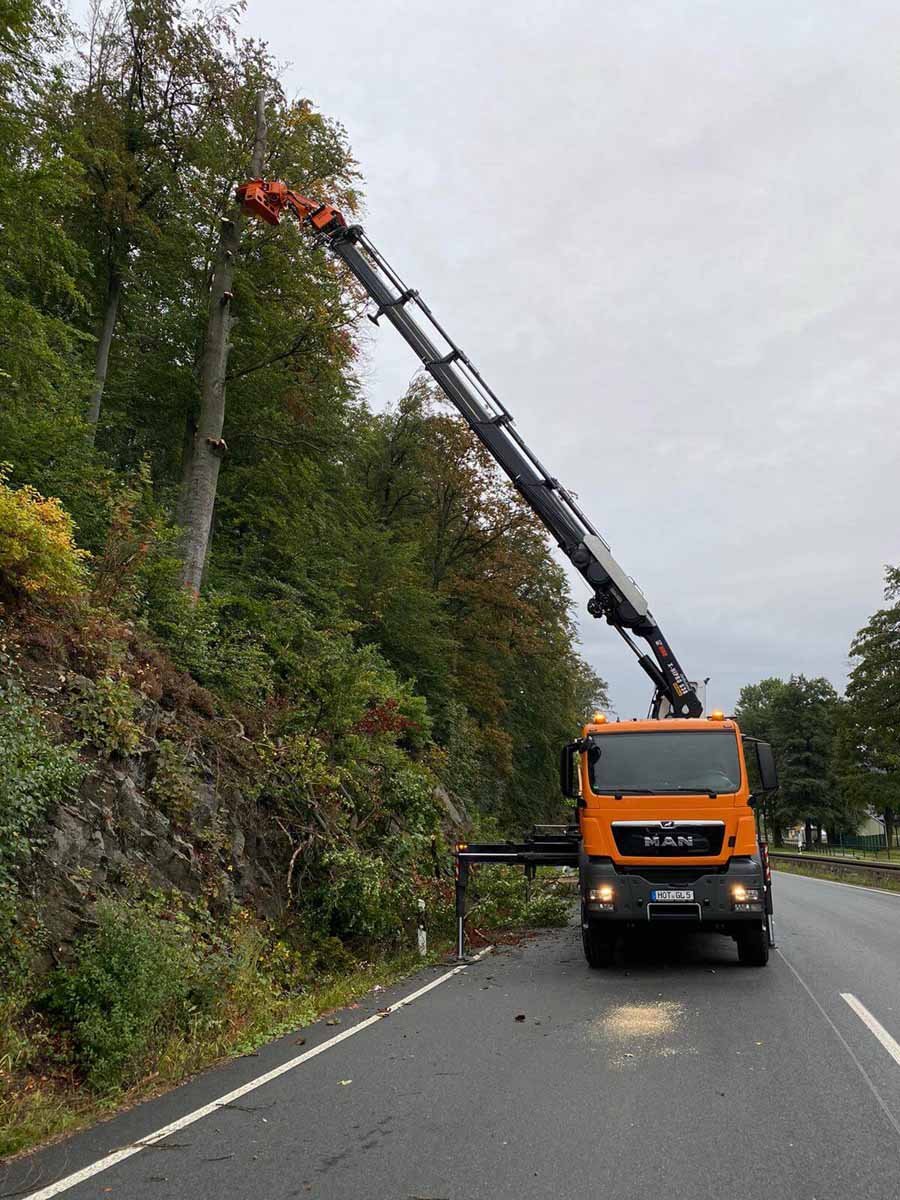

- Maintenance of the structure gauge
- Maintenance of infrastructure networks
Key Facts
- Various mounting options possible.
- High mobility and flexible control.
- Quick-change system enables attachments to be quickly exchanged with each other.
- Various attachments possible – Working basket, photovoltaic cleaning brushes, etc.
- Safe working method for operators.
- Quick set-up at the respective construction site.
- Targeted tree care in challenging conditions.

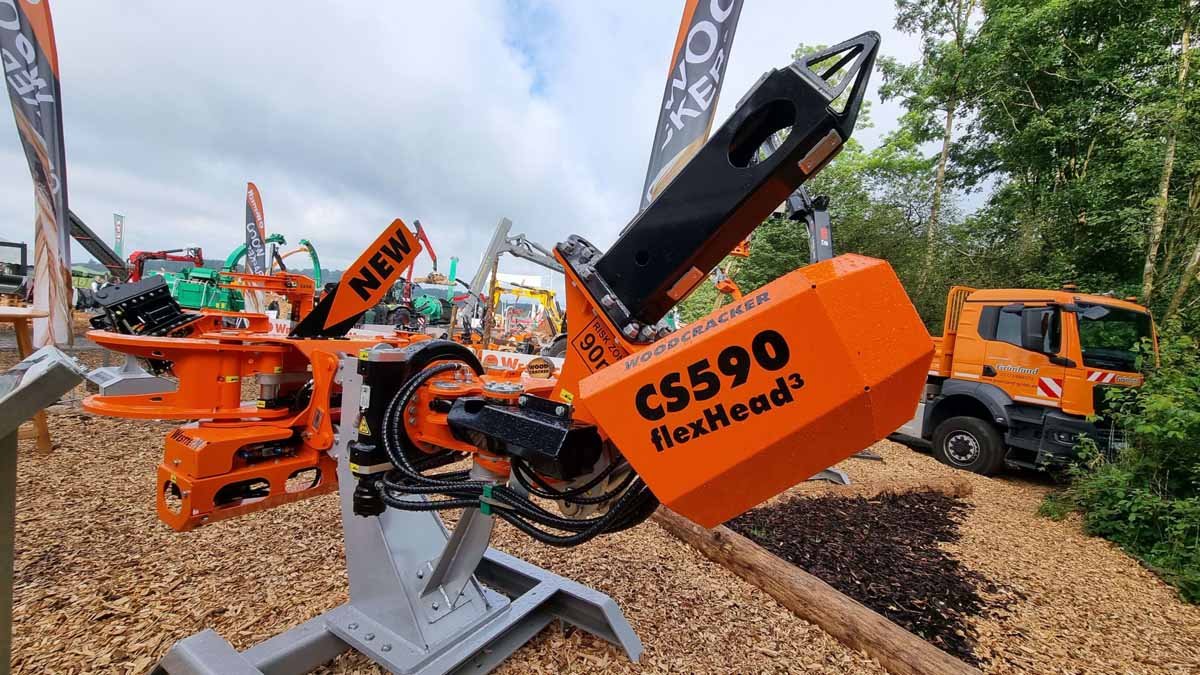

| CS 590 flexHead³ | CS 750 flexHead³ | |
|---|---|---|
| Cutting diametre (mm) | 600 | 750 |
| Gripper opening (mm) | 1270 | 1600 |
| Tiltator | endlessly rotatable | endlessly rotatable |
| Recommended pump flow capacity * (l/min.) | 50-90 | 65-110 |
| Recommended operating pressure (bar) | 230-300 | 230-280 |
| Carrier vehicle, for cranes from (mto) | 35 | 58 |
| Saw unit | rigid | actively suspended |
| Chain lubrication of saw | oil | oil/grease |
| Angle of motion vertically (degree) | 170 | 175 |
| Angle of motion horizontally (degree) | 90 | - |
| Optional: Power-Tiltator | - | ■ |
| Optional: Automatic lubrication system for Tiltator | - | ■ |
| Optional: Quick coupler | ■ | - |
