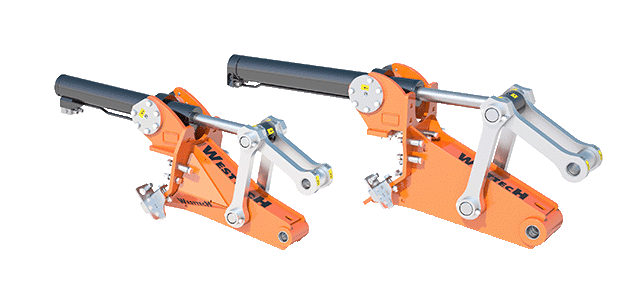

Woodcracker TK
Quick coupler attachment for harvesters, telehandlers, and excavators.
Rigid mounting of all common Woodcrackers ® possible
Various mounting options to common carrier vehicles
Large angle of motion
Low net weight
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

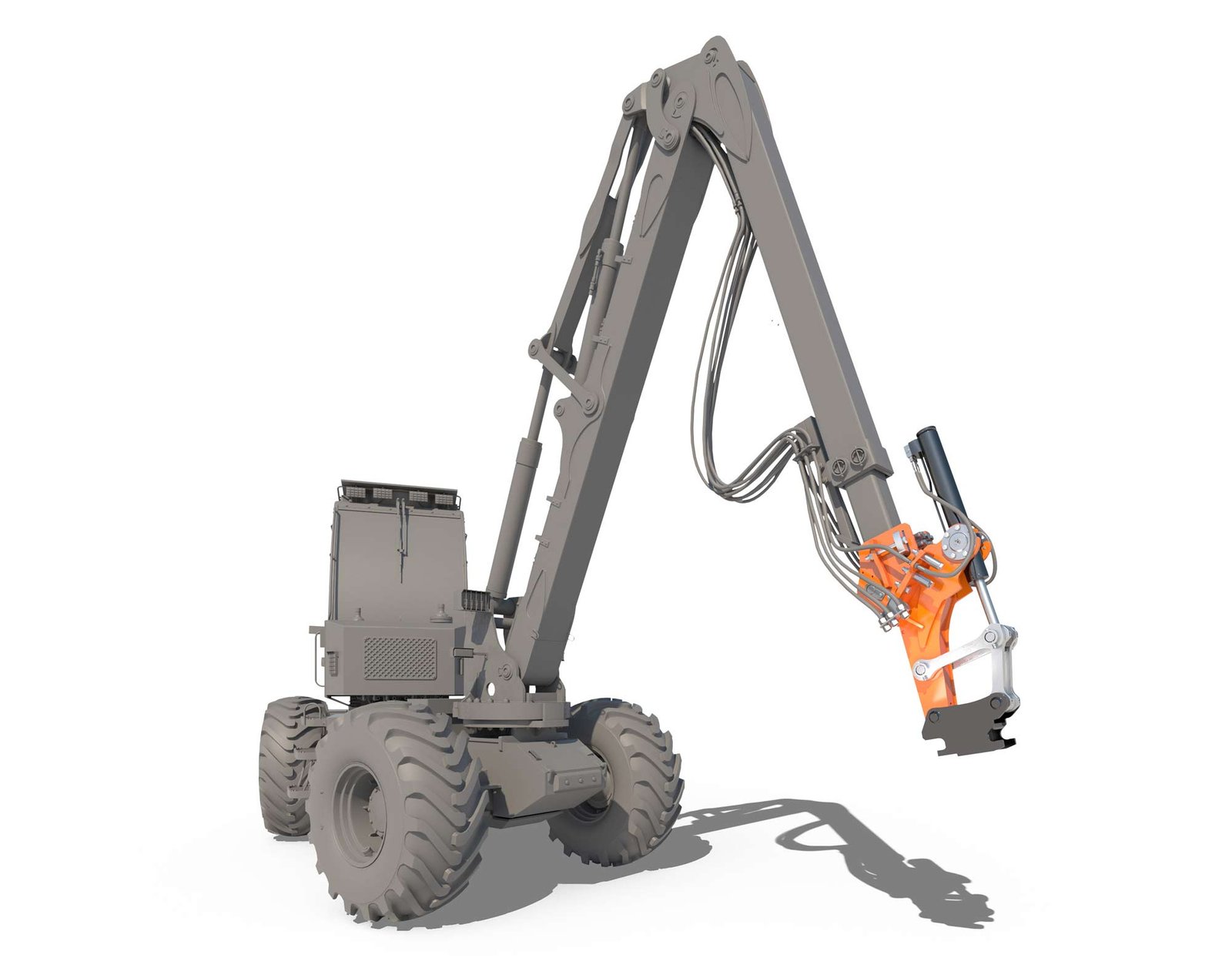

- Connection adapter for harvester, telescopic handlers and rehandling excavators – vehicles with cardanic attachment.
- For Woodcracker ® machines, eg. C / CL / CB / W and Mulcher.
- For all other rigid-mounted excavator attachments, eg. excavator shovels, forest mulchers, etc.
- Developed for sandy and erosion-prone soils, as the root material remains in the soil.
Key Facts
- Flexible mounting options to common machines.
- Enables mounting of attachments to carrier vehicles with boom without tilt mechanism.
- Robust and long-lasting, low-wear and low-service.
- KTL-primed (cathodic dip painting) and powder top coat.
- Made of high-strength Hardox® steel.
| TK 15 | TK 30 | |
|---|---|---|
| Inclination (degree) | 146 | 156 |
| Deadweight (depending on attachment) * (kg) | 275 | 435 |
| Recommended pump flow capacity * (l/min) | 40 – 60 | 40 – 60 |
| Recommended operating pressure (bar) | 280 | 280 |
| Service weight carrier vehicle (t) | up to 20 | up to 28 |
■ available | – not available
* Depending on operating mode or equipment. | ** Depending on specifications of the operation vehicle.
Technical modifications and figures are not binding. Subject to changes for reasons of further development.
