Woodcracker CB

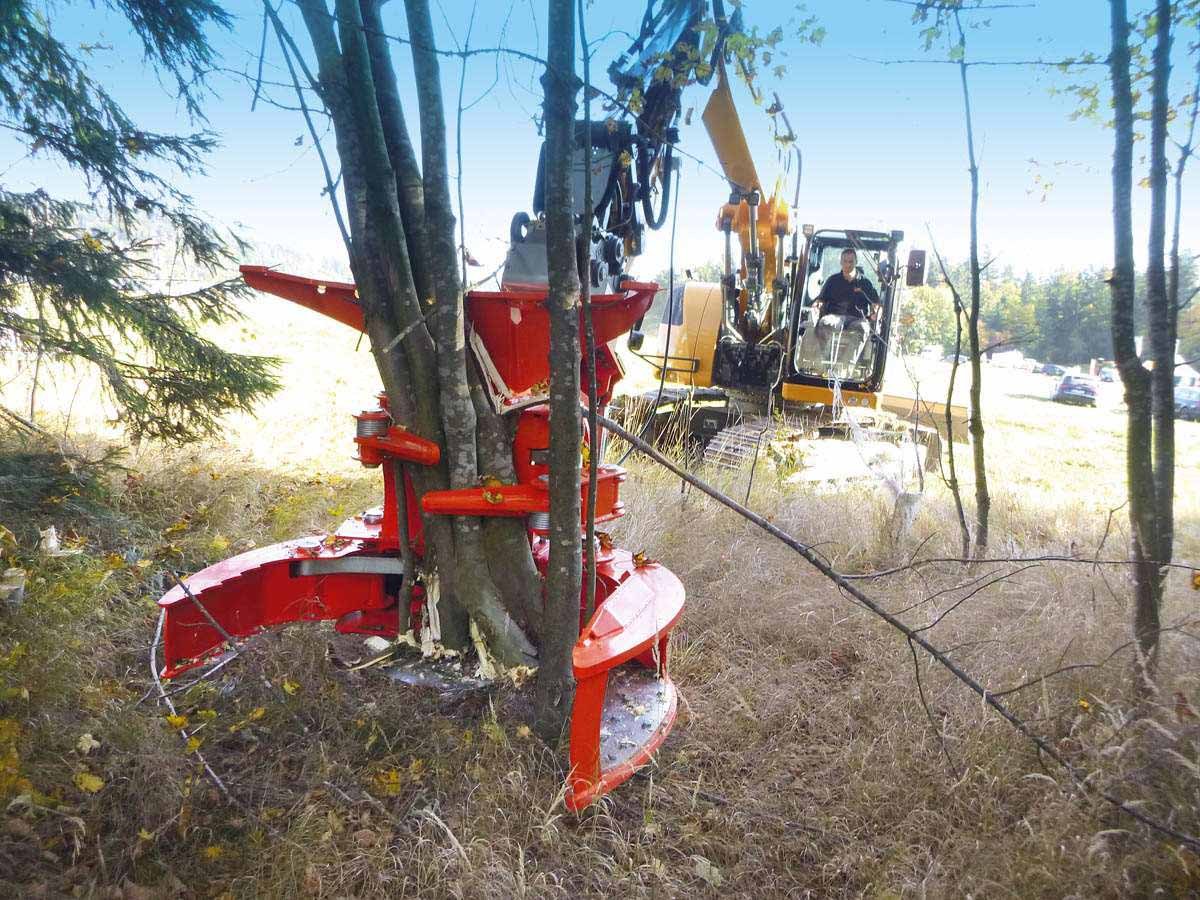

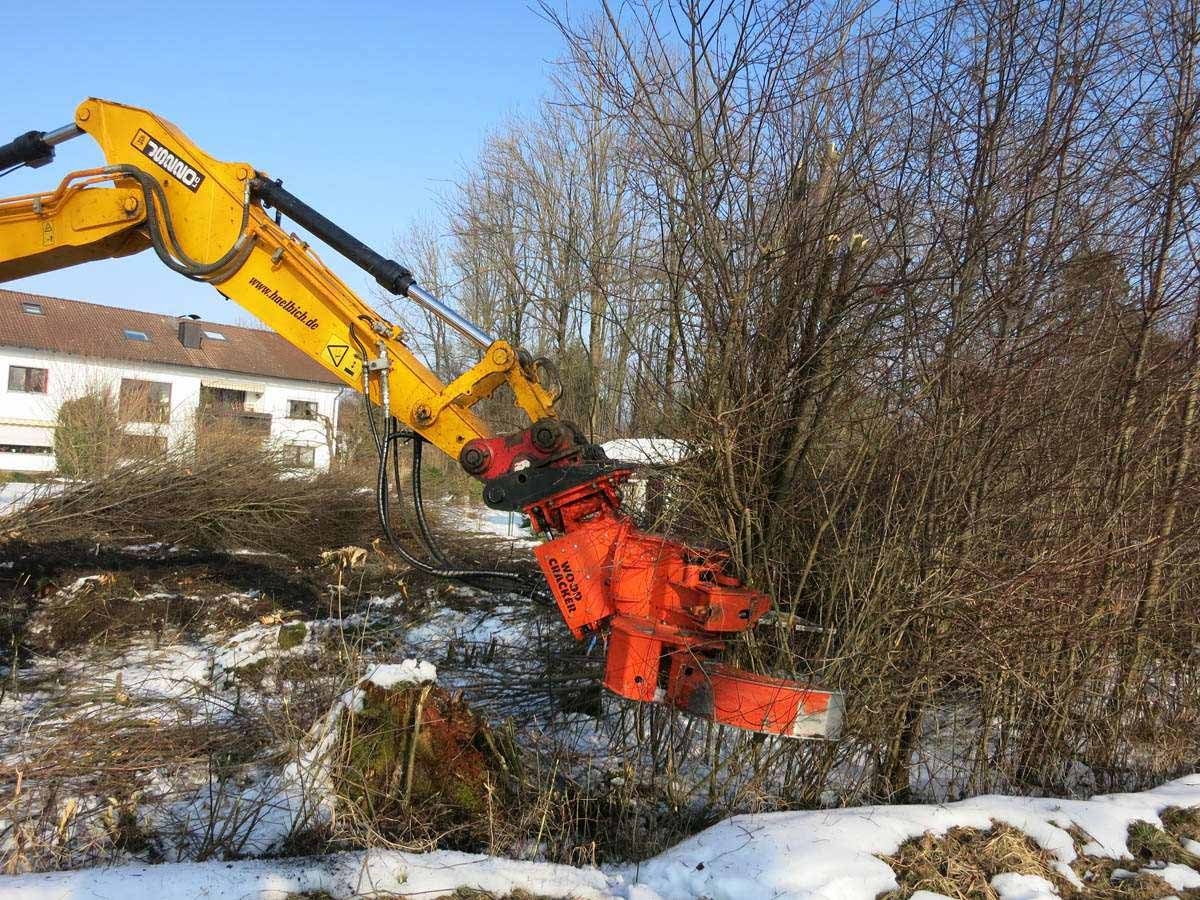

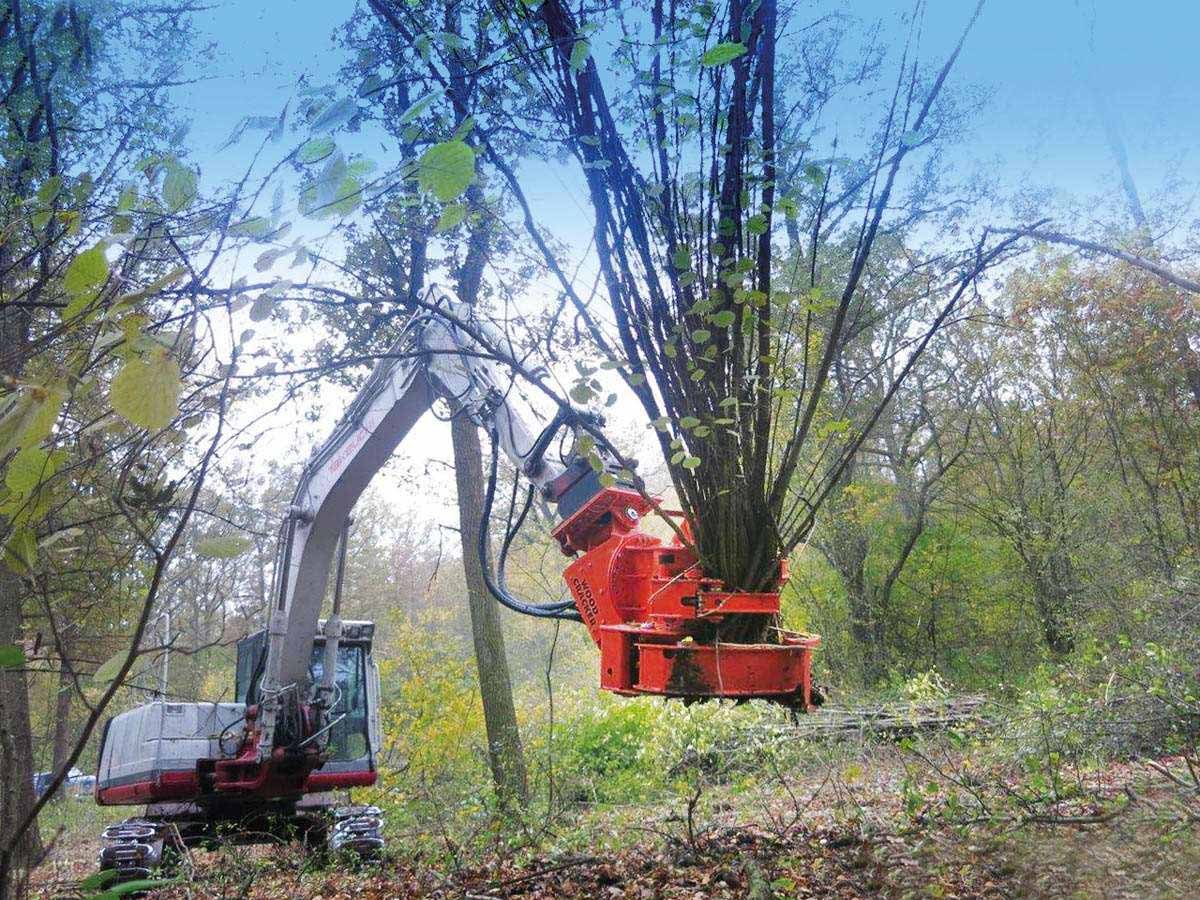

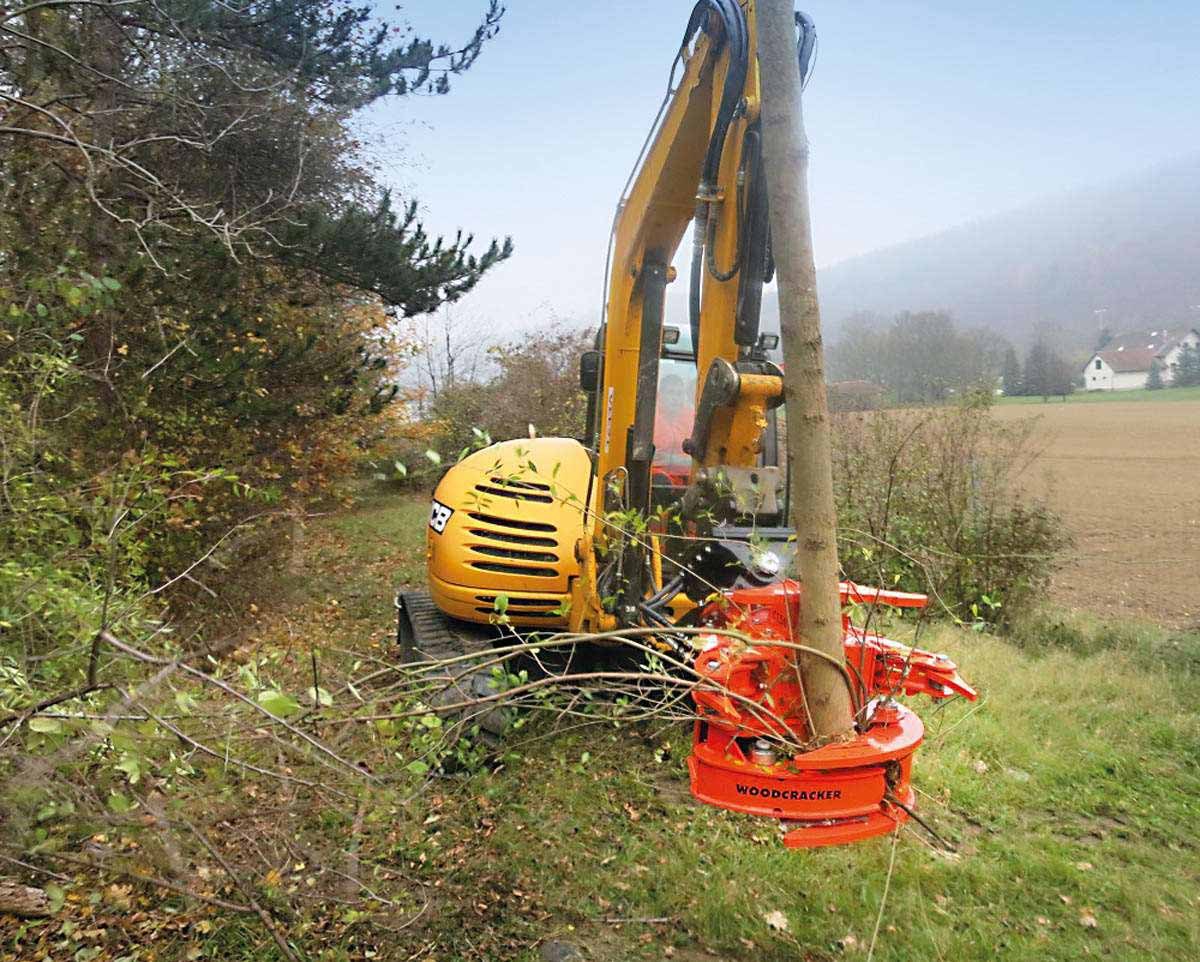

The CB is a flexible cutting head for felling shrubs and smaller trees. With various mounting options available, it simultaneously fells several trees in one step operation using the collector arms.
Innovative automatic unloading.

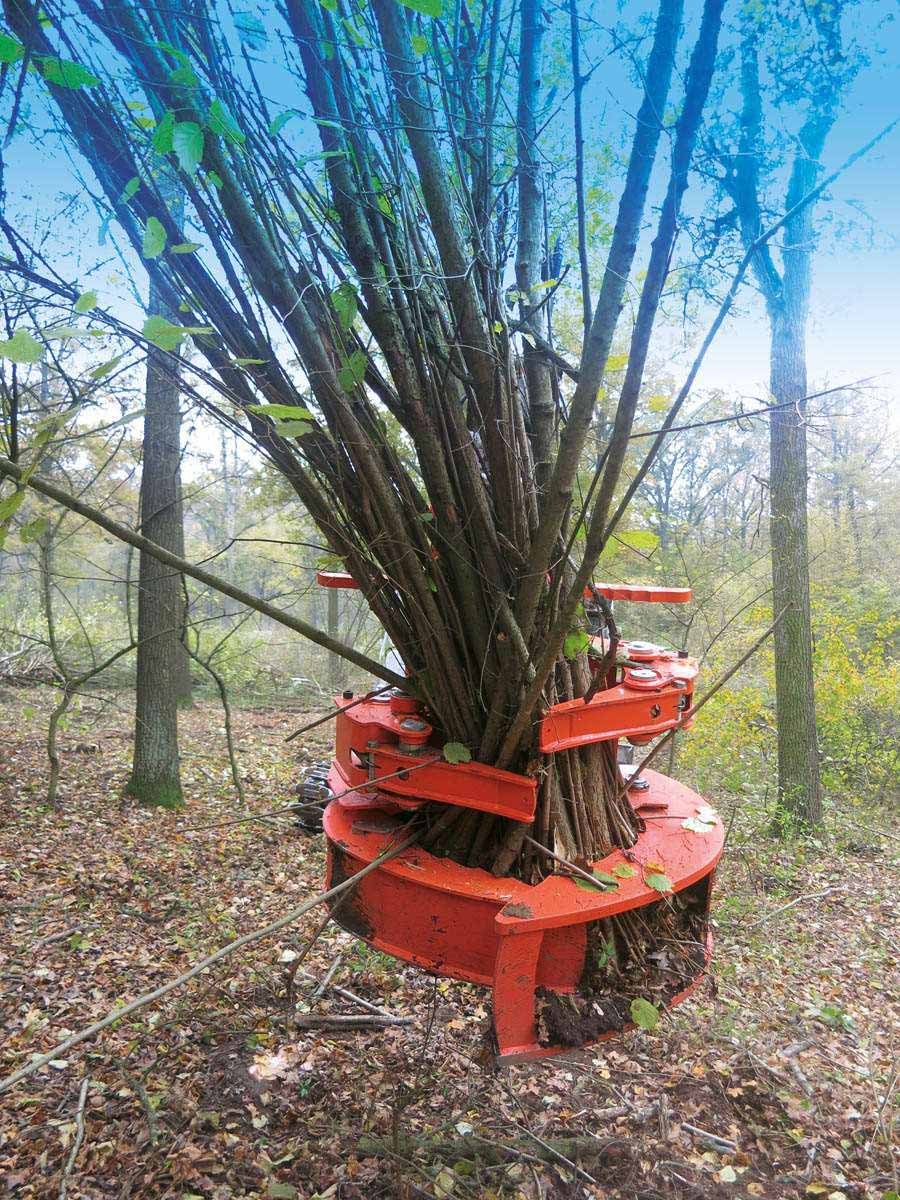

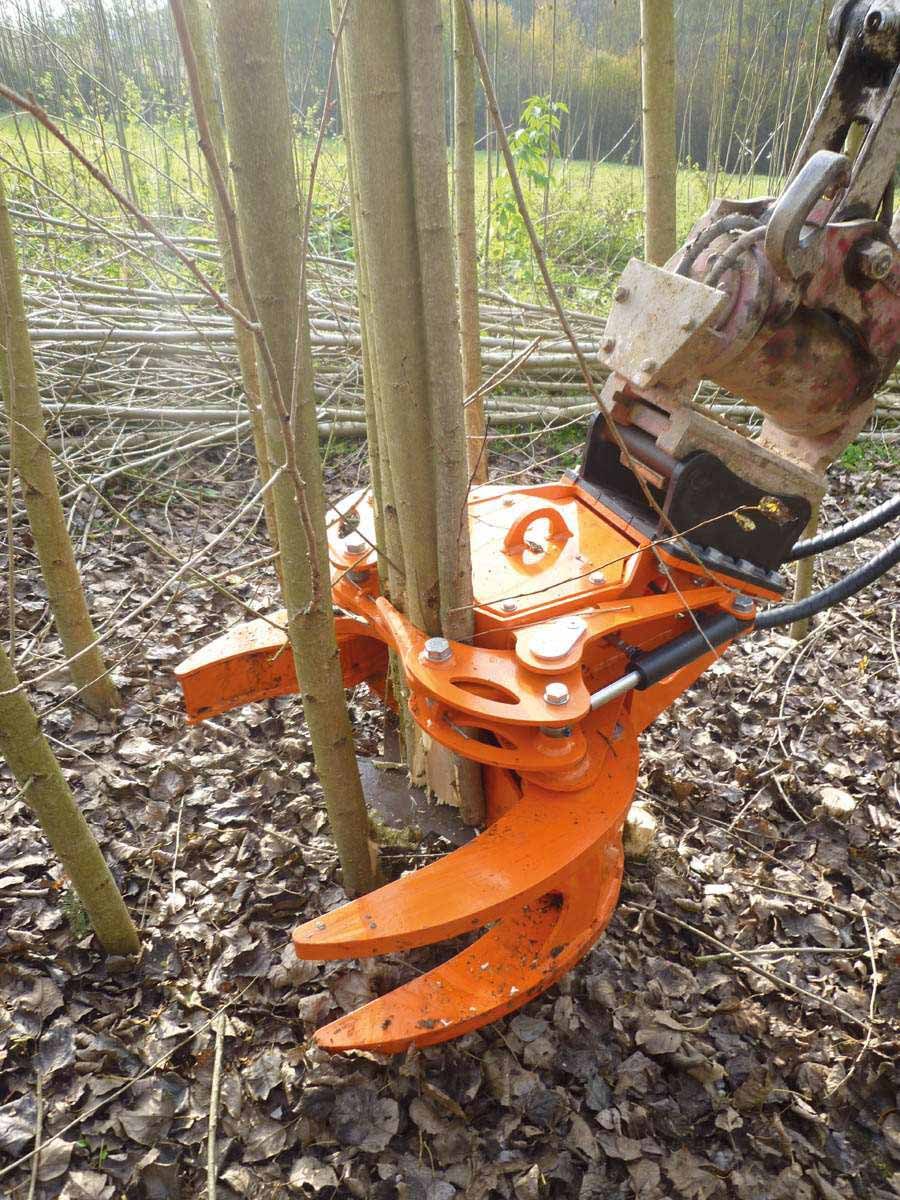

Synchronously closing accumulator fingers

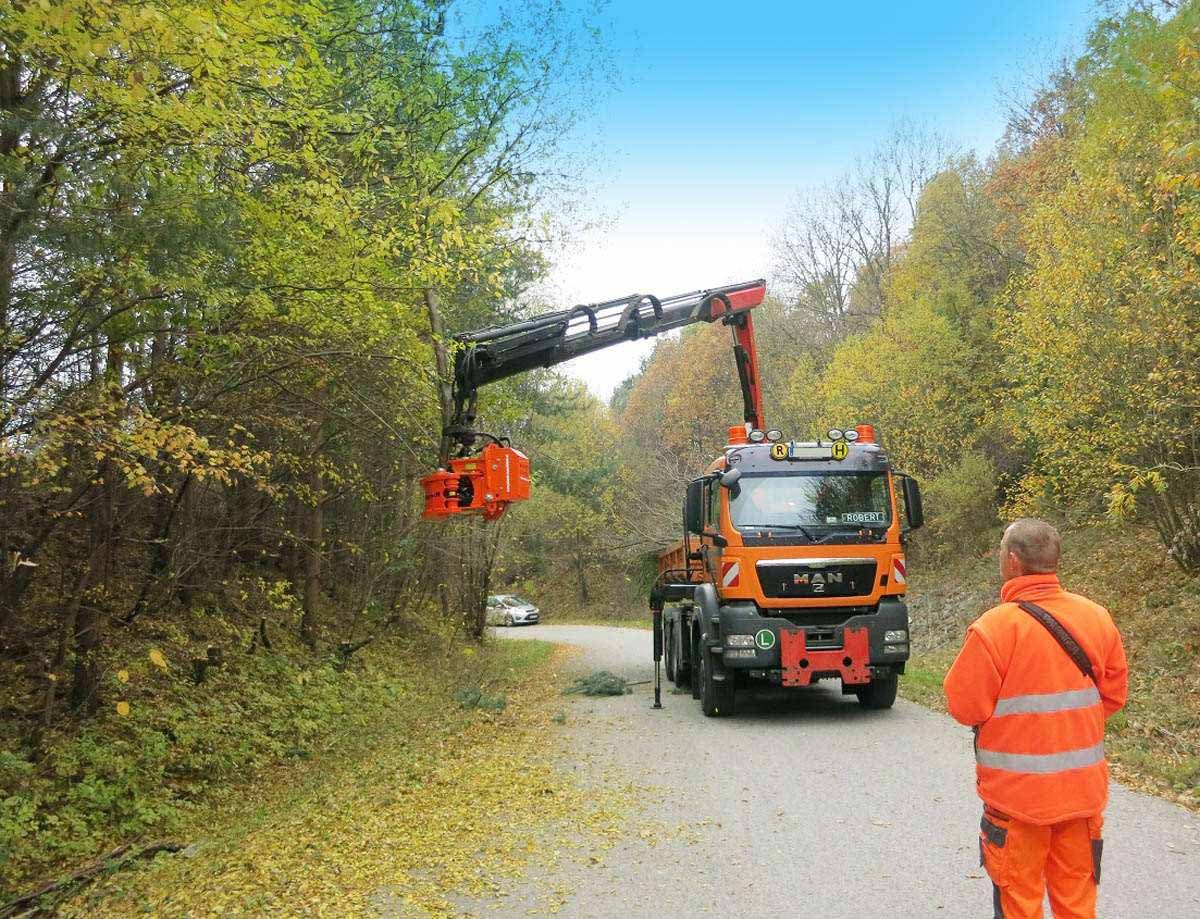

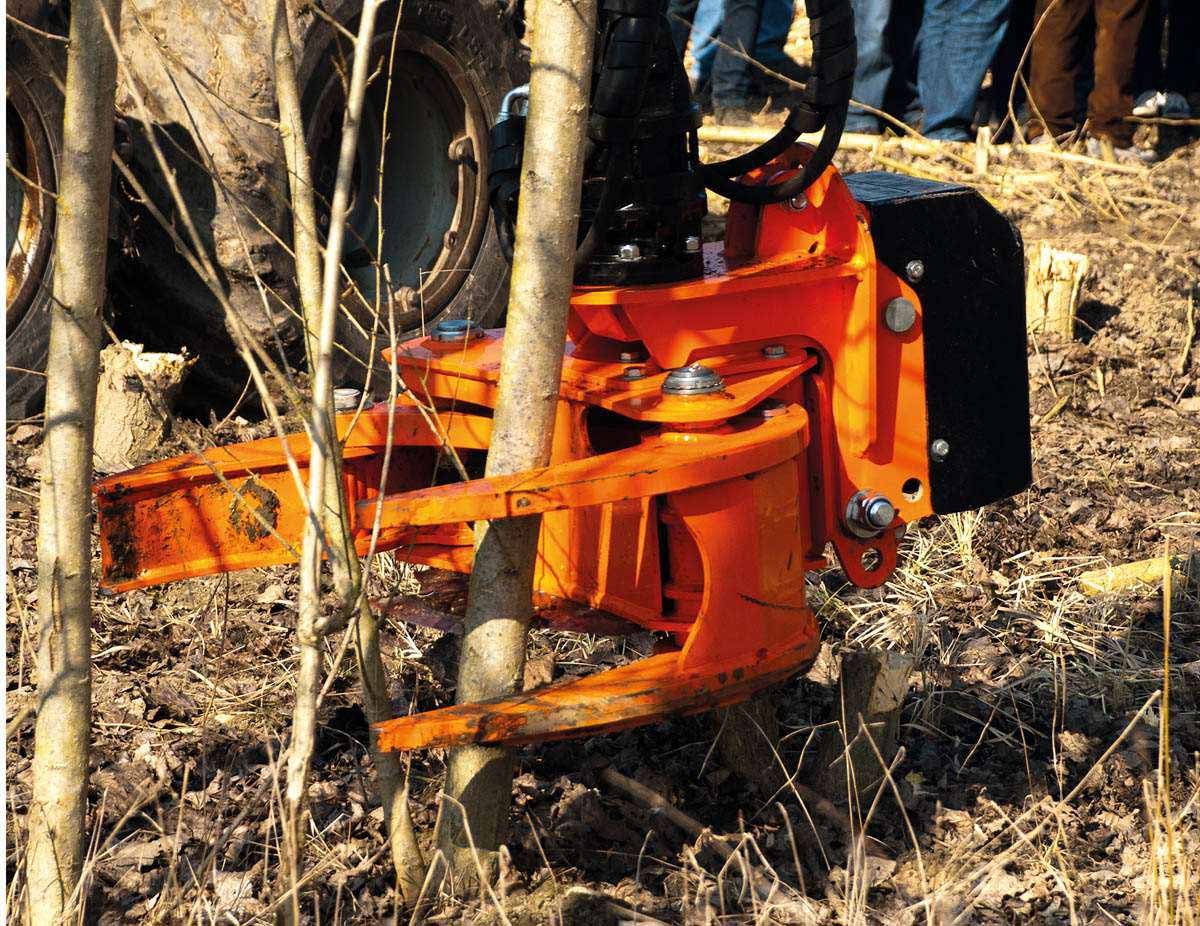

Autotilt-funktion at the Woodcracker ® CB150 crane
Cutting mechanism features replaceable, high-strength knife
It is positioned between the fingers and thus ensures a far superior quality of cut.
Clean cut surface enables the plant to sprout again
Low deadweight
Compact and modular design.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

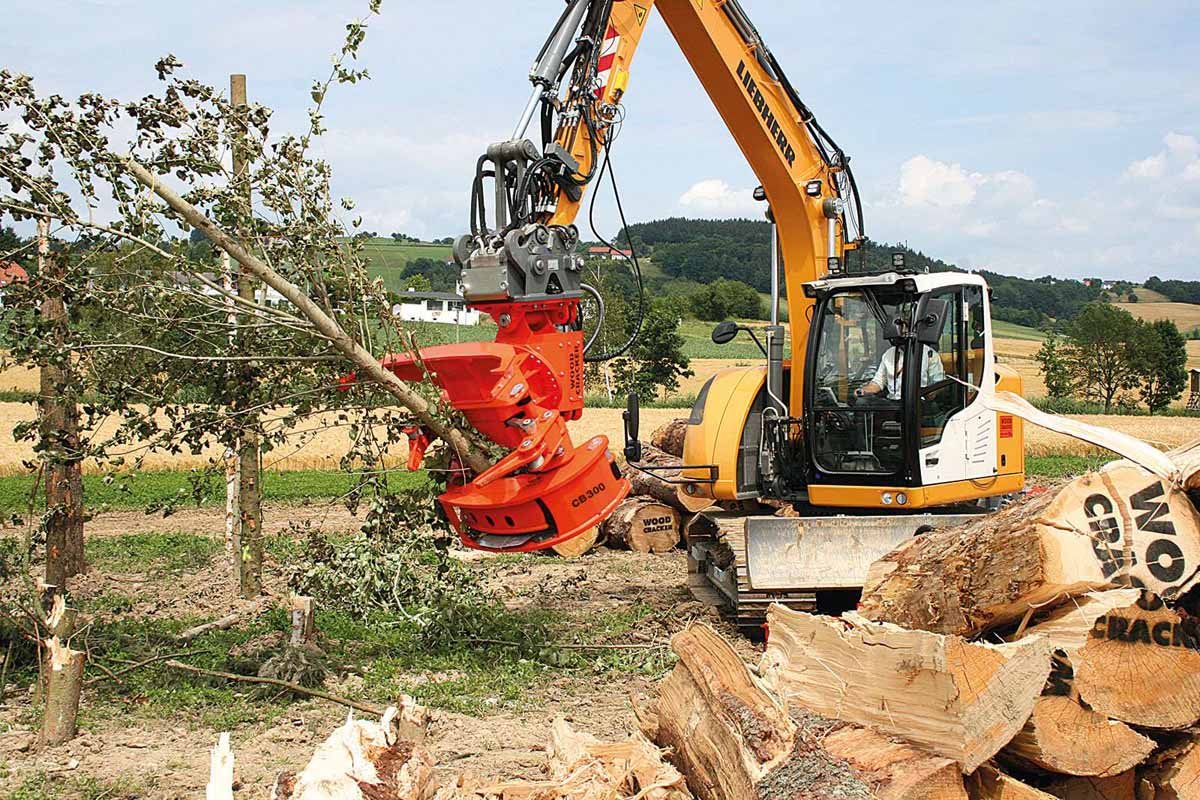

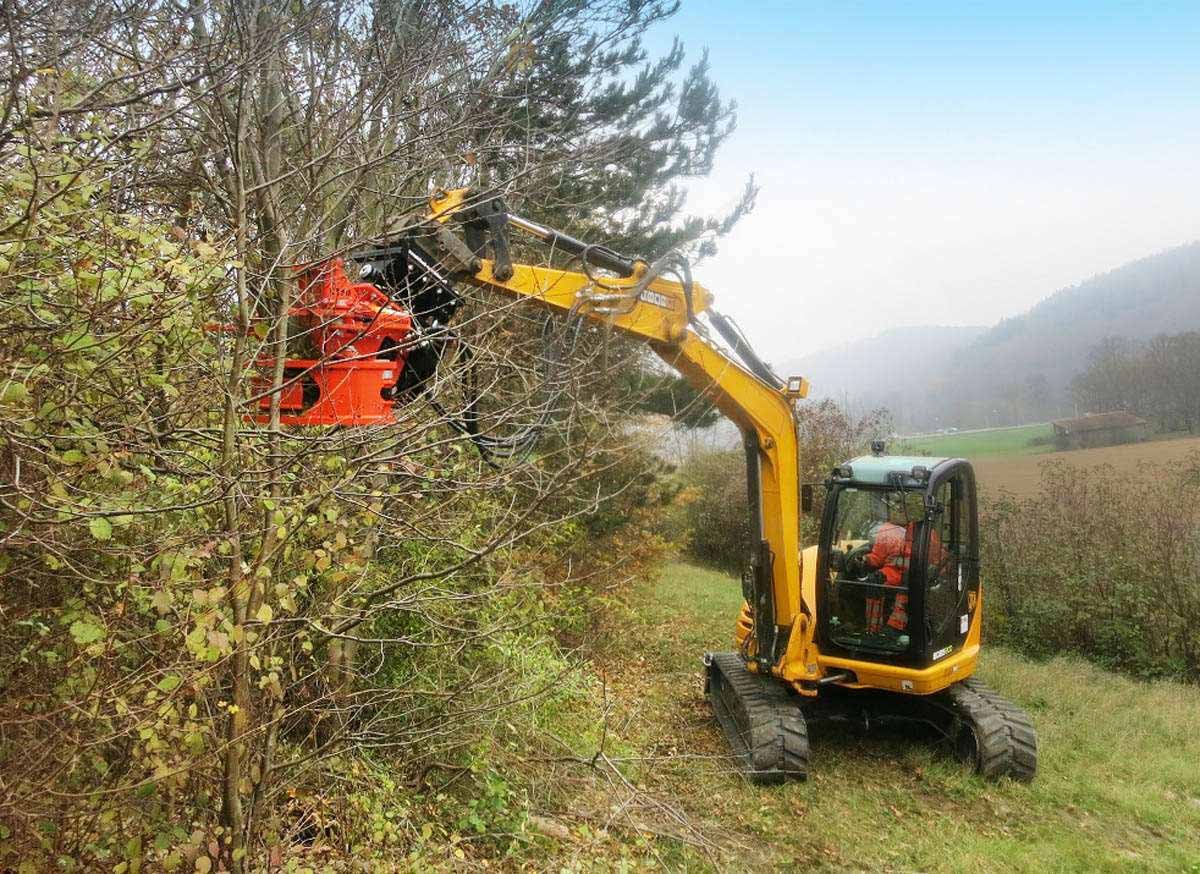

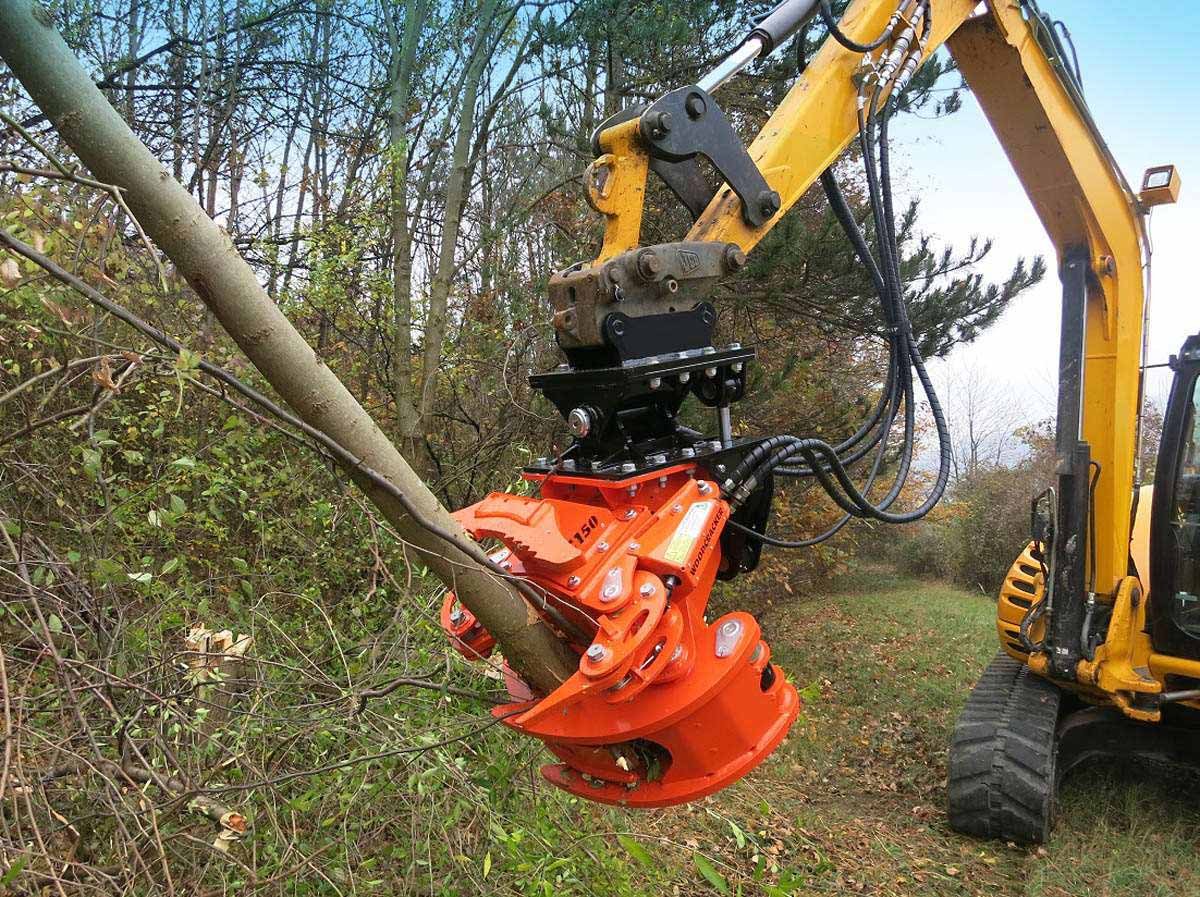

- Fast harvesting of small trees and brush

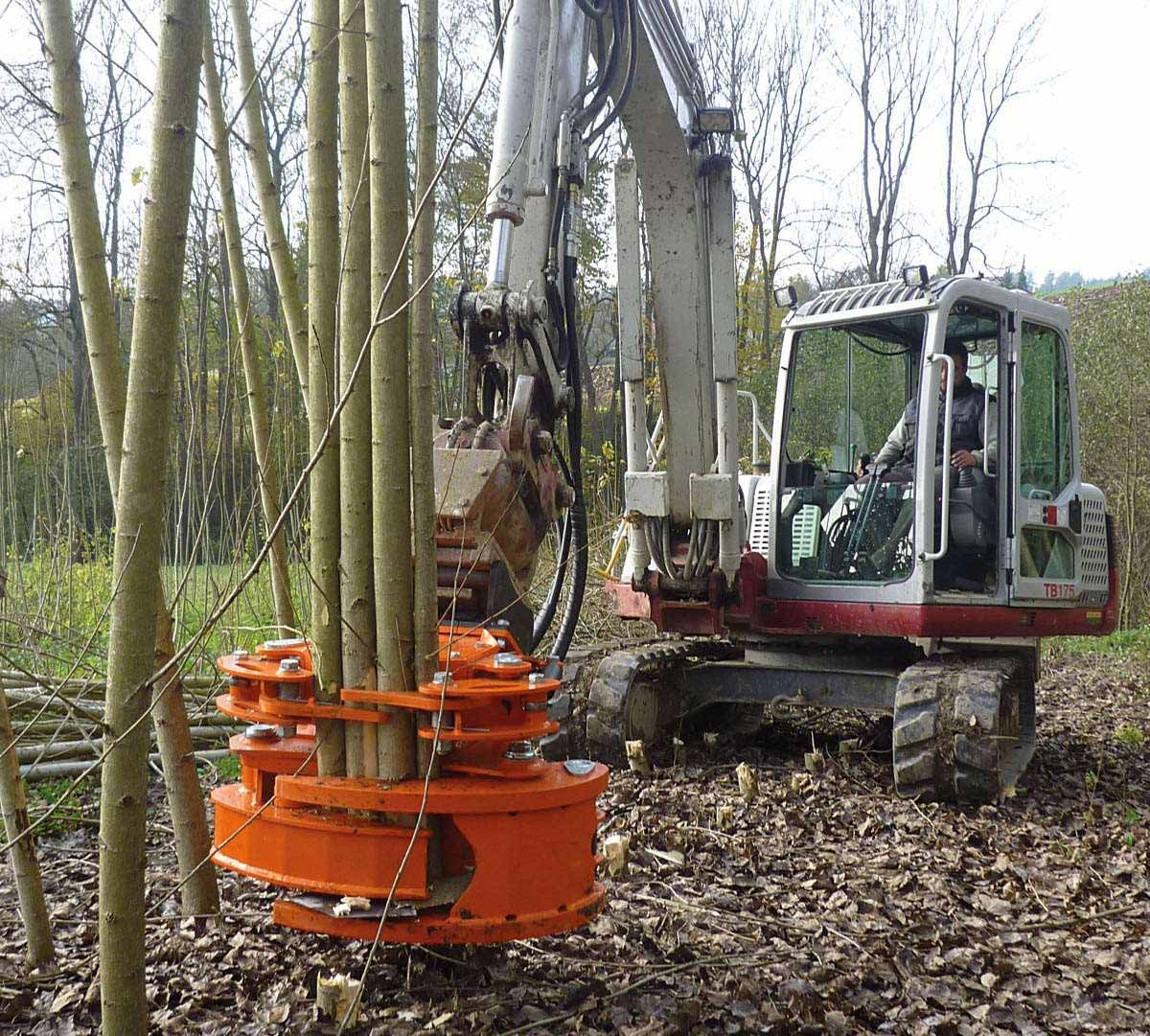

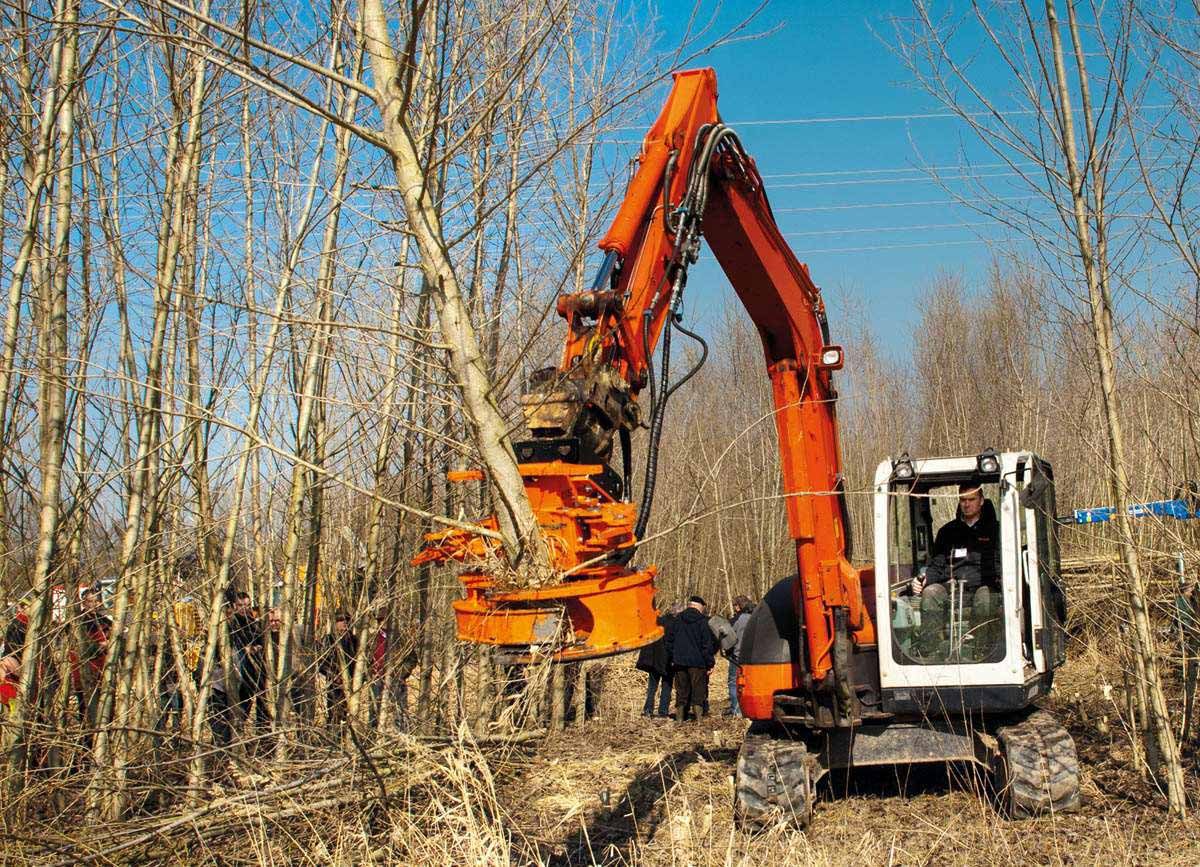

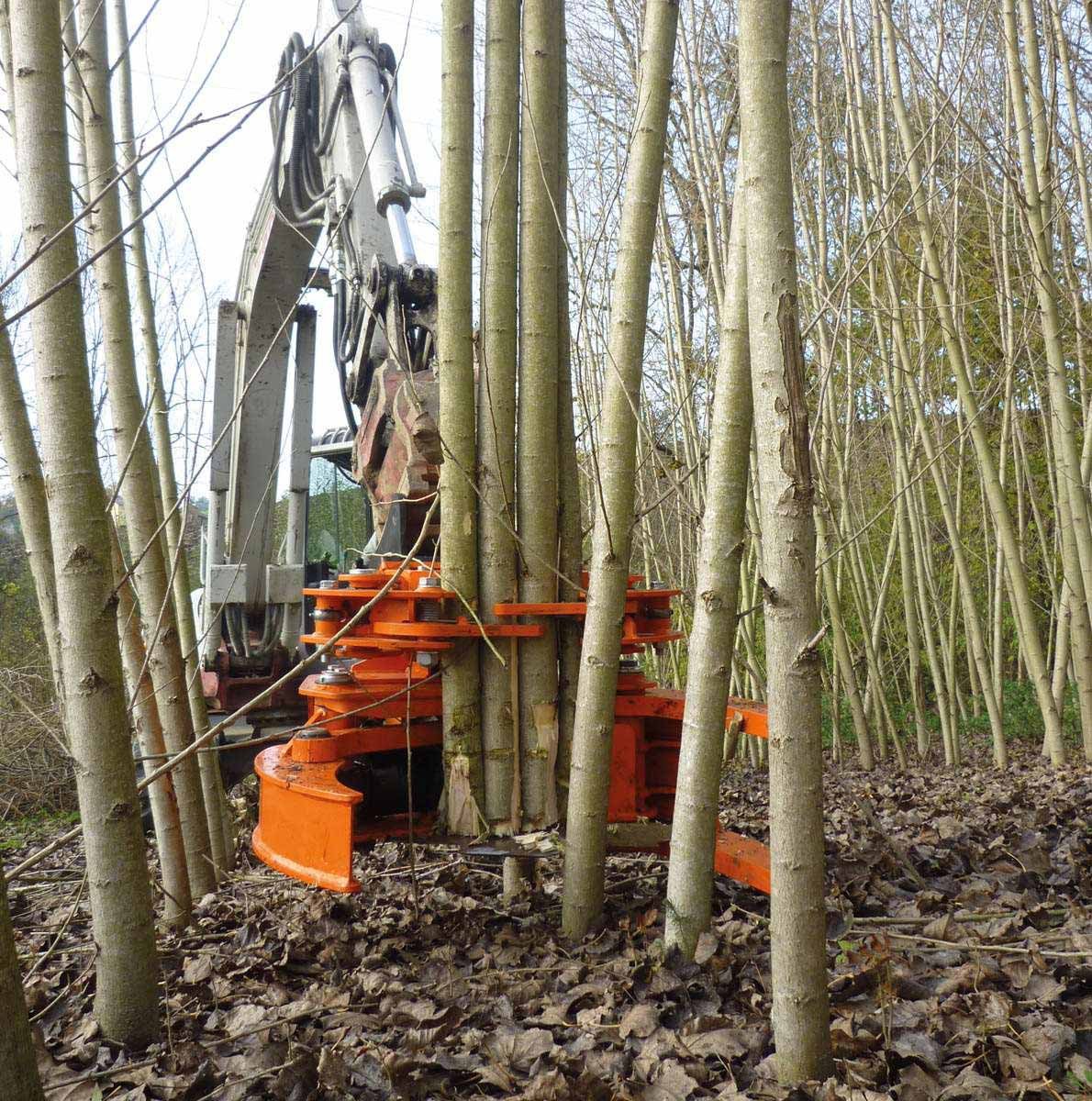

- Felling of short-rotation plantations.

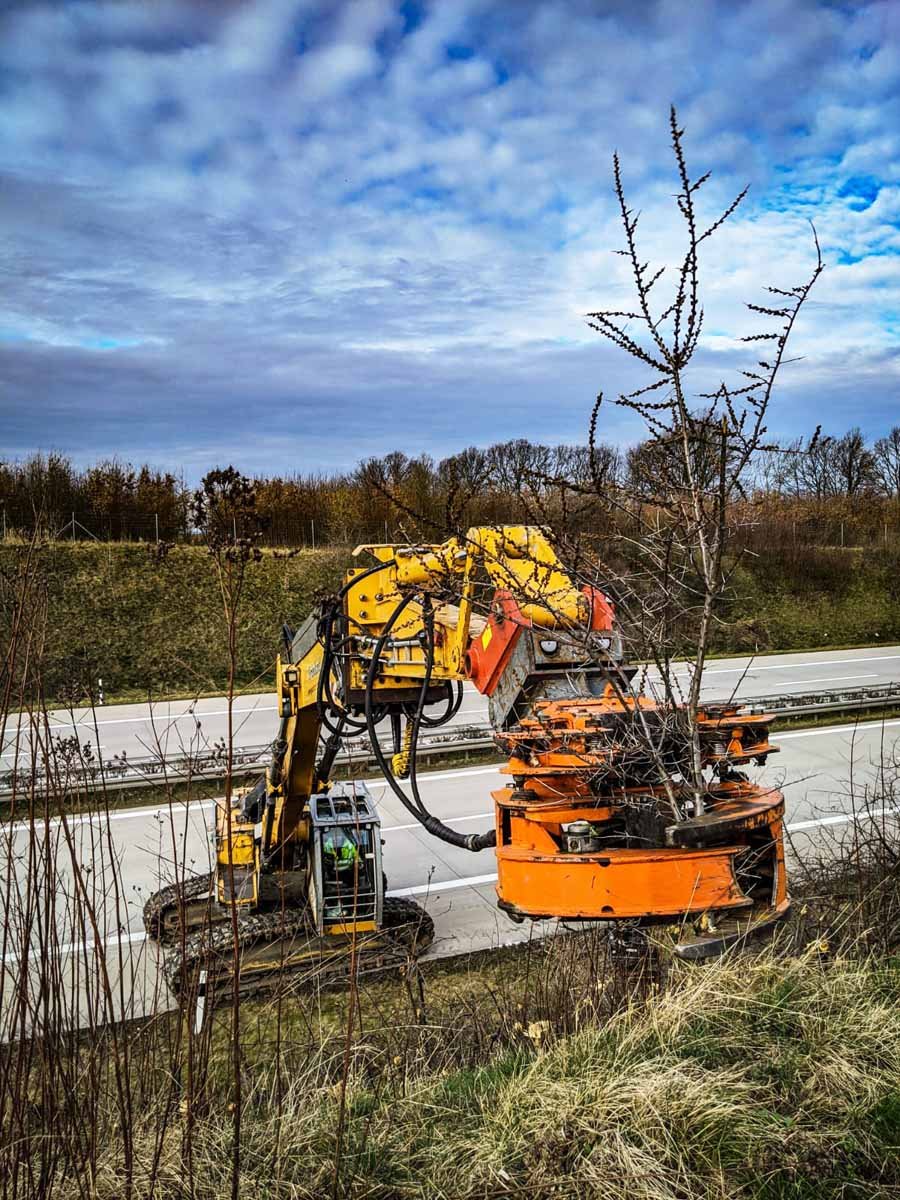

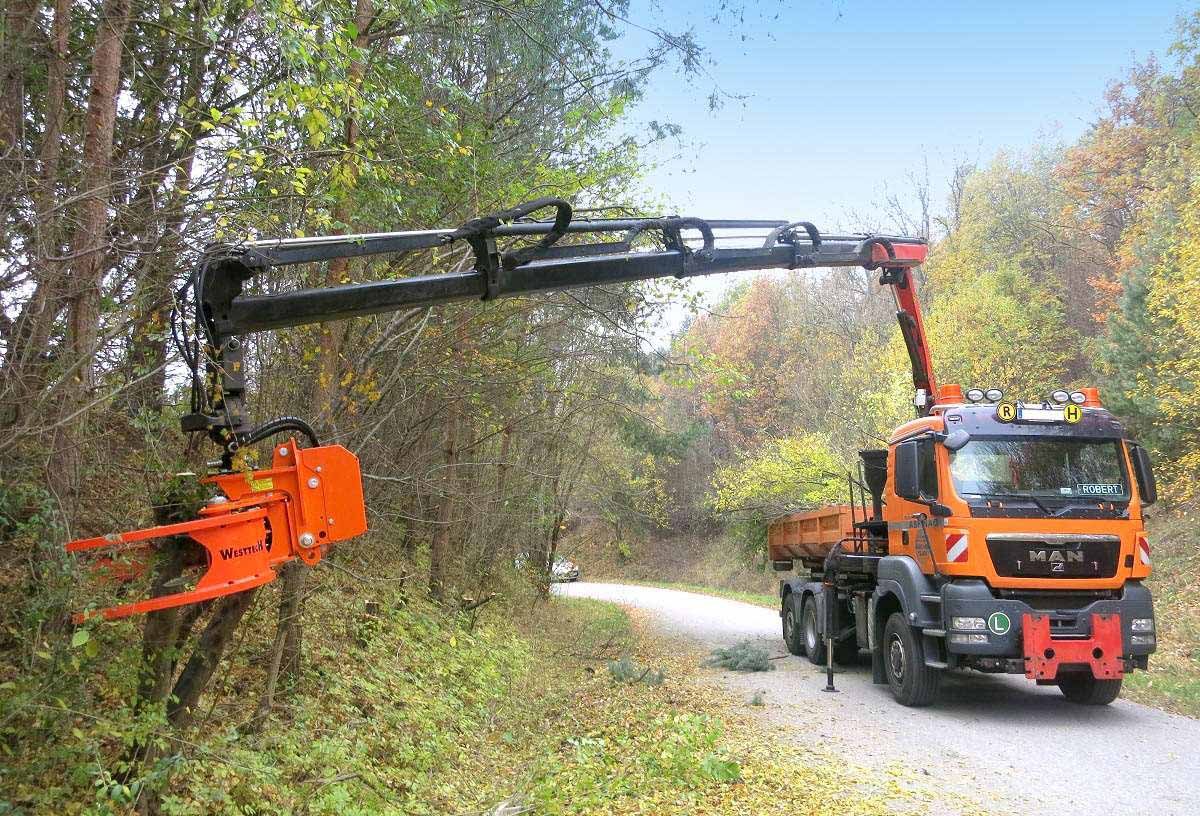

- Maintenance work along traffic routes and thoroughfares.

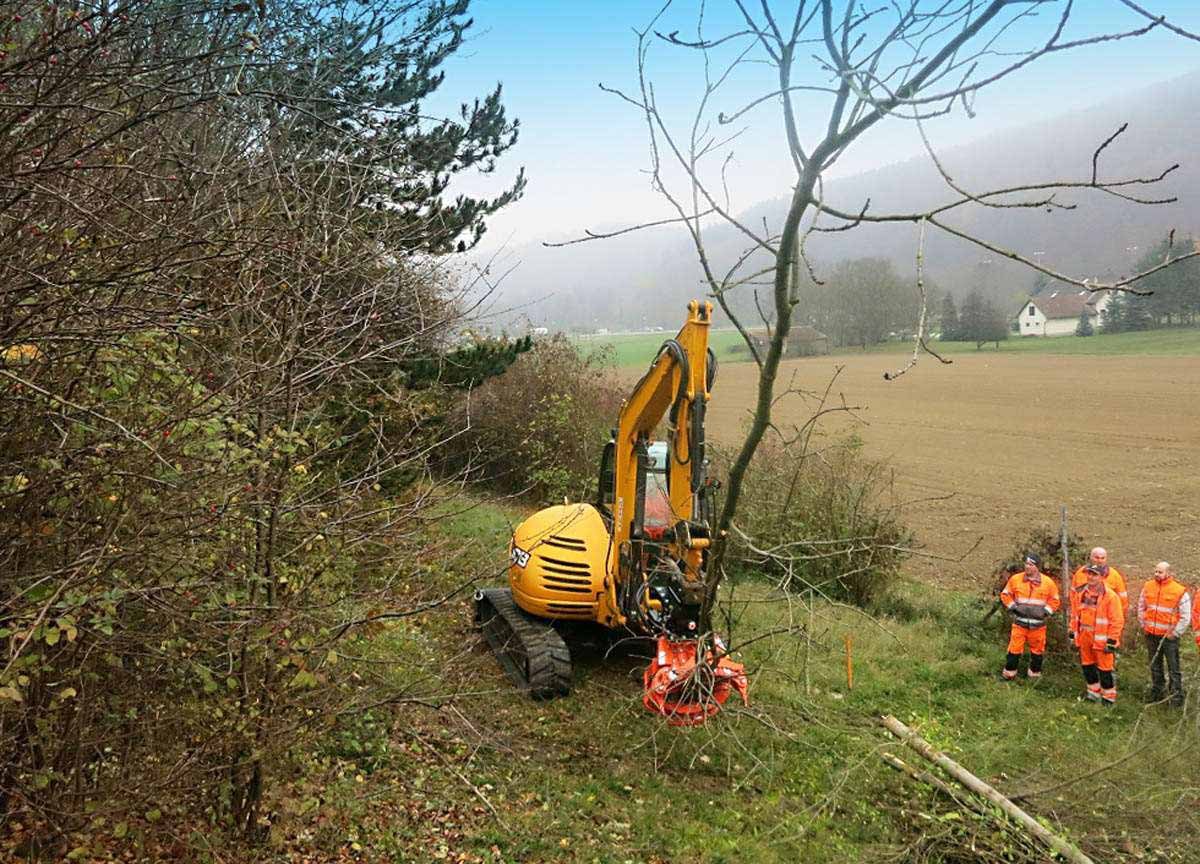

- In open terrain, on slopes, in marshy areas
- Cultivation and landscaping

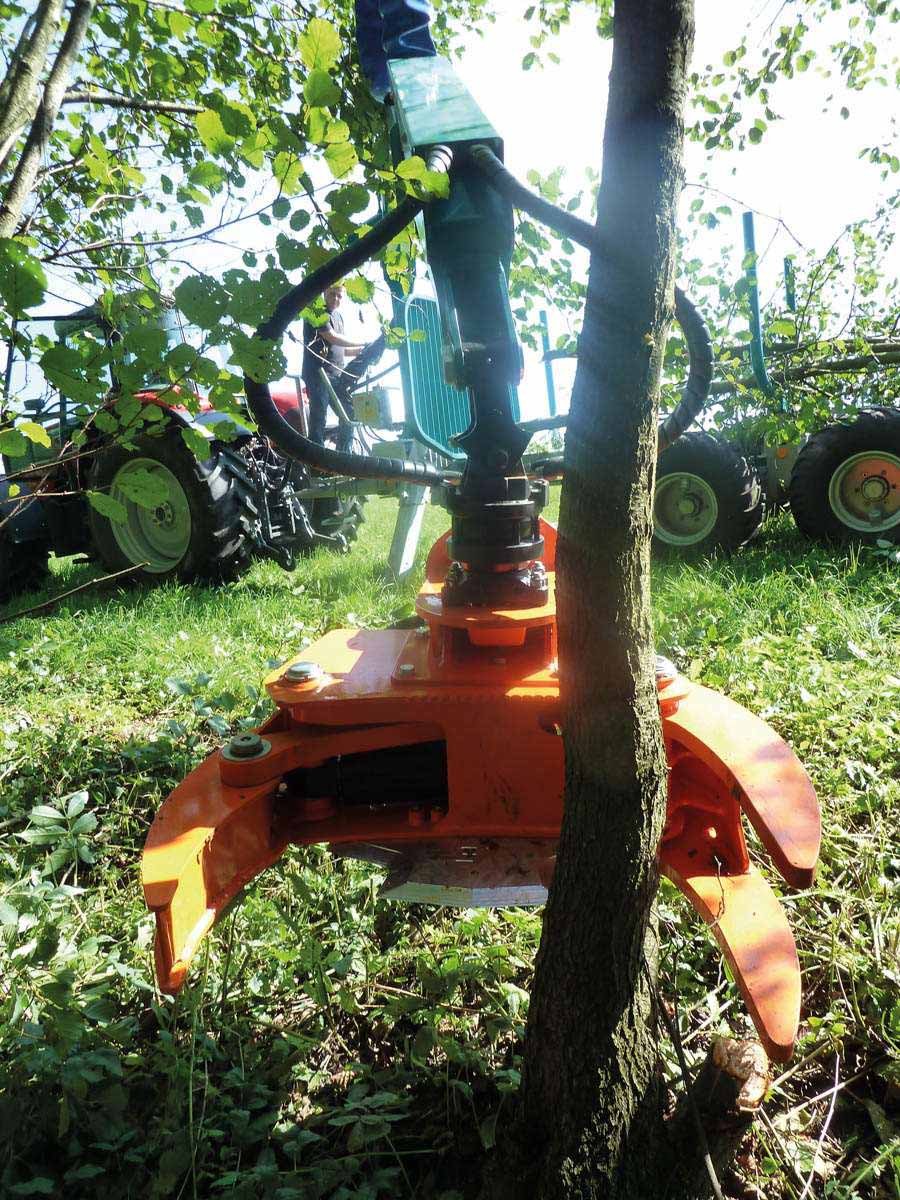

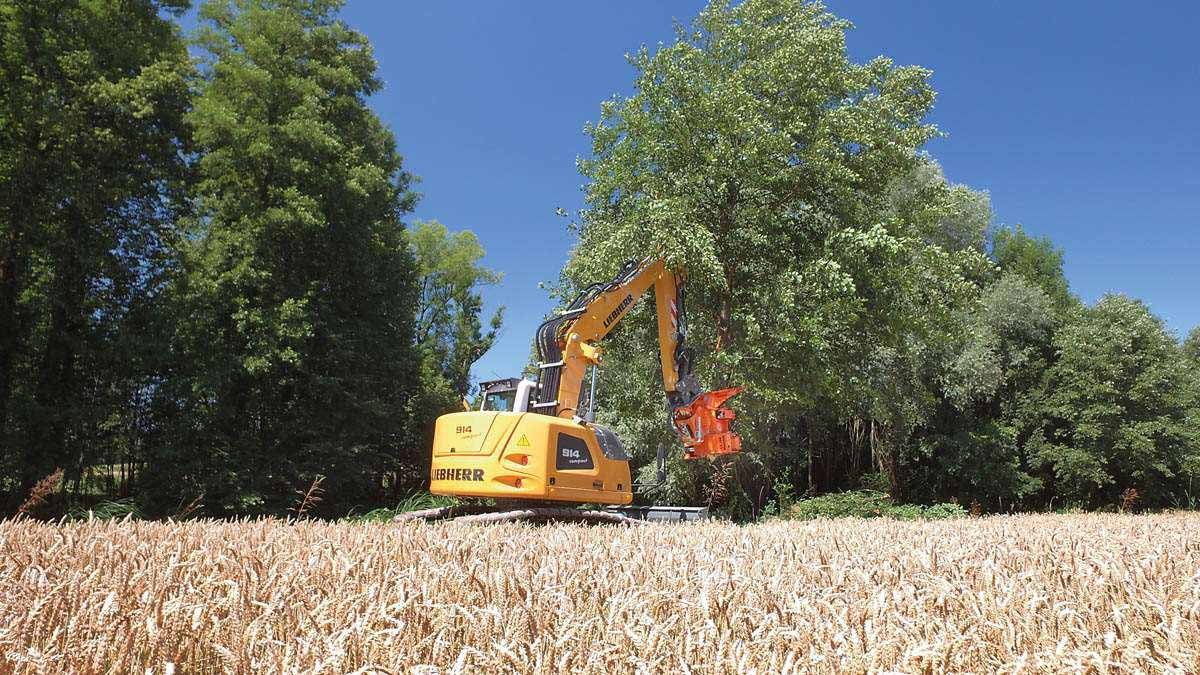

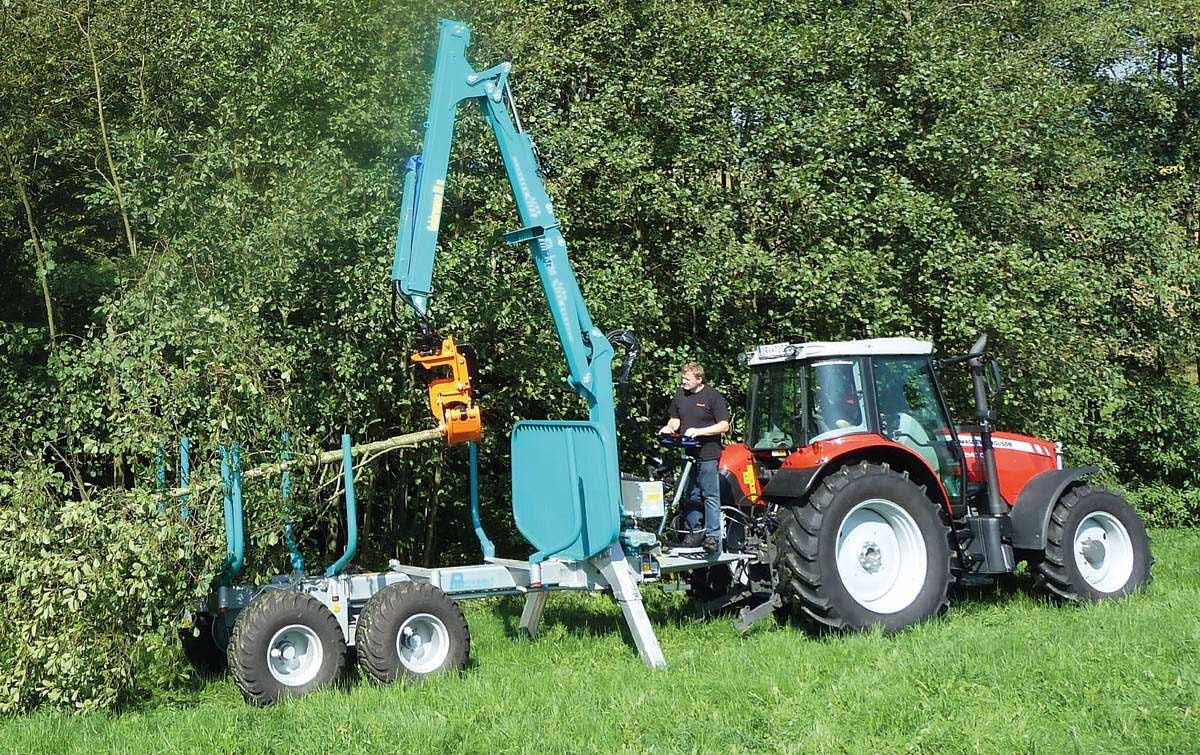

- In agricultural applications on the farm loader/Hoftrac
- Extensive harvesting of forested areas.
- Maintenance measures in swamp areas and along riverbanks.
Key Facts

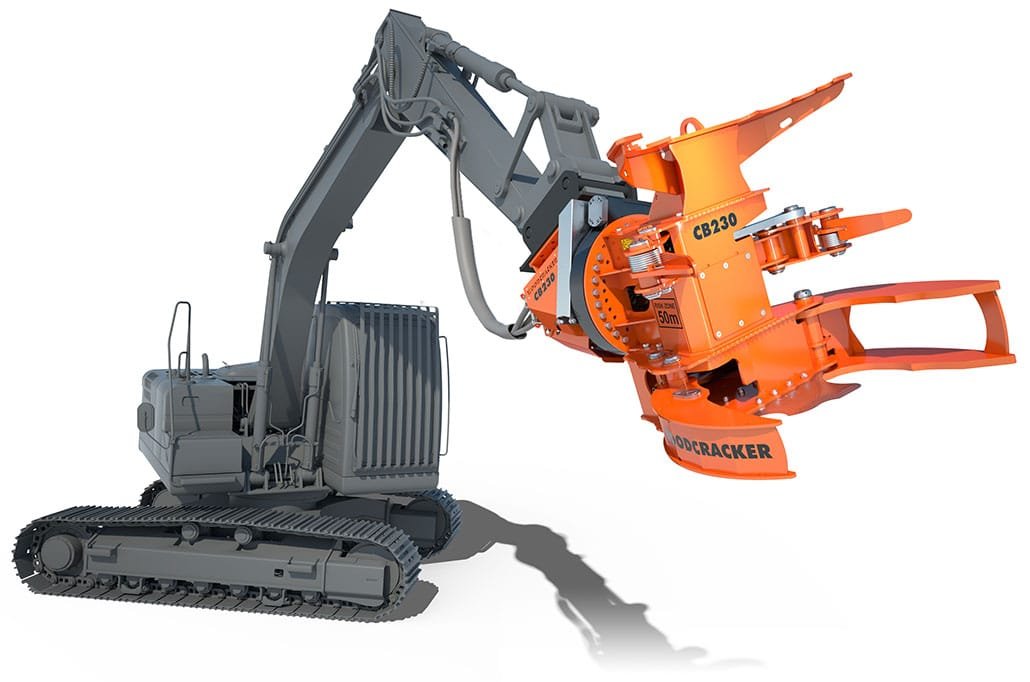

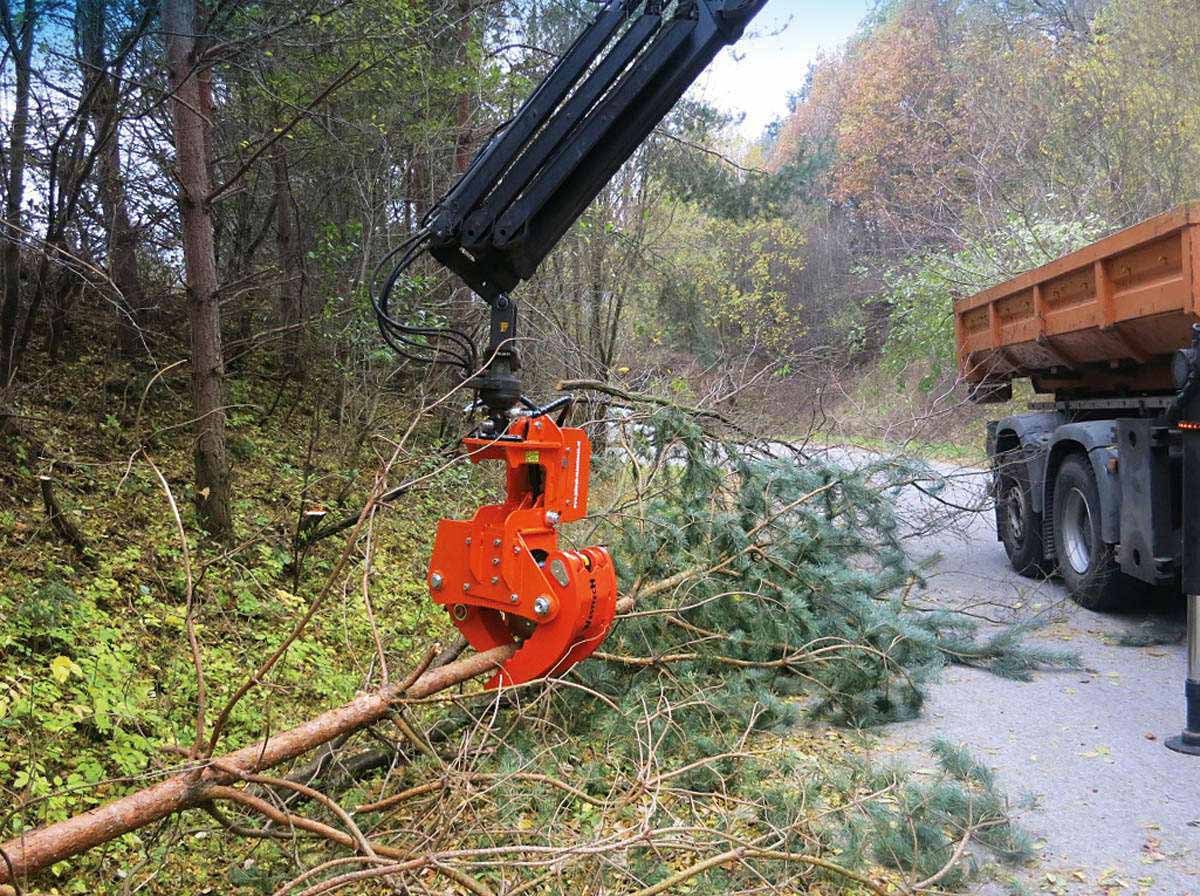

- Various mounting options (eg. excavator, farm loader, crane).
- Simultaneous harvest of several trees and bushes in one step using the collecting function saves time.
- Clean cut surface enables the plant to sprout again.
- Large gripper opening of the cutting mechanism.
- Also applicable in mini-forests for easy maintenance.
- Low-service and low-wear due to special cutting system.
- Low net weight.
- Eco-friendly harvest maintaining soil fertility.
- KTL-primed (cathodic dip-coating) and powder coating.
- Made of high-strength Hardox ® steel.

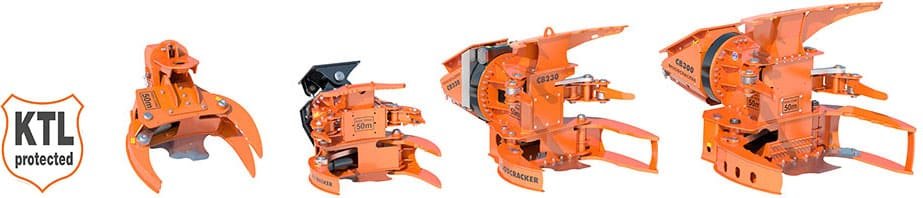

| CB 150 crane | CB 150 | CB 230 | CB 300 | |
|---|---|---|---|---|
| Cutting diameter, softwood (mm) | 150 | 220 | 280 | 350 |
| Cutting diameter, hardwood (mm) | 120 | 170 | 230 | 300 |
| Gripper opening stroke = shear opening stroke (mm) | 800 | 800 | 1100 | 1280 |
| Deadweight (basic – fully equipped) (kg) | 310 | 300-560 | 470-950 | 900-1400 |
| Recommended litre capacity * (l/min.) | 30-60 | 40-80 | 60-120 | 80-150 |
| Recommended litre capacity for auxiliary functions * (l/min. | - | 35-50 | 40-60 | 40-60 |
| Recommended operating pressure (bar) | 190 | 250 | 280 | 280 |
| Service weight of carrier vehicle ** (t) | for crane attachment | 4,5-9 | 7-15 | 14-22 |
| Optional: Cylinder swivel unit | - | ■ 2 x 48° | ■ 2 x 48° | ■ 2 x 48° |
| Optional: Tiltator | - | - | ■ | ■ |
| Optional: Accumulator | - | ■ | ■ | ■ |
| Optional: Quick coupler QC10 | ■ | - | - | - |
■ available | – not available * Depending on the operating mode or Woodcracker equipment line | ** Depending on the carrier vehicle equipment Technical changes and illustrations are non-binding. Changes for reasons of on-going development reserved.
