Woodcracker CL

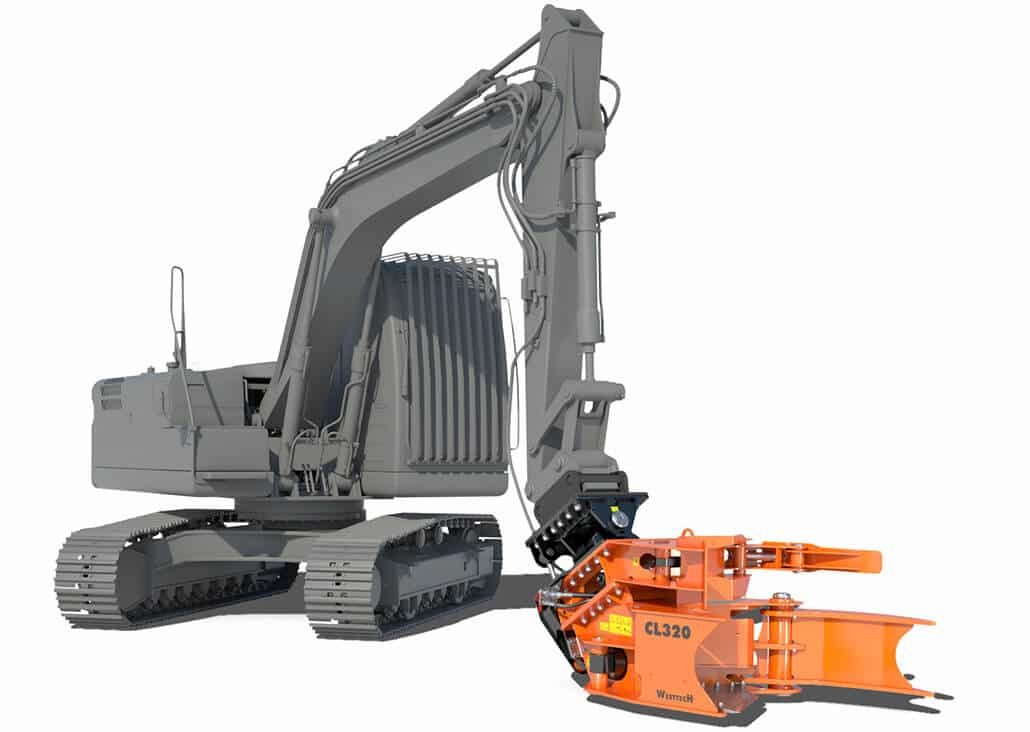

The CL range offers a light weight tree shear attachment for a variety of carrier vehicles such as excavators and loaders. They feature a removable bolt-on blade and can be fitted with accumulator arms and swivel units for better manoeuvrability.
Powerful gripper with large opening stroke
Various mounting options
also mounting on farm loader possible
Cutting mechanism features replaceable, high-strength blade
Easy to resharpen, rugged and insensitive to dirt.
Option: accumulator for fast working in weak wood.
Large cutting capacity to cut several small trees and bushes.
Low-wear cylinder swivel mechanism, 2×48°
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

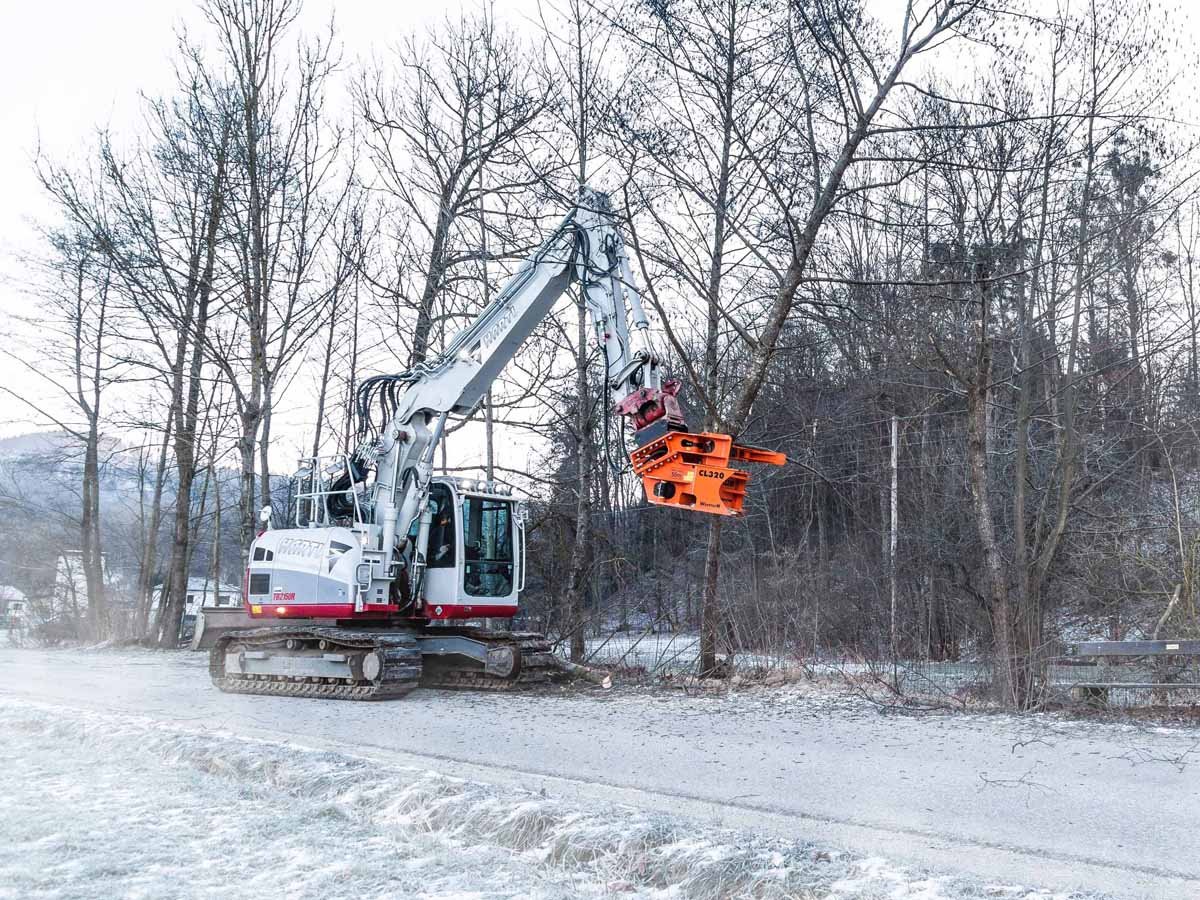

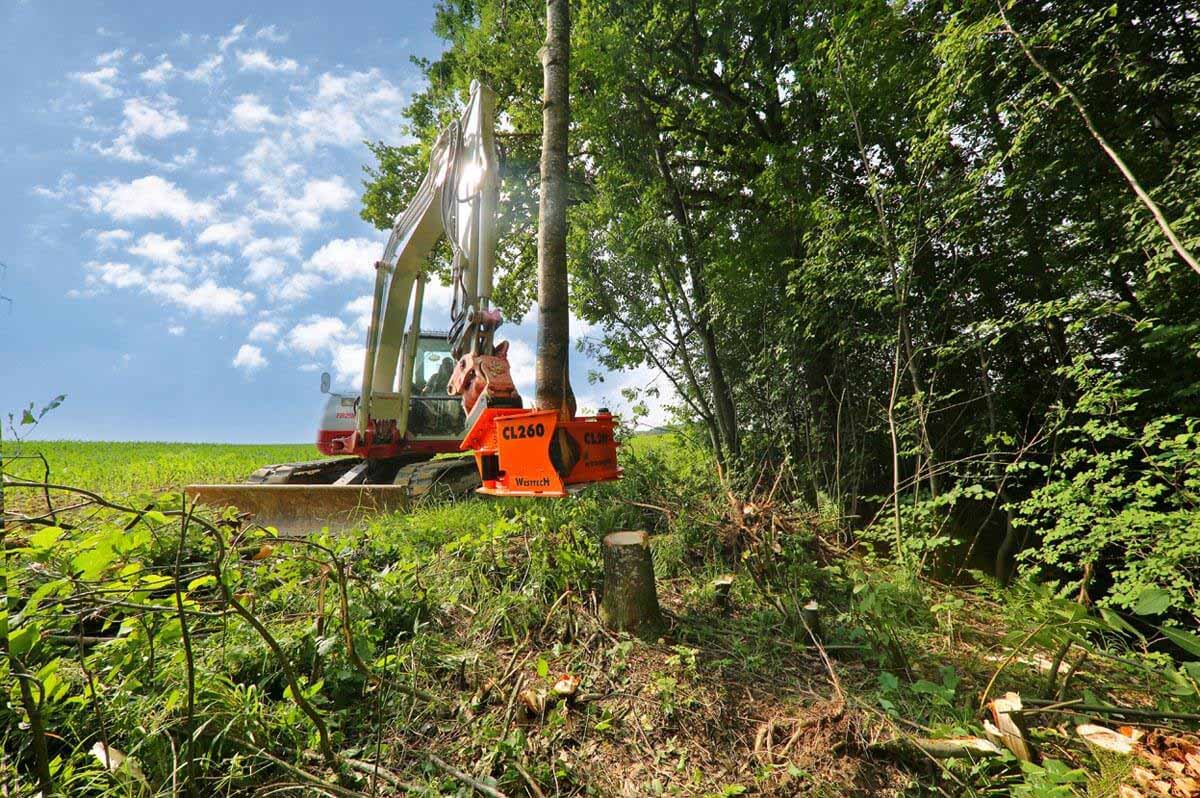

- Fast harvest of small trees and bushes
- Harvest of short rotation plantations
- In rough terrain, hill areas and in bog areas
- Cultivation and landscape maintenance
- For agricultural use on a farm loader, telehandler or wheel loader
- Maintenance measures in swamp areas and along riverbanks.
Key Facts
- Various mounting options (eg. excavator, farm loader).
- Due to low net weight, mountable to farm loaders, telehandlers or wheel loaders. Available in different sizes for the appropriate carrier vehicle.
- Plug-and-play connection.
- Proper and simple connection at the headstock with ideal mounting angle.
- Protected and generously sized hydraulic piping.
- Made of high-strength Hardox® steel.
- Robust and proven technology, low-wear and low-service.

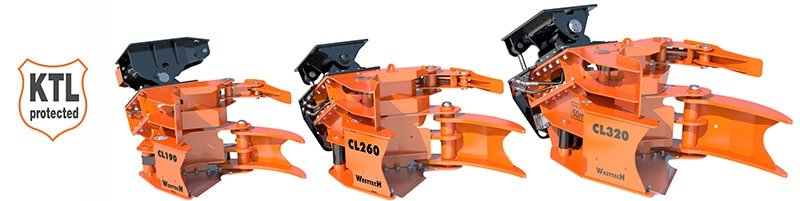

- KTL-grounded (cathodic dip-coating) and powder coating.
| CL 190 | CL 260 | CL 320 | |
|---|---|---|---|
| Cutting diametre soft wood (mm) | 250 | 320 | 400 |
| Cutting diametre hard wood (mm) | 190 | 260 | 320 |
| Gripper opening (mm) = Diametre of shears | 685 | 760 | 1060 |
| Weight (basic – full equipment) (kg) | 210 – 400 | 360 – 680 | 620 – 1170 |
| Recommended pump flow capacity in the main circuit* (l/min.) | 40-80 | 50 – 100 | 70 – 150 |
| Recommended litre capacity in the auxiliary circuit (l/min.) | 20 – 30 | 40 – 60 | 45 – 60 |
| Recommended operating pressure in the main circuit (bar) | 250 | 280 | 280 |
| Recommended operating pressure in the auxiliary circuit (bar) | 200 | 200 | 200 |
| Service weight carrier vehicle ** (t) | 2,5 – 7,5 | 6 – 14 | 12 – 20 |
| Optional: Autospeed | ■ | ■ | ■ |
| Optional: Cylinder slewing system | ■ 2 x 40° | ■ 2 x 48° | ■ 2 x 48° |
| Optional: Accumulator | ■ | ■ | ■ |
■ available | – not available * Depending on operating mode or equipment. | ** Depending on specifications of the operation vehicle. Technical modifications and figures are not binding. Subject to changes for reasons of further development.
