Woodcracker G

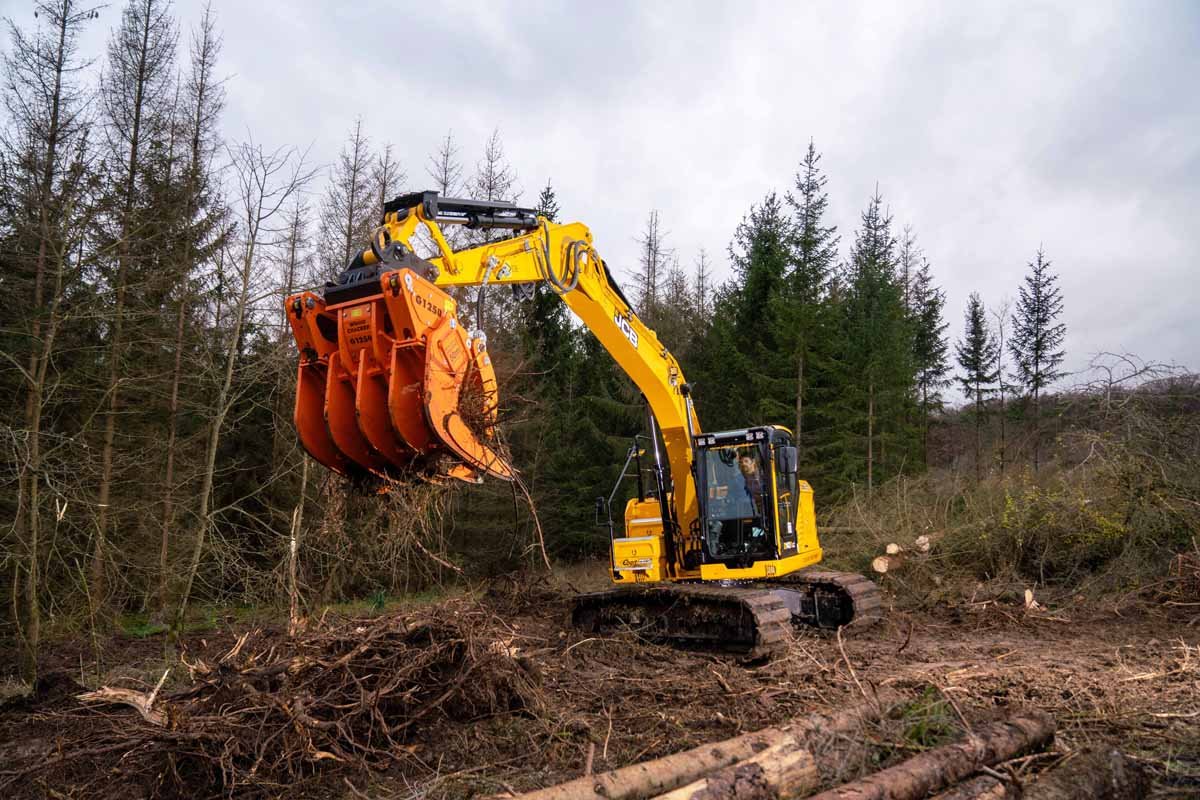

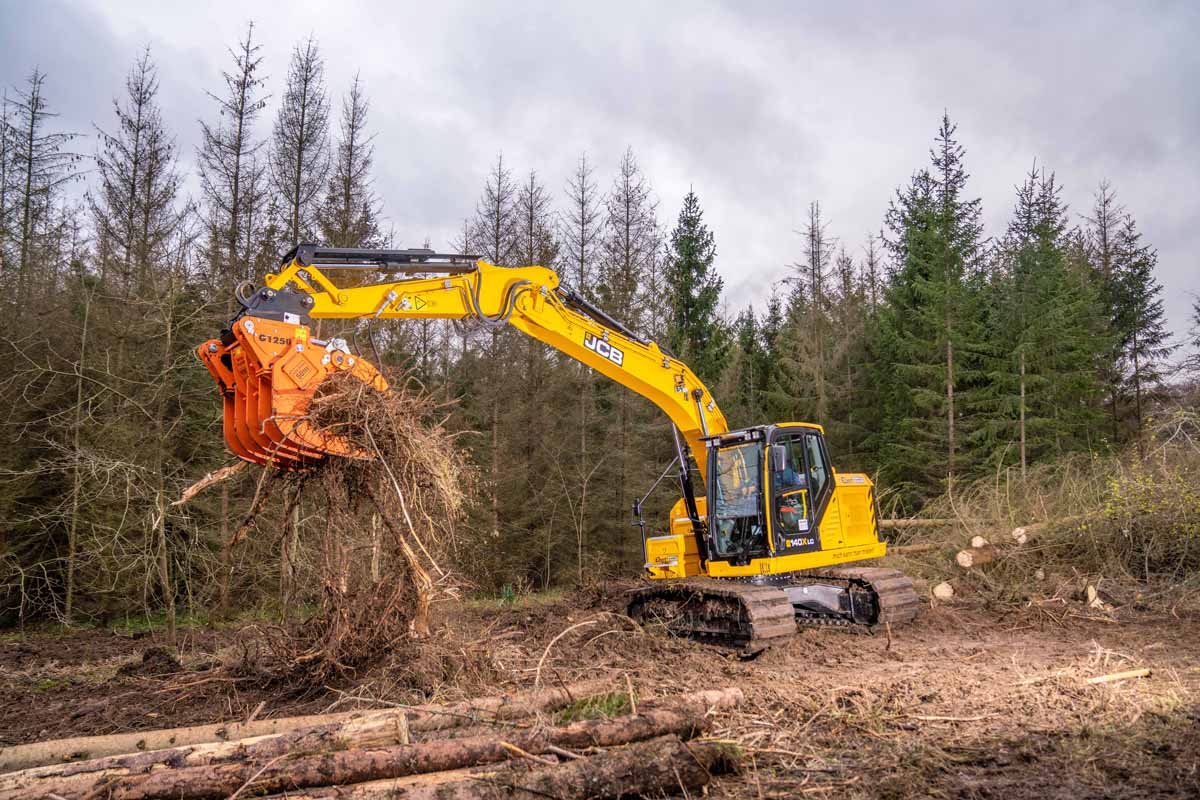

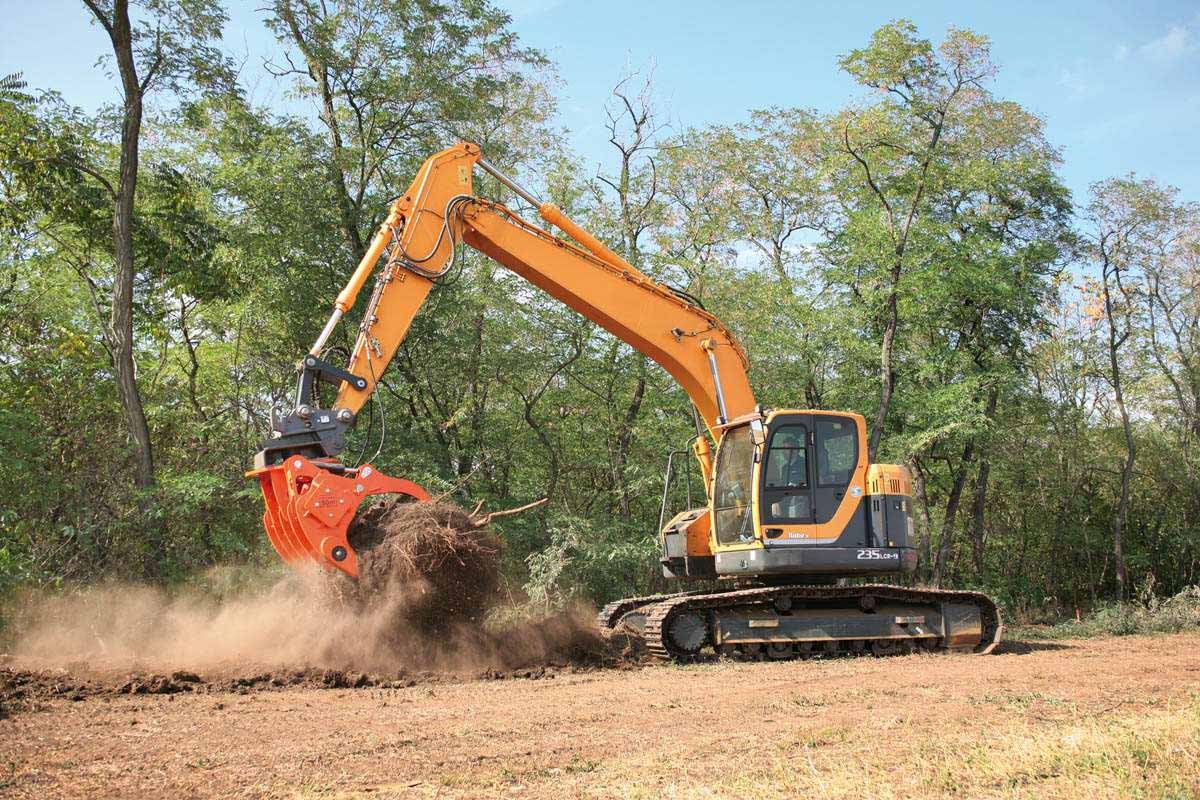

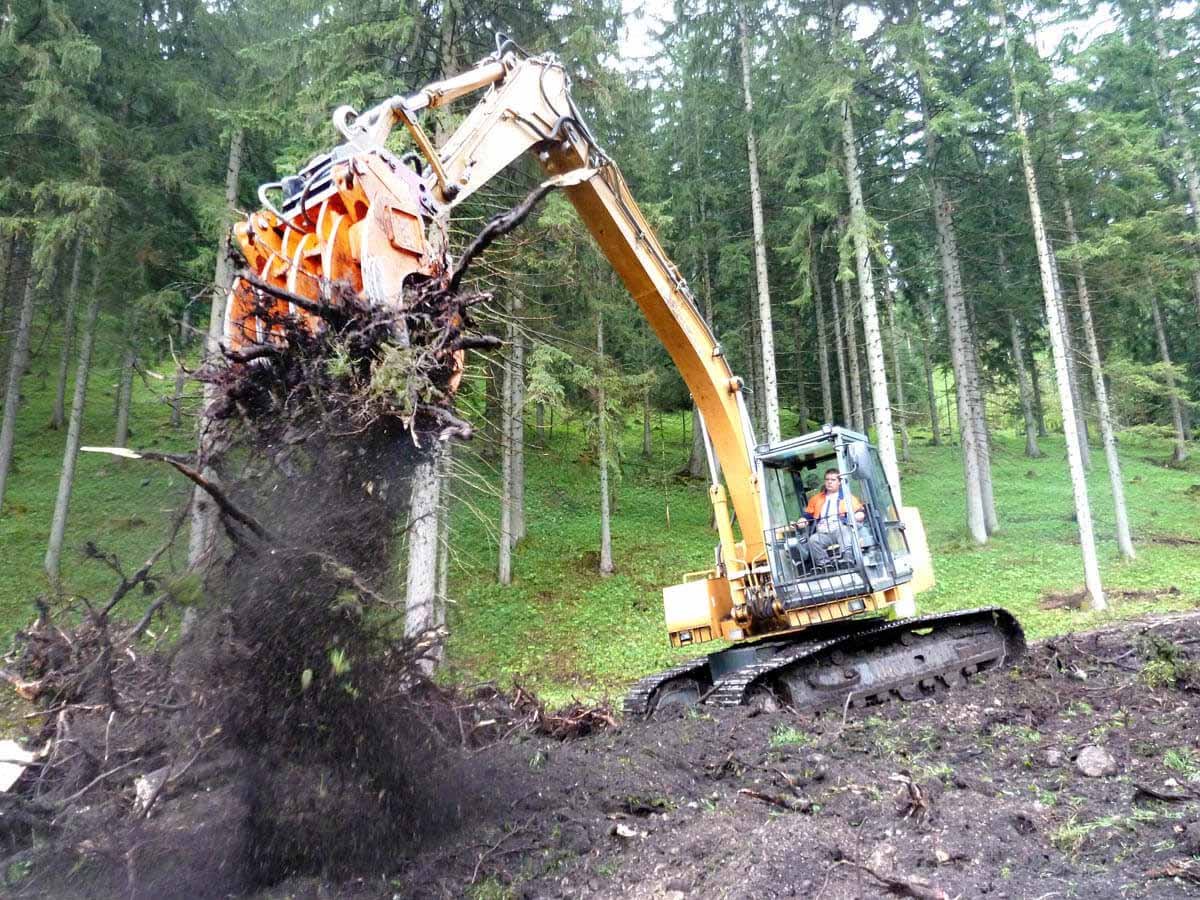

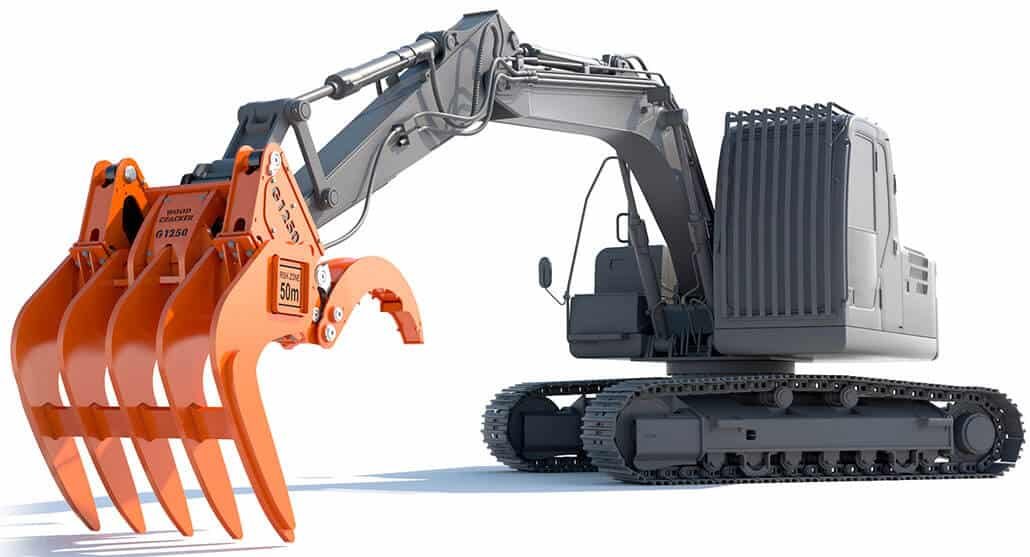

These clearing rakes are designed for precise and efficient clearing of arb waste & root material. With the option of individually adjustable gripper arms, this attachment doubles up as a forestry grapple.
The fine screen planes the soil after clearing work and collects fine material.
The fine screen is easily hung on the teeth of the root rake and is optional available.

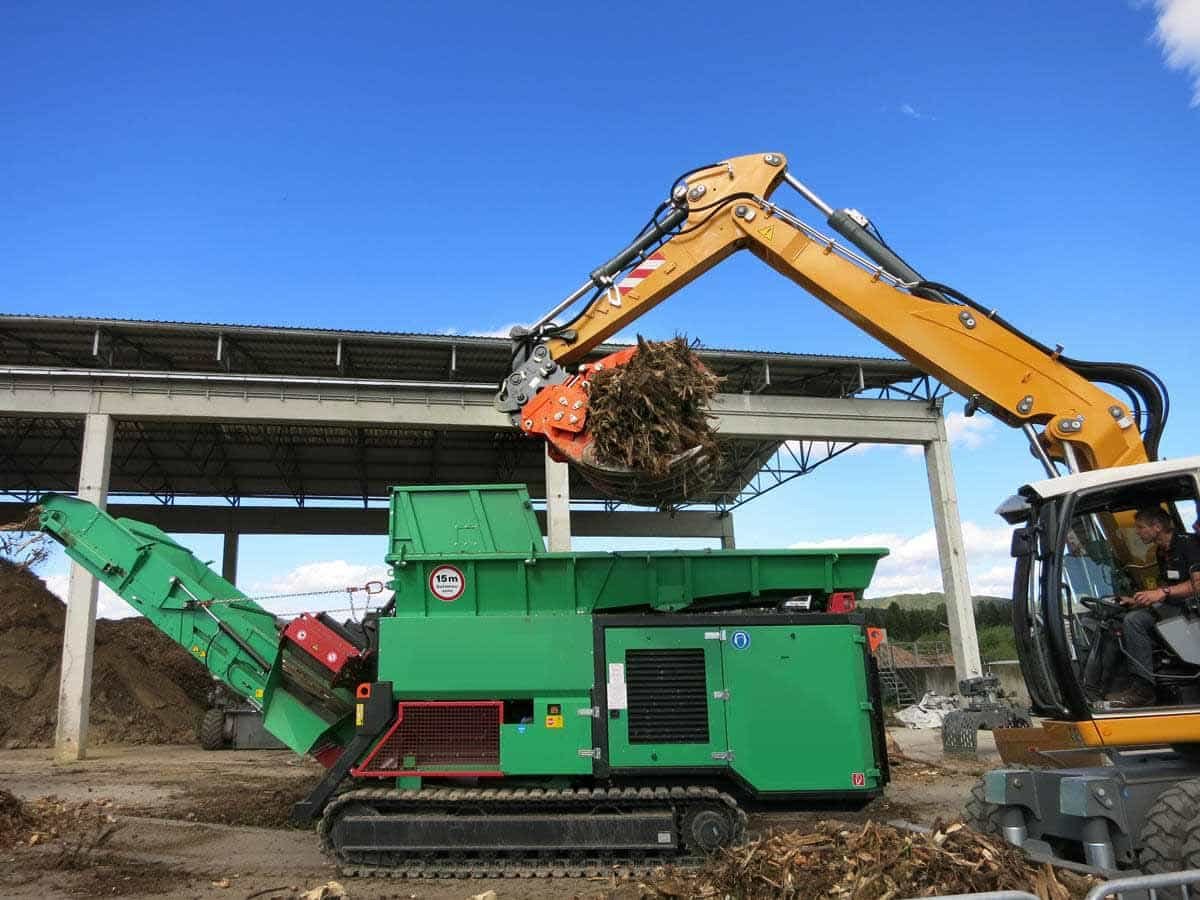

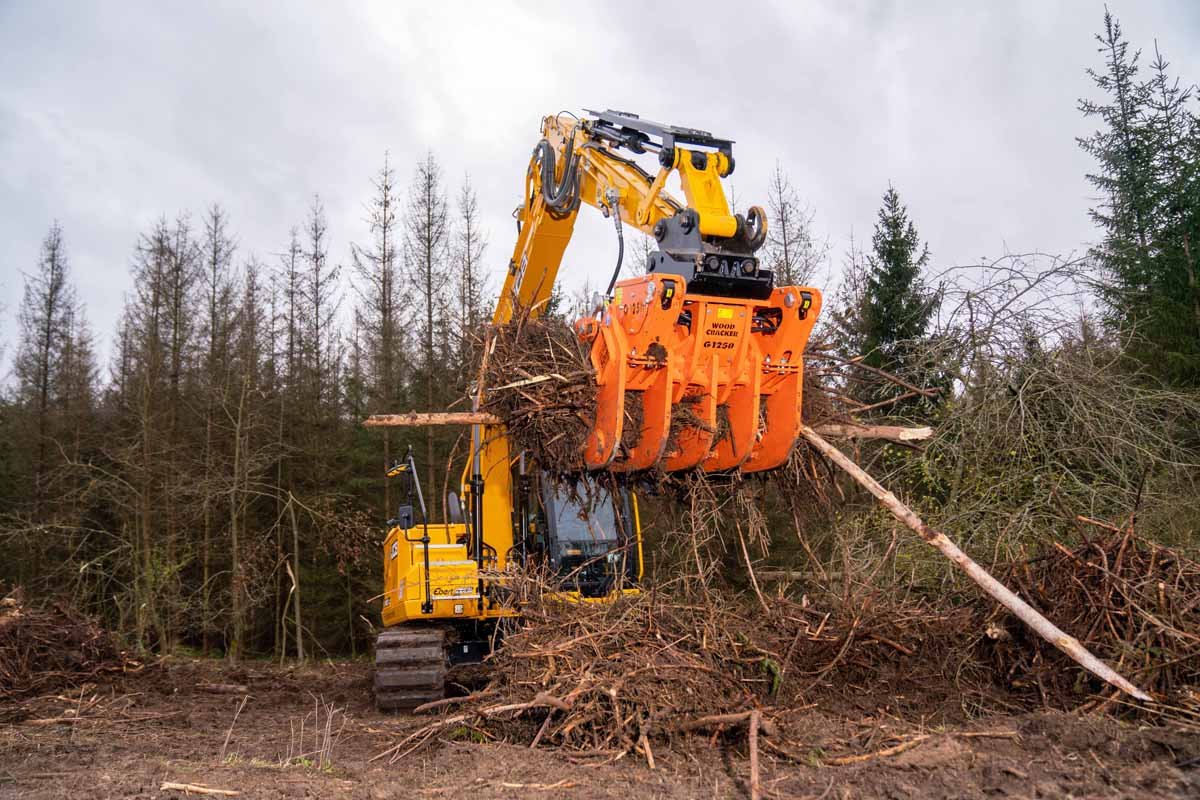

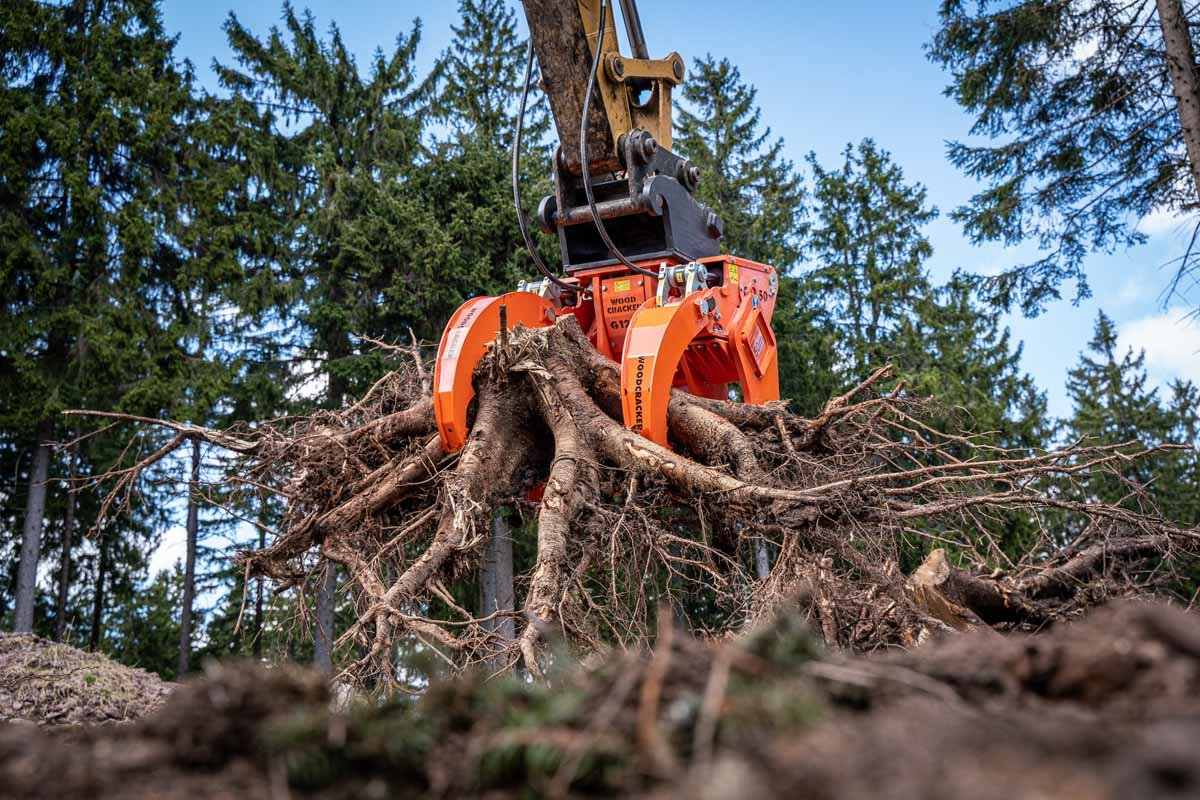

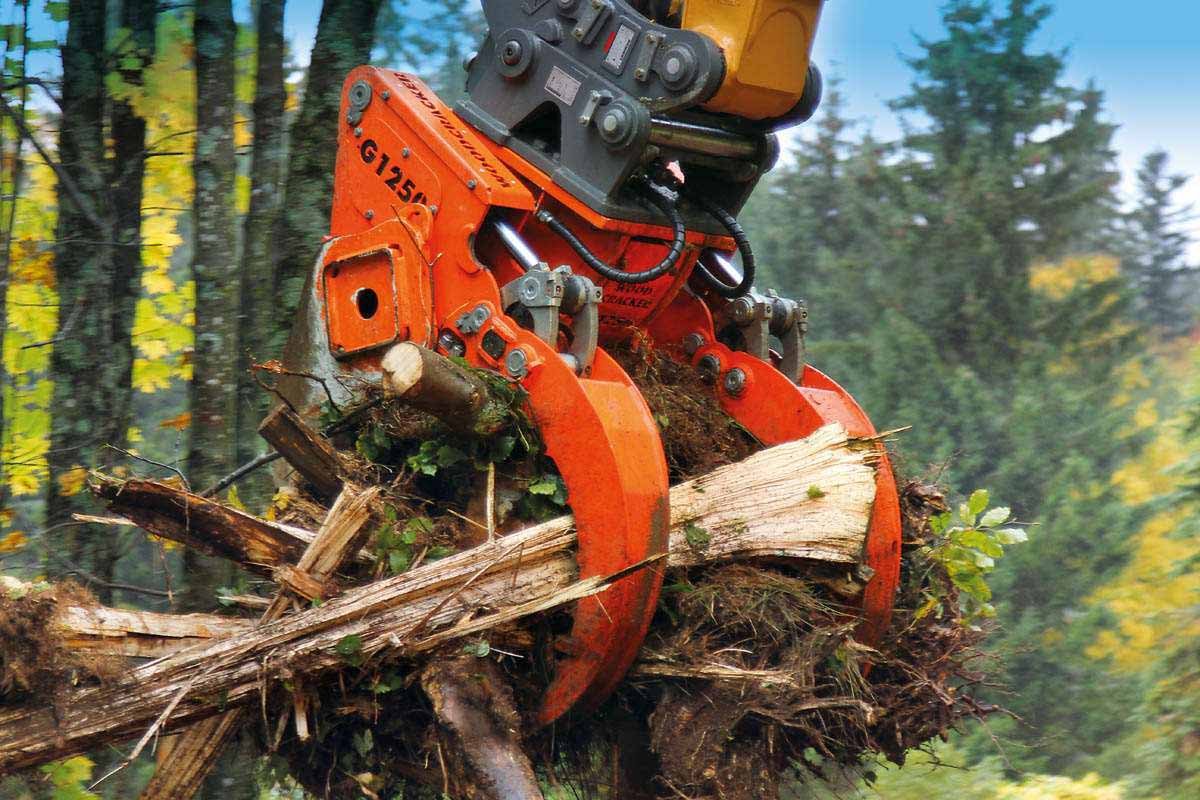

The root rake with gripper fingers can be used to lift logs like a log grapple.

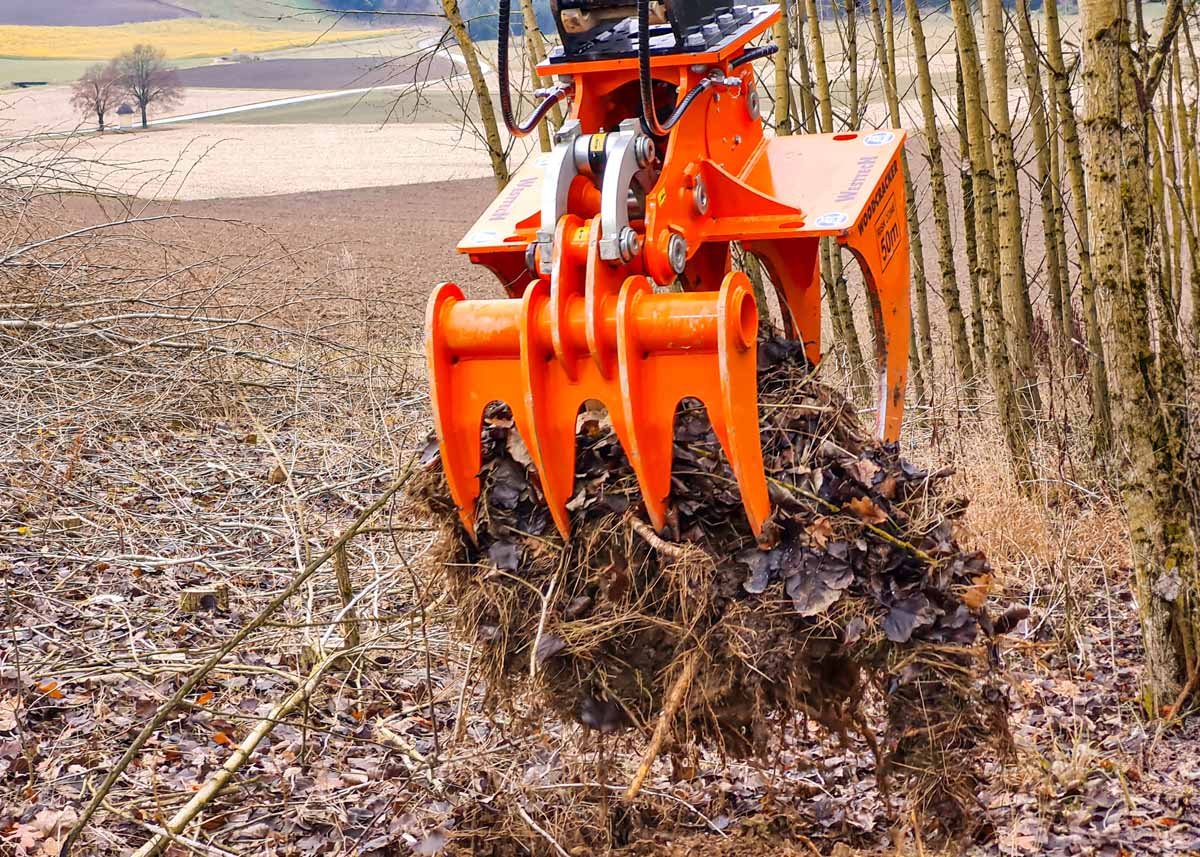

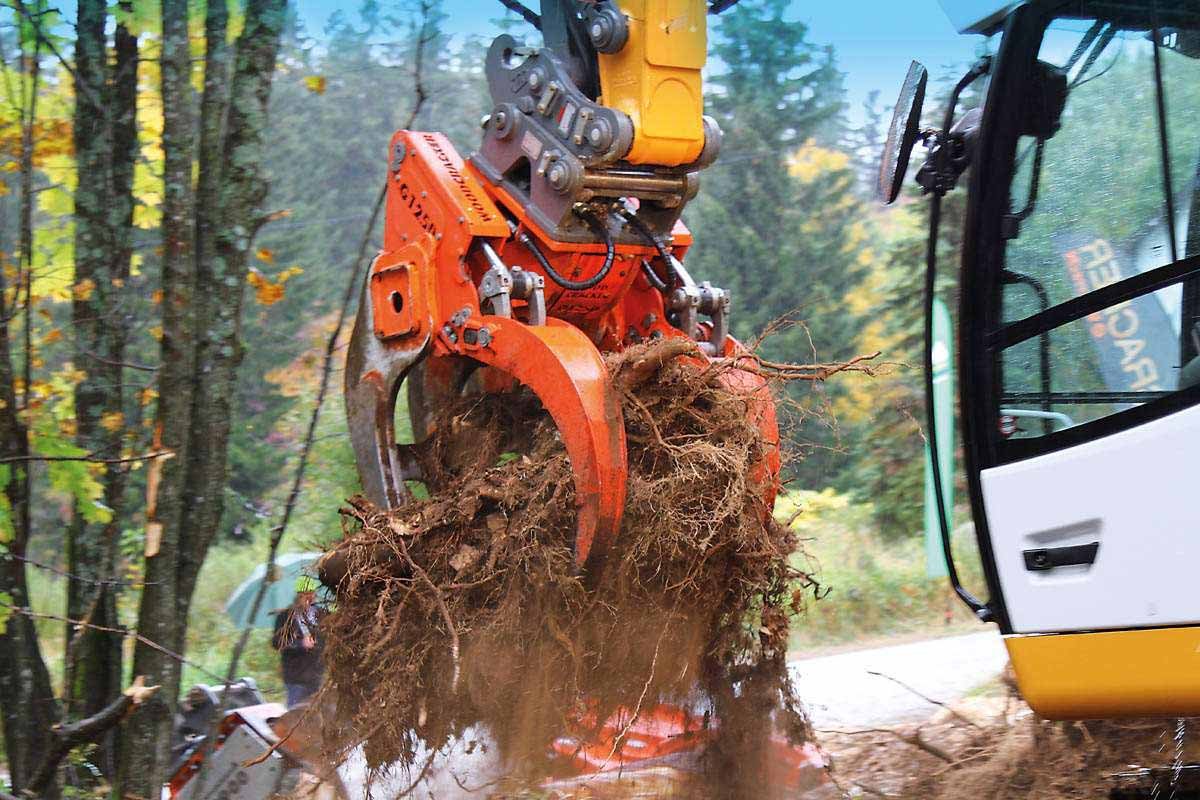

The strong gripper fingers adapt to the shape of the material when closing. The gripper fingers are operated by the toggle lever in the operator’s cabin.
The clearing rake is made of high-strength and low-wear Hardox® stell and therefore robust and long-lasting.

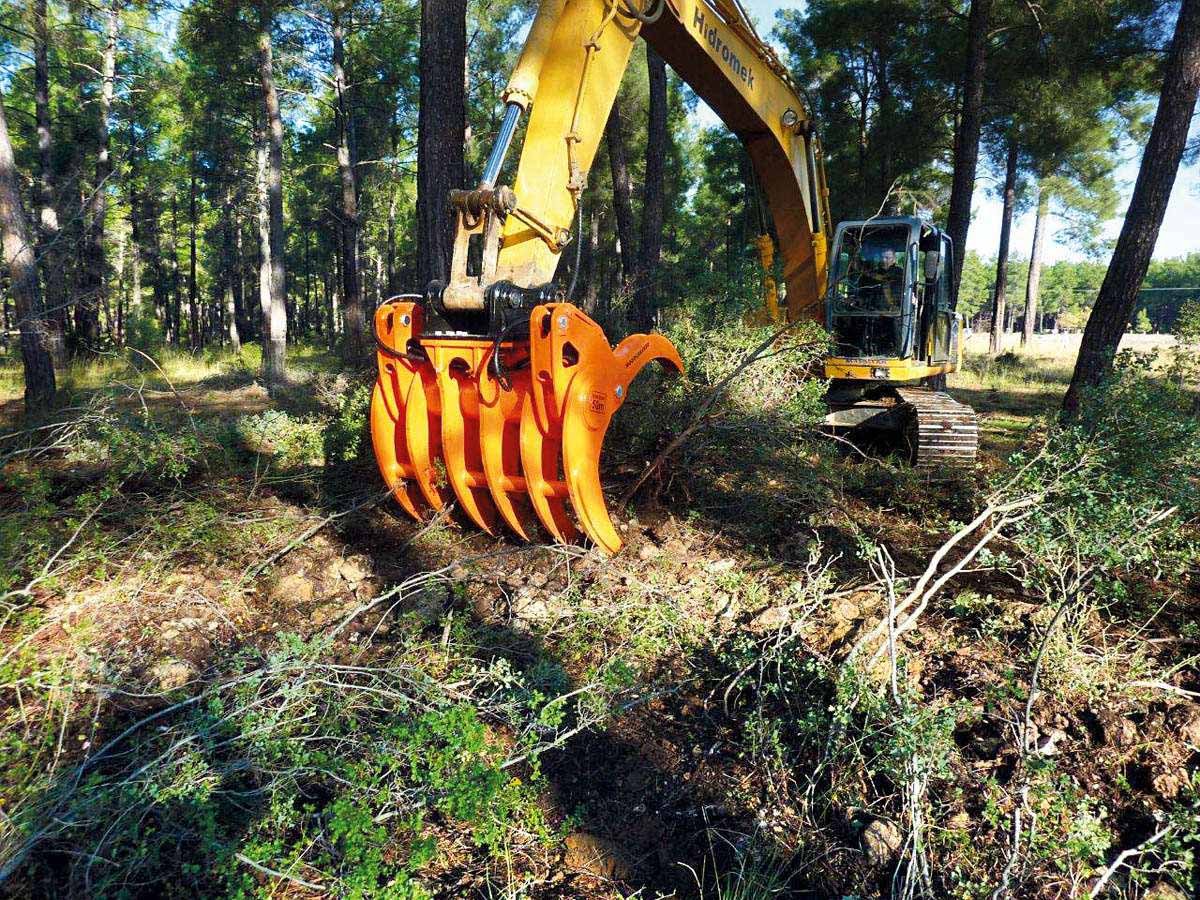

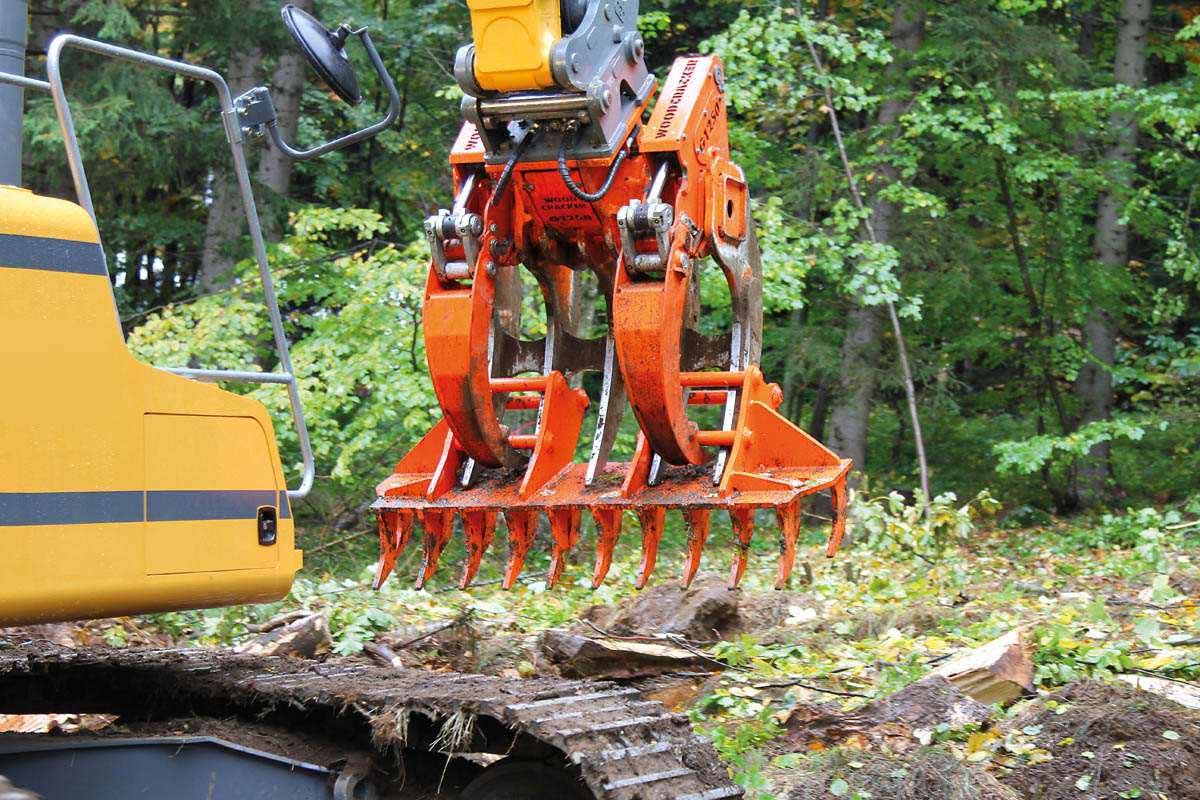

Thanks to the curved shape of the root rake, a large amount of material can be captured and handled.

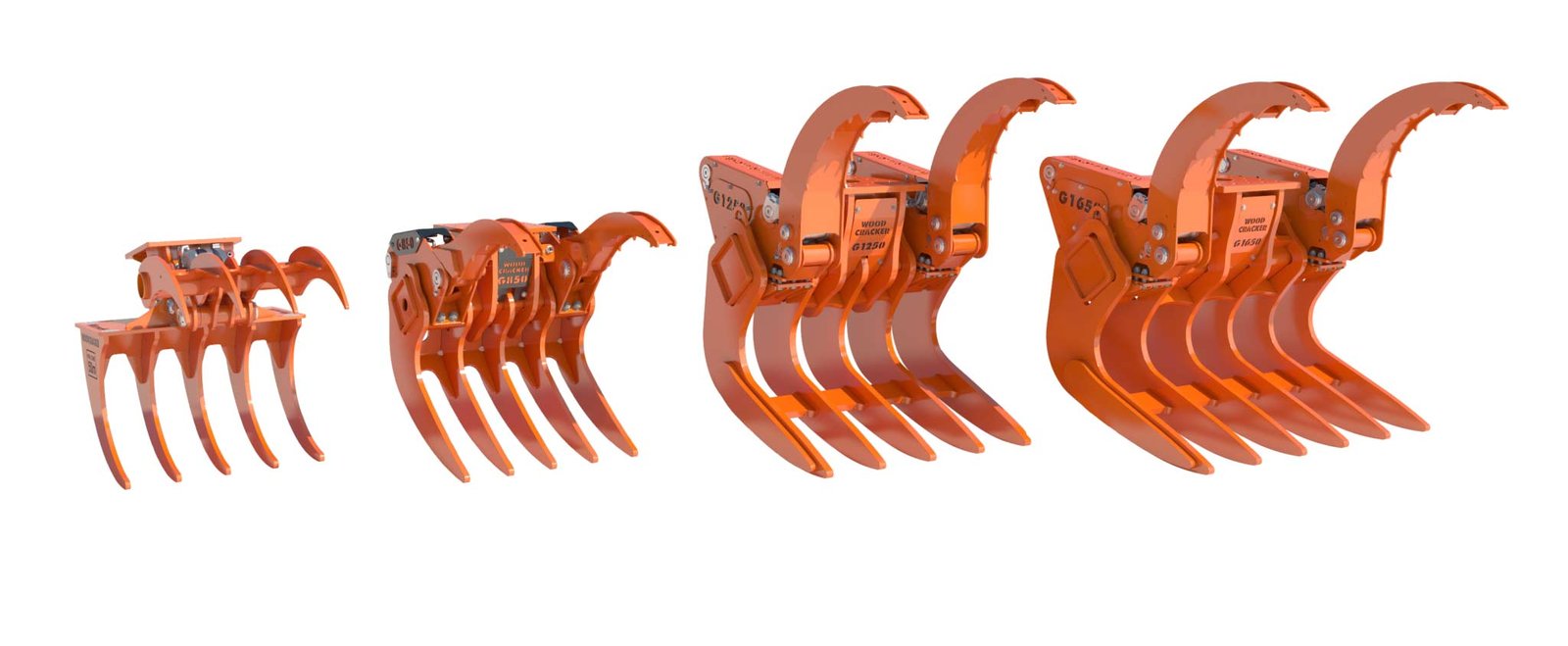

The clearing rake Woodcracker® G is available with and without gripper fingers.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas
- Cleaning and caring for large areas

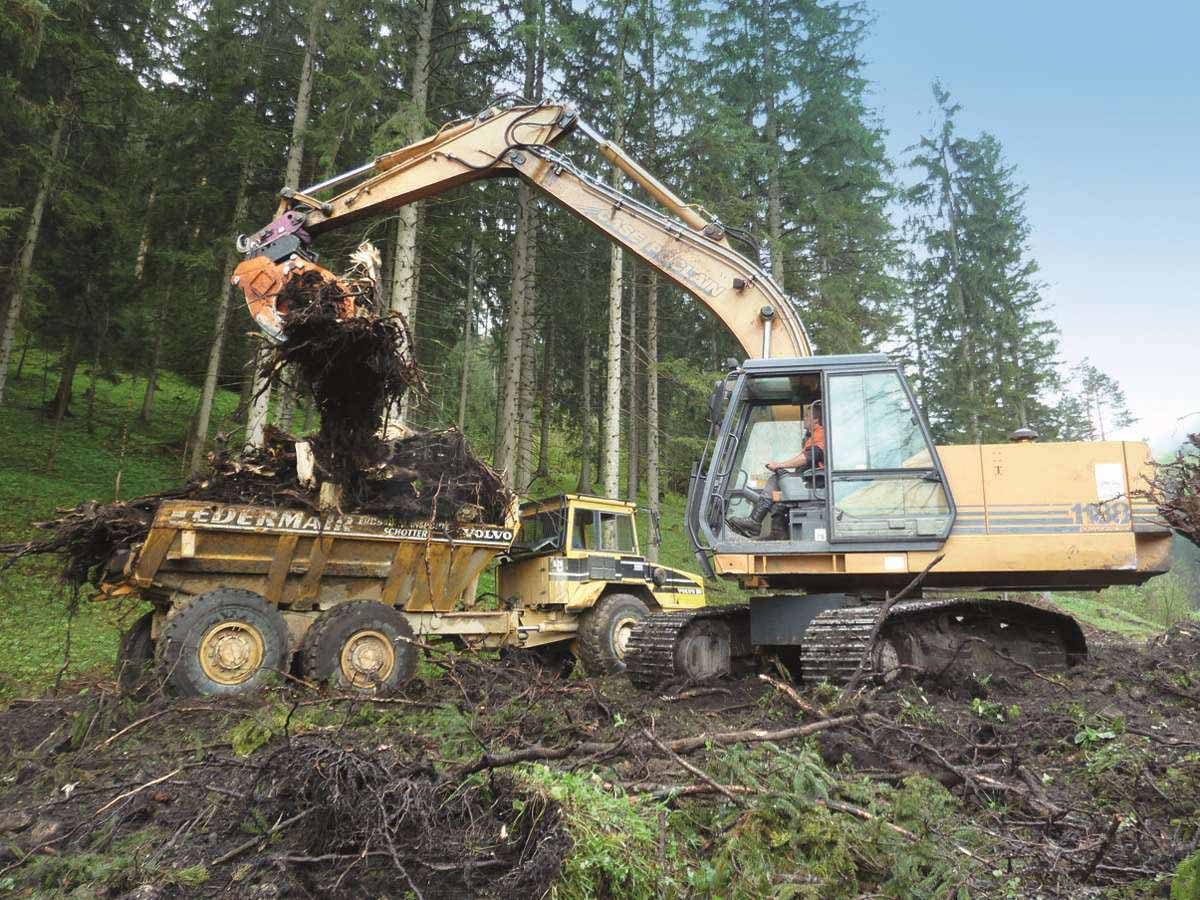

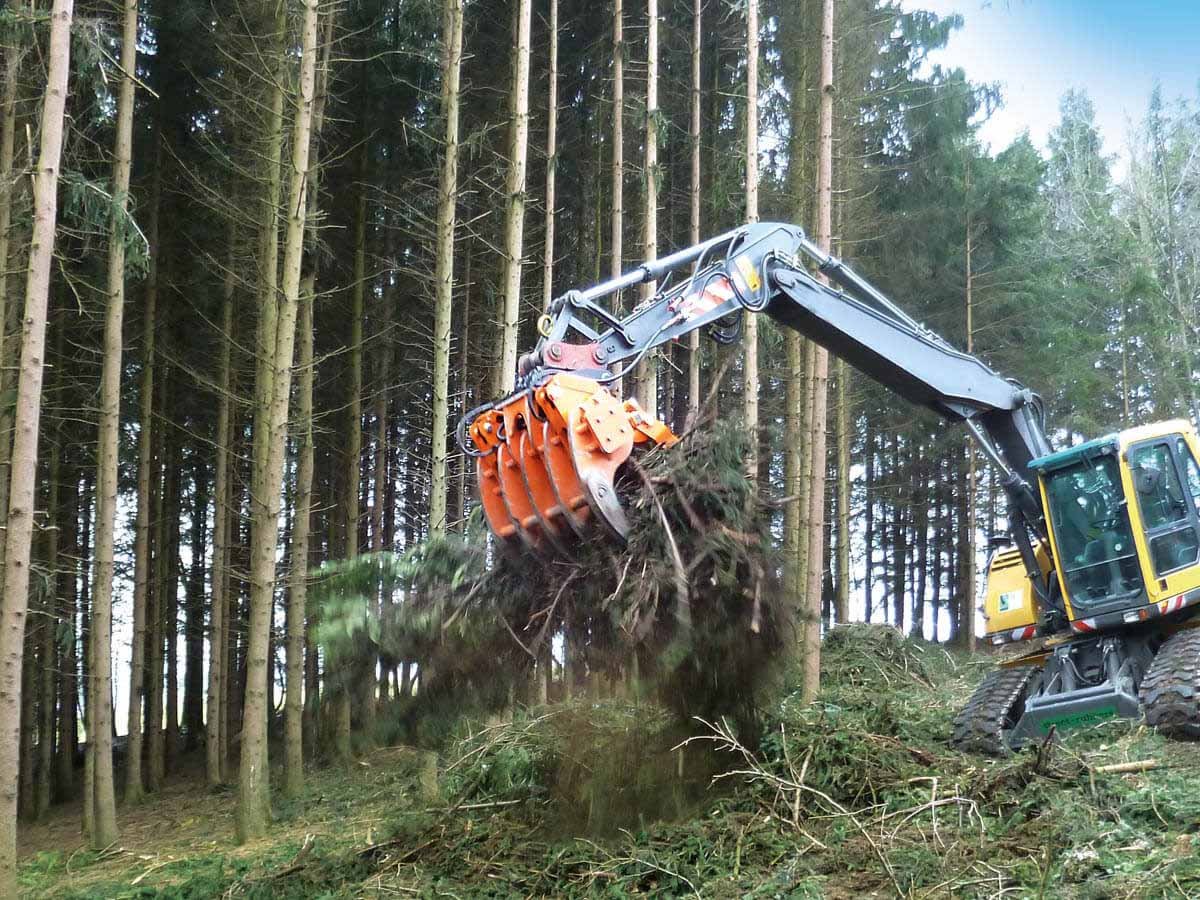

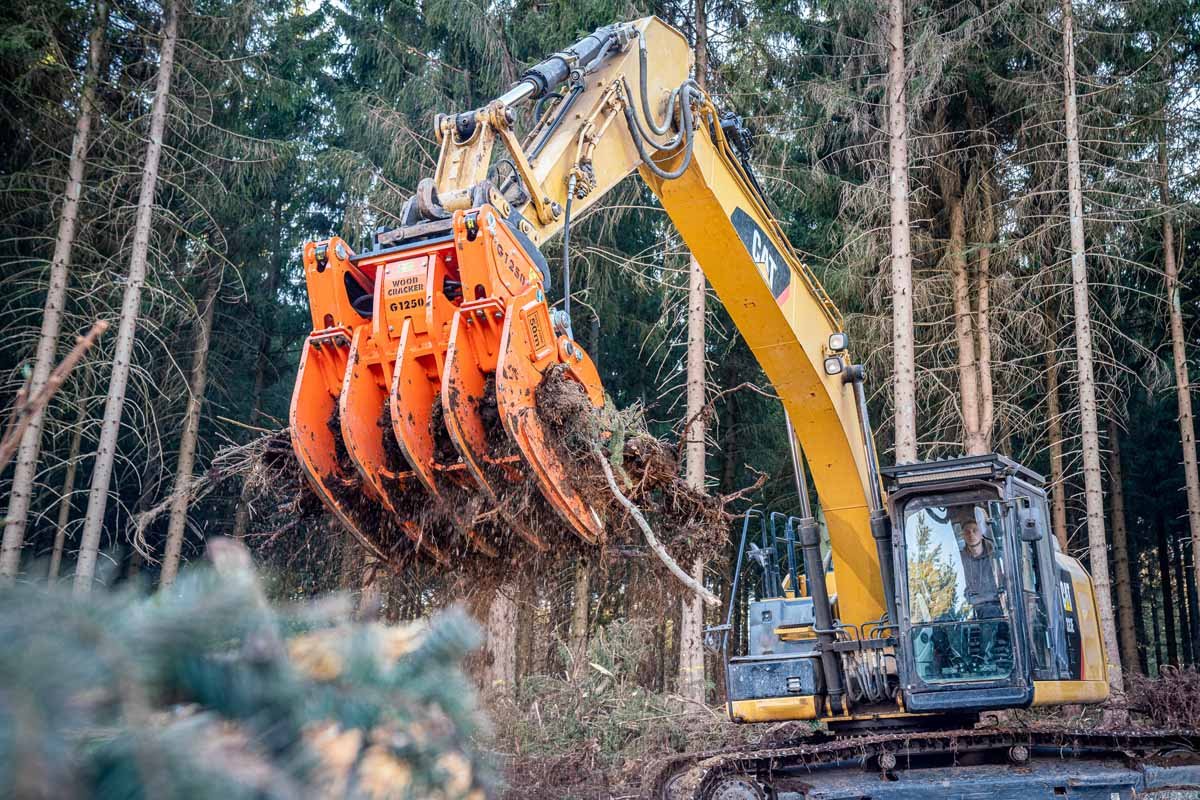

- Collecting tree cuts and root materials
- Landscape maintenance

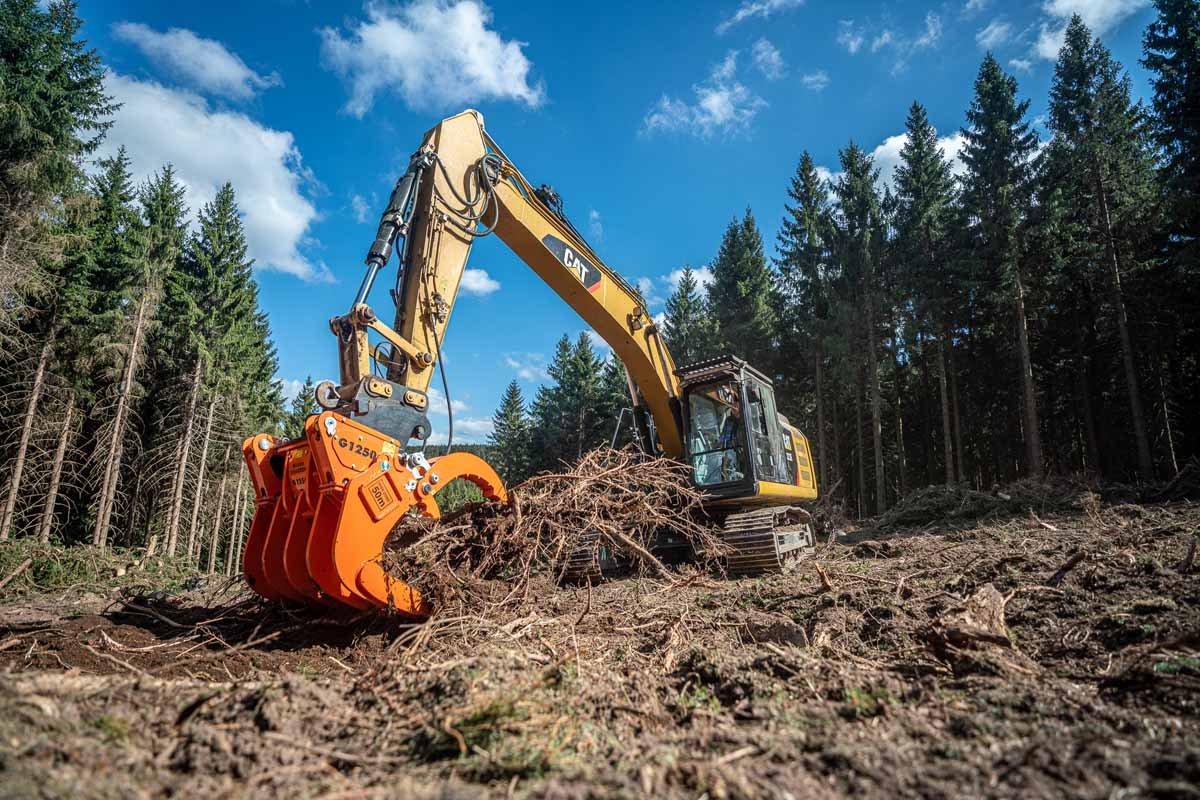

- Clearing small root stocks

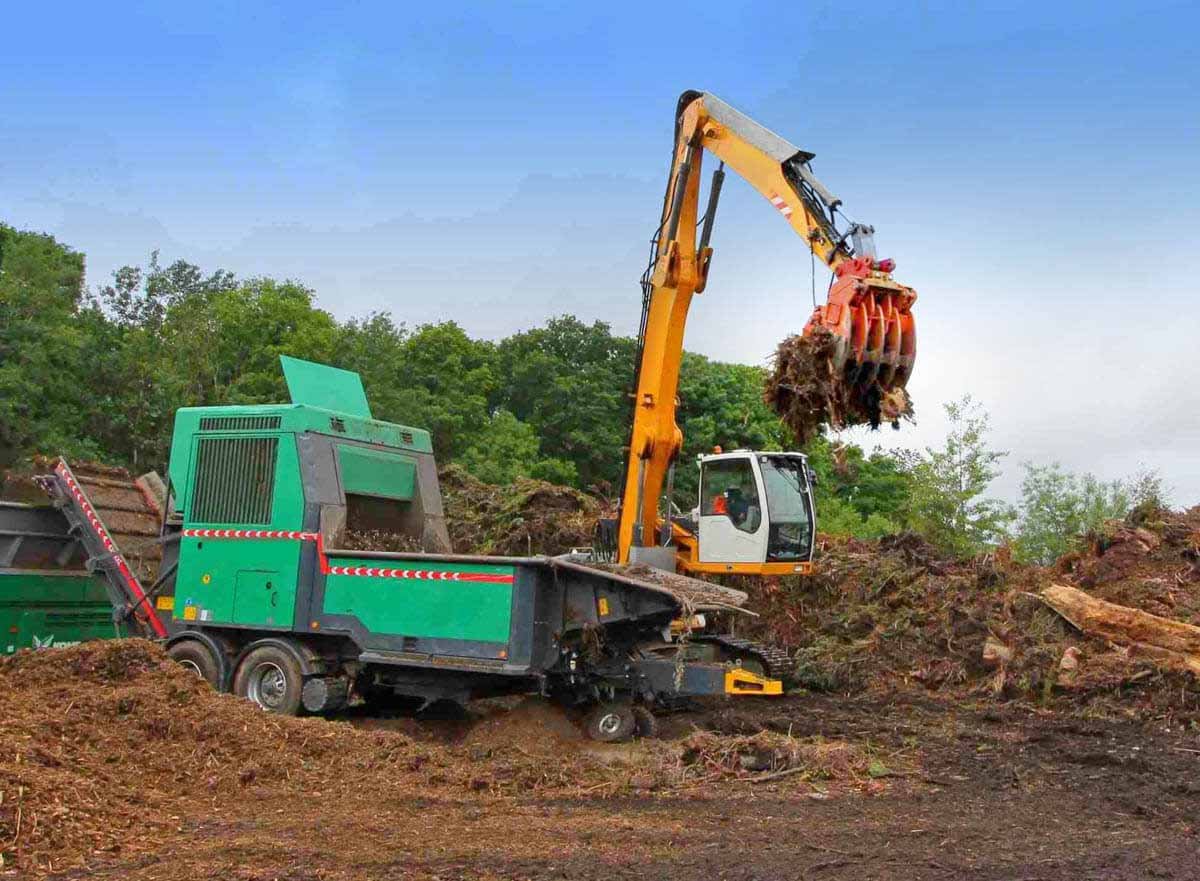

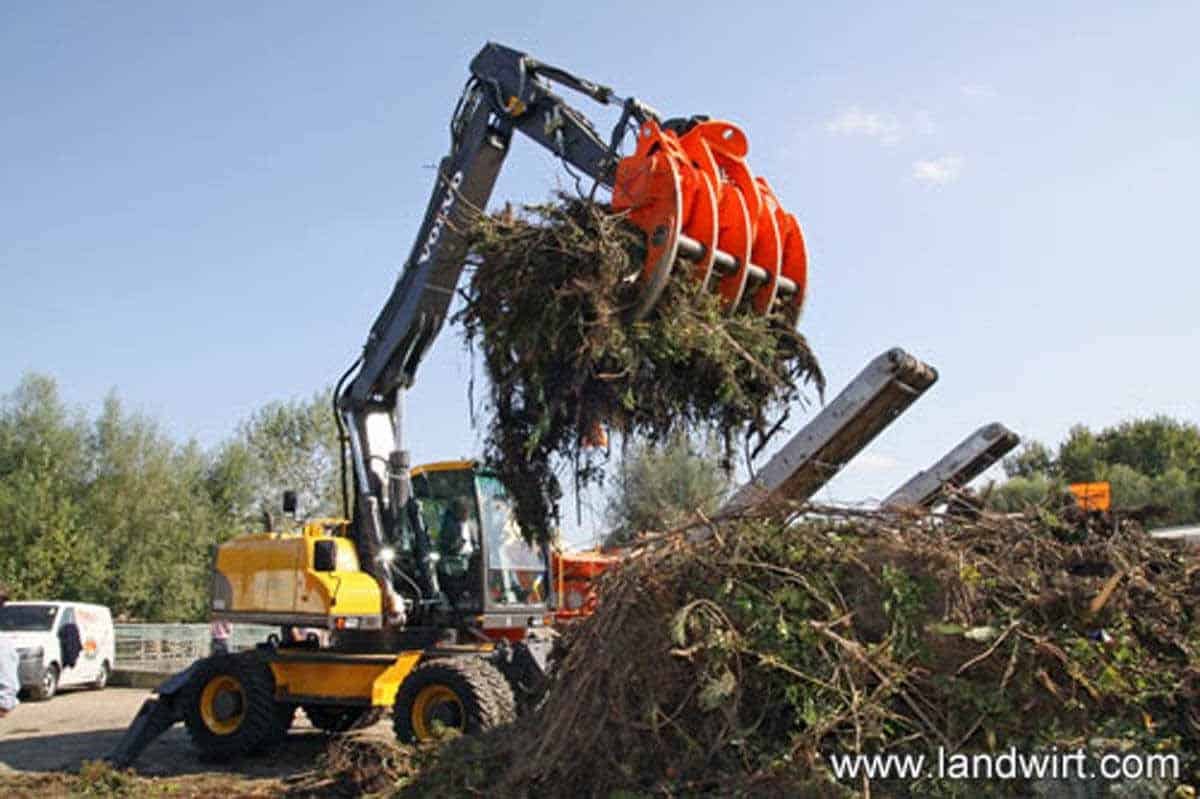

- Supporting follow-up machines (transport and chipping)
- Crop manipulating/handling.
Key Facts
- Mountable to all conventional carrier vehicles.
- Efficient construction field clearance.
- Can also be used as gripper for material handling.
- For extracting biomass.
- Ergonomic finger shape.
- Special control of the gripper fingers.
- Robust and long-lasting, low-wear and low-service.
- KTL-primed (cathodic dip-coating) and powder coating.
- Made of high-strength Hardox ® steel.
| GR 840 | G 850 | G 1250 | G 1650 | |
|---|---|---|---|---|
| Working width (mm) | 840 | 850 | 1250 | 1650 |
| Weight (incl. gripper fingers) (kg) | 430 | 585 | 1420 | 1610 |
| Recommended pump flow capacity * (l/min.) | 40-60 | 40-60 | 50-90 | 50-90 |
| Recommended operating pressure (bar) | 200-250 | 200-250 | 200-250 | 200-250 |
| Service weight carrier vehicle ** (t) | 5-12 | 7,5-15 | 15-22 | 20-25 |
| Optional: Gripper fingers | inclusive | ■ | ■ | ■ |
| Optional: Fine rake | - | ■ | ■ | ■ |
