Woodcracker R

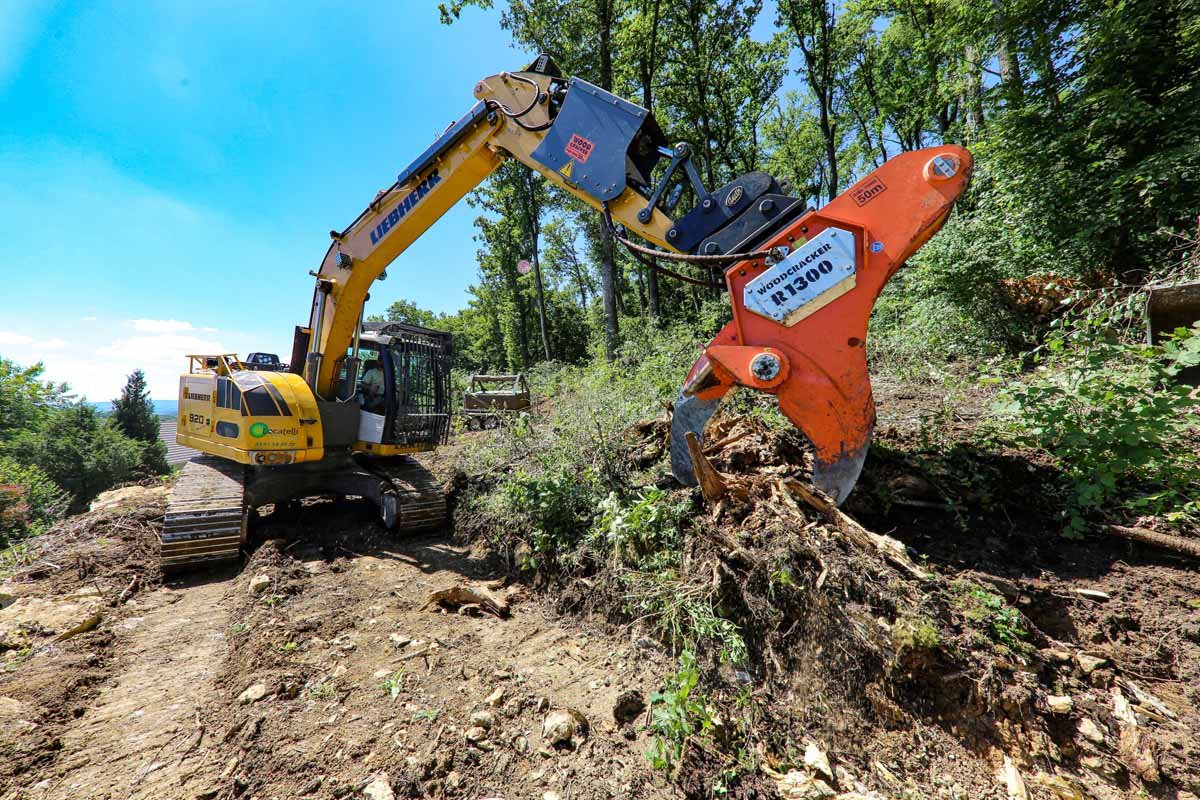

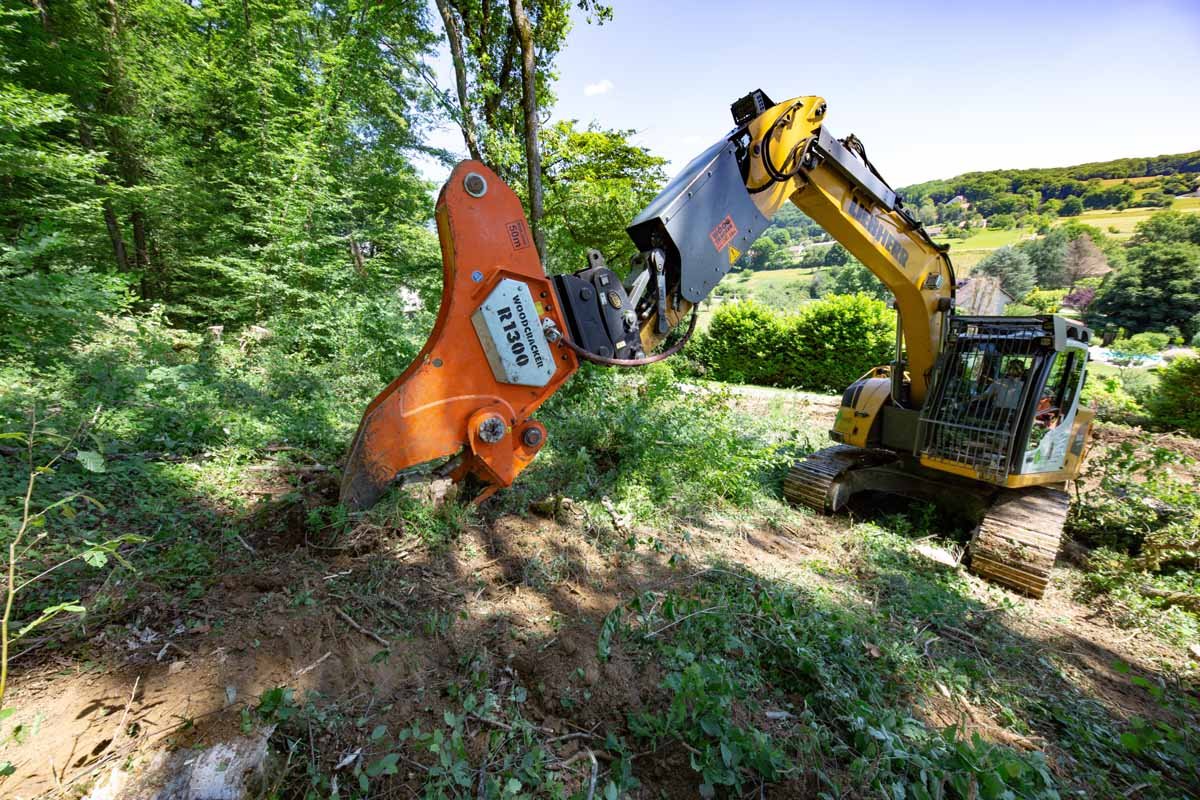

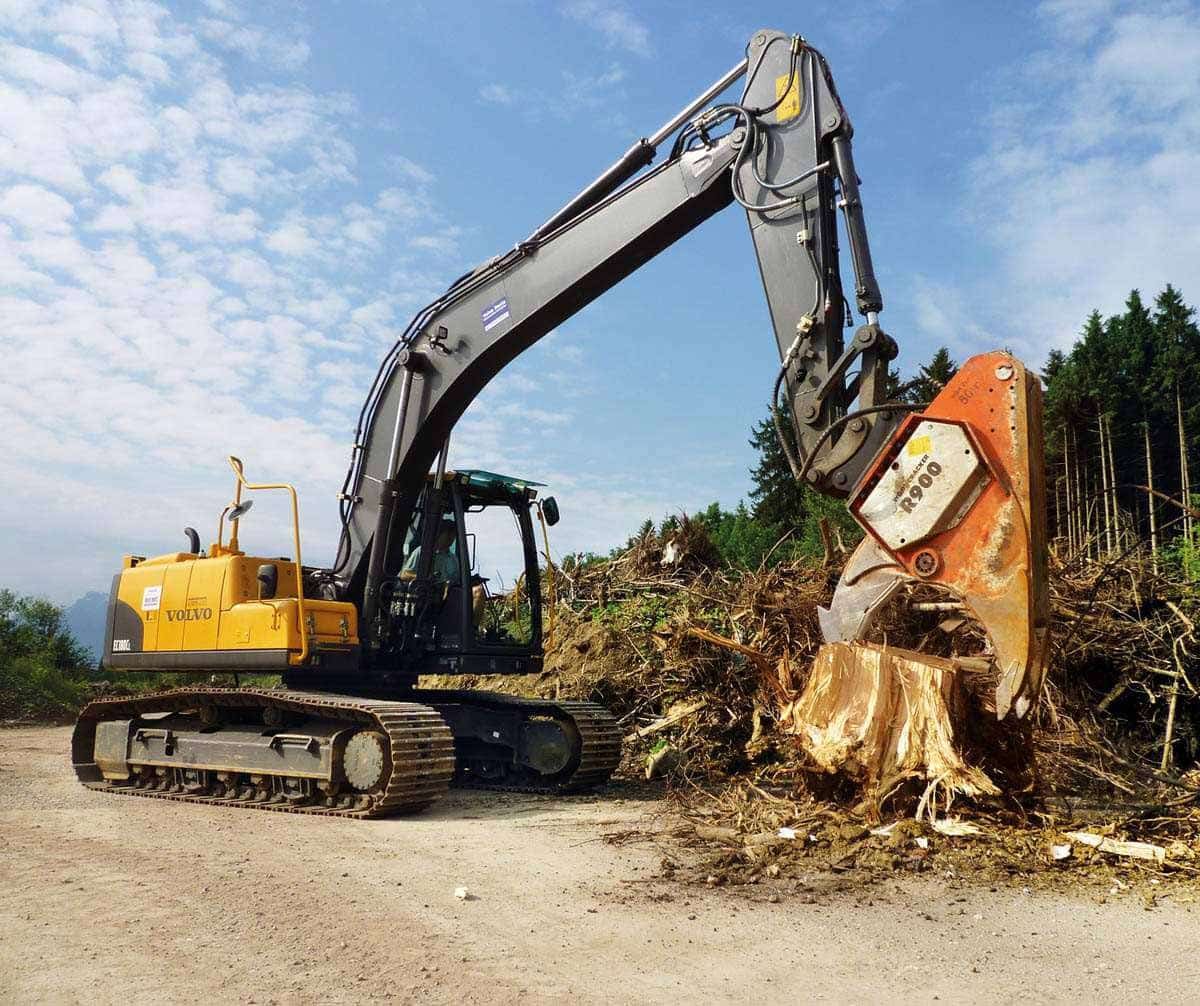

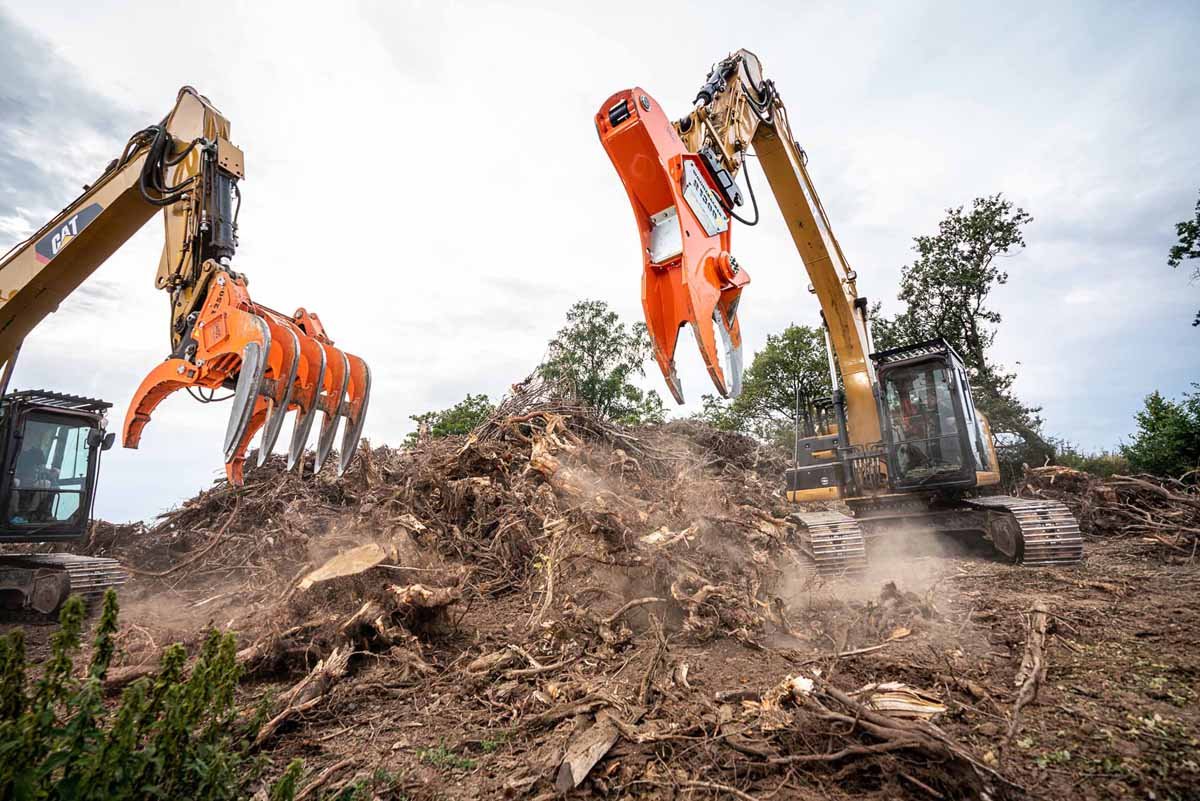

A stump shear designed for harvesting & processing oversized stumps and rootstocks. Remove stumps with minimal damage to the soil before processing them with ease.
Able to clear and shred rootstocks in one work step
Cutting force up to 65 tons.
Robust cutting unit, low-wear and low-service. Reinforced sidewalls.

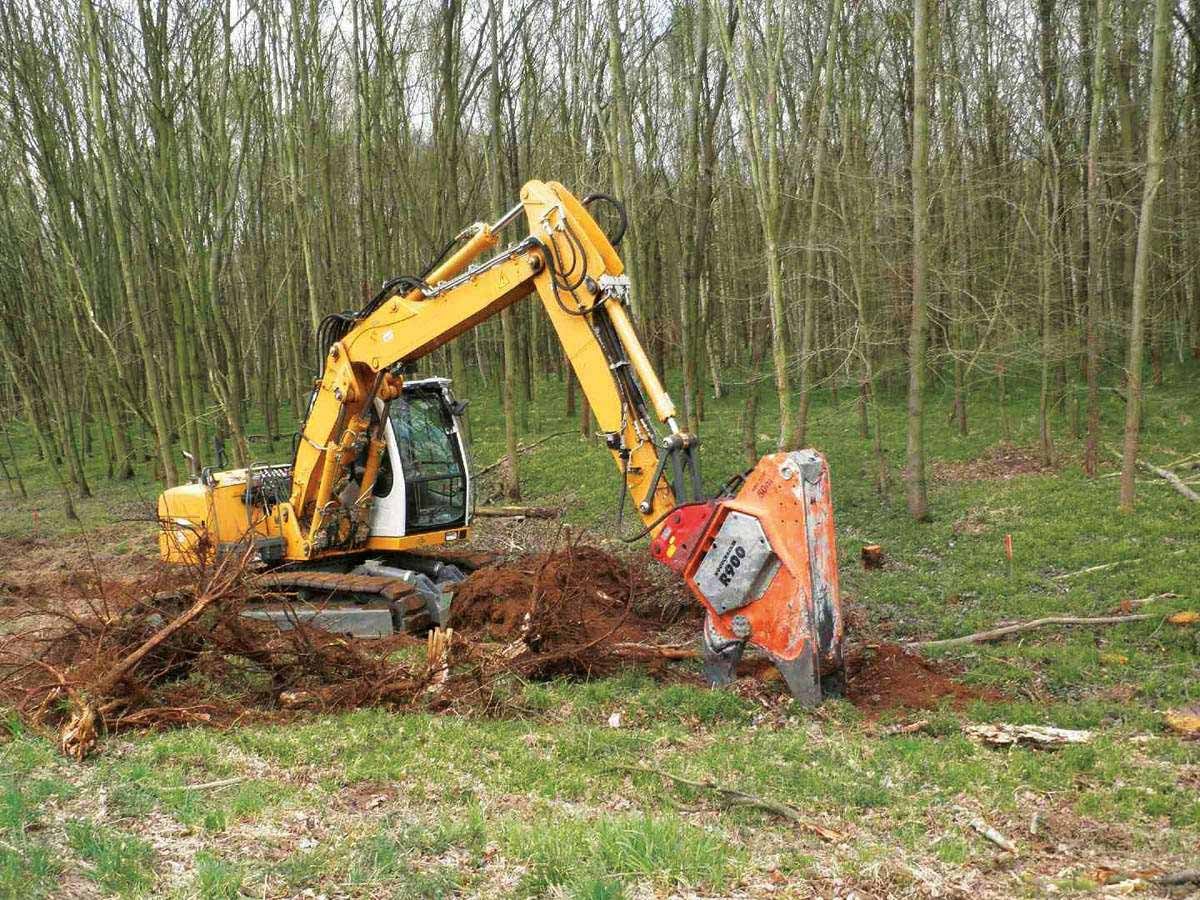

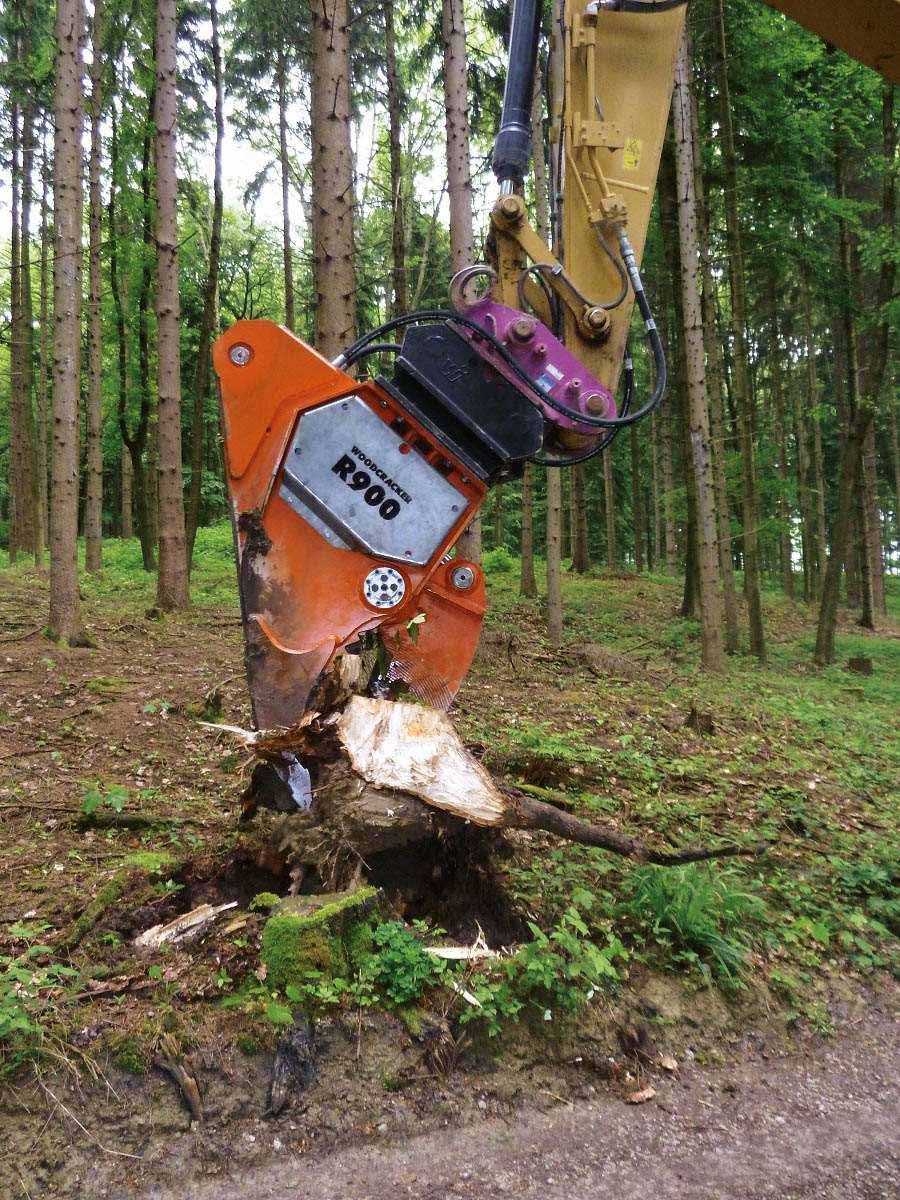

Gentle removal of the rootstock from the ground

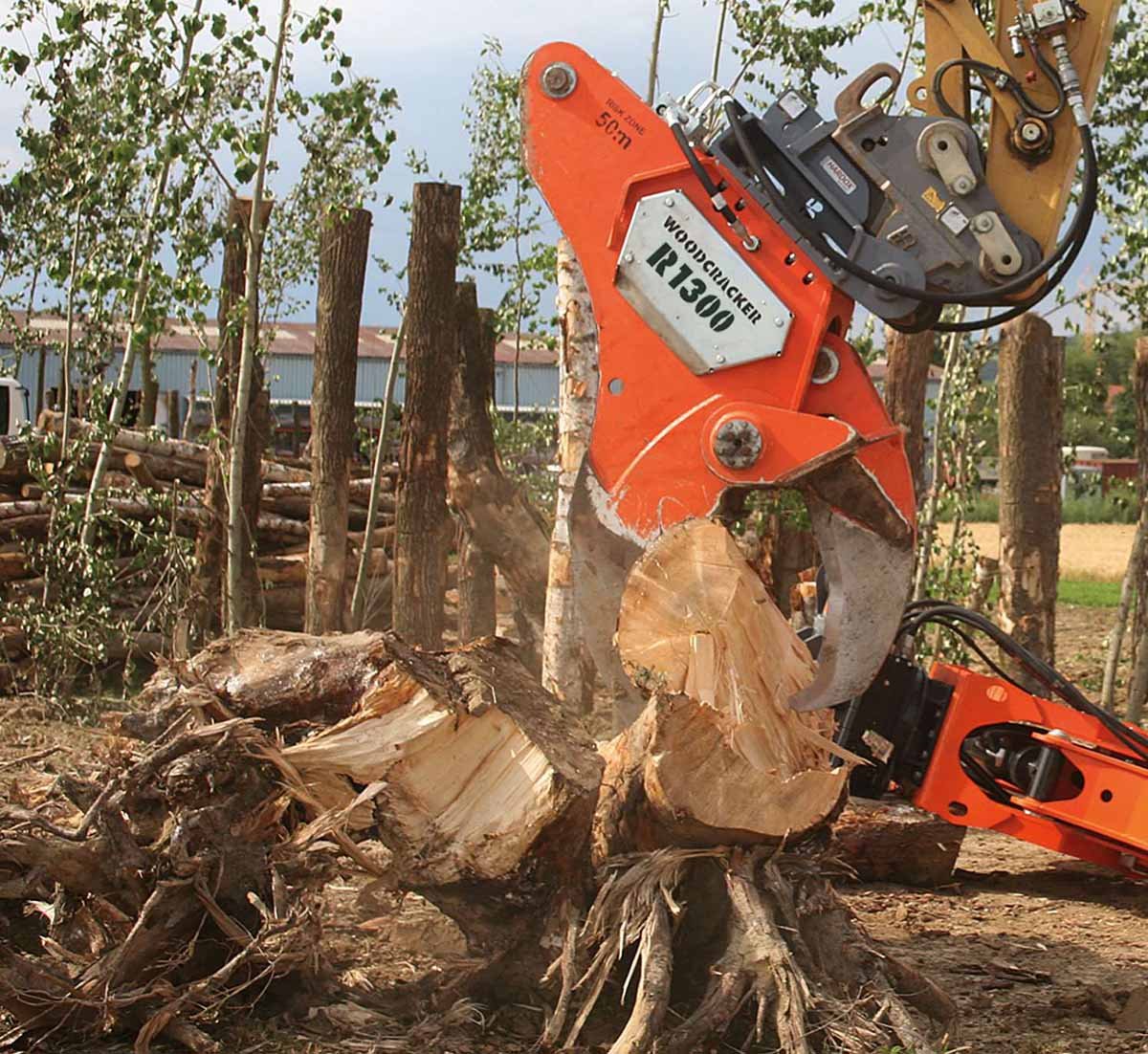

The specially shaped blade cuts through stubborn rootstock material.
Clever designed and made of high-strength Hardox® steel.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas

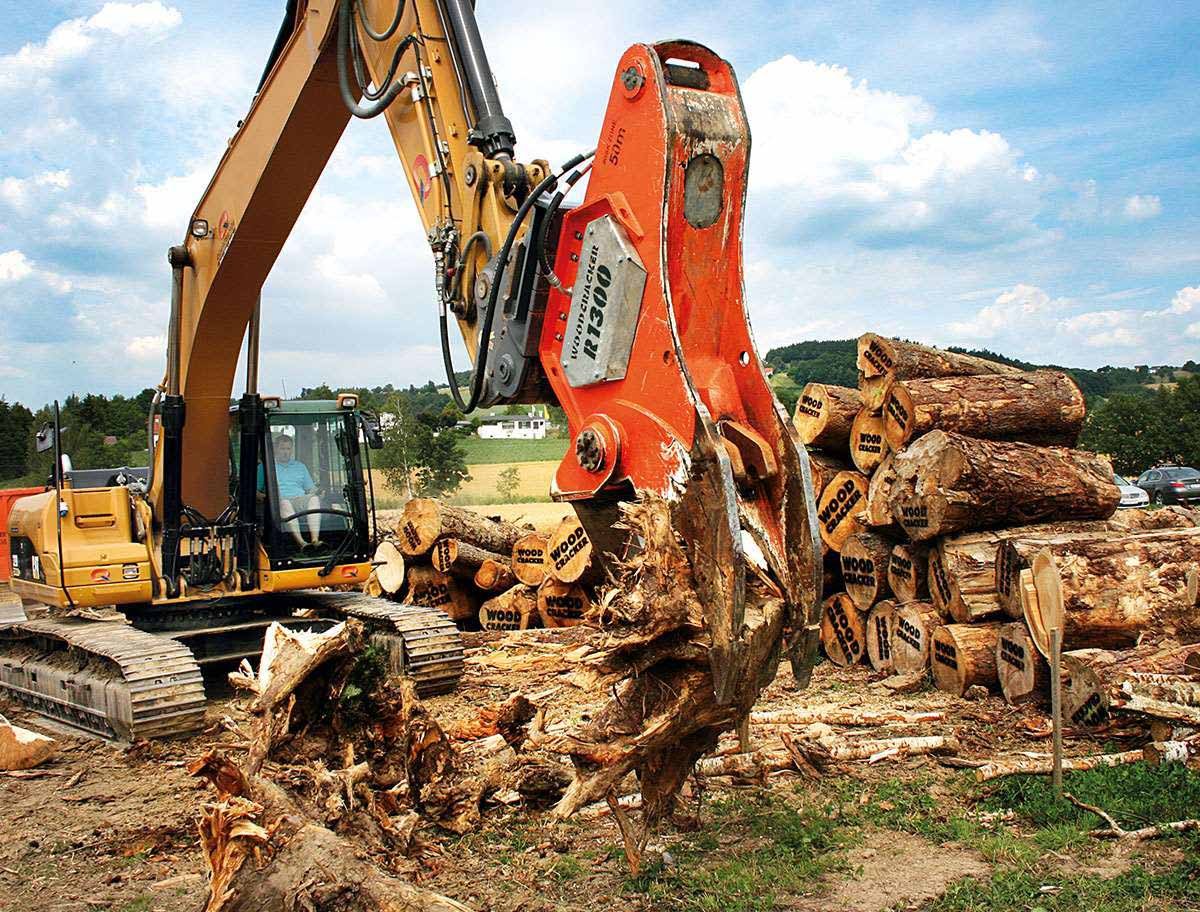

- Removal of the entire root stock from the ground

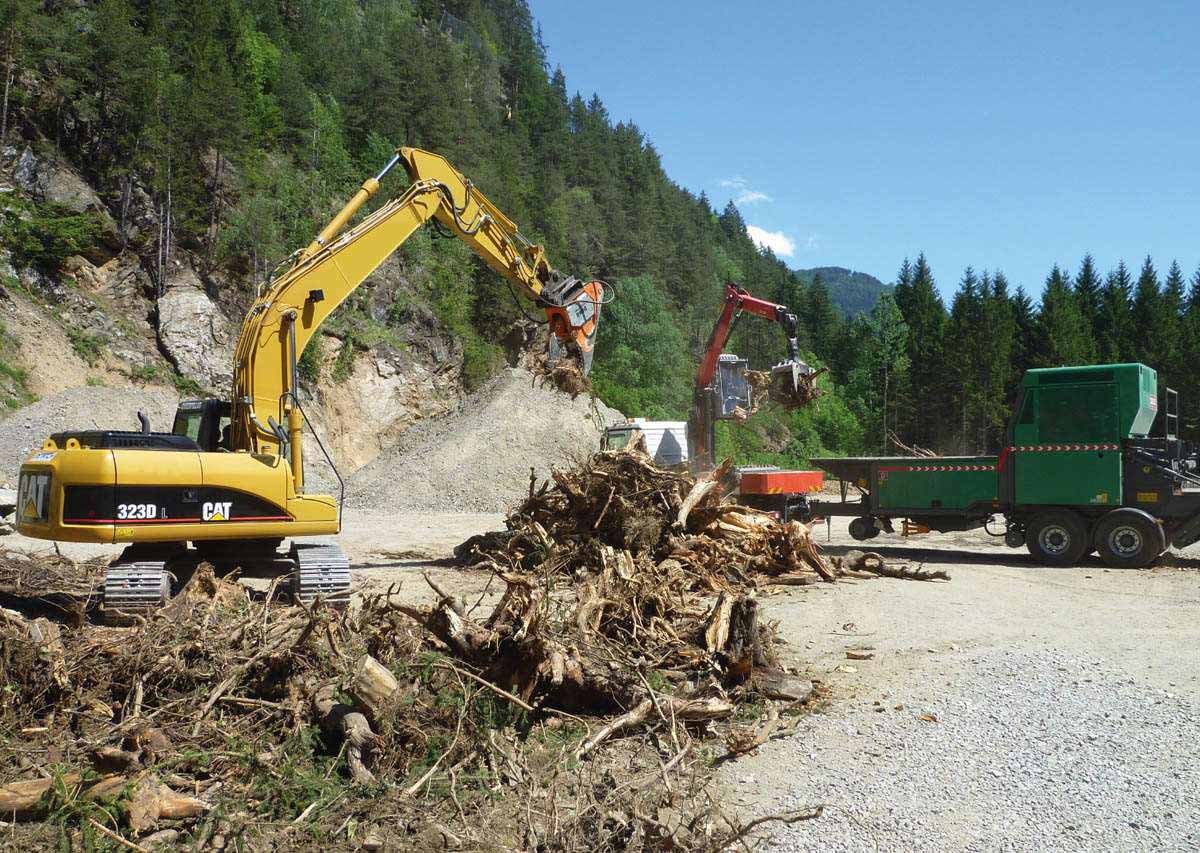

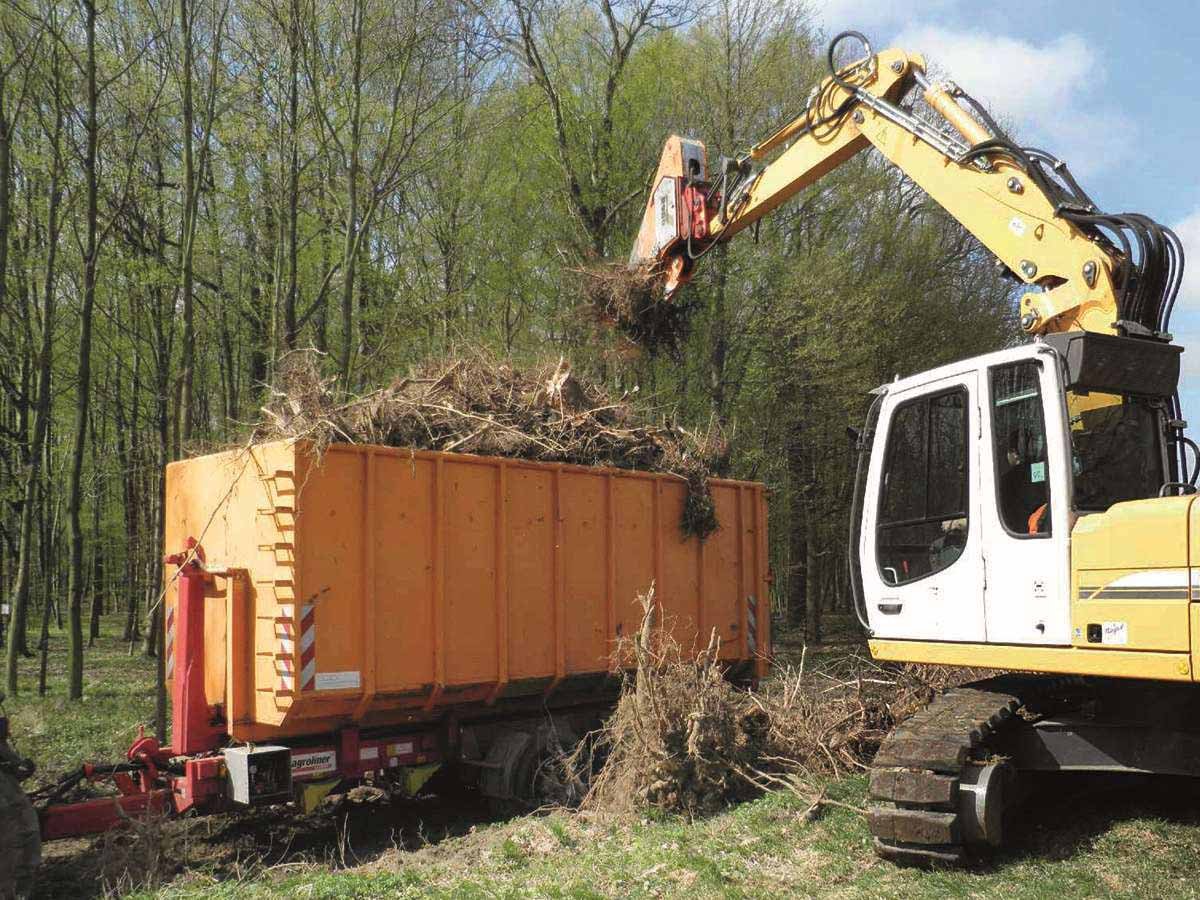

- Chipping the root stock for further processing by using a shredder
- Reduction of the transport volume through pre-chipping
- Large-scale recultivation measures
- Cleaning the ground to let the plant inventory regrow
Key Facts
- Gentle removal of the root stock from the ground, with leaving only a minimal damage to the soil.
- Through additional biomass mobilisation, another source of revenue is generated for the forestry business
- Available in different sizes for the appropriate carrier vehicle.
- Robust and proven technology, low-wear and low-service.
- Plug-and-play connection.
- Made of high-strength Hardox ® steel.

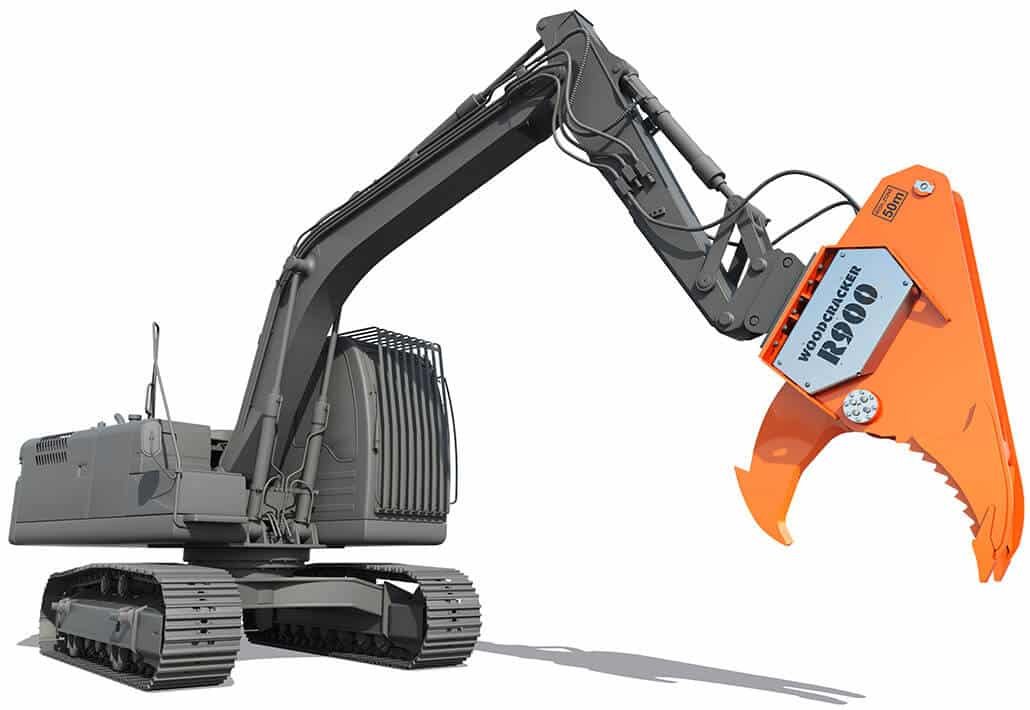

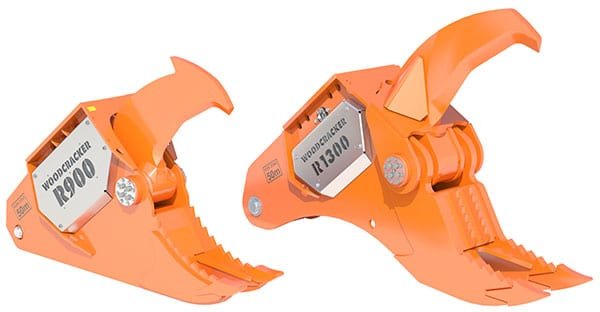

| R 900 | R 1300 | |
|---|---|---|
| Opening stroke (mm) | 955 | 1300 |
| Cutting force (depending on operating pressure) (t) | up to 45 | up to 65 |
| Weight (kg) | 1200 | 2100 |
| Recommended pump flow capacity (l/min.) | 100-190 | 120-250 |
| Recommended operating pressure (bar) | 240-280 | 250-310 |
| Service weight carrier vehicle (t) | 25 | 30 |
