Woodgripper WG

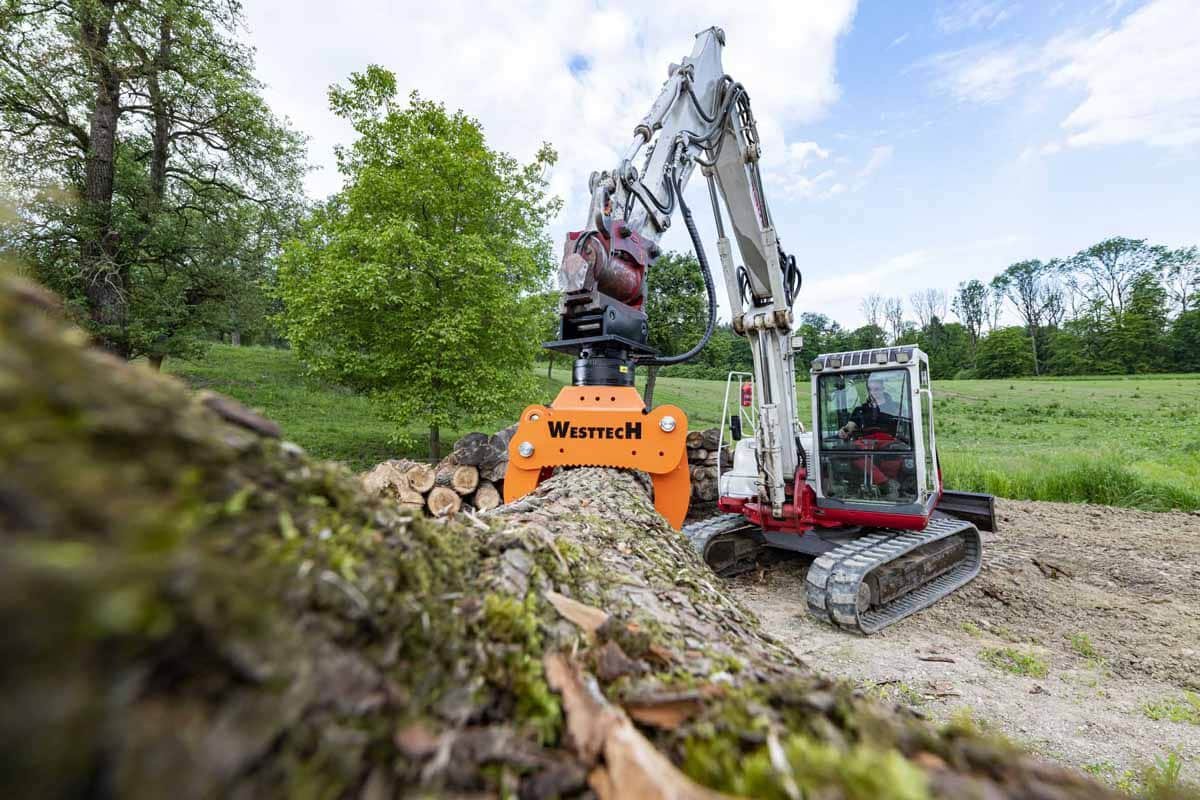

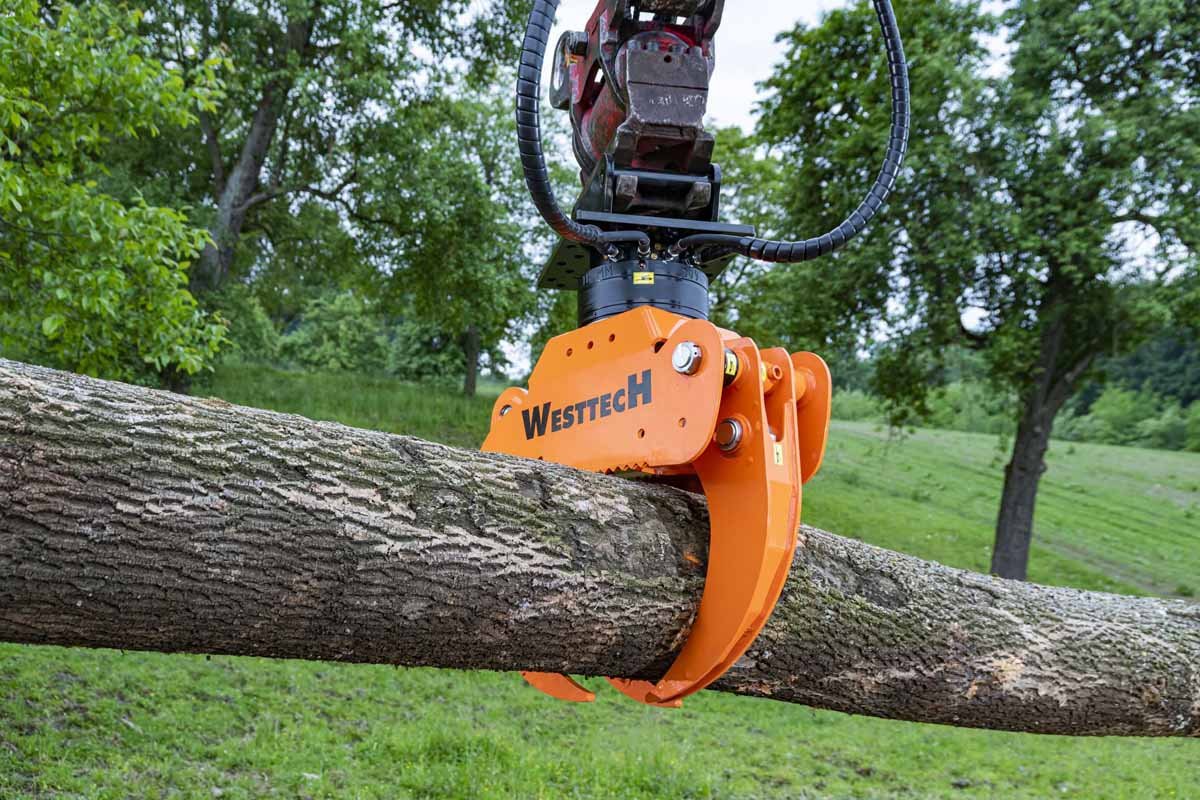

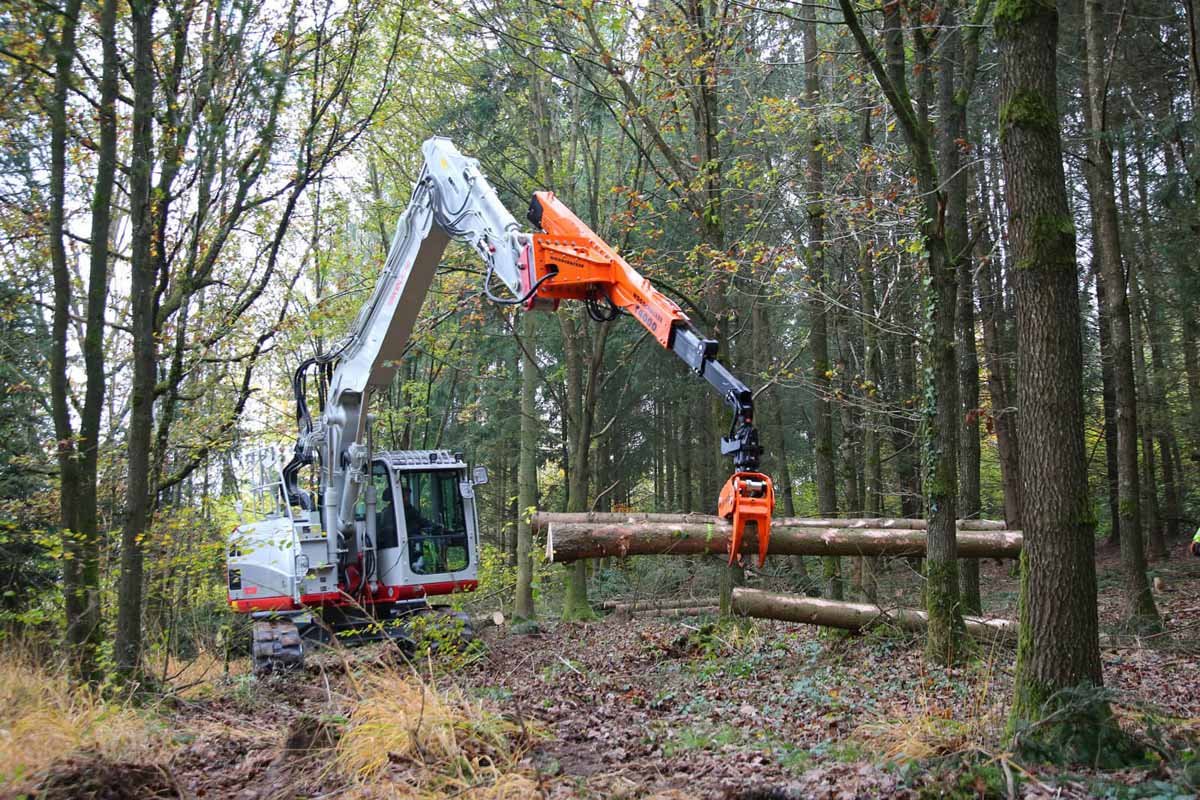

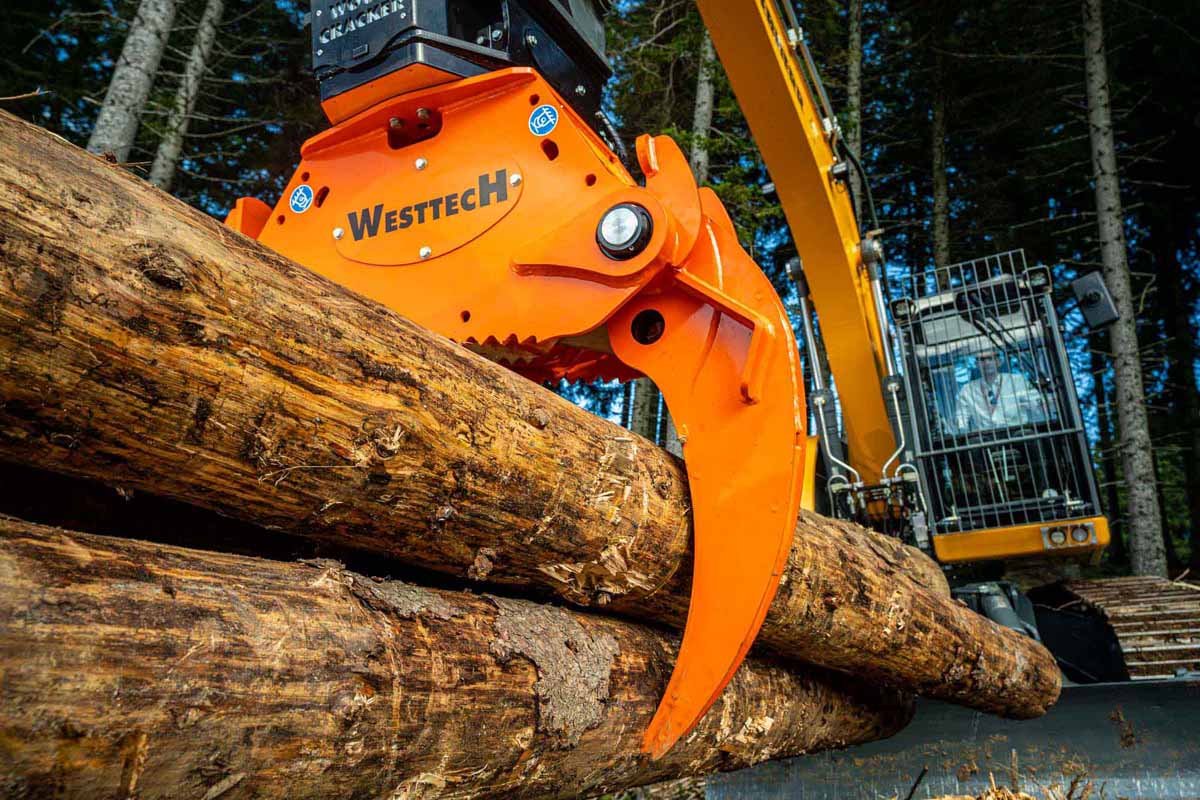

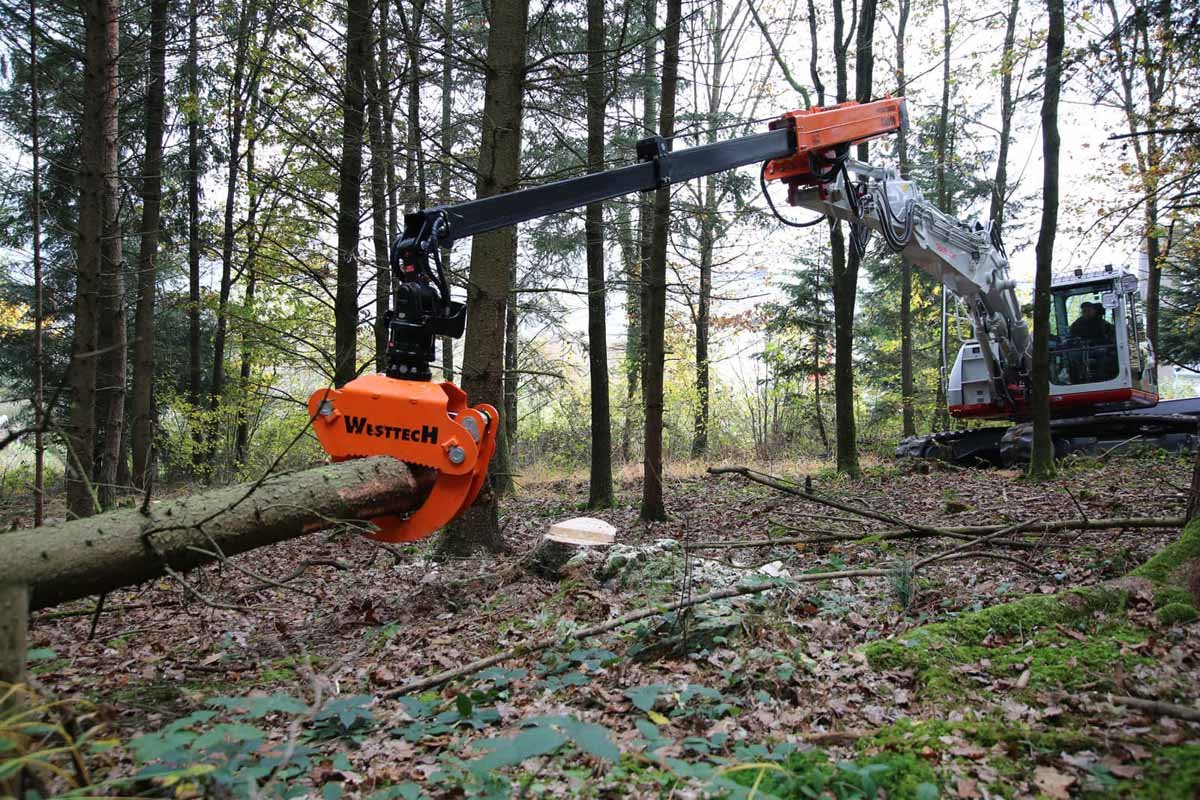

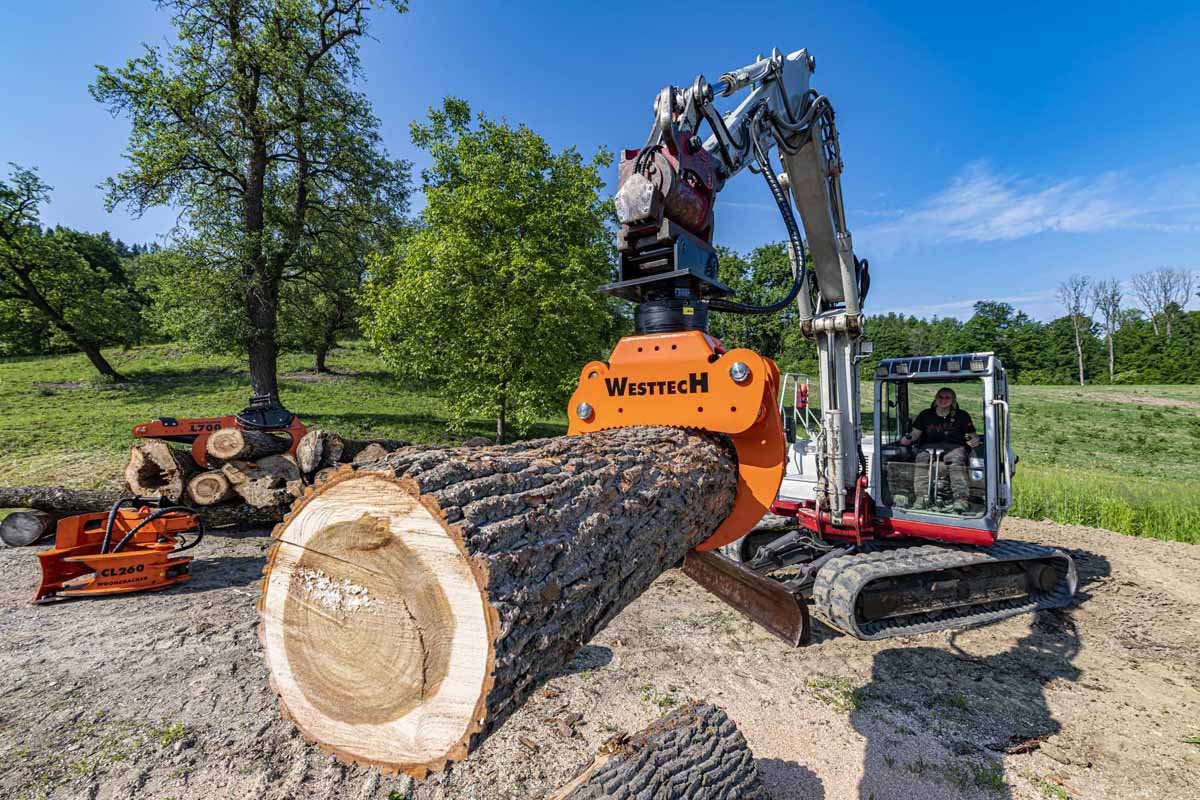

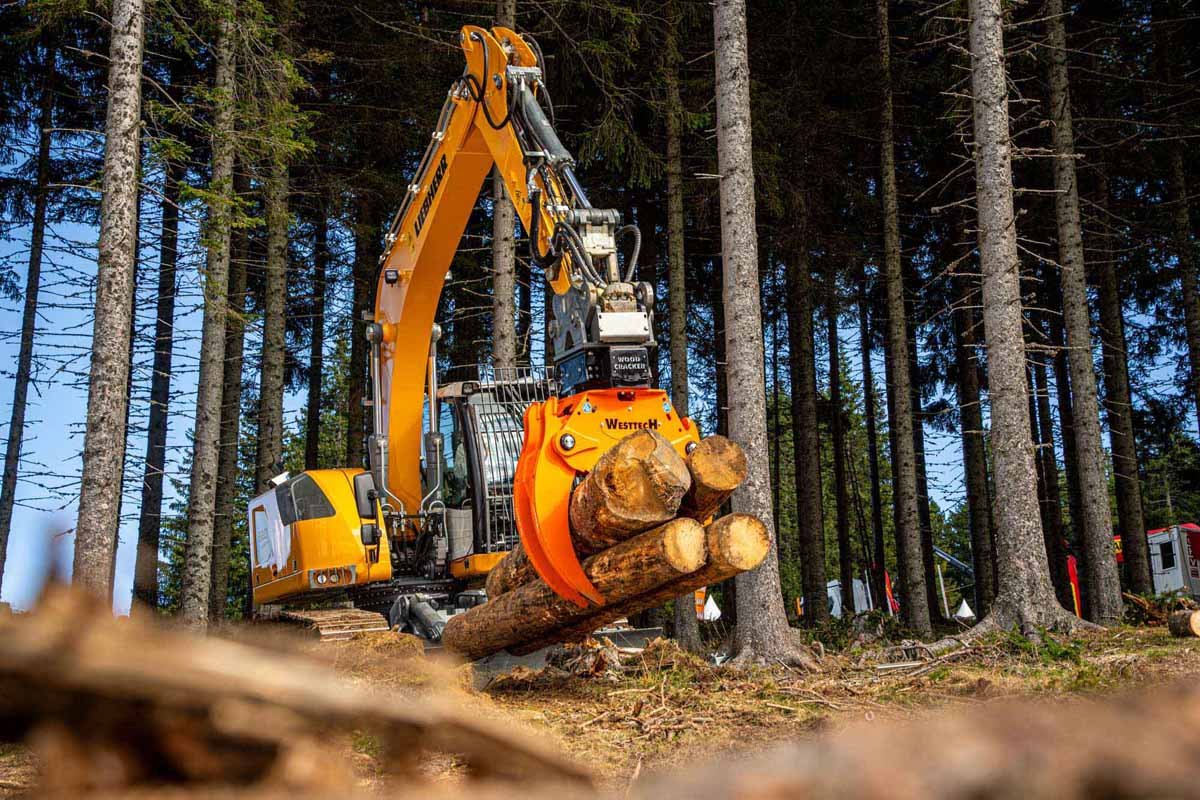

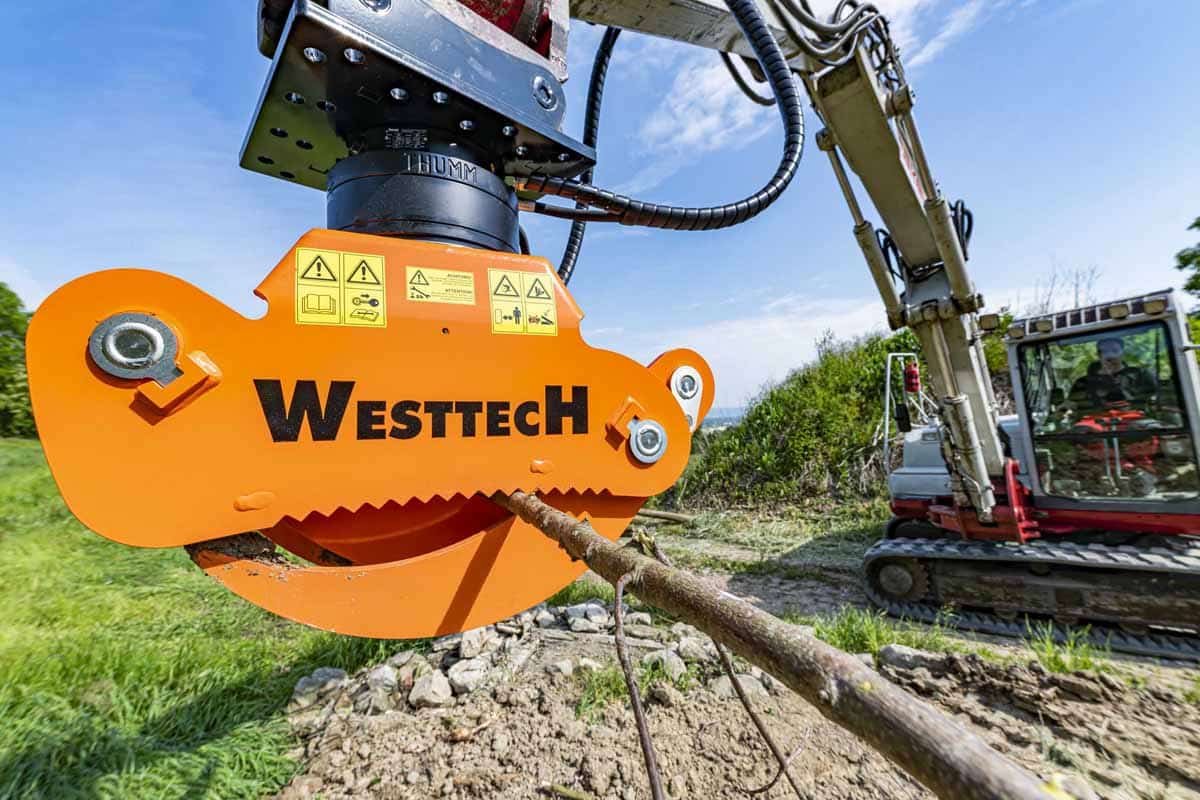

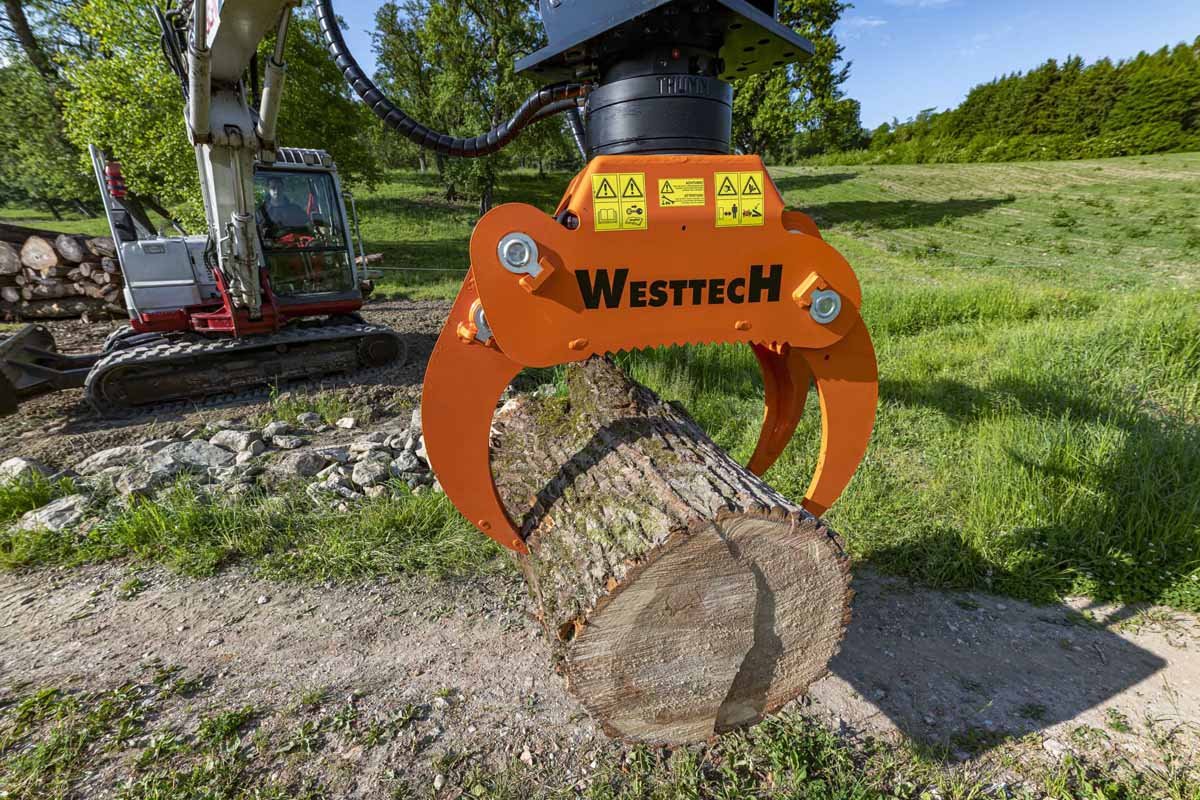

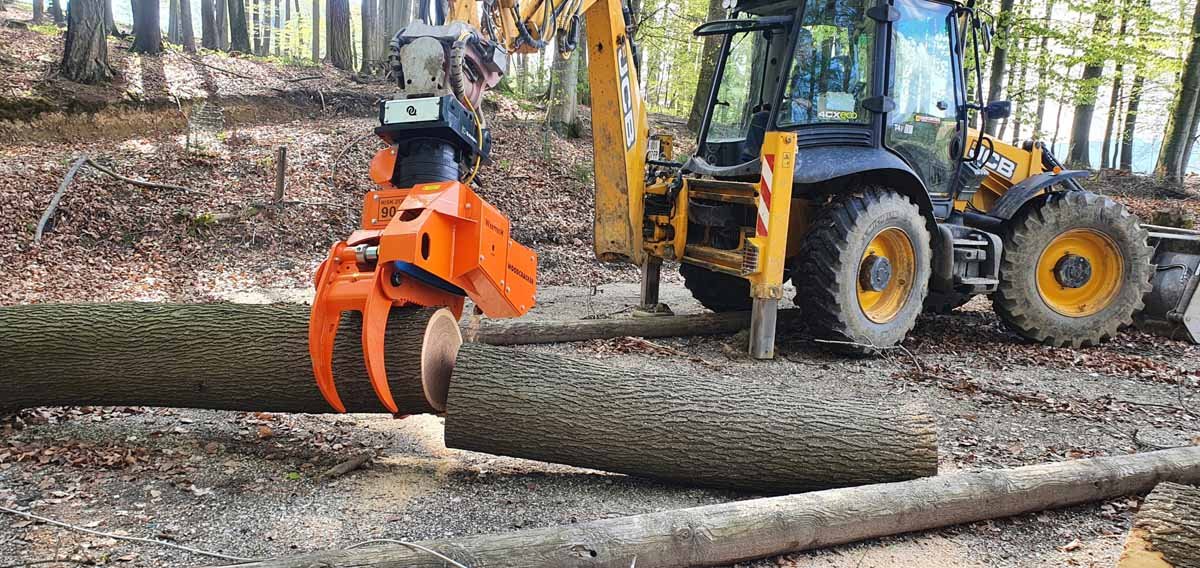

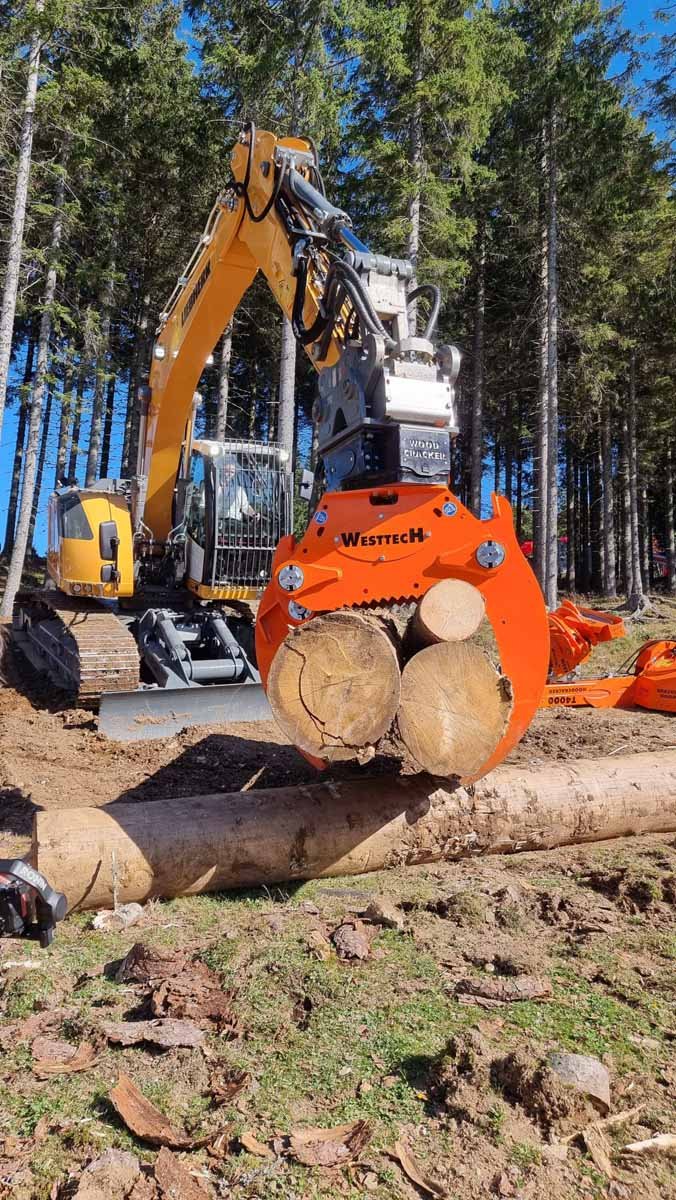

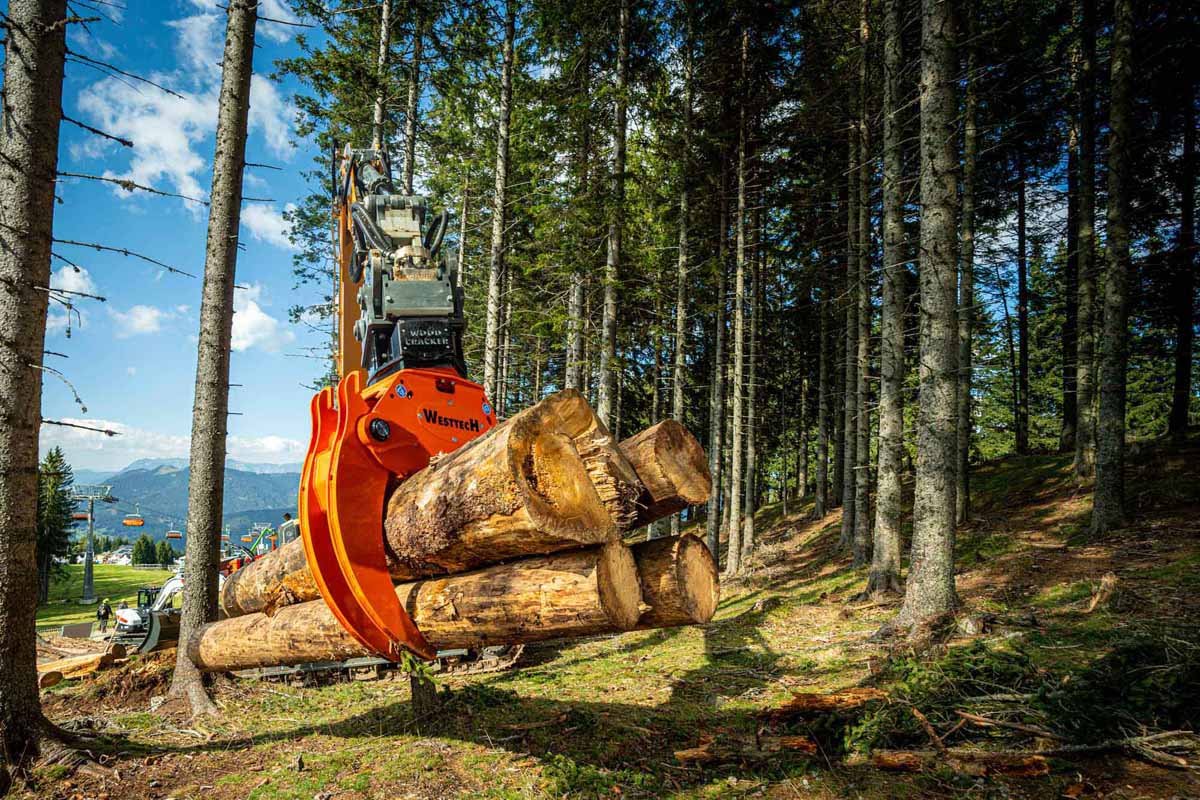

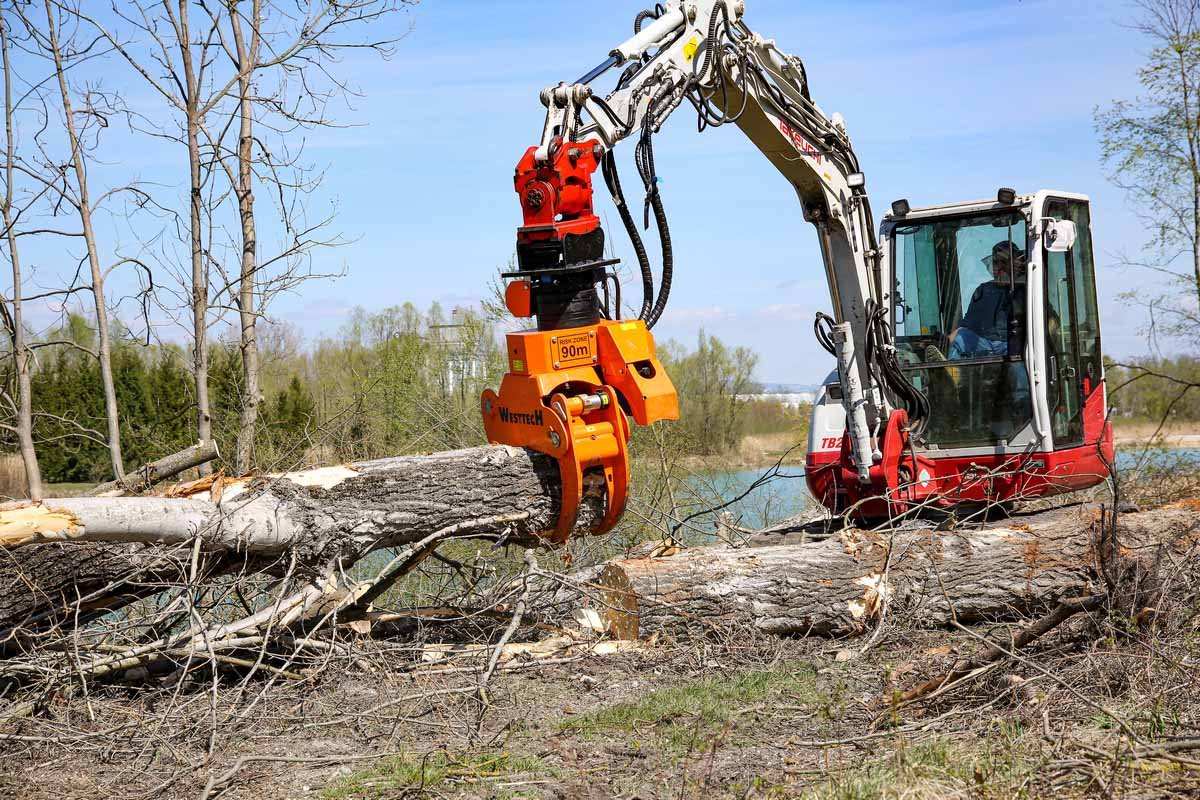

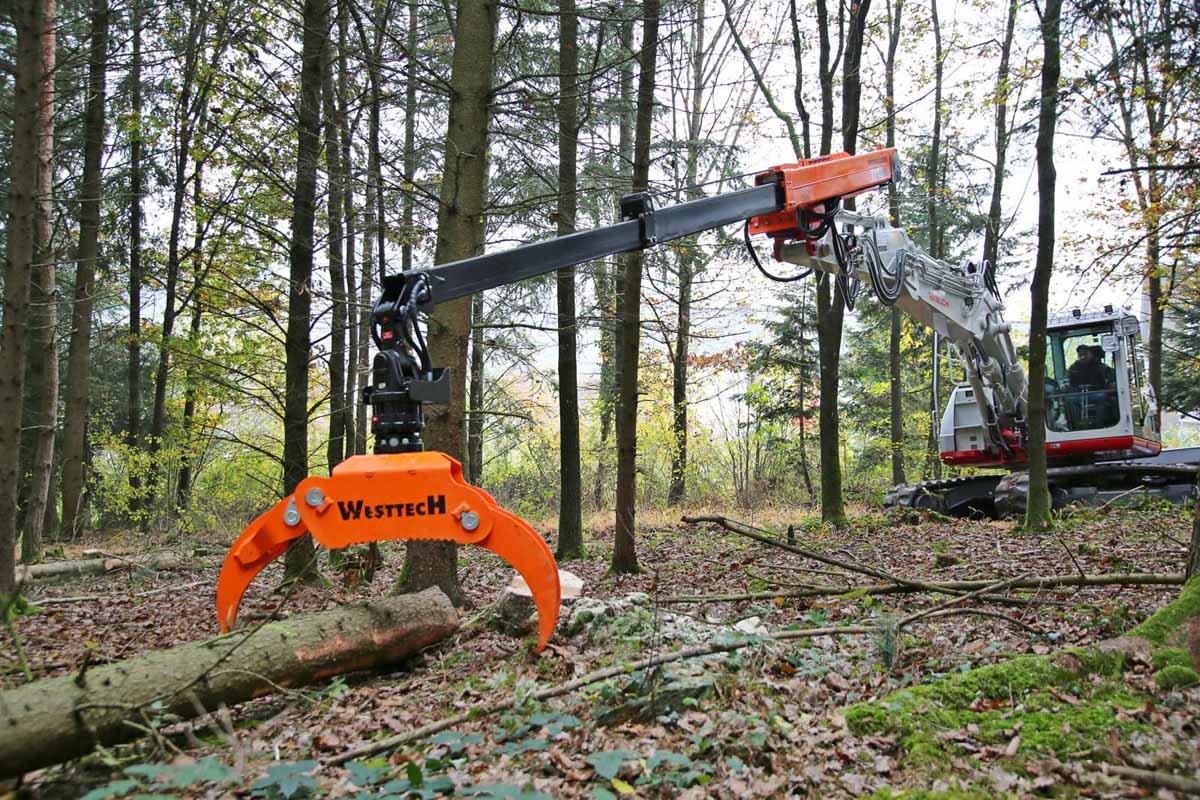

The Woodgripper is a robust grapple saw designed for collecting, loading, and manipulating of tree trunks & branches. Rigid or cardanic mounting options for applications on a variety of carrier vehicles such as cranes, timber trailers, or excavators.

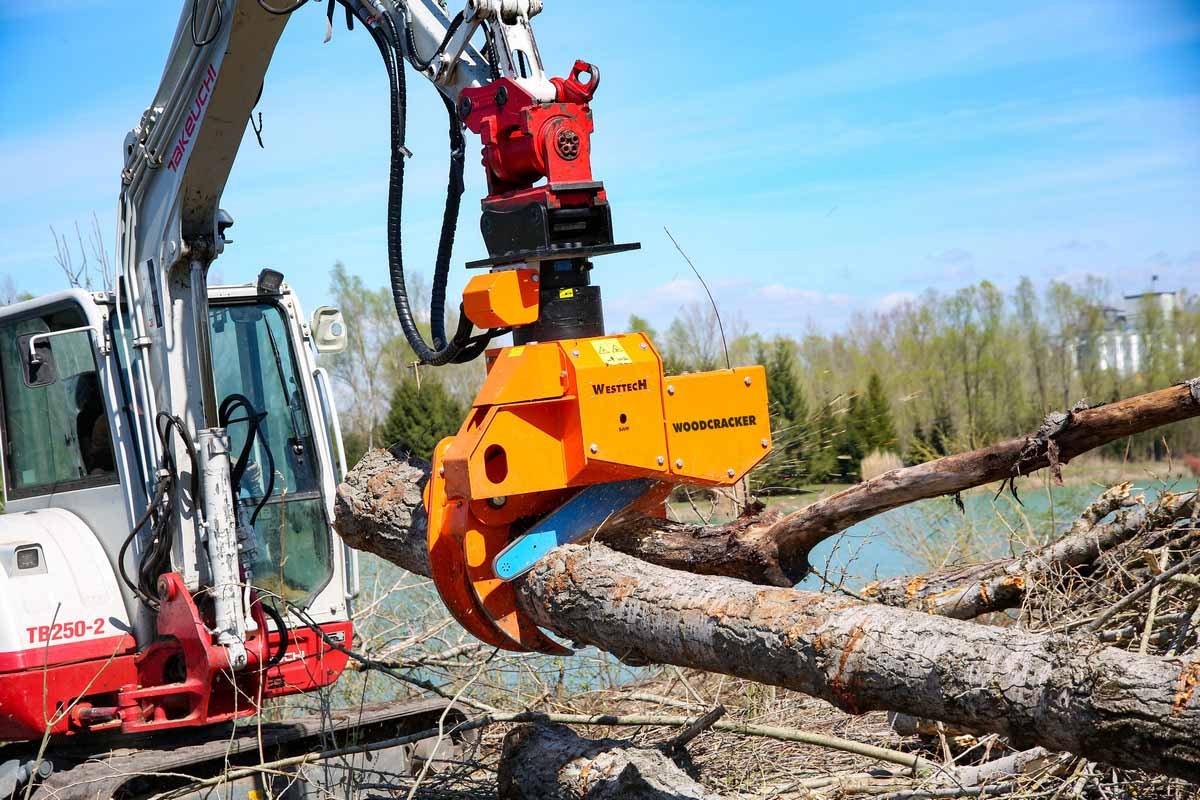

Available with saw unit
Big gripper opening stroke.
Premium pin bearing.
Powerful gripper
Endlessly rotatable rotator.
Short Facts Download
Find all the information on this product at a glance in this pdf
Application Areas
- Collecting/Loading/Manipulating.

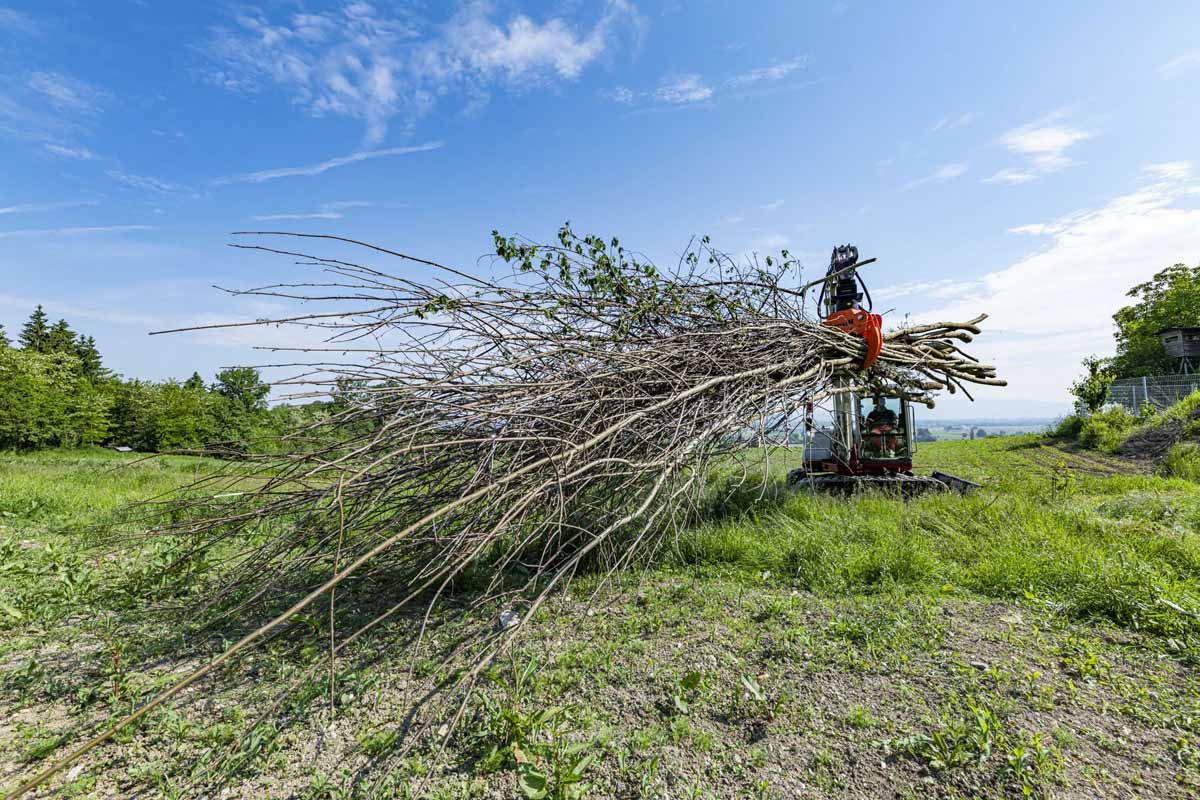

- For tree trunks, branches or brushwood.
- Processing of already felled trees.
- Processing of windthrown timber.

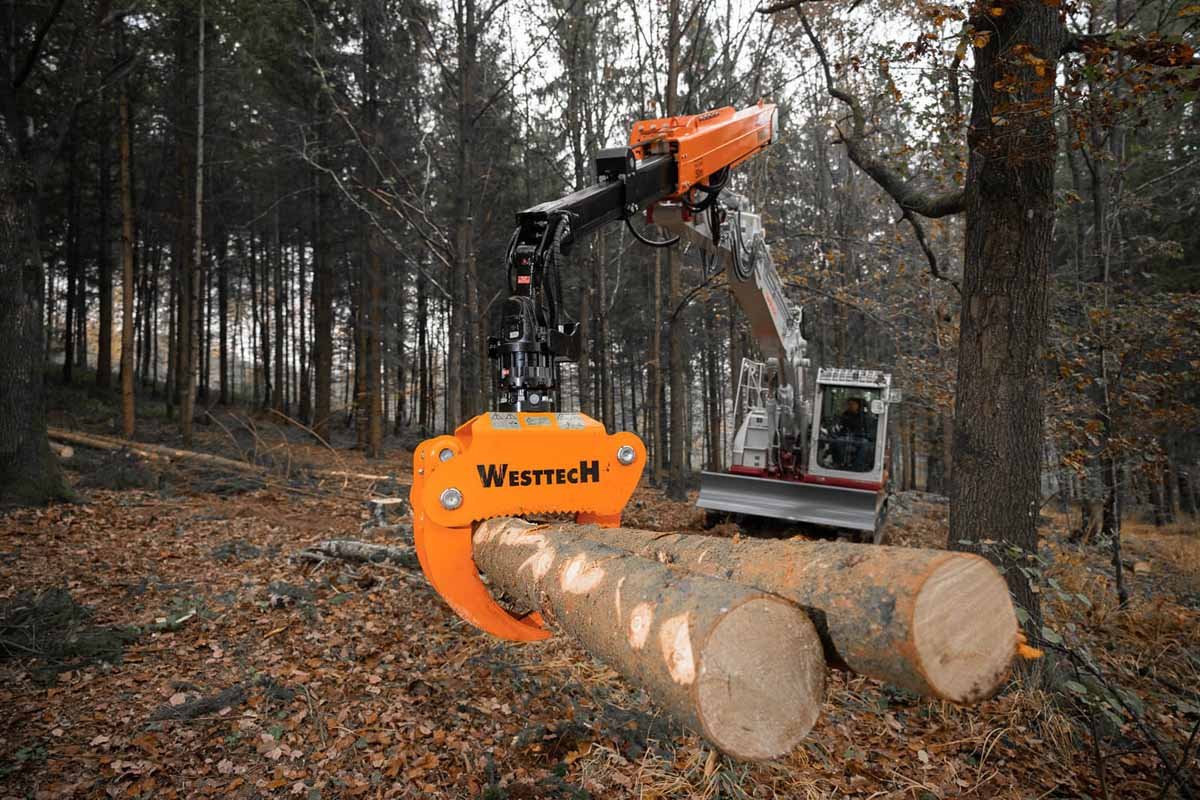

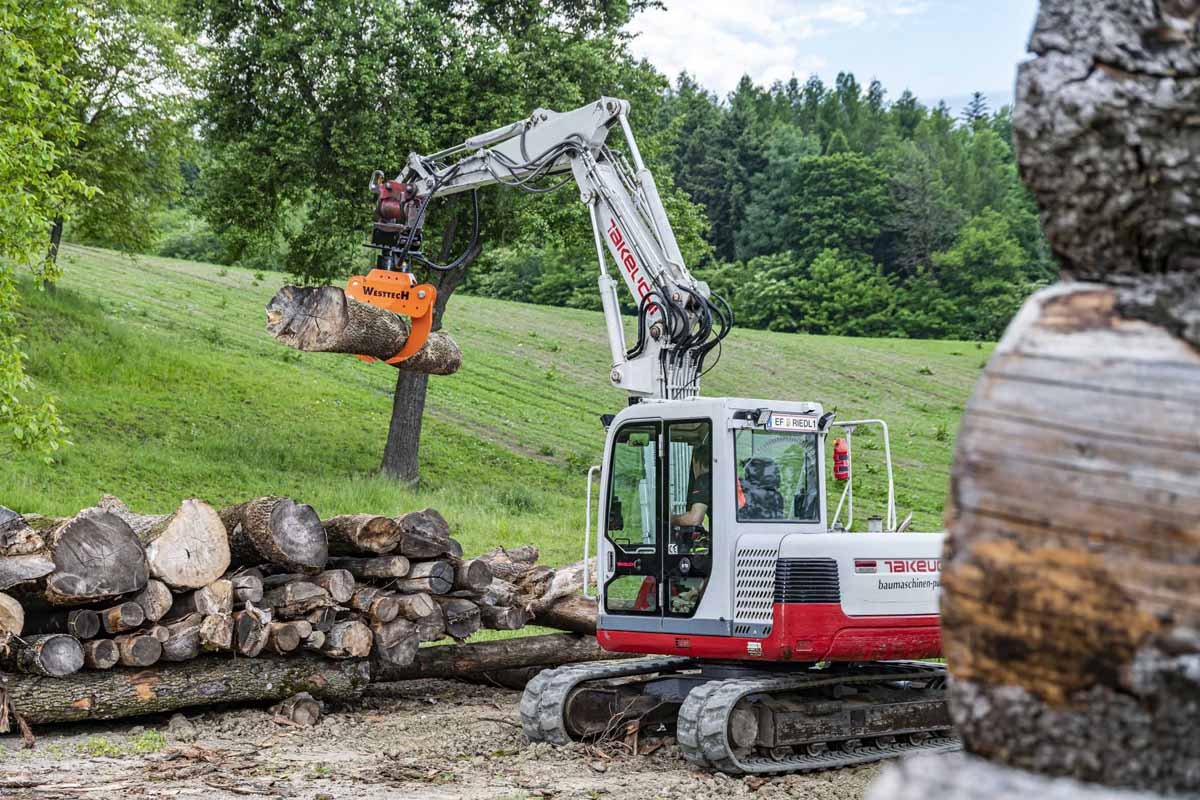

- Loading of logs.

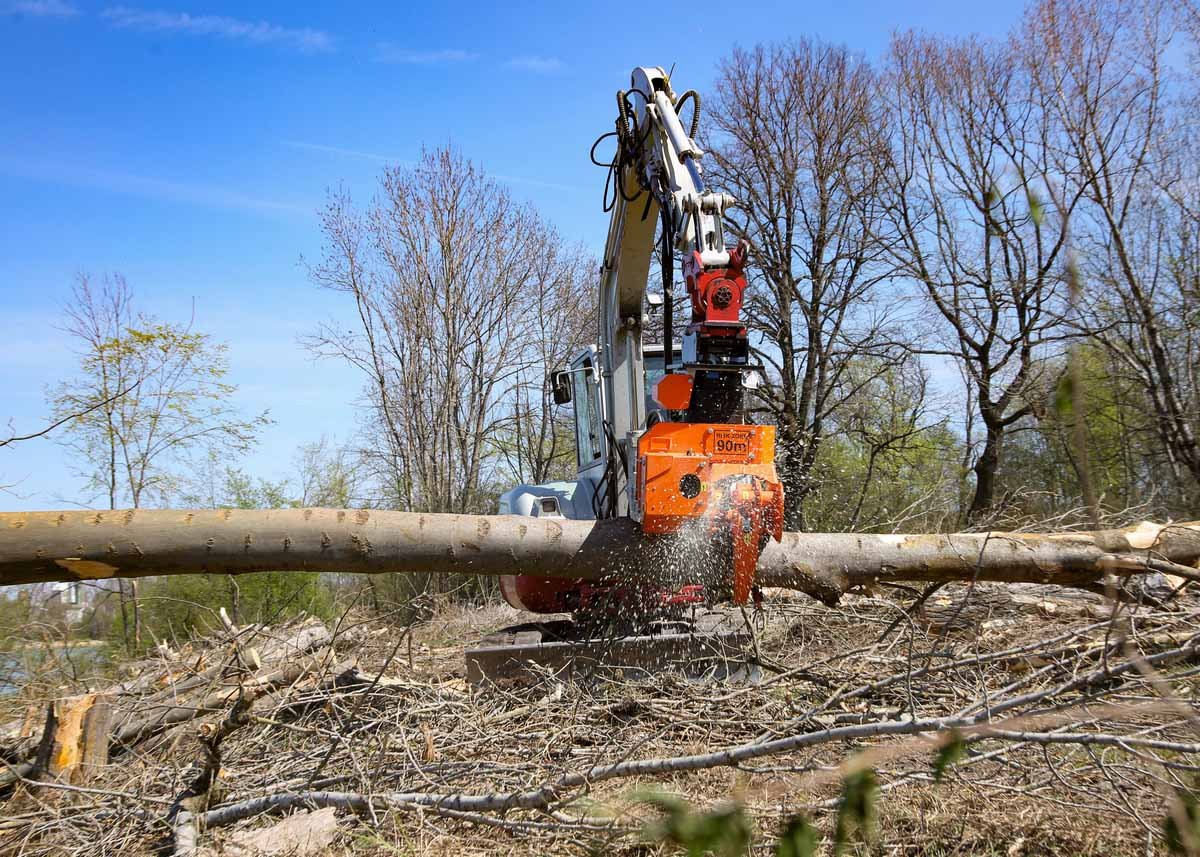

- Gripping and sawing pieces of wood.
- Transport preparation, wood is cut into suitable lengths.
Key Facts
- Rigid or cardanic mounting possible.

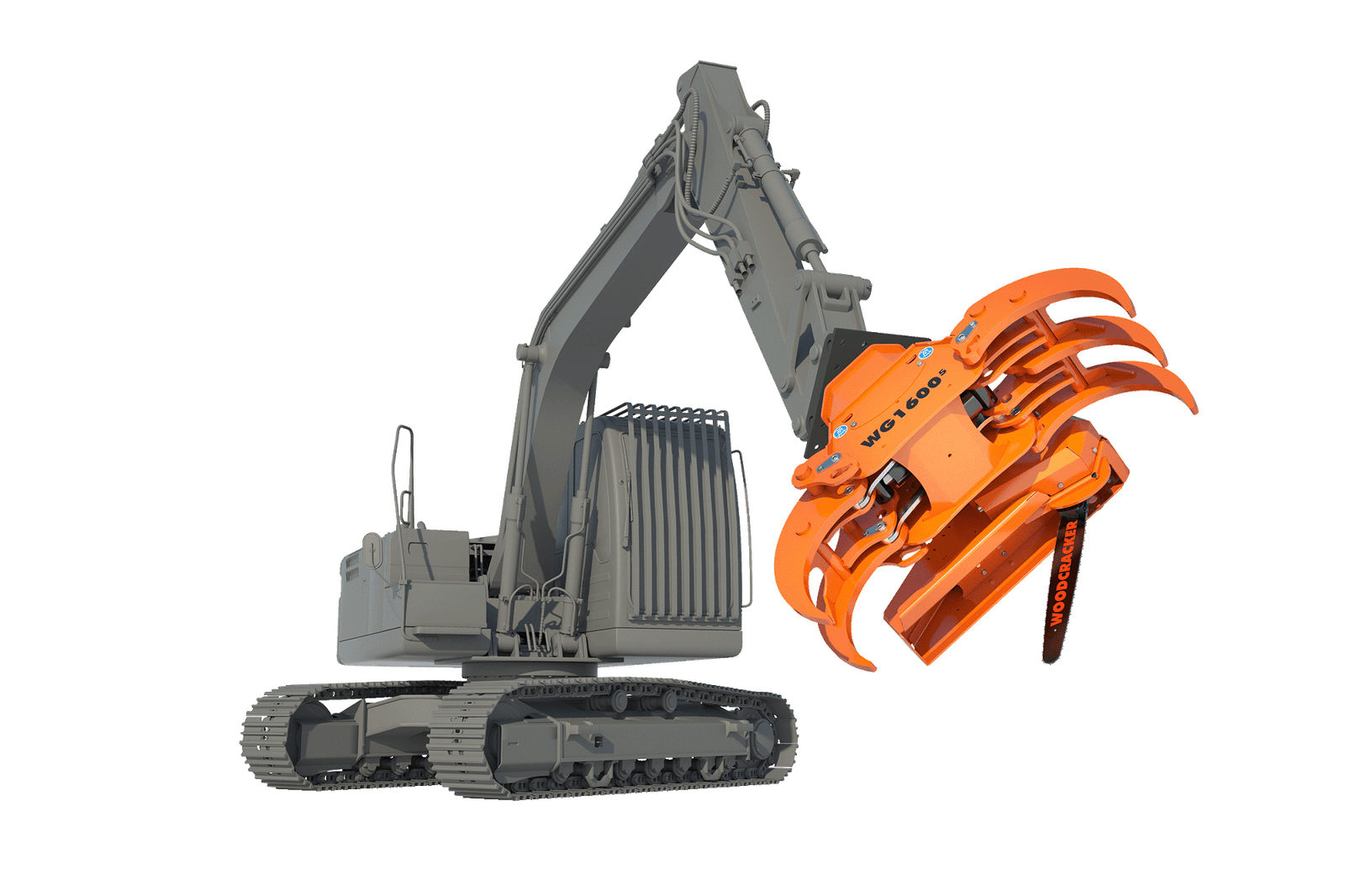

- Can be mounted to cranes, timber trailers or excavators.
- Modular system with different options, eg. saw unit
- Robust and proven technology – Low-wear and low-service.
- KTL-primed (cathodic dip-coating) and powder coating.
- Made of high-strength Hardox ® steel.

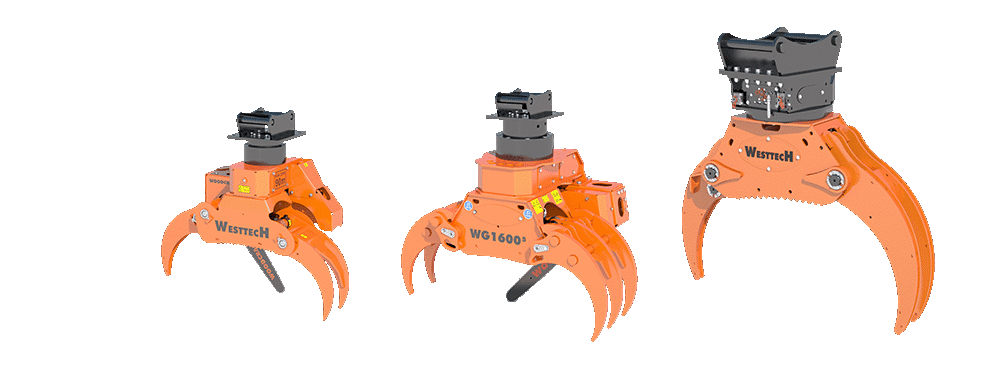

| WG 1270 | WG 1600 | WG 1720 | |
|---|---|---|---|
| Gripper opening stroke (mm) | 1270 | 1600 | 1720 |
| Weight (Base – Full equipment) (kg) | 180-500 | 530-780 | 690-930 |
| Recommended pump flow capacity (l/min.) | 30-90 | 60-190 | 60-190 |
| Recommended operating pressure (bar) | 180-300 | 100-300 | 100-300 |
| Service weight of carrier vehicle rigid (t) | 3-10 | 12-22 | 15-28 |
| Number of gripper fingers | 3 | 5 opt. 7 | 3 |
| Optional: Quick coupler QC | ■ | - | - |
| Optional: Rotator | gimbal /rigid | gimbal /rigid | gimbal /rigid |
| Optional: Saw unit | ■ | ■ | - |
| Optional: Walking foot with cardanic attachment | ■ | ■ | - |
